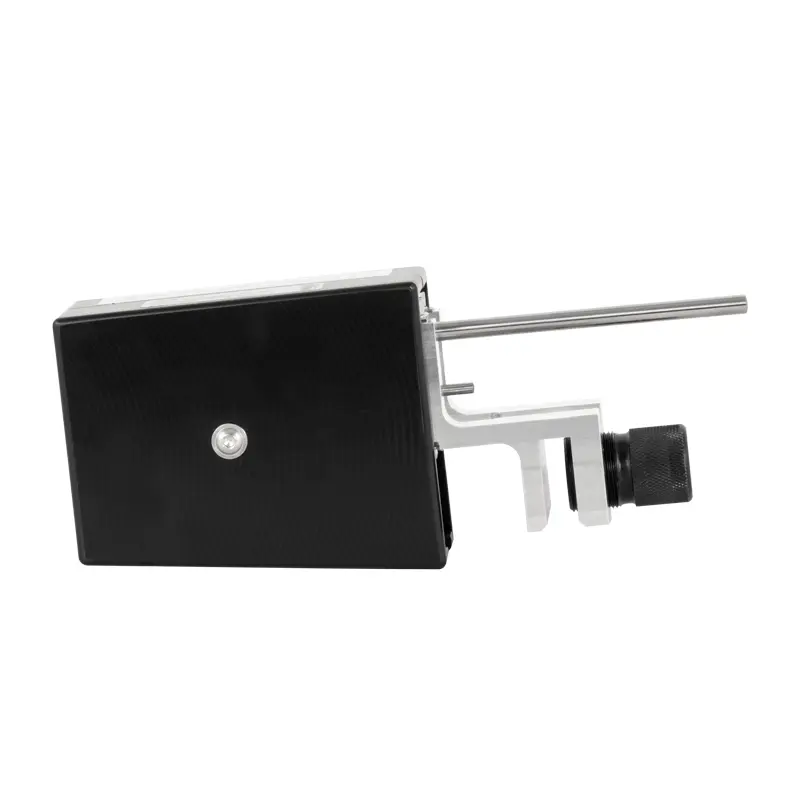

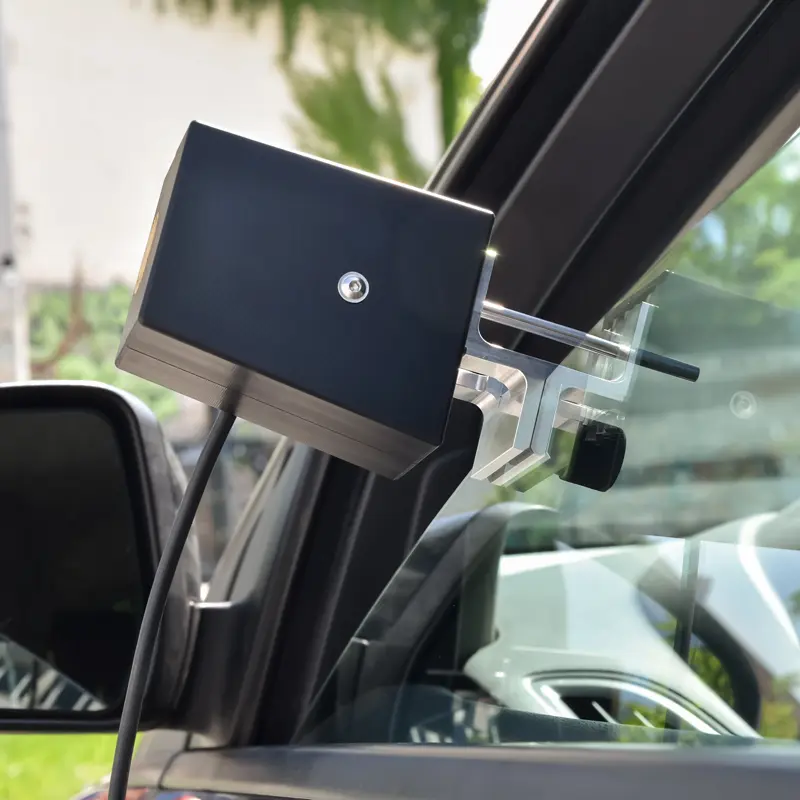

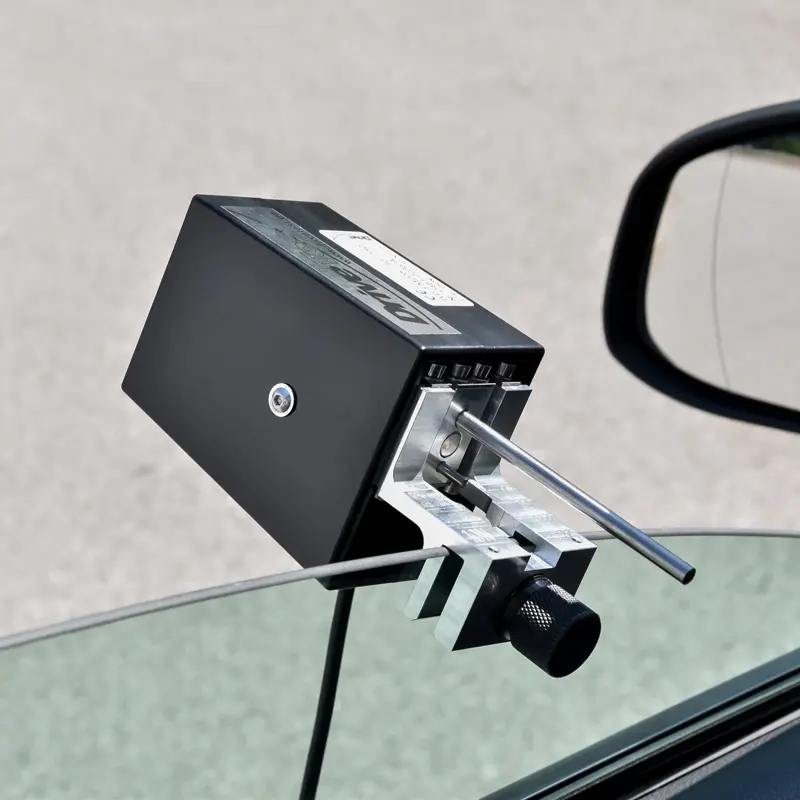

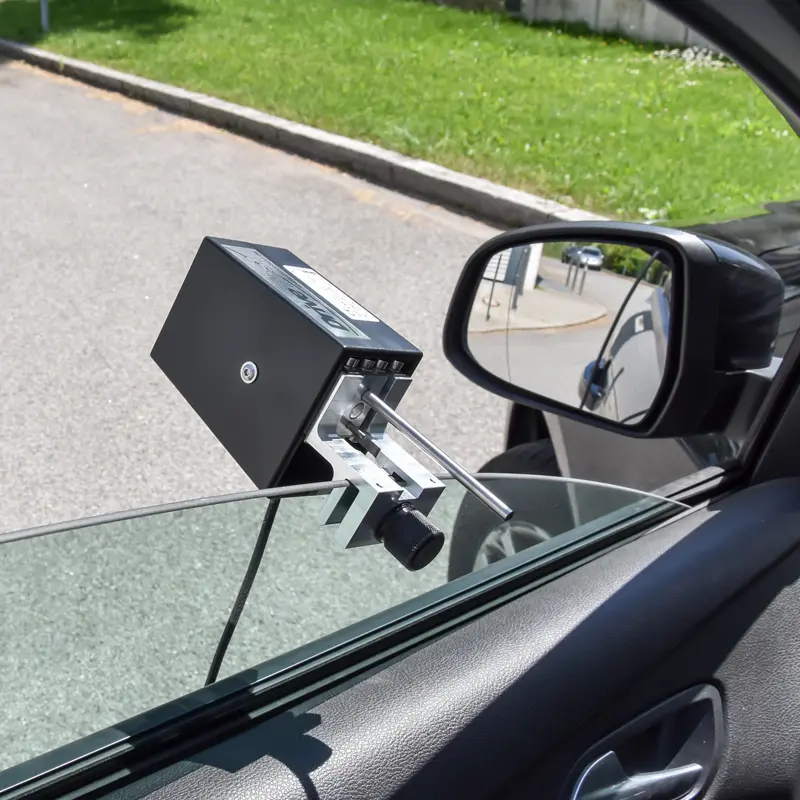

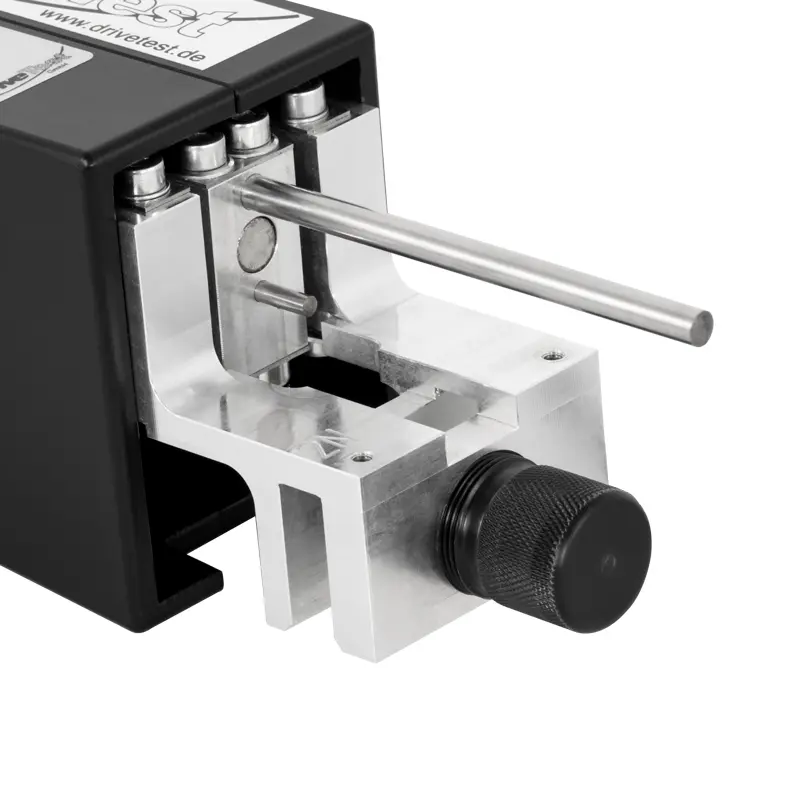

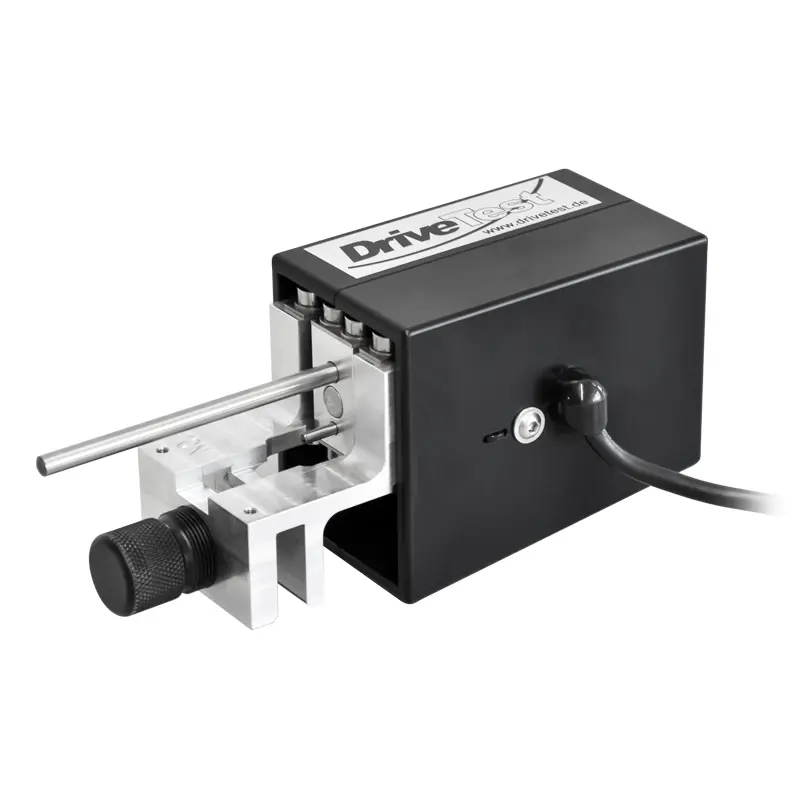

Closing force sensor FM205-WI-SE-02-050 for automatic window regulators

Order no.: FM205-WI-SE-05-100
GTIN (EAN): 4260650210440
US$ 2,473.68
ISO Calibration
ex. VAT, ex. delivery costs
:
4260650210440
FM205-WI-SE-05-100
Available in: min. 4 weeks
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Specification

Application of force   on one side
Measuring range 0 ... 200 N
Accuracy +/– 3 N (0–100 N) or
  +/– 3 % (>100 N)
Spring stiffness20 N/mm
Gap width Fmax. 5 mm / 0.2"
Area 5 x 80 mm / 0.2 x 3.1"
Force sensor
Cable length		 strain gauge bridge
1.5 m / 4.9 ft
Dimensions 175 x 75 x 57 mm / 6.8 x 2.9 x 2.2"
Weight ca. 400 g / 14.1 oz

Delivery Scope

1 x Closing force sensor FM205-WI-SE-02-050

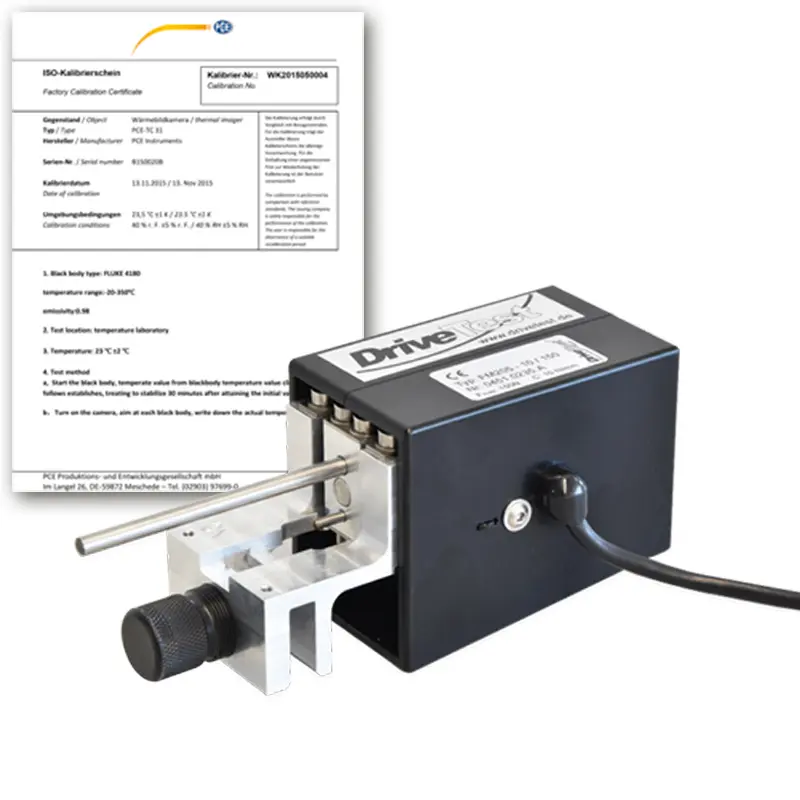

1 x ISO calibration certificate
