Closing Force Transducer FM200/10 for Sliding roofs, Window lifters, Tailgates

Order no.: FM200-SU-SY-10-200
GTIN (EAN): 4260650210099
US$ 4,092.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4260650210099
FM200-SU-SY-10-200
Available in: min. 4 weeks
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Sensor FM200-SU-SE-65-300 for sliding roofs, window lifters, tailgates
Sensor FM200-SU-SE-65-300 for sliding roofs, window lifters, tailgates
US$ 2,105.40
ISO Calibration
Sensor FM200-SU-SE-20-300 for sliding roofs, window lifters, tailgates
Sensor FM200-SU-SE-20-300 for sliding roofs, window lifters, tailgates
US$ 2,105.40
ISO Calibration
DAkkS calibration certificate for closing force measuring device (electronic)
DAkkS calibration certificate for closing force measuring device (electronic)
US$ 792.00

Description

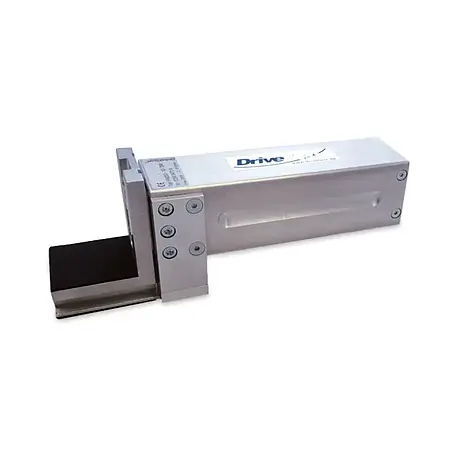

Force transducer

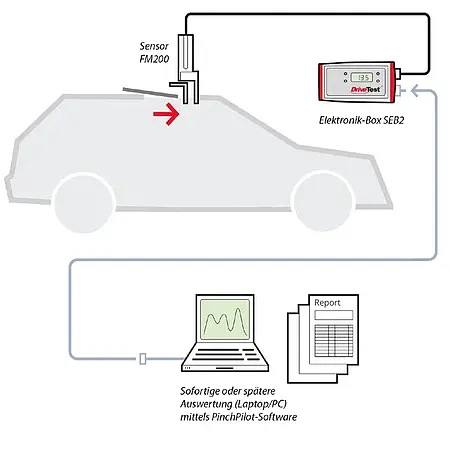

Closing force measuring system for sunroofs, window regulators and tailgates

The force transducer is an electronic closing force measuring device for power-operated windows, sunroofs and tailgates in the motor vehicle sector. Typical areas of application are testing and production in the automotive industry. It is also increasingly being used by technical monitoring institutions. Its uncompromising design combines precision with practical robustness and ensures accurate measured values even after years of use in harsh environments.

When it comes to measuring setups in testing and production, quick and easy execution is of great importance. For this purpose, Drive Test has developed software that drastically reduces the measurement process and the effort required for documentation. With just a few operating steps, the measurements can be loaded into a PC, evaluated, exported and documented. We provide suitable interfaces (e.g. Microsoft® DLL or National Instruments® LabVIEW) for integration into an automated test procedure.


Highlights

- Support of relevant standards – 2000/4 EG, US Standard FMVSS 118
- Precise measurements - due to friction-free guidance and platform load cell
- Robust design
- Ease of use – single button operation or remote via Microsoft® DLL
   interface or National Instruments ® LabVIEW library
- Complete scope of delivery - including high-quality transport case and software
- Professional, comprehensive PC software – PinchPilot
- Comprehensive user support - calibration service, standard change service ensures the
   application of the latest version of the standard
- Flexible adjustment - made possible by a variety of available force introductions:
   Customizations also available from DriveTest

Specification

FM 200/10
Measuring range up to 300 N
Accuracy +/– 3 N or 3% of reading
Stiffness 10 N/mm
Gap width minimum 4 mm / 0.15"
Area 50 x 50 mm / 1.9 x 1.9"
Measuring principle DMS transducer
Dimensions 240 x 85 x 60 mm / 9.4 x 3.3 x 2.3"
Weight 1.3 kg / 2.8 lb


Display device SEB2
- Data logger unit with LCD display and LED status indicators, control button, serial
   interface
- Optional PC-controlled measurement
- 9 V battery supply
- Real time clock
- Memory for 100 measurements
- Sensor and PC interface
- Peak value display and effective power display
- Rating display i. O./n. i. O.

PC evaluation software PinchPilot (detailed description in the accessories)
- Multilingual (DE, EN, IT, FR, ES)
- Graphic representation of the force curve
- Calculation of important parameters
- Evaluation according to different guidelines (standards)
- Possibility of entering self-defined guidelines
- Log printout
- Data export (Excel, CSV, PDF)

- System requirements software PinchPilot (see tab Software/App)

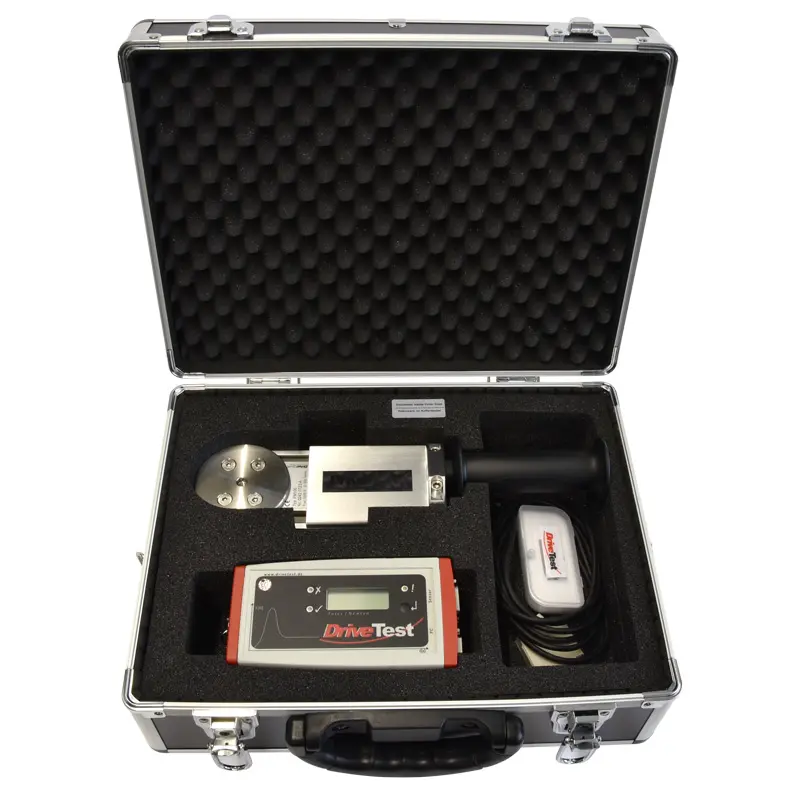

Delivery Scope

1 x Closing Force Transducer FM200/10
1 x Separate measured value acquisition module (SEB2 display device) with LCD display, LED display,
    membrane button and serial interface
1 x 9V block battery
1 x Transport case with foam insert for the complete scope of delivery
1 x PC connection cable (USB)
1 x USB data stick with PC evaluation software PinchPilot and documentation
1 x Manual
1 x ISO calibration certificate

Software / App

Description of software / technical requirements
For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during closing force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.

- PC/Laptop Windows 7 or higher
- USB serial port or Bluetooth interface
- Measuring device
- for the following measuring devices: Original BIA Class 1, BIA 600, FM 100, FM 200, FM 202,
    FM 205, FM 206, FM 207, FM 208, FM 300

PC software PinchPilot
Our "PinchPilot" software is used to evaluate the data obtained during closing force measurements. No additional software is required for daily work.

Data export
PinchPilot provides all the functions required for routine measurements. Should the data nevertheless be processed further in another room, there are various types of export to choose from:

Text export: measured values as a series of numbers; can be imported e.g. into Microsoft Excel
Image export: log or single diagram in EMF format; can be imported, e.g. into Microsoft Word Measurement data can be exported as ppdx (XML format) and imported with our other software tools for further processing
SQL database: A customer-specific SQL interface can be implemented on request
National Instruments DataPlugin (for import into Diadem or LabView)

Evaluation according to PinchPilot guidelines
The software evaluates the measurement results according to PinchPilot guidelines. These are created on the basis of applicable regulations (laws, standards, guidelines). They consist of a set of parameters that contain the permissible limit values. The measurement results obtained are evaluated accordingly. The permissible range is highlighted in color in the measurement diagram and allows a quick assessment of the measurement. We keep the PinchPilot guidelines up to date. Calibrations by us include an update of the software and thus also of the PinchPilot guidelines. With regular calibration, the user has the security of always checking according to the latest status. In addition to the assessment according to PinchPilot guidelines, the user has the option of creating their own guidelines.

Result documentation
There are two options for documenting measurements in paper form: The measurement log is detailed graphic documentation for a measurement point. While the measurement report is documentation for several measurement points in tabular form. This allows all measurements on an object (door, wagon, etc.) to be documented.
You can set the user language yourself: German, English, French, Italian and Spanish. Software upgrade costs will apply if no license is available for the downloaded version.


The following standards and guidelines can currently be evaluated:
EN 81-1 2000-4-EG
FMVSS118
APTA PR-M-S-18-10
ASME A17.1 2000
EN 14752:2005
EN 14752:2015
2001-85-EG / ECE R. 107 §35 e Abs.5 StVZO
EN14120 DIN 18650-1
EN 12453
EN 16005
EN 60335-2-103
ASR A1.7
ECE R-21
prEN 12650-1


For our measuring devices you need one of our software tools. Our software is used to evaluate the data obtained during clamping force measurements. Depending on which measuring device or which evaluation device you have, you can download different software.
