Coating Thickness Gauge PCE-CT 27FN

Order no.: PCE-CT 27FN

GTIN (EAN): 4250348714770

Accessory

ISO Calibration Certificate for Coating Thickness Meter

US$ 228.00

Coating Thickness Gauge Spare Probe SE-CT 27FN

US$ 132.00

Description

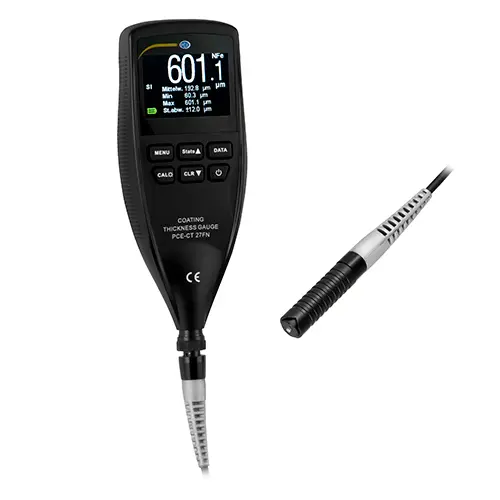

PCE-CT 27FN Coating Thickness Gauge

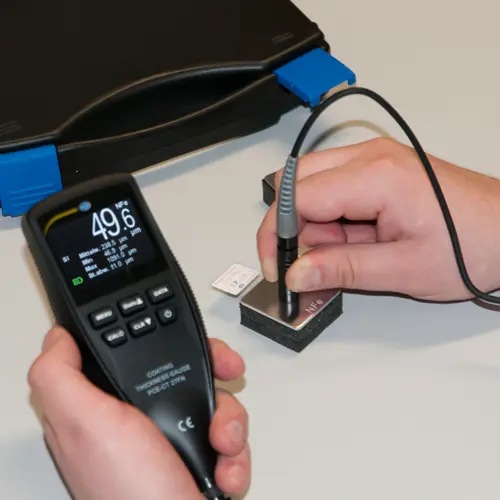

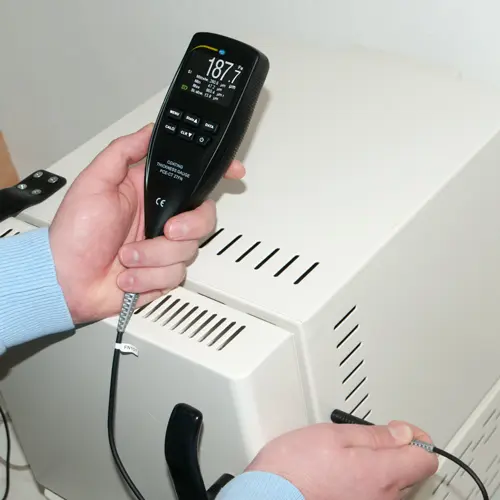

PCE-CT 27FN is a Coating Thickness Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Coating Thickness Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.

Highlights

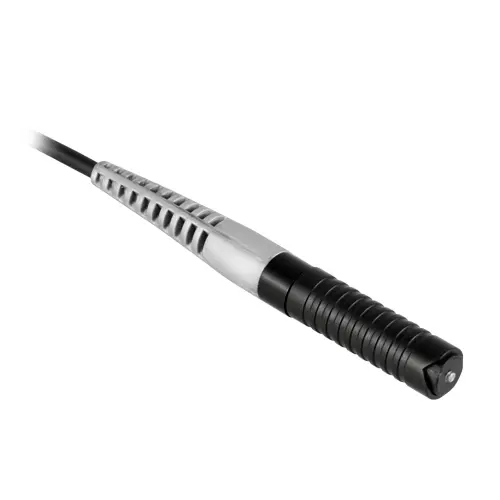

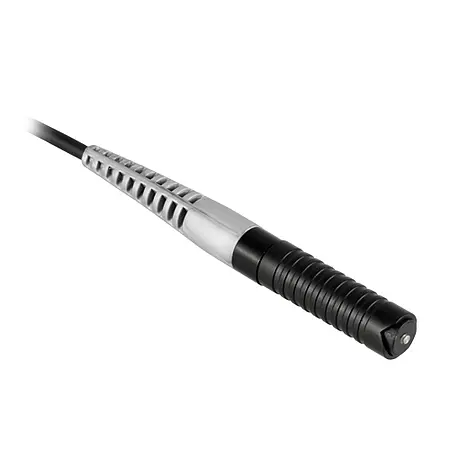

- Features an external sensor with v-groove for reliable measurement on small cylindrical parts

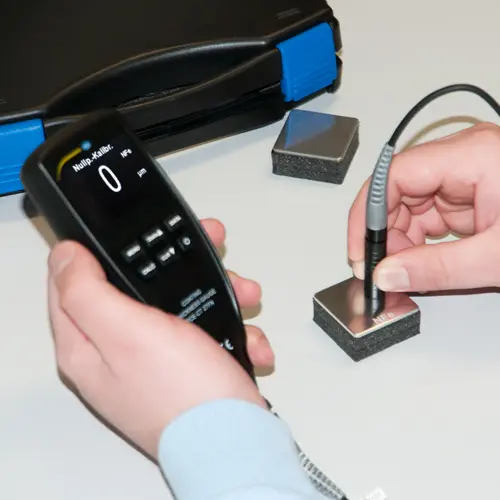

- Includes a set of calibration standards for ferrous and non-ferrous metals

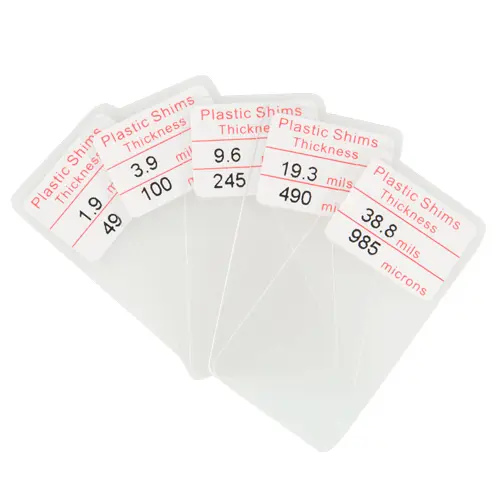

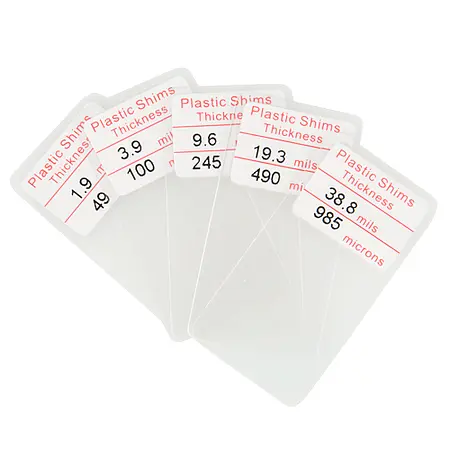

- Comes with a set of plastic shims or foils

Specification

Measuring range	0 ... 1250 µm / 0 ... 50 mils
Accuracy	± (2% + 2 µm) / ± (2% + 0.1 mils)
Resolution	0.1 µm / 0.1 mil
Operating temperatures	-10 ... 50°C / 14 ... 122°F
Power	2 x 1.5V batteries
Dimensions	166 mm x 68 mm x 30 mm 6.54 in x 2.68 in x 1.18 in
Weight	0.180 kg / < 1 lb

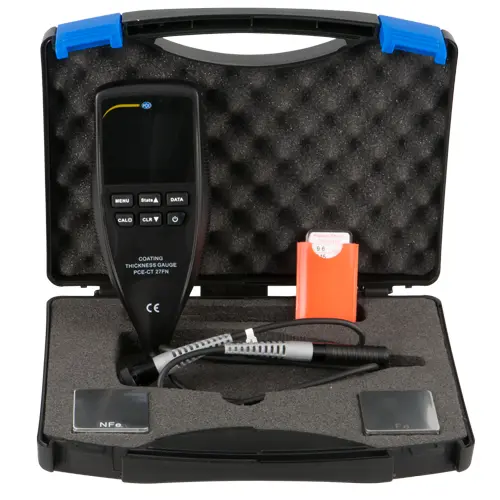

Delivery Scope

1 x PCE-CT 27FN Coating Thickness Gauge
1 x Set of calibration standards
1 x Probe with 1 m / 3.28 ft long cable
1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual

Downloads

Manual

Datasheet

Video

Video Coating Thickness Gauge PCE-CT 27FN
