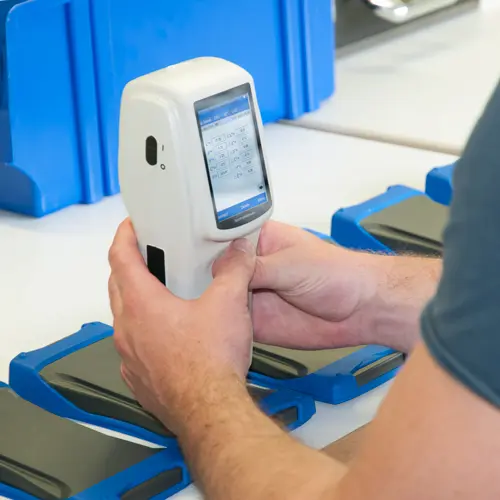

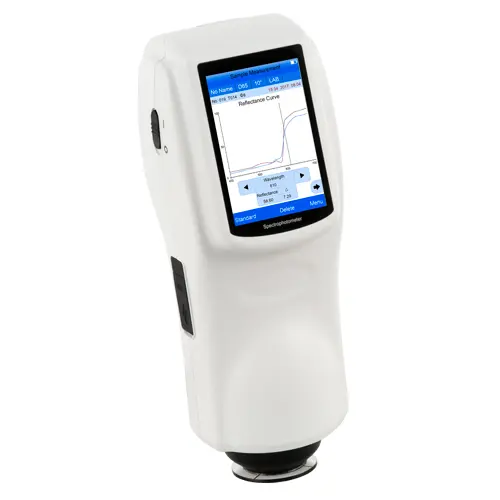

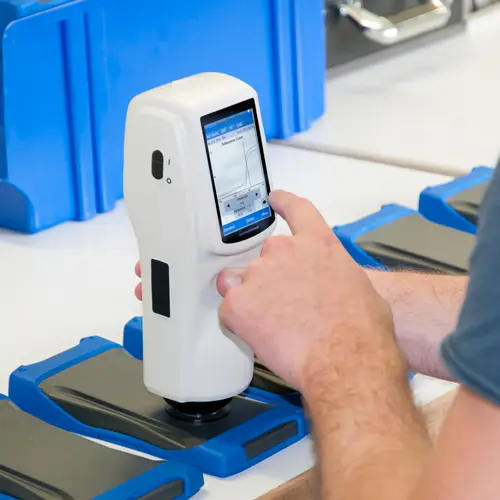

The color meter PCE-CSM 10 was developed for quality control, offers a high accuracy and comes with a 3.5" touch screen display. When using the color meter, you can choose between different color spaces (CIE L*A*B, XYZ, Yxy, LCh, CIE LUV, HunterLAB). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

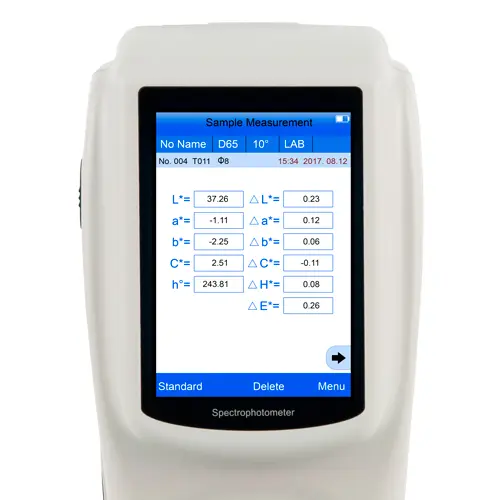

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 1000 reference values and up to 15,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
| Technical specifications | |
| Measuring geometry | 8°/d |

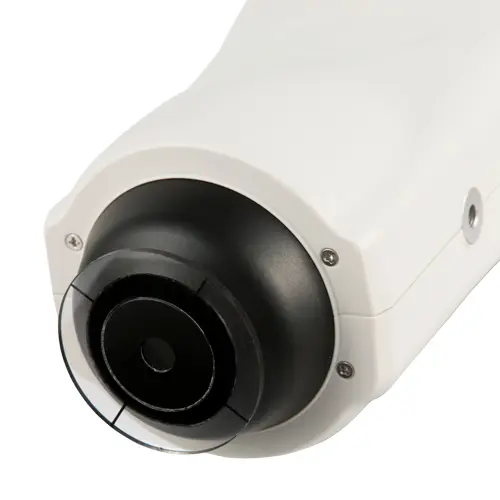

| Measuring aperture | Diameter 8 mm |
| Integrating sphere | Diameter 58 mm |
| Sensor | Silicon photoelectric diode |
| Wavelength range | 400 ... 700 nm |
| Reflection factor range | 0 ... 200 % |
| Color spaces | CIE L*A*B, XYZ, Yxy, LCh, LUV, CIE LAB, HunterLAB |
| Color index | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000, ΔE*00, ΔE(h) |
| Chromacity data | WI (ASTM E313, CIE/ISO, AATCC, Hunter) YI (ASTM D1925, ASTM E313) TI (ASTM E313, CIE/ISO) Metamerism Index Mt color stain, color fastness |
| Observation angle | 2° / 10° |
| Measuring time | 1.2 seconds |
| Light source | D65, A, C, D50, D55, D75, F1, F2(CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12(TL83/U30) |
| Light source device | combined LED |
| Repeatability | Standard deviation within ΔE*ab 0.04 Average of 30 measurements of standard white plate |
| Error between equipment | ΔE*ab 0.2 |

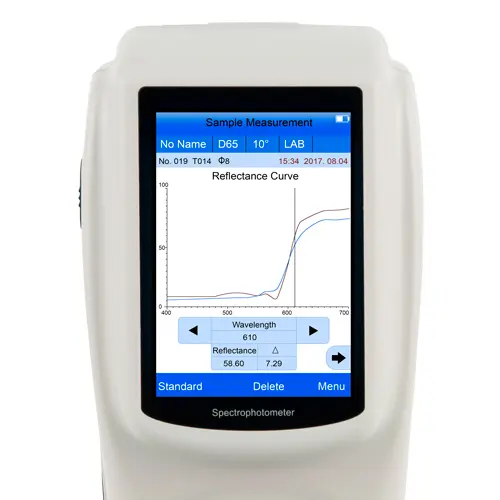

| Display functions | Spectral value/graph, colorimetric value, color difference (value/graph), PASS/FAIL result, color offset, color simulation, color index settings (ΔE*94, ΔE*cmc, ΔE*2000), error limit settings, time settings, language settings, restore factory settings |
| Display | 3.5" TFT touch screen |

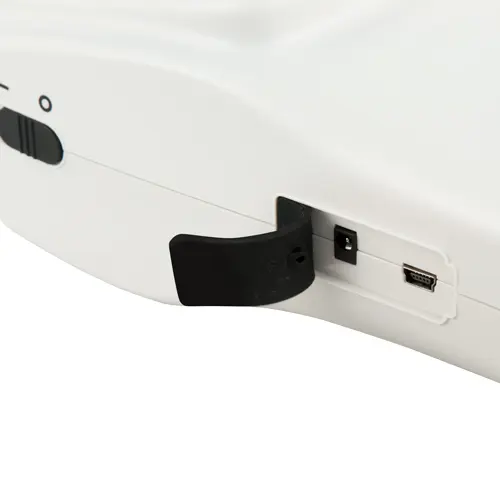

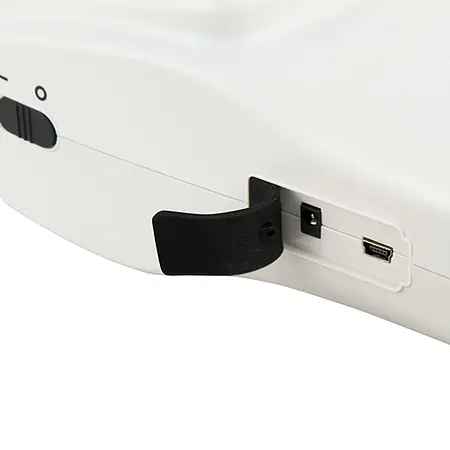

| Interface | USB / RS-232 |
| Storage | 1,000 reference values, 15,000 samples |
| Power supply | Rechargeable lithium-ion battery 3.7 V at 3,200 mAh |
| Life of light source | 5 years > 1.6 million measurements |
| Operating conditions | 0 ... +40 °C |
| Storage conditions | -20 ... +50 °C |
| Dimensions | 90 x 77 x 230 mm |
| Weight | 600 g |
