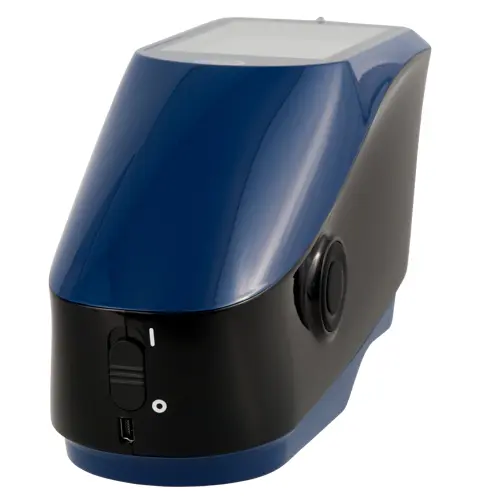

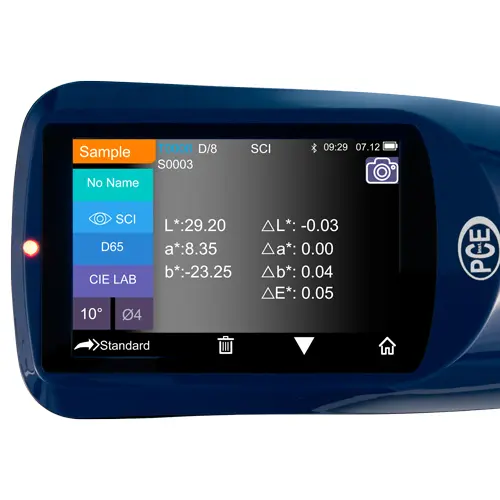

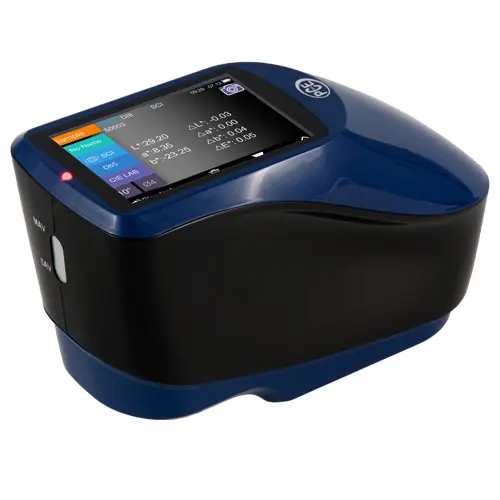

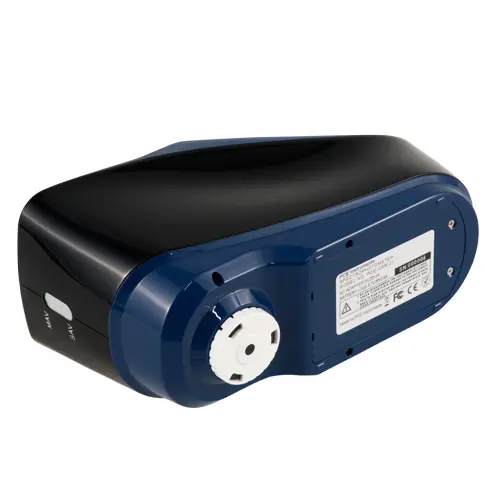

PCE-CSM 21 is a handheld color meter used for high-quality color measurement. Featuring a custom 4 mm aperture and including SCI and SCE specular modes for industrial color measuring applications, the color meter offers a long battery life, a 9-color lamp and an easy-to-use portable design. The color meter covers the full spectrum from 400 to 700 nm in 10 nm increments. The powerful battery allows up to 5000 daily measurements. The software supports both SCI and SCE spectral measurements at once. The unit features a 3.5 inch TFT color touch screen and a 256 image element CMOS image array for superior usability and accuracy. Camera/illumination locating for small samples.

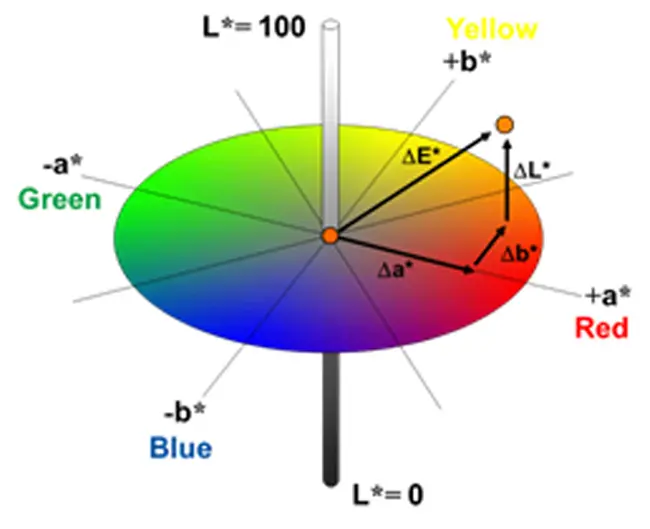

The high-quality processing of the color meter is very fast. The ability to choose aperture size and light source allows the user to discriminate between colors that may look the same. Six color space choices allow the user to choose the best space for their samples. The 256 image element double array CMOS imager allows measurement from 400 to 700 nm in 10 nm increments. The measured data can be transmitted to a computer via Bluetooth or USB. Sophisticated analysis software is also included in the delivery contents that includes the USB cable.
