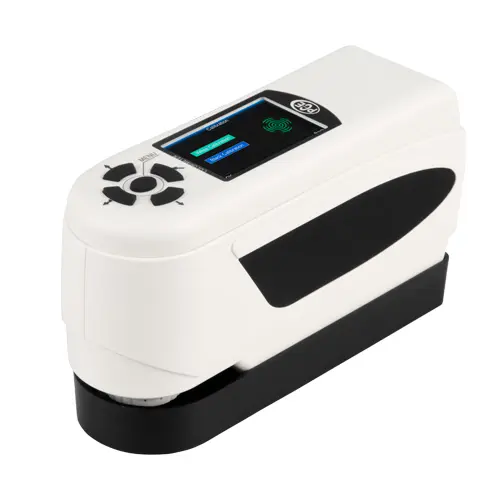

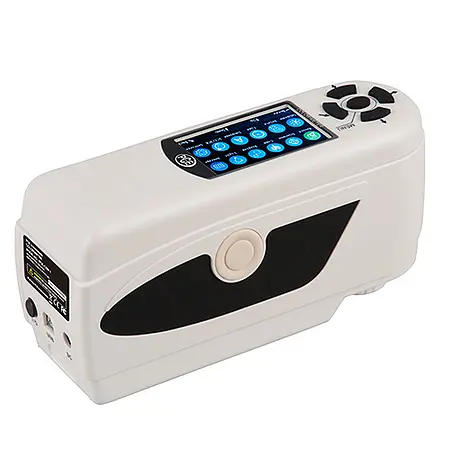

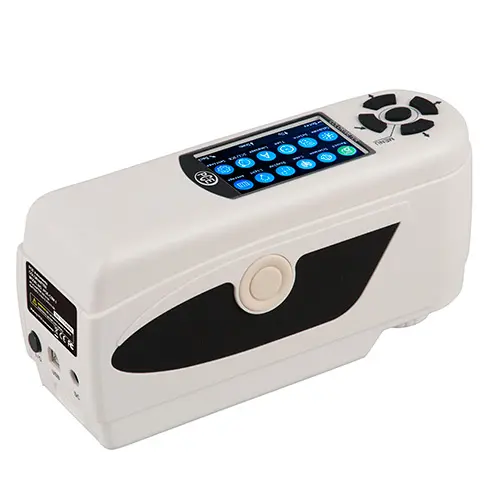

Color Meter PCE-CSM 6

Order no.: PCE-CSM 6
GTIN (EAN): 4250348716507
US$ 2,846.00
ex. VAT, ex. delivery costs
:
4250348716507
PCE-CSM 6
Available in: 1-2 days
Handheld / Desktop
Internal Sensor
Yes
Yes

Accessory

Calibration certificate CAL-CSM
Calibration certificate CAL-CSM
US$ 587.00
Universal Test Set for PCE-CSM 7
Universal Test Set PCE-CSM-UTC
US$ 1,513.00
Replacement battery PCE-CSM-BAT
Replacement battery PCE-CSM-BAT
US$ 177.00
White Test Block PCE-WTB-CSM 1-7
White Test Block PCE-WTB-CSM 1-7
US$ 177.00
ISO Calibration Certificate for CAL-PCE-CSM
ISO Calibration Certificate for CAL-PCE-CSM
US$ 599.00

Description

Color meter PCE-CSM 6 for quality control
PC software included / Li-ion battery / different color spaces /
determination of reference values and samples / white calibration

The color meter PCE-CSM 6 was developed for quality control and offers a high accuracy. When using the color meter, you can choose between different color spaces (CIE L*a*b, CIE L*a*b*C*h). After a measurement with the color meter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.

In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the color meter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*

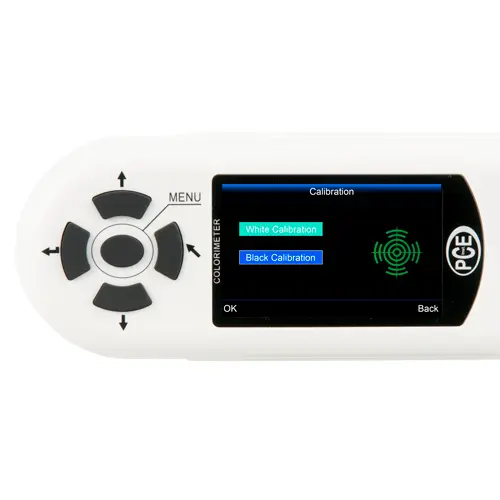

- white calibration
- determination of reference values and samples

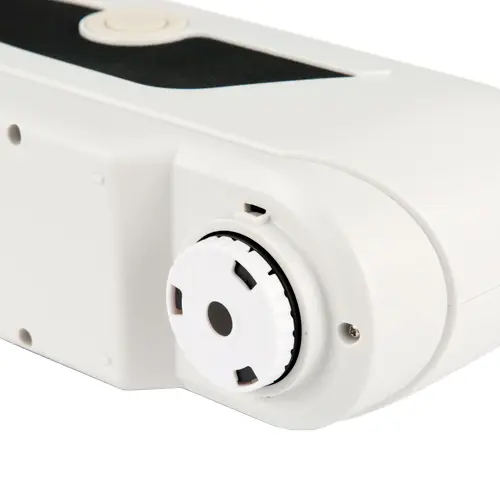

- measuring aperture: Ø8 mm
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software
- D65 light source

Specification

Illuminating/Viewing
geometry 8°/d
Measuring aperture Ø 8 mm
Sensor Silicon photoelectric diode
Color spaces CIE L*a*b*C*h, CIE L*a*b*
Color difference formula ΔE*ab, ΔL*a*b, ΔE*C*h
Errors between each equipment ≤0.40 ΔE*ab
Repeatability Standard deviation within ΔE*ab 0.07
Average of 30 measurements of standard white plate
Light source D65
Light source device LED light
Storage 100 reference values, 20,000 samples
Interface USB
Power supply Rechargeable lithium-ion battery
3.7 V @ 3,200 mAh
Charging time 2 h
Battery life > 3,000 measurements
Lamp life 5 years or more than 1.6 million measurements
Operating conditions 0 ... +40 °C / 32 ... + 104°F
0 ... 85 % RH
Dimensions 200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight 500 g / 17.6 oz

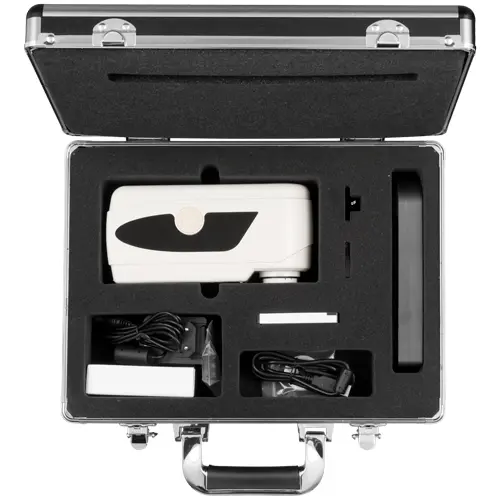

Delivery Scope

1 x Color meter PCE-CSM 6
1 x Aluminium carrying case
1 x Lithium-ion battery
1 x AC Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
