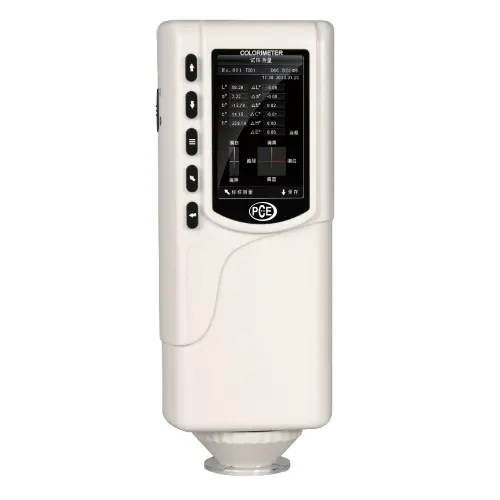

The colorimeter PCE-CSM 5 was developed for quality control and offers a high accuracy. When using the colorimeter, you can choose between different color spaces (CIE LAB, XYZ, LCh, RGB, LUV). In addition, the colorimeter PCE-CSM 5 comes with two different measuring apertures (Ø6 mm and Ø10 mm). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
| Measuring geometry | 8°/d |
| Measuring aperture | Ø 6 mm, Ø 8 mm (exchangeable) |
| Sensor | Silicon photoelectric diode |
| Color spaces | CIE LAB, XYZ, LCh, RGB, LUV |
| Color difference formula | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 |
| Other color parameters | WI ( E313，CIE, AATCC，Hunter )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5: 1)，FMCII |
| Observation angle | CIE 10° |
| Light source | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 |
| Data on display | colorimetric value color difference (value/graph) PASS/FAIL result colour offset |
| Measurement time | 0.4 s |
| Repeatability | Standard deviation within ΔE*ab 0.03 Average of 30 measurements of standard white plate |
| Error between Equipment | ΔE* ab 0. 2 |
| Storage | 100 reference values, 20,000 samples |
| Interface | USB / RS-232 |
| Display | TFT 2.8" (16:9) |
| Power supply | Rechargeable lithium-ion battery 3.7 V @ 3,200 mAh |
| Battery life | approx. 5,000 measurements |
| Lamp life | 5 years, more than 1.6 million measurements |
| Operating temperature | 0 ... +40 °C / 32 ... 104 °F |
| Storing temperature | -20 ... +50 °C / -4 ... 122 °F |
| Dimensions | 205 x 67 x 80 mm / 8 x 2.6 x 3.1 in |
| Weight | 500 g / 17.6 oz |
