Colorimeter PCE-CSM 6

Order no.: PCE-CSM 6
GTIN (EAN): 4250348716507
US$ 2,846.00
ex. VAT, ex. delivery costs
:
4250348716507
PCE-CSM 6
Available in: 1-2 days
Handheld
Internal
Yes
Solids & liquids
Yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

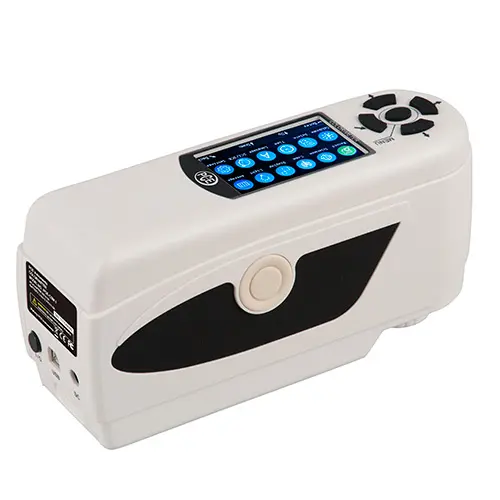

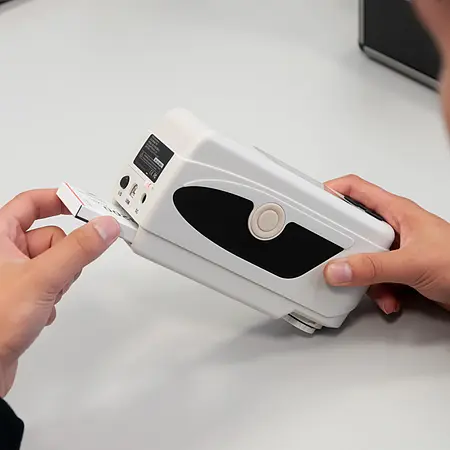

Colorimeter PCE-CSM 6 for quality control
PC software included / Li-ion battery / different colour spaces /
determination of reference values and samples / white calibration

The colorimeter PCE-CSM 6 was developed for quality control and offers a high accuracy. When using the colorimeter, you can choose between different colour spaces (CIE L*a*b, CIE L*a*b*C*h). After a measurement with the colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily. Useful for determining color difference, chromaticity index, color sample database management, and color difference cumulative analysis.

In addition to the individual colour space coordinates, the deviation between the readings is also displayed. When using the colorimeter, it is possible to store up to 100 reference values and up to 20000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.

Highlights

- CIE L*a*b*C*h, CIE L*a*b*

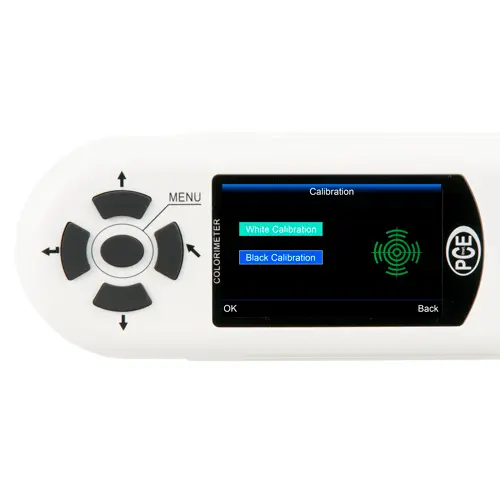

- white calibration
- determination of reference values and samples

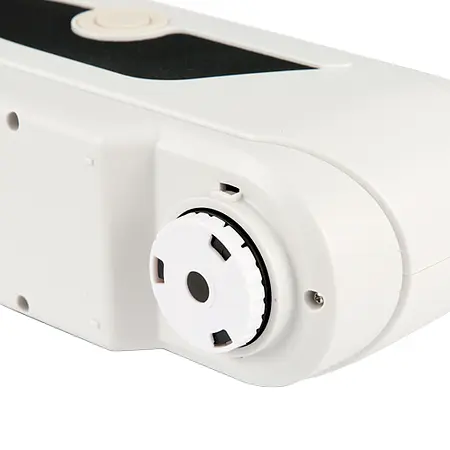

- measuring aperture: Ø8 mm
- rechargeable lithium-ion battery
- high accuracy
- easy to use
- incl. PC software
- D65 light source

Specification

Measuring geometry 8°/d
Measuring aperture Ø 8 mm
Sensor Silicon photoelectric diode
Colour spaces CIE L*a*b*C*h, CIE L*a*b*
Colour difference formular ΔE*ab, ΔL*a*b, ΔE*C*h
Errors between each equipment ≤0.40 ΔE*ab
Repeatability Standard deviation within ΔE*ab 0.07
Average of 30 measurements of standard white plate
Light source D65
Light source device LED light
Storage 100 reference values, 20,000 samples
Interface USB
Power supply Rechargeable lithium-ion battery
3.7 V @ 3,200 mAh
Charging time 2 h
Battery life > 3,000 measurements
Lamp life 5 years, more than 1.6 million measurements
Operating conditions 0 ... +40 °C / 32 ... + 104°F
0 ... 85 % RH
Dimensions 200 x 70 x 100 mm / 7.8 x 2.7 x 3.9 in
Weight 500 g / 17.6 oz

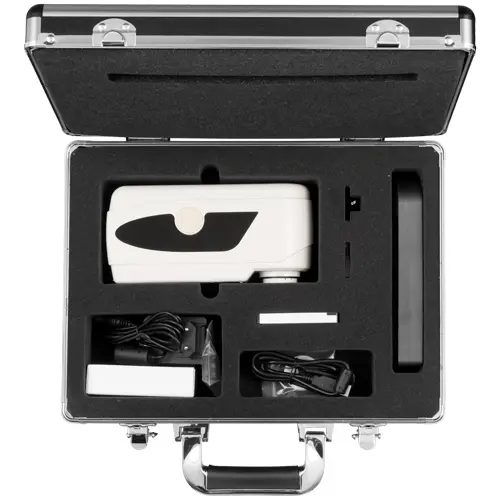

Delivery Scope

1 x Colour meter PCE-CSM 6
1 x Aluminium carrying case
1 x Lithium-ion battery
1 x Mains adapter
1 x Calibration plate (white)
1 x PC software
1 x Instruction manual
