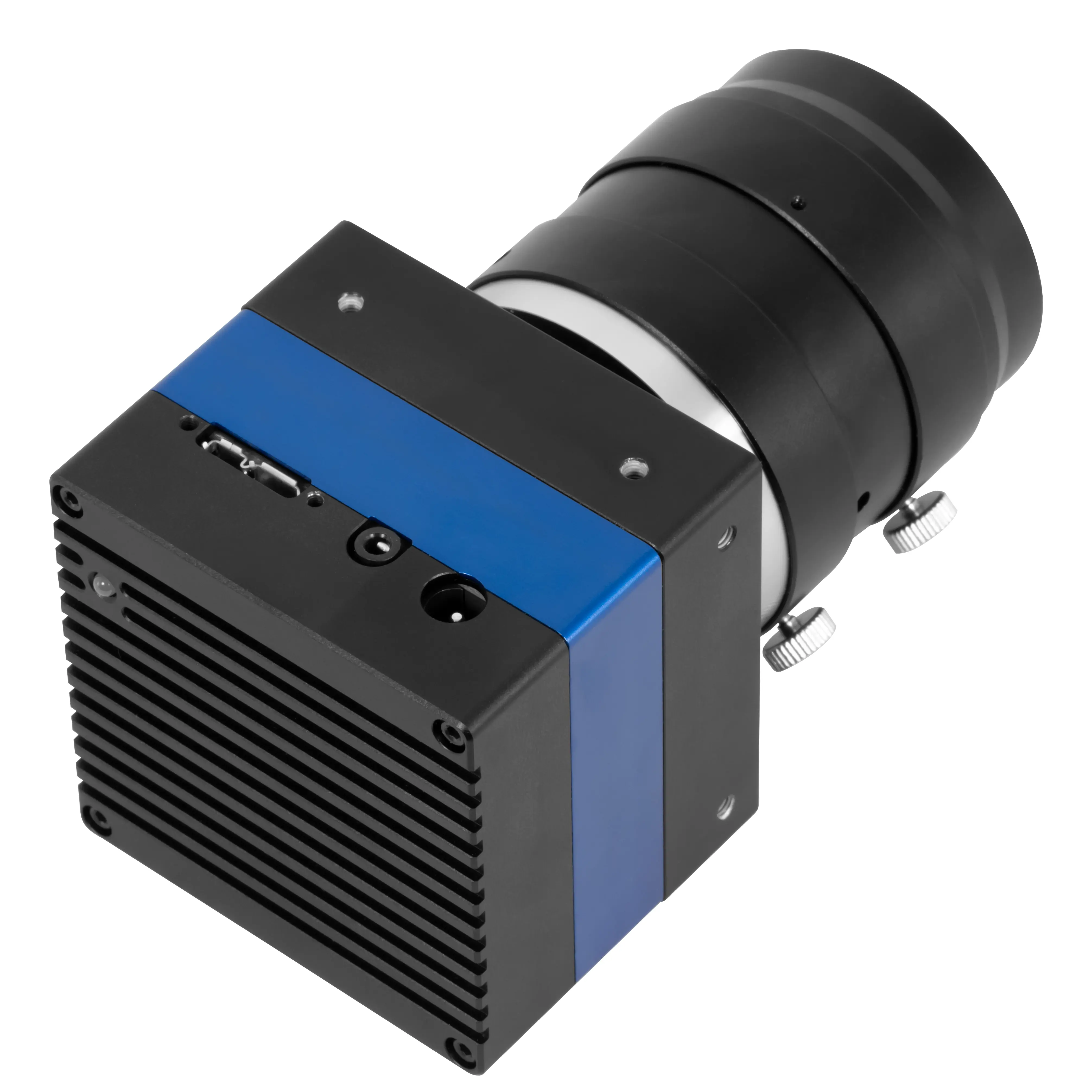

The High Speed Camera sets standards in the world of high-resolution slow-motion recordings. Equipped with a modern 5 megapixel CMOS sensor, this model provides razor-sharp images with a high level of detail. The ability to record events at extremely high frame rates makes it possible to capture details and phenomena that cannot be seen with the naked eye or normal cameras.

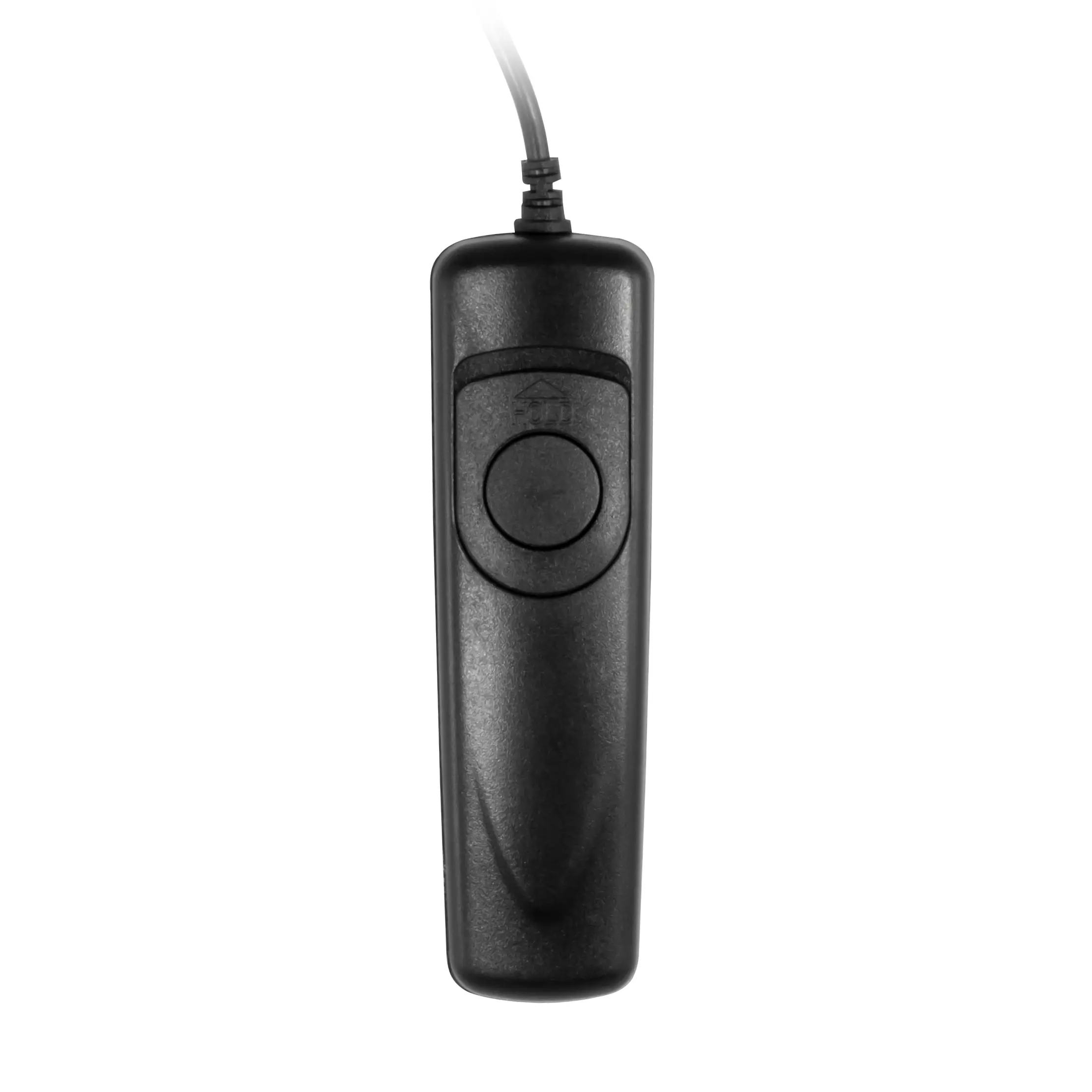

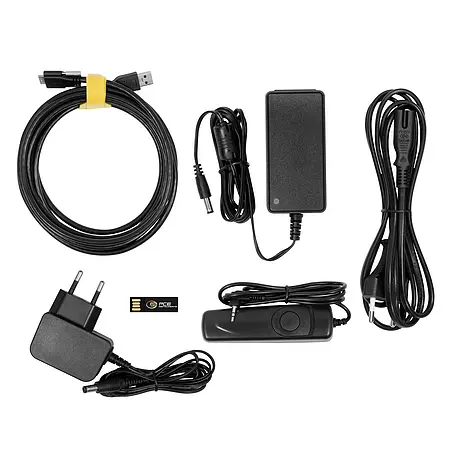

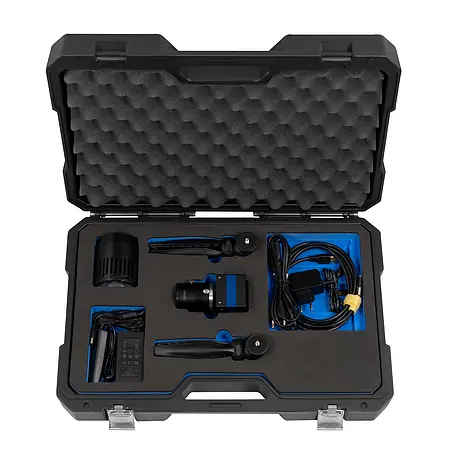

With an impressive recording speed of up to 8960 frames per second (FPS), the High Speed Camera enables the investigation of processes that remain invisible to the naked eye. The integrated USB 3.0 interface ensures quick and reliable data transfer so that recordings can be processed and analysed in real time on a PC. In addition, the trigger input with remote release enables precise control of the recording times, which is particularly important for experiments or precise time-lapse recordings. The robust metal housing protects the High Speed Camera from the challenges of daily use and guarantees a long service life even under the most demanding conditions. The professional PC software included in the delivery scope offers a comprehensive range of tools for image processing as well as for analysing and organising your recordings.
Whether conducting scientific experiments, monitoring industrial processes or creating stunning slow-motion footage for film projects, this High Speed Camera offers the performance and flexibility required to realise visions with precision.
General technical data | |

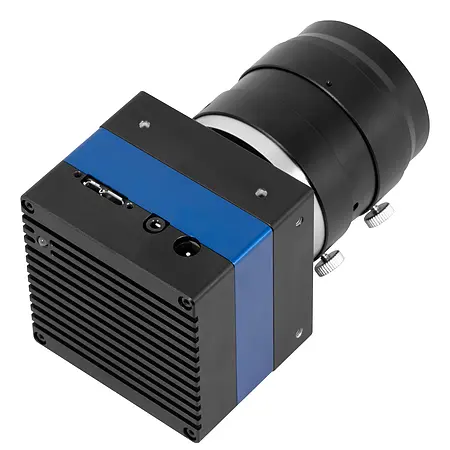

Interface | Micro USB 3.0 |
Sensor | CMOS |
Resolution | 2560 x 1024 @ 140 FPS 1920 x 768 @ 245 FPS 1280 x 512 @ 560 FPS 800 x 320 @ 1432 FPS 640 x 256 @ 2240 FPS 320 x 128 @ 8960 FPS |
Housing | Aluminium |

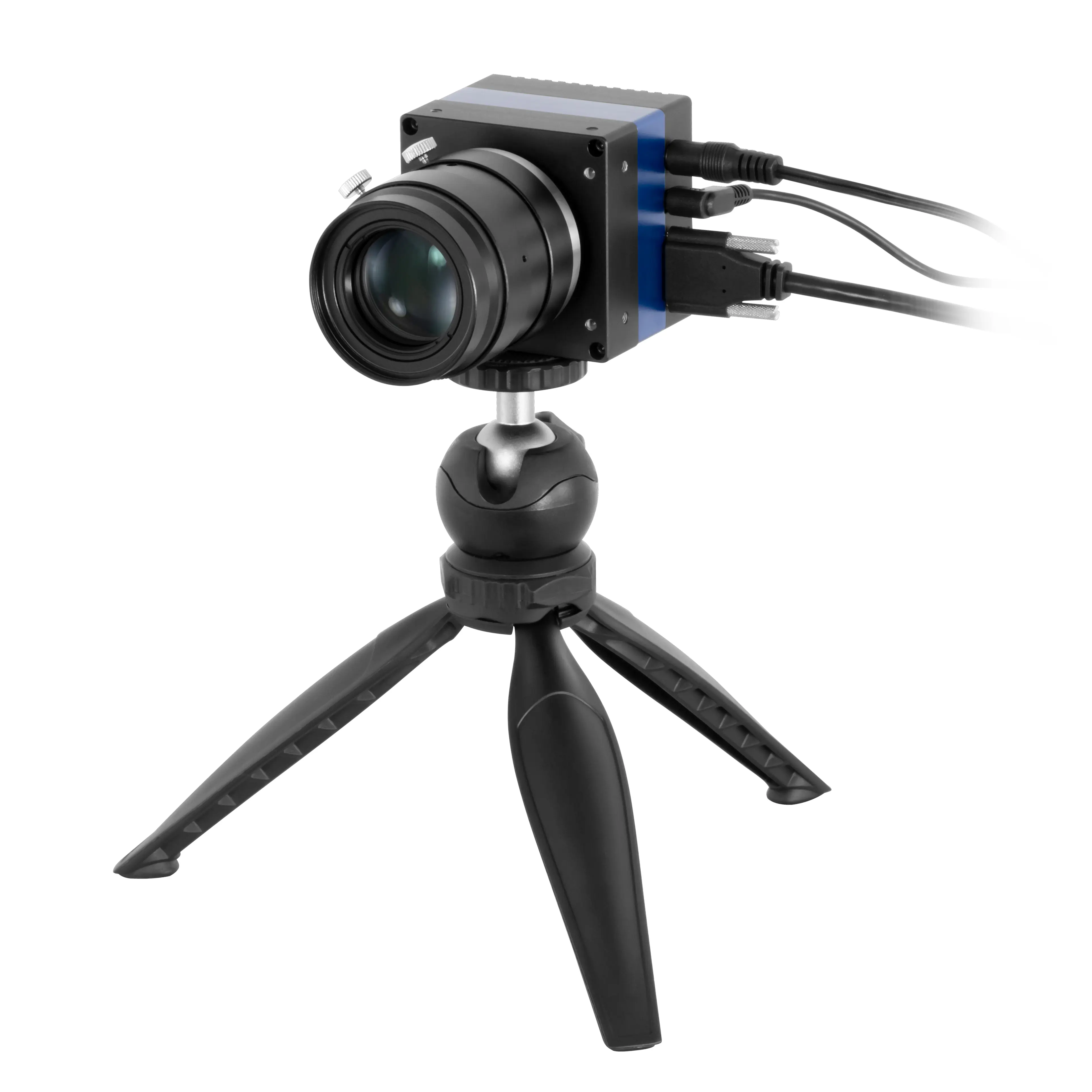

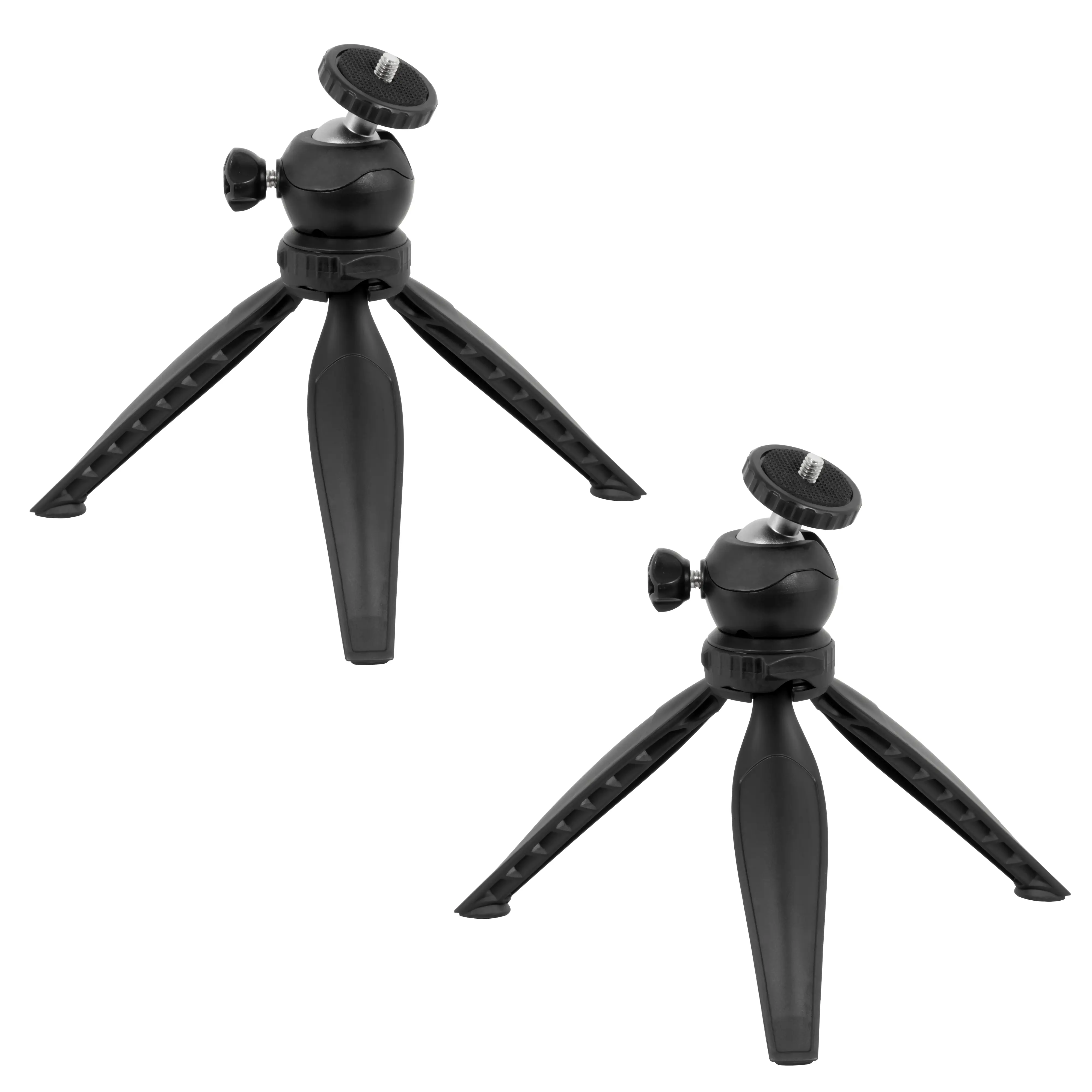

Tripod thread | 1/4 inch |

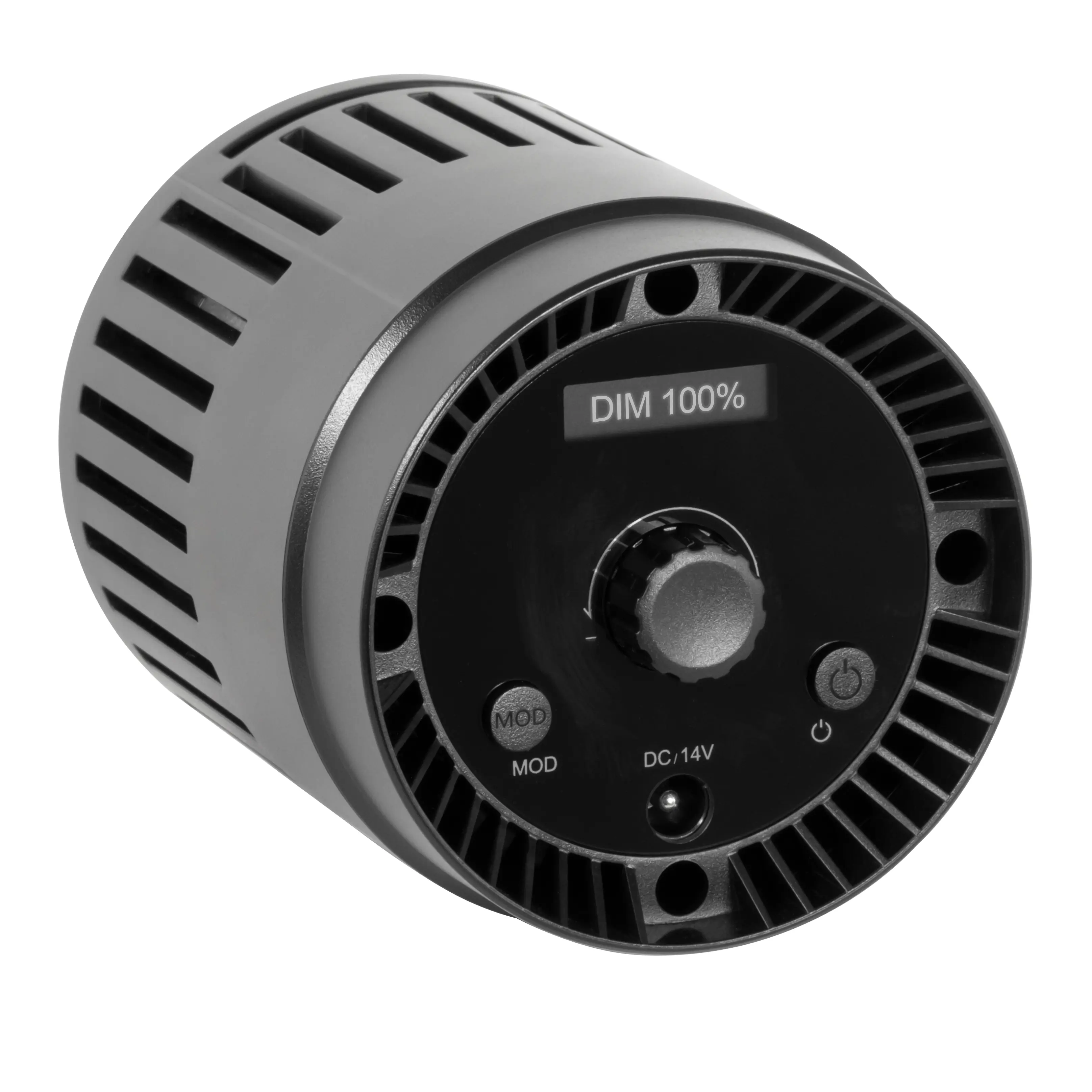

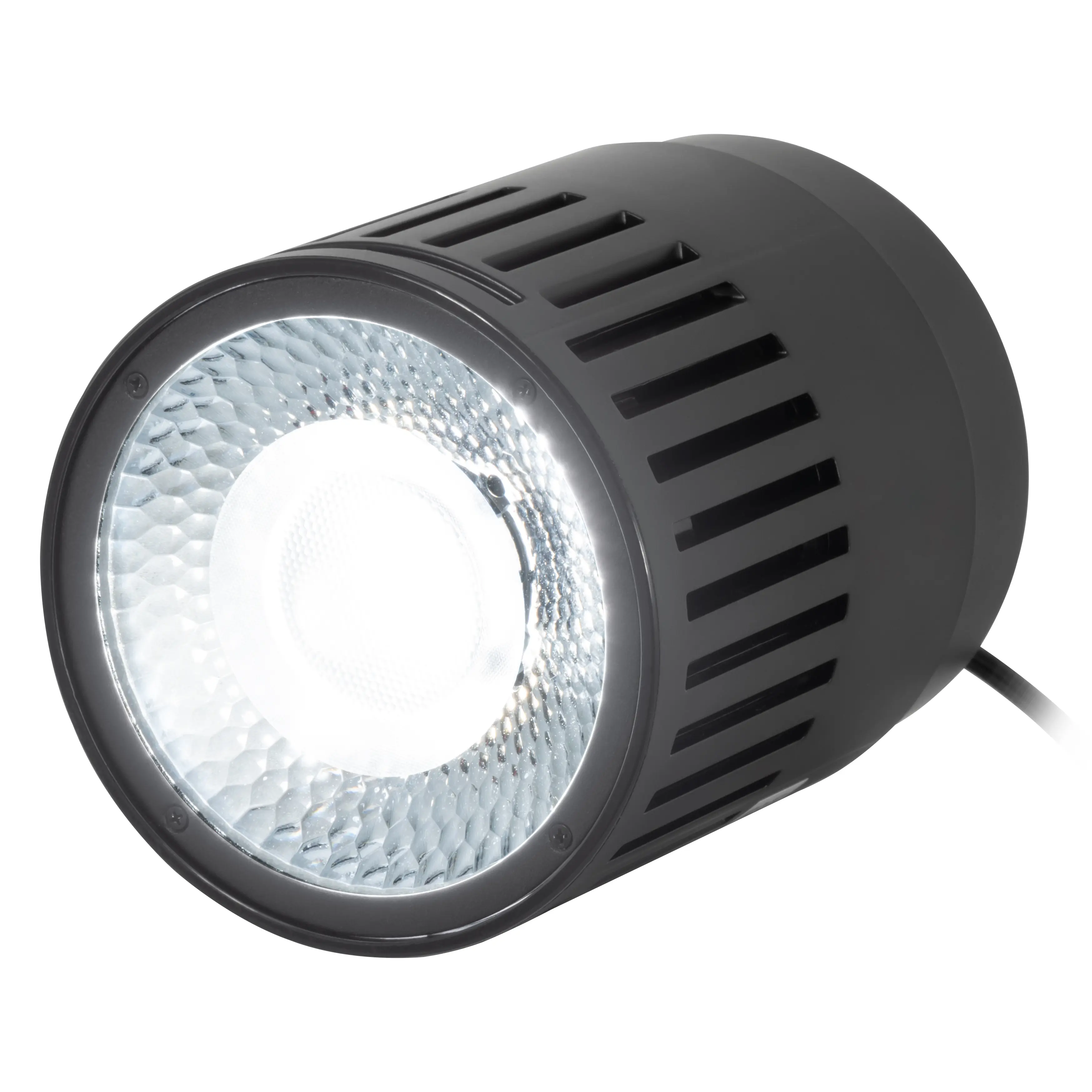

Luminous intensity | 33 W dimmable 35800 lx @ 0.5 m 9600 lx @ 1 m 2500 lx @ 2 m |
Fastening | Fine thread M2.5 |

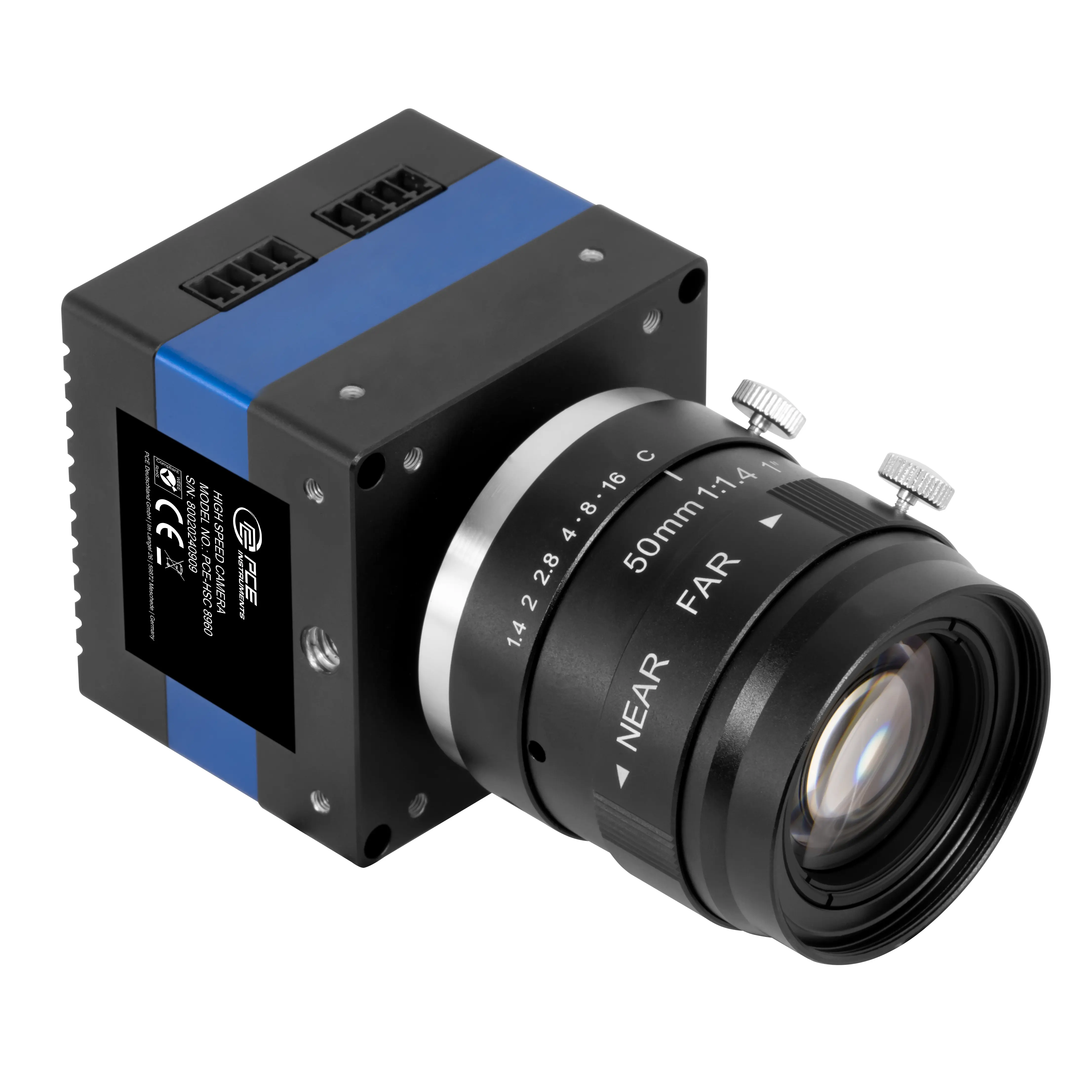

Lens | F1.4 / f=50mm C mount / CS mount |
Image / video format | bmp, JPG, PNG, mp4, mpg |
Trigger input | TTL/RS-422 from the extension I/O connection |
Sensitivity | ISO 100 ... 6400 (monochrome) |
Pixel size | 5 µm |
Digital amplification | 0.01 ... 16 x |
Shutter speed | 0.001 ... 100 mS |
Protection class (device) | IP20 |

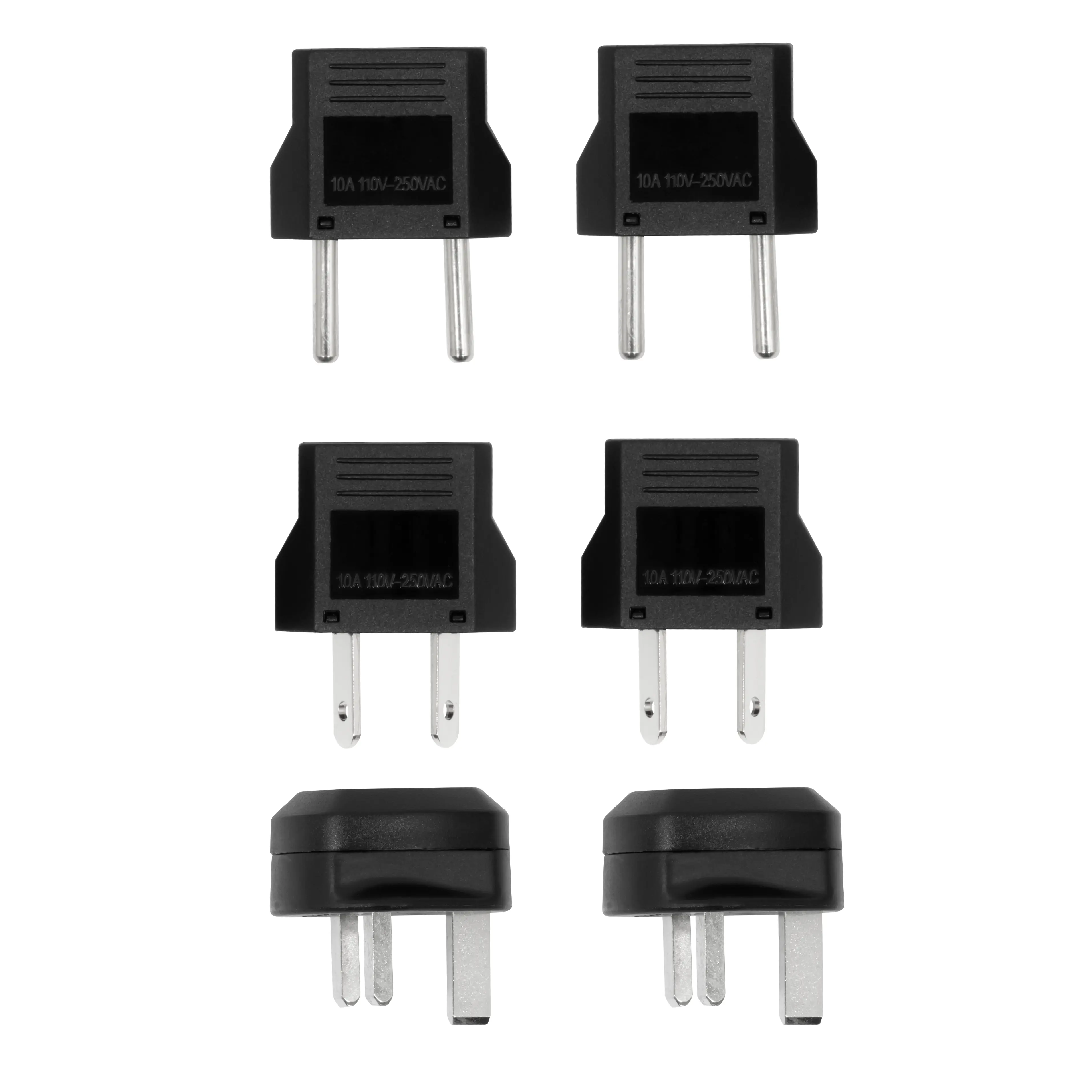

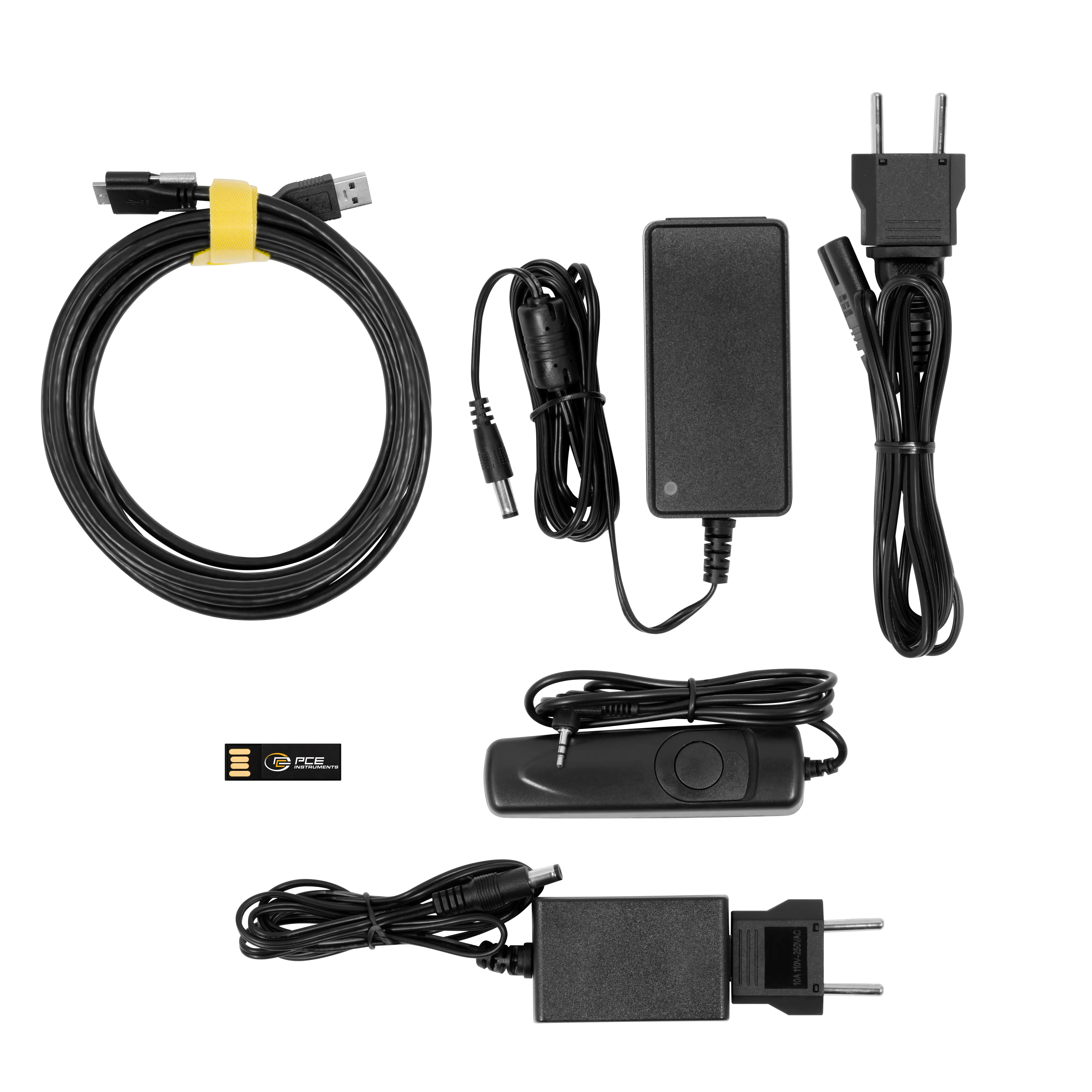

Power supply | 100 ... 240 V AC | 50/60 Hz Mains adaptors included |
Connector type | Euro plug |
Weight | 509 g |
Operating conditions | 0 ... 40 °C , 20 ... 80 % RH |
Storage conditions | -20 ... 60 °C , 20 ... 95 % RH |
Dimensions ( L x W x H ) | 110 x 60 x 60 mm |
