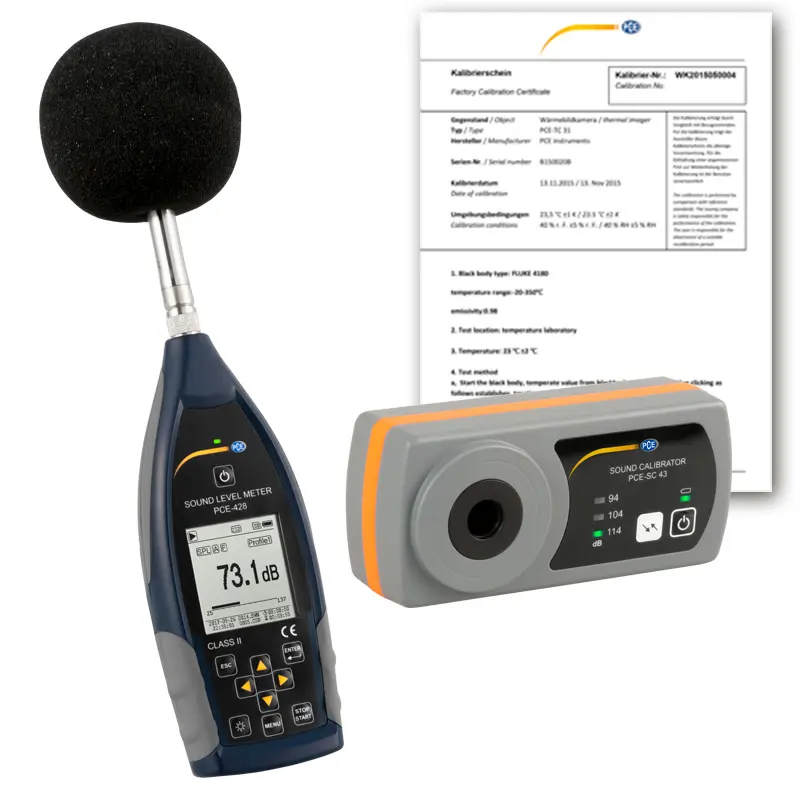

Condition Monitoring Sound Level Meter PCE-428-Kit-N-ICA + Calibrator + Cal Cert

Name: Condition Monitoring Sound Level Meter PCE-428-Kit-N-ICA + Calibrator + Cal Cert
Brand: PCE Instruments
SKU: 5983663
Price: 1755 USD
Availability: InStock

Order no.: PCE-428-KIT-N-ICA

GTIN (EAN): 4250348728548

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Kit for Retrofitting Outdoor Capability PE PCE-4xx-EKIT|emic-kit

US$ 350.00

Mini Tripod for Various Measuring Devices

US$ 21.00

Power supply for PCE-428, PCE-430, PCE-432

US$ 33.00

Outdoor Microphone Class 1 PCE-4xx-EMIC

US$ 2,285.00

DIN Rail Holder for PCE-4xx series

US$ 84.00

Mounting Bracket for External Microphone of the PCE-4xx Series

US$ 38.00

Microphone cable device connector for PCE-4xx Series

US$ 130.00

Microphone cable for PCE-4XX (20 m / 66 ft)

US$ 244.00

Microphone cable for PCE-4XX (50 m / 164 ft)

US$ 284.00

Microphone Cable for PCE-4XX (10 m / 32.8 ft)

US$ 165.00

Microphone cable for PCE-4XX (2 m / 6.6 ft)

US$ 72.00

Outdoor Sound Monitor Kit PCE-4xx-EKIT

US$ 5,004.00

Outdoor Sound Monitor Kit PCE-4xx-EKIT

US$ 5,004.00

Firmware Upgrade to 1/3 Octave Band Filter

US$ 536.00

Description

Condition Monitoring Sound Level Meter with Sound Calibrator incl. ISO Calibration Certificates
Class II sound level meter with octave filter or 1/3 octave filter for frequency analysis / USB interface / Data logger / A, B, C, Z evaluation / Fast, slow and pulse analysis

The condition monitoring sound level meter is an optimal sound level meter for measurements at workplaces, construction sites, in traffic, airports, etc. The sound level meter is a class 2 device and is equipped with an octave band frequency filter. The sound level meter can optionally be upgraded with a 1/3 octave band filter. In addition to the numerical display of the measured value, a graph can show the course of the sound level. The sound level meter has various frequency weightings such as A, B, C and Z. The sound meter can also display measurements with the time weightings Fast, Slow, Impulse and Peak. The measuring range of the sound level meter extends from 25 ... 136 dbA at a frequency of 20 Hz ... 12.5 kHz. 3 different measurement profiles can be stored in the sound level meter. Here the user can decide which parameters the sound level meter should record. For example, you can choose between Laeq, LcPeak, LaFmax, LaFMin, etc.

The peak hold function in the condition monitoring sound level meter makes it possible to record the maximum sound pressure level during long-term measurements and freeze it in the display. A 24 bit AD converter and the specially developed electronics of the sound level meter help to reduce the inherent noise to a very low level. Sampling the measurement signal with more than 48 kHz enables high accuracy and improved stability of the measurement value on the sound level meter.

Highlights

- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 2
- A, B, C & Z Frequency weighting
- Fast, Slow, Pulse and Peak time weighting
- Statistics function
- Display of the sound curve as a graph
- 3 measurement profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable
- incl. calibrator and ISO calibration certificates

Specification

Measuring range	25 ... 136 db(A)
Accuracy	Class 2
Frequency range	20 Hz ... 12.5 kHz
Standards	GB/T 3785.1-2010 GB/T 3785.2-2010 IEC 60651:1979 IEC 60804:2000 IEC 61672-1:2013 ANSI S1.4-1983 ANSI S1.43-1997
Frequency analysis	1/1 Octave band filter: 20 Hz ... 8 kHz 1/3 Octave band filter: 20 Hz ... 12.5 kHz
Microphone	1/2" microphone Class 2 Sensitivity: 40 mV/PA Frequency range: 20 Hz ... 12.5 kHz Connection: TNC Power supply: ICCP Standard
Data-logging interval	1 s ... 24 h (adjustable)
Measuring functions	LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN
Measuring functions	X = Frequency weighting: A, B, C, Z Y = Time weighting: F, S, I N = Statistics in %: 1 ... 99%
Frequency weightings	A, B, C, Z
Time weightings	Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms
Inherent noise	Microphone: 20 db(A), 26 db(C), 31 db(Z) Electronics: 14 db(A), 19 db(C), 24 db(Z)
AD converter	24 Bit
AD Sample rate	Standard: 48 kHz LN Mode: 20 ms
Measuring display	Numerical Bar graph Graphical
Display	160 x 160 pixel LCD with backlight
Memory	4 GB Micro SD card
Interface	USB (Memory readable via software or directly as mass storage) RS-232
Voltage output	AC 5V RMS DC 10 mV/db
Alarm	Adjustable
Power supply	4 x 1.5V AA Batteries 12V / 1 A Power plug 5V / 1 A USB
Battery life	Min. 10 h continuous use
Dimensions	70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D)
Weight	Approx. 620 g / 1.4 lbs incl. batteries

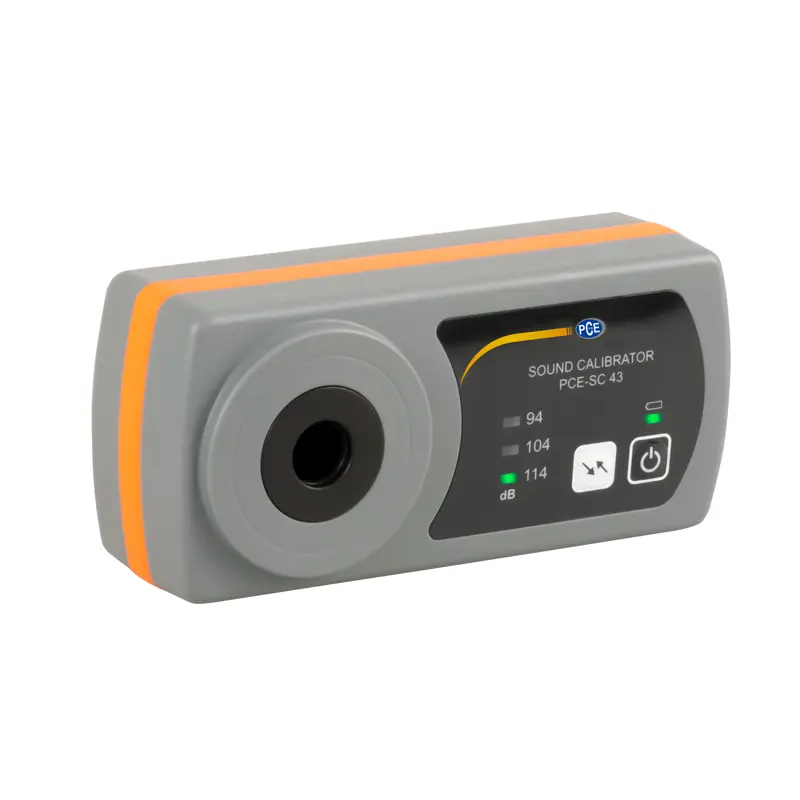

Class 2 Sound Calibrator	PCE-SC 43
Sound pressure level	94 dB, 104 dB, 114 dB
Accuracy	±0.4 dB
Class	2
Frequency	1000 Hz for A, B, C and D frequency weighting
Frequency accuracy	±1.7 %
Stabilization time	10 seconds
Total harmonic distortion	<3 %
Environmental conditions
Temperature influences	<0.4 dB at 0 ... 40 °C / 32 ... 104 °F
Humidity influences	25 ... 90 % RH
Atmospheric pressure	<0.1 dB at 65 ... 108 kPa
Stability at <60 seconds	±0.15 dB
Stability after one year	±0.35 dB
(normal use)
Operating conditions	0 ... 40 °C / 32 ... 104 °F, <25 ... 90 % RH,
	non-condensing
Storage conditions	-20 ... 50 °C / -4 ... 122 °F, <90 % RH,
	non-condensing
Automatic shutdown	after 20 minutes
Power supply	2 x 1.5 V AA batteries
Battery life	ca. 50 hours
Microphone size	1/2 inch
Dimensions	60 x 130 x 37.5 mm / 2.3 x 5.1 x 1.4"
Weight	400 g / 14.1 oz

Delivery Scope

1 x Condition Monitoring Sound Level Meter PCE-428
1 x 1/2" microphone class 2
1 x Wind noise suppressor (foam ball)
1 x USB interface cable
1 x Software (free download)
1 x Mains power adapter
1 x Carrying case
1 x Instruction manual
1 x Sound calibrator PCE-SC 43
1 x ISO calibration certificate for PCE-428
1 x ISO calibration certificate for PCE-SC 43

Note: The sound level meter is supplied with a 1/1 octave band filter. An optional 1/3 octave band filter upgrade is available for an additional fee - see accessories.

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
