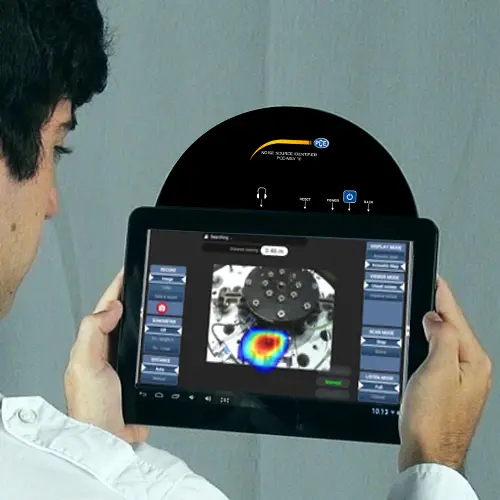

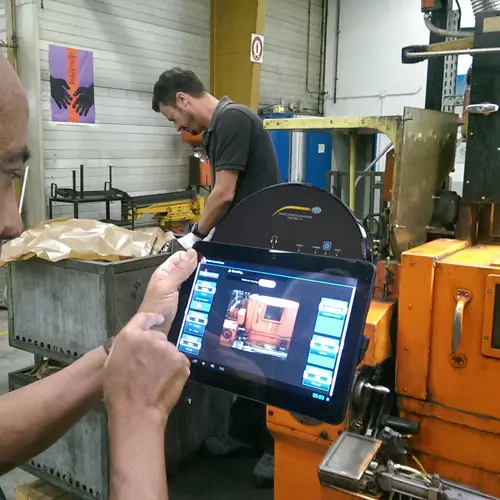

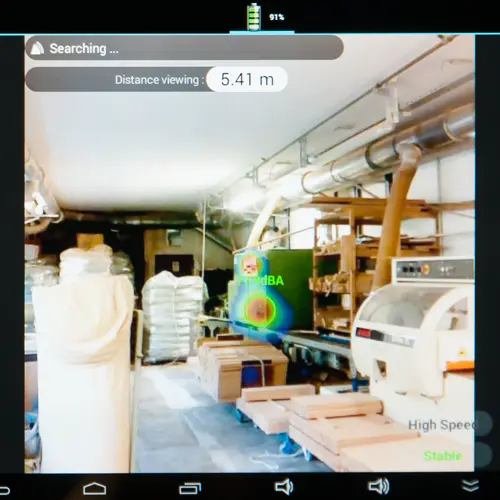

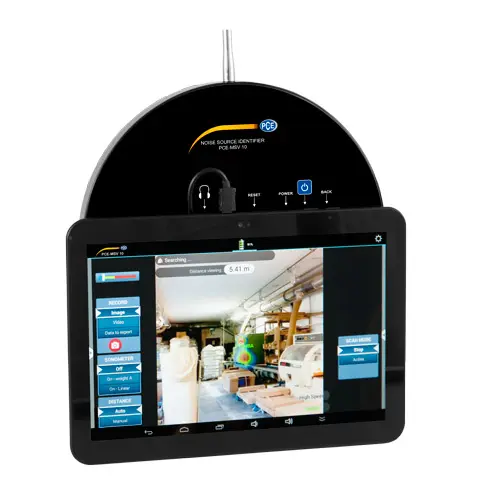

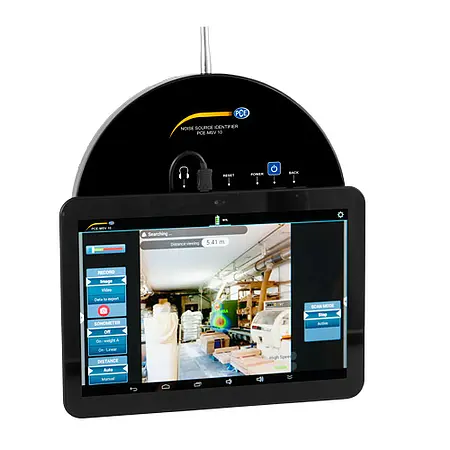

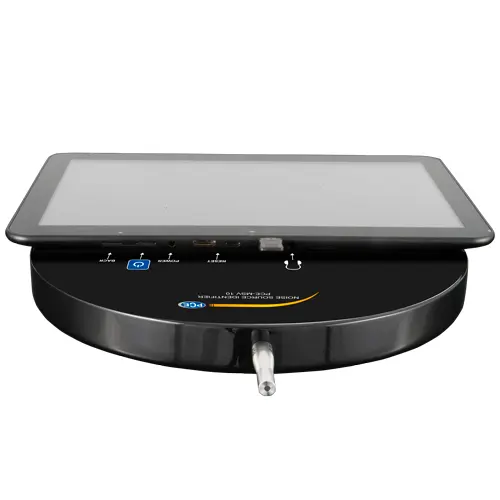

In loud environments, it is often difficult to pinpoint the source of a sound. The easy-to-operate PCE-MSV 10 condition monitoring sound level meter visualizes sound in real time, creating a visual road map to a sound’s source. Also referred to as a noise meter, sound pressure meter, portable sound camera or sound level camera, the PCE-MSV 10 condition monitoring sound level meter can be used in various stages of machine and equipment design, manufacture and operation, from engineering research and development (R&D) to preventative maintenance and beyond.
- Measurement range of 30 … 130 dBA
- Frequency range of 160 … 6000 Hz
- Real-time image and video recording*
- 1 GB RAM
- Automatic setup
- 10” full-color tablet-style screen
- Software for visual sound analysis
- Sound measuring microphone
- Protective carrying case
*Recorded images and videos can be transferred via a WLAN from the PCE-MSV 10 sound level meter to a computer for further analysis.
When using the included sound measuring microphone, the PCE-MSV 10 also can be used as a general sound level meter without visualization.
Technical specifications
Measurement range | 30 … 130 dBA |
Frequency range | 160 … 6000 Hz |
Measurement modes | Indication of loudest source of noise |
Focal range | Automatic: 0.2 … 5 m / 0.7 … 16.4 ft |
Display size | 254 mm / 10 in |
Memory | 1 GB RAM |
Battery life | Continuous operation: 4 hours |
Dimensions | 300 x 250 x 40 mm / 11.8 x 9.8 x 1.6 in |
Weight | Approx. 980 g / 2.2 lbs |

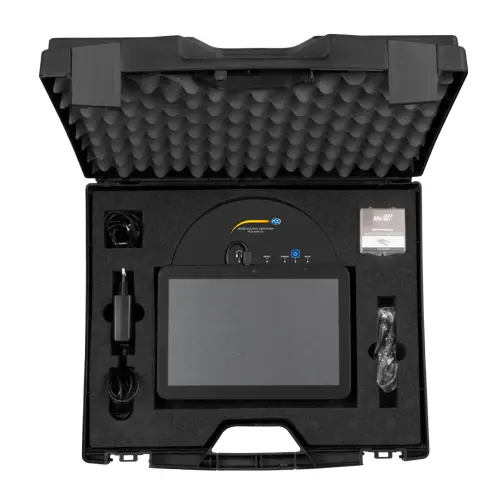

Delivery contents
1 x PCE-MSV 10 condition monitoring sound level meter
1 x sound measuring microphone
1 x protective carrying case
1 x software for visual sound analysis
1 x user manual
