Condition Monitoring Stroboscope PCE-LES 350

Order no.: PCE-LES 350
GTIN (EAN): 4250348734280
US$ 1,260.00
ex. VAT, ex. delivery costs
:
4250348734280
PCE-LES 350
Available in: 1-2 days

Description

Condition Monitoring Stroboscope / light source 144 LEDs / automatic power-off 1 ... 250 min / doubling/division of FPM / adjustable flash duration / illuminance: 6270 lux @ 1200 FPM at 20 cm

Our Condition Monitoring Stroboscope offers the possibility of precisely recording and analysing fast movements. With a measurement range of 50 to 12000 FPM and a high accuracy of 0.01 %, movements at different velocities can be analysed with high precision.

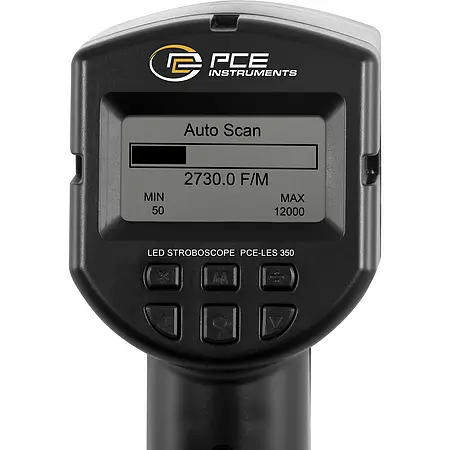

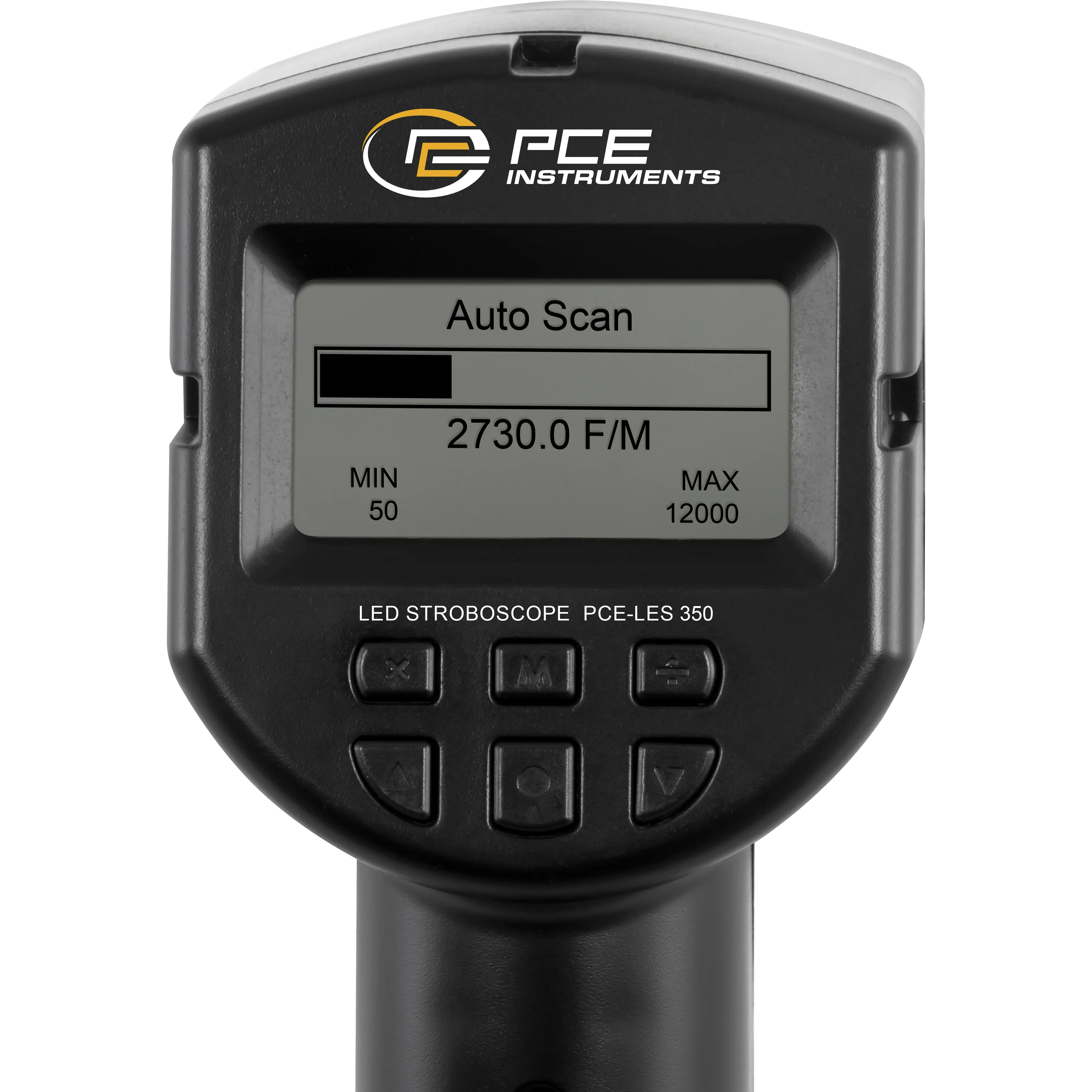

Our Condition Monitoring Stroboscope uses 144 high-performance LEDs to generate short, intense flashes of light that are emitted at regular intervals. These flashes are synchronised with the movement or machine being examined, giving the impression that the movement is frozen or extremely slow. This phenomenon is based on the proven principle of stroboscopy, in which the eye only perceives intermittent images of fast-moving objects through discrete flashes of light. The illuminance is 6270 lux at 12000 FPM and a distance of 20 cm. Measurements are simplified by the auto-scan function which gradually increases the flash frequency to quickly establish synchronisation.

For easy adjustment of the flash frequency, our Condition Monitoring Stroboscope offers options in increments of 1 as well as the possibility to double or halve the flash frequency. Depending on your requirements, the flash frequency can be selected in FPM, Hz or m/min. To save energy and extend battery life, it is equipped with an automatic power-off function and an adjustable flash duration of 1 to 250 minutes. Our handy and Condition Monitoring Stroboscope can be used in various fields such as industry, science and research as well as in the music industry. Equipped with a rechargeable 12-volt battery, it offers an operating time of approx. 4 hours.


Highlights

- Frequency 50 ... 12000 FPM
- Doubling/division of FPM at a keystroke

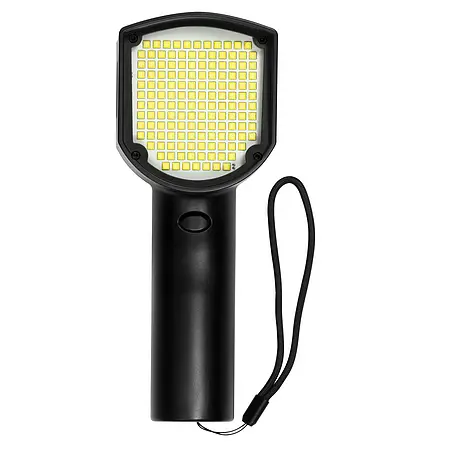

- Light source 144 LEDs
- Flash frequency units: FPM, Hz, m/min
- Integrated Li-ion battery
- Adjustable flash duration 1 ... 250 min
- Quick one-hand operation
- Illuminance: 6270 lux @ 12000 FPM / 20 cm

Specification

Frequency
Measurement range up to  50 ... 12000 FPM
Resolution  0,1 FPM
Accuracy  ±0.01 % v.Mw.

Frequency
Measurement range up to  1 ... 200 Hz
Resolution  0,01 Hz
Accuracy  ±0.01 % v.Mw.

General technical data
Units  Hz, f/m, m/min
Display type  Graphic LCD
Operating time  4 h
Automatic power-off from...to  1 ... 250 min.
Luminous intensity  6270 Lux @ 12000 FPM / 20 cm
Pulse width  8 ... 50 µs ( ±1µs )
Light source  144 LED´s
Menu language  English, Chinese
Protection class (device)  IP20
Power supply  100 ... 240 V AC | 50 ... 60 Hz, 0.5 A
Connector type  Device-europlug
Weight  435 g
Operating conditions  0 ... 50 °C , 0 ... 95 % r.F
Storage conditions  0 ... 50 °C , 0 ... 95 % r.F
Capacity  2600 mAh
Dimensions ( L x W x H )  203 x 80 x 85 mm

Delivery Scope

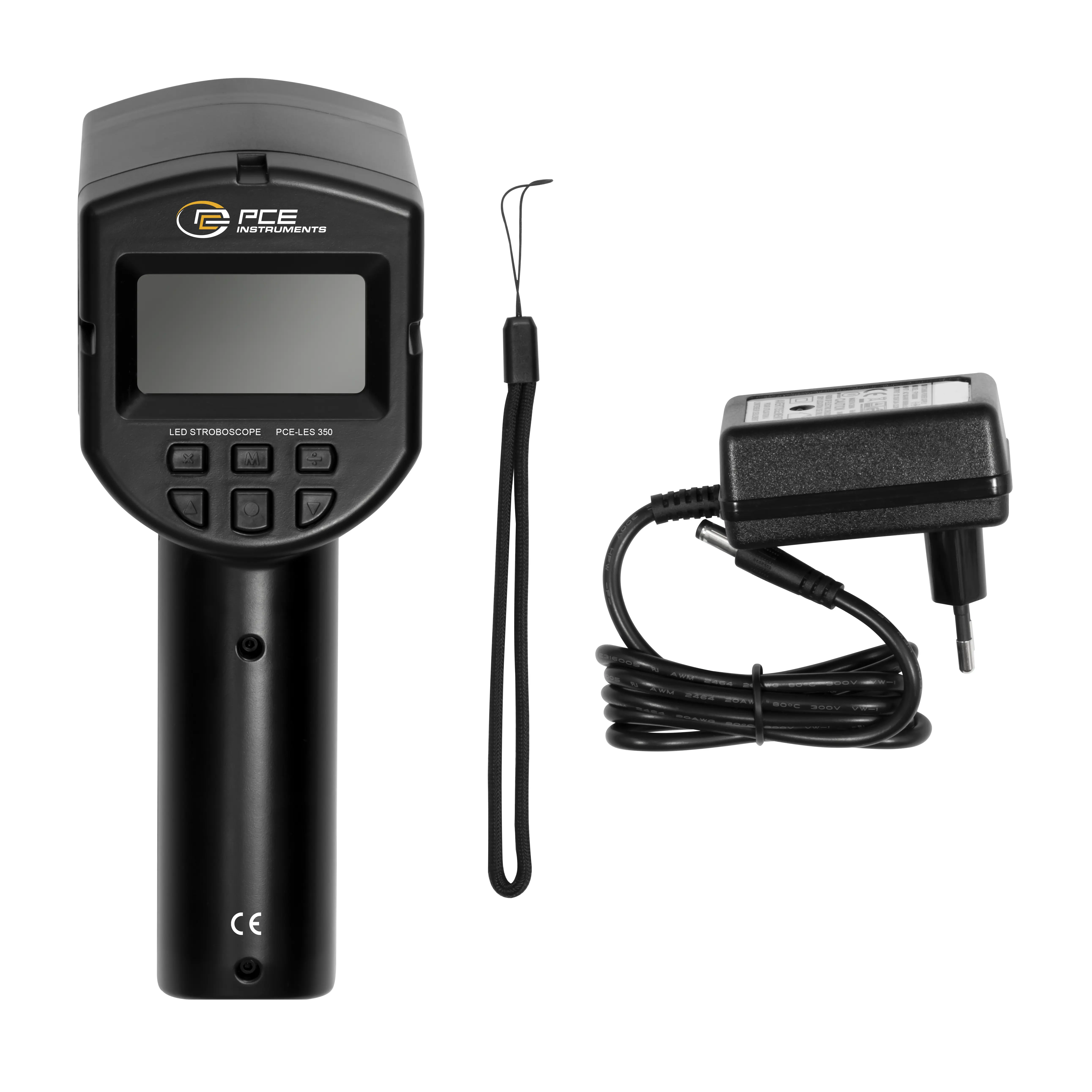

1 x Condition Monitoring Stroboscope PCE-LES 350
1 x mains adaptor 12.6 V / 2 A
1 x carrying case
1 x user manual
