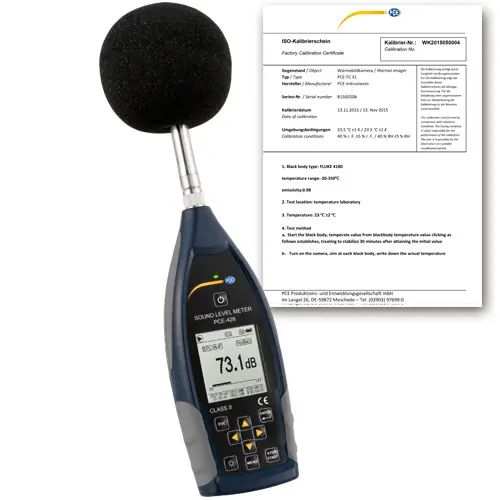

Outdoor Condition Monitoring Sound Level Meter PCE-428-EKIT-ICA incl. Outdoor Noise Level Meter
Kit
Class II sound level meter with octave filter or 1/3 octave filter for
frequency analysis / USB interface / Datalogger / A, B, C, Z rating / Fast,
slow and pulse analysis /
ISO Calibration Certificate
The outdoor condition monitoring sound level meter PCE-428-EKIT is an optimal sound level meter for measurements at workplaces, construction sites, in traffic, airports, etc.
The sound level meter is a class 2 device and is equipped with an octave band frequency filter.
Optionally, the sound level meter PCE-428-EKIT can be upgraded with a 1/3 octave band filter.

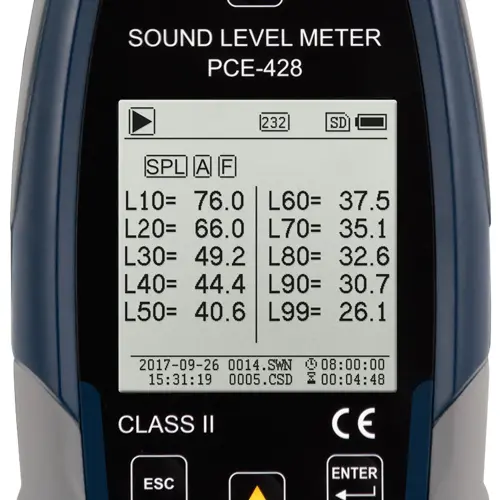

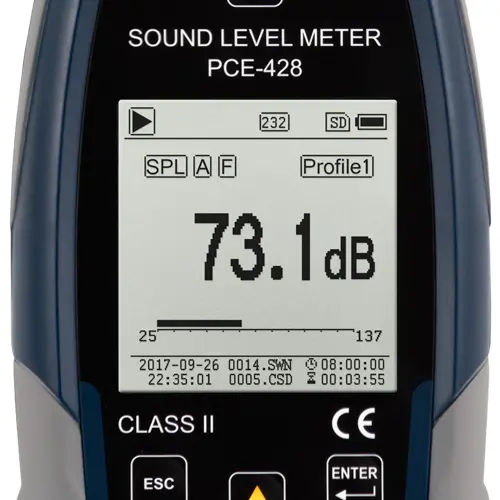

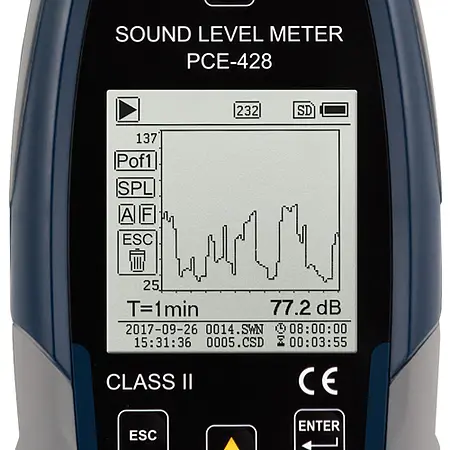

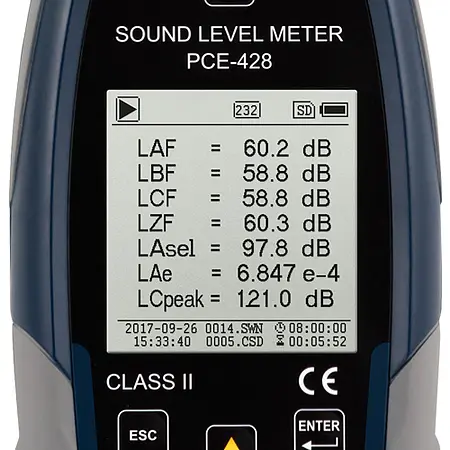

In addition to the numerical display of the measured value, a graph can show the course of the sound level.

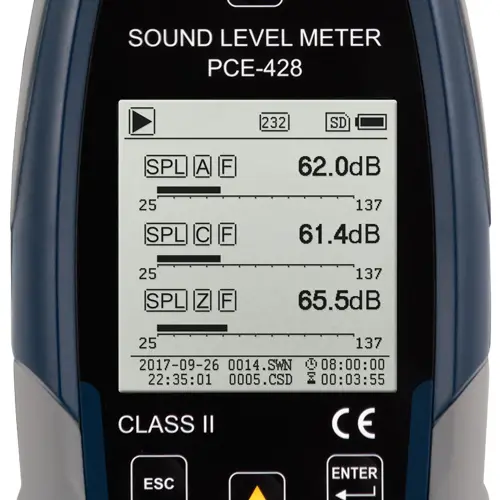

The sound level meter has different frequency ratings such as A, B, C and Z.
Furthermore, the condition monitoring sound level meter can measure with the time estimates Fast, Slow, Pulse and Peak.
The measuring range of the sound level meter ranges from 25 ... 136 dbA at a frequency of 20 Hz ... 12.5 kHz.

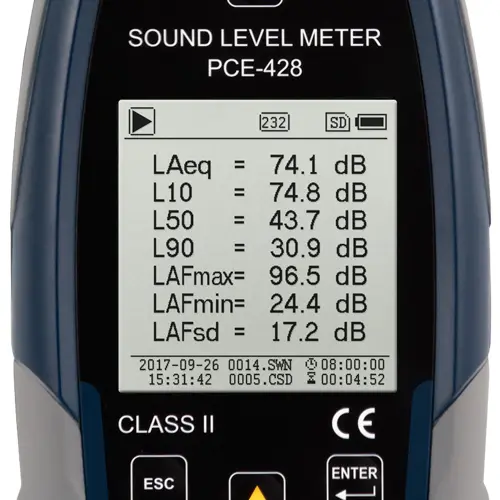

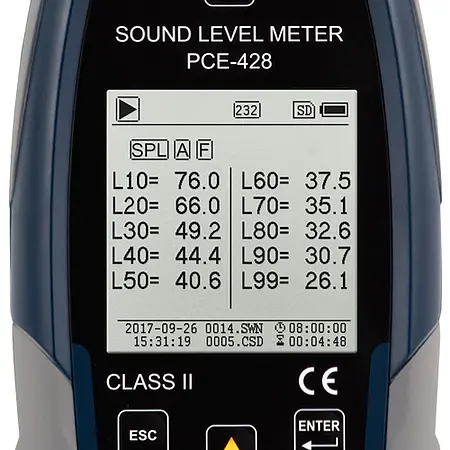

The sound level meter can store 3 different measuring profiles. Here the user can decide which parameters the sound level meter should record.
For example, you can choose between Laeq, LcPeak, LaFmax, LaFMin and so on.
The peak hold function in the condition monitoring sound level meter makes it possible to record the maximum sound pressure level during a long-term measurement and to freeze it in the display.
A 24 bit AD converter and the specially developed electronics from the sound level meter help to reduce the inherent noise to a very low level.
A sampling of the measurement signal with more than 48 kHz allows a high accuracy and improved stability of the measured value on the sound level meter.
PCE-4xx-EKIT

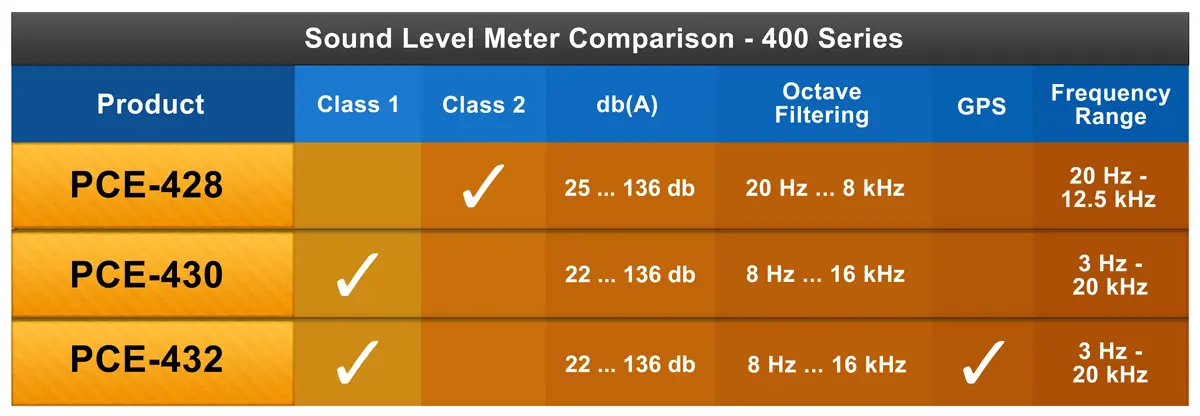

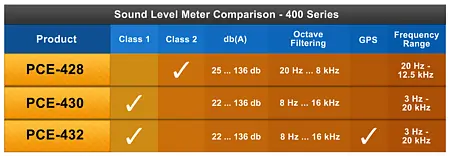

An additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432.
This kit makes it possible to measure the outdoor noise with a sound level meter over a long period of time.

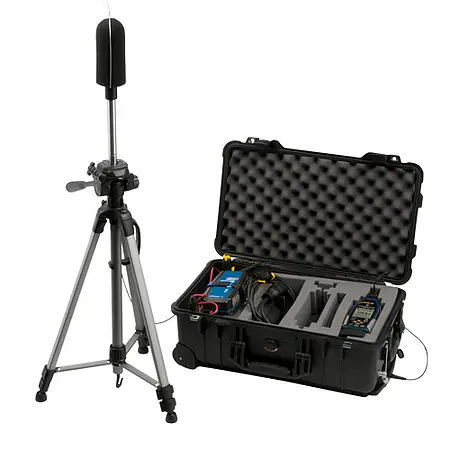

The environmental noise monitoring system consists of a waterproof Peli carrying case with rollers. A charger and two additional lead gel batteries are installed in this case, which allows an operation of the sound monitor for up to 10 days.
During the outdoor sound measurement, the case may remain closed. Due to the external connections for the microphone and the power supply all electronic
components are protected from water.

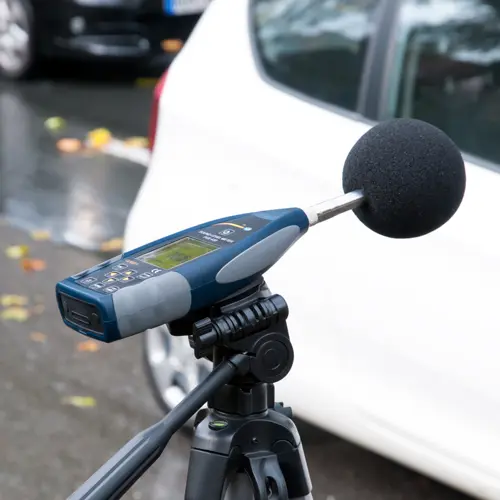

The delivery scope of the outdoor sound monitor includes rain and wind protection as well as a wire mesh for the microphone. Also, a tripod is available with which the microphone can be placed outdoors.
Also, the charger in the measuring kit PCE-4xx-EKIT is waterproof. Therefore, the charger may

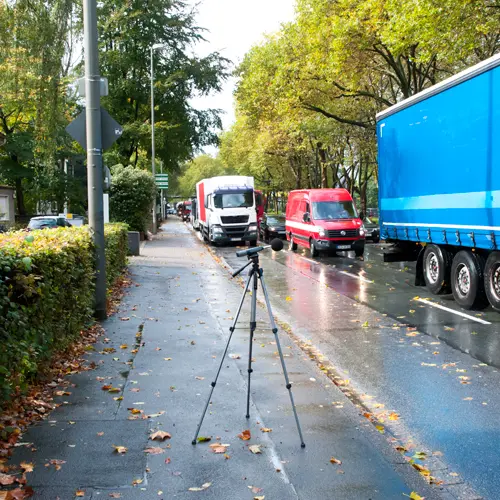

remain outdoors. The outdoor noise meter can be used, for example, for the sound measurement of road noise,
aircraft and train noise, event noise, etc. The weather does not matter, hail, snow and rain are no problem for the kit for outdoor
noise. If the PCE-432 sound level meter is combined with this measuring kit, it is even possible that the
exact location of the sound level metering around the outside area is assigned via the GPS
receiver.
Measuring range |
25 ... 136 dbA |
Accuracy |
Class 2 |
Frequency range |
20 Hz ... 12.5 kHz |
Standards |
GB/T3785.1-2010 |
Frequency analysis |
Octave band filter: 20Hz ... 8kHz |
Microphone |

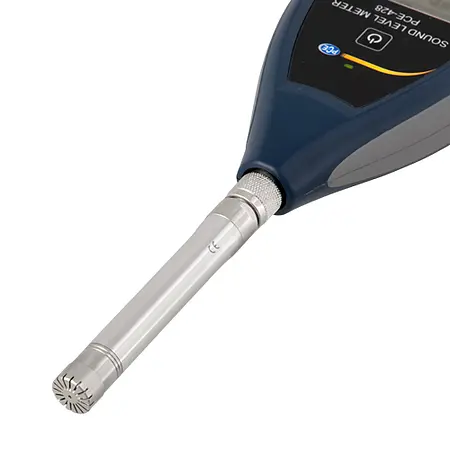

1/2" measurement microphone class 2 |
Data-logging interval |
1 s ... 24 h (adjustable) |
Measuring functions |
LXY(SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN. |
X = Frequency weighting: A, B, C, Z; |
|
24 hour measurement |
Automatic measurement with data storage |
Frequency weightings |
A, B, C, Z |
Time weightings |
Fast (F), Slow (S), Pulse(I), Peak |
Inherent noise |
Microphone: 20 db(A), 26 db(C), 31 db(Z) |
AD converter |
24 Bit |
Sample rate |
Standard: 48 kHz |
Measuring display |
Numerical |
Display |
160 x 160 Pixel LCD with backlight |
Memory |
4 GB Micro SD card |

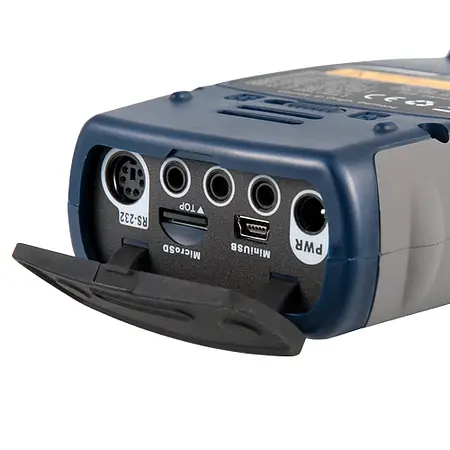

Interface |
USB (Memory readable via software or directly as mass storage) |
Voltage output |
AC 5V RMS |
Alarm |
Adjustable |
Power supply |
4 x 1.5 V AA batteries |
Operating time battery mode |
min. 10 h |
Dimensions |
70 x 300 x 36 mm / 2.76 x 11.81 x 1.42" (W x H x D) |
Weight |
approx. 620 g / 1.4 lbs incl. batteries |
Transport case | PELI 1510 with rollers with grid foam |
Protection | IP65 |
Outdoor Noise Level Meter Kit | |
Connections on the suitcase | Microphone: TNC 12 V charging voltage: XLR 110 V / 230 V charging voltage: PowerCon TRU |
Charger | Victron Blue Smart 12 V / 4 A IP65 |
Internal batteries | 2 x 12 V / 12 Ah lead gel |
Battery running time | min. 10 days |
Power supply | with charger EU version: 180 ... 265 V AC with charger US version: 100 ... 130 V AC battery operation: 2 x 12 V / 12 Ah |
Cable length | Microphone cable: 2 m / 6 ft 6" with TNC connector Power supply: 2 m / 6 ft 6" with PowerCon TRU |
Dimensions | 56 x 35 x 23 cm / 2.2 x 1.3 x 0.9" |
Weight | ca. 14 kg / 30 lb 13 oz with batteries ca. 8 kg / 17 lb 10 oz without batteries |
1 x Outdoor Condition Monitoring Sound Level Meter PCE-428-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 2
1 x Wind noise suppression (foam ball)
1 x USB interface cable

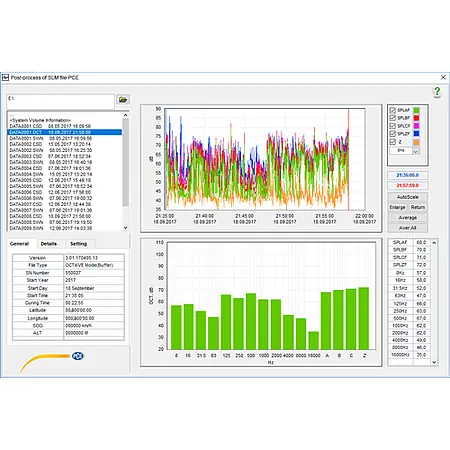

1 x Software is a free download
1 x Power adapter
1 x Suitcase
1 x User manual
1 x Outdoor Sound Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries
1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply 110 V / 230 V (optional Schuko or US connection)
1 x ISO
calibration certificate
Note: The Outdoor Sound Level Meter PCE-428-EKIT comes with octave band filter. Optionally upgrade with a 1/3 octave band filter (see option)
