Conductivity Meter PCE-PH 25

Order no.: PCE-PH 25
GTIN (EAN): 4250348718617
US$ 442.00
ex. VAT, ex. delivery costs
:
4250348718617
PCE-PH 25
Available in: 1-2 days
Liquids
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Conductivity meter PCE-PH 25

pH meter for determining the pH value, the conductivity, the filtrate dry residue / Display of salinity / Determination of sample temperature / IP67 protected ABS housing / Measurement data memory for 50 data sets

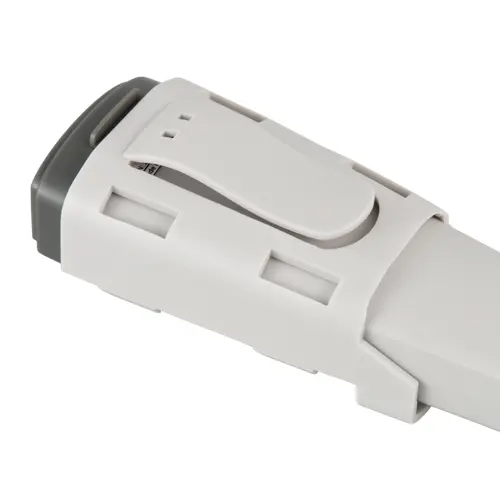

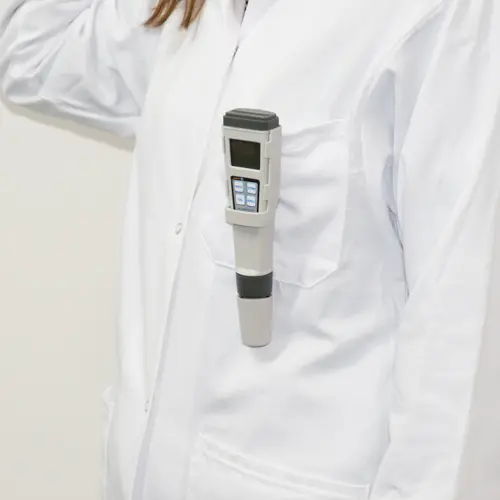

The pH meter provides the user with comprehensive measurement applications. In addition to determining the pH value, the pH meter also shows the conductivity, the filtrate dry residue, the salinity and the temperature of the sample. The pH meter is a measuring instrument for mobile measurement. In order to facilitate the most comfortable transport, the pH meter is supplied with a practical belt clip into which the measuring instrument can be inserted. In contrast to a normal pH meter, there are many possibilities to perform a liquid analysis.

The scope of application ranges from the diagnosis of private aquariums to the examination of water bodies or swimming pools. The measured values ​​can be read directly on the display. In addition, these measured values ​​can be stored directly on the internal measured value memory via the function keys.

Highlights

- Robust ABS housing (IP67)
- Measurement data memory for 50 data sets
- Mobile measuring instrument
- HOLD function
- Self-calibration possible
- Display of salinity and conductivity

Specification

Measuring range
0.00 ... 14.00 pH
Resolution0.01 pH
Measurement accuracy± 0.01 pH
Buffer detection pH measurementpH 7.00, 4.01, 10.01 or pH 6.86, 4.00, 9.18
Temperature compensation pH measurement Automatically -5 ... 60°C / 23 ... 140°F
Buffer detection Temperature measuring range    0.0 ... 60.0°C
Offset detection pH electrode± 100 mV at pH 7.00
+ 91.7 mV / -108.7 mV at pH 6.86
Slope pH electrode± 30% at pH 4.00, 4.01, 9.18, and 10.01
Input resistance> 1012 Ω

pH meter: Technical data Conductivity
Measuring range 0 μS / cm ... 20 mS / cm
Resolution Minimum 1 μS / cm
Measurement accuracy ± 1% of the measured value
Reference temperature 15.0 ... 25.0°C / 59 ... 77°F
Temperature coefficient 0.00 ... 4.00%

pH meter: Technical data TDS
Measuring range 0 mg / l ... 20.00 g / l
Resolution at least 1 mg / l
Measurement accuracy ± 1% of the measured value
Constant 0.30 ... 1.00

pH meter: Specifications Salinity
measuring range 0.0 ... 10.0 ppt
resolution 0.1 ppt
measurement accuracy ± 1% of the measured value

pH meter: Technical data Temperature
Measuring range -5.0 ... 60°C / 23 ... 140°F
Resolution -5.0 ... 60°C: 0.1°C / 23 ... 140°F: 0.18°F
Measurement accuracy -5.0 ... 60°C: ± 0.5°C /23 ... 140°F: ± 0.9°C
Temperature sensor Thermistor, 10 kΩ at 25°C / 77°F
unit °C or °F

General technical data of the pH meter
Power supply 4 x LR44 battery
Automatic shutdown after about 10 minutes of inactivity
Capacity Datalogger 50 records
Ambient temperature 0.0 ... 50.0°C / 32 ... 122°F
Ambient humidity < 95% rh
Casing ABS, IP67
Dimensions 44 x 200 x 25 mm / 1.7 x 7.9 x 1 in
Weight 110 g / < 1 lb

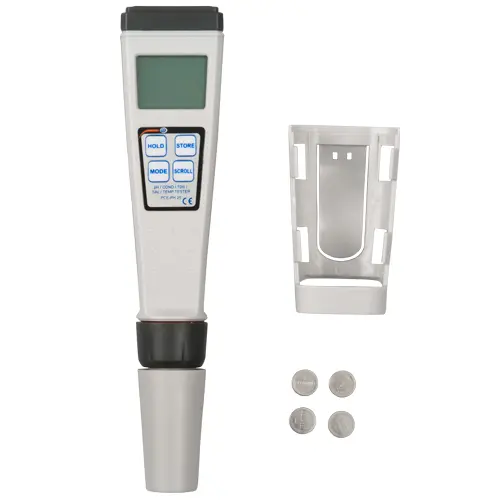

Delivery Scope

1 x Conductivity Tester PCE-PH 25
4 x LR44 battery
1 x Belt clip
1 x Protective cap
1 x User manual
