Multifunction Conductivity Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate

Order no.: PCE-PHD 1-ICA
GTIN (EAN): 4250348726537
US$ 643.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348726537
PCE-PHD 1-ICA
Available in: 10 - 14 days
Handheld
0 ... 50 °C / 32 ... 122 °F
0 ... 14 pH

Accessory

Potassium Chloride Conductivity Solution 1413μS / cm 250 ml
Potassium Chloride Conductivity Solution 1413μS / cm 250 ml
US$ 30.00
Replacement tube CPC-OSH-12-00SP
Replacement Electrode CPC-OSH-12-00SP
US$ 153.00
Replacement conductivity electrode CDPB-03
Replacement electrode CDPB-03
US$ 72.00
Temperature sensor TP-07
Temperature sensor TP-07
US$ 46.00
Oxygen probe OXPB-11
Oxygen probe OXPB-11
US$ 131.00
Electrolytic solution OXEL-03
Electrolytic solution OXEL-03
US$ 33.00
Replacement membrane OXHD-04
Replacement membrane OXHD-04
US$ 20.00
Carrying Case with hard foam insert
Carrying Case with hard foam insert
US$ 34.00
Food pH-electrode CPC-OSH-12-01
Food pH-electrode CPC-OSH-12-01
US$ 275.00
REDOX-Electrode ORP-14
REDOX-Electrode ORP-14
US$ 105.00
Potassium Chloride Conductivity Solution 1413μS / cm 500 ml
Potassium Chloride Conductivity Solution 1413μS / cm 500 ml
US$ 37.00
ISO certificate CAL-PCE-PH for pH meters
ISO certificate CAL-PCE-PH for pH meters
US$ 95.00
pH-Electrode PE-03
pH-Electrode PE-03
US$ 67.00
Power supply North America
Power Supply 9 V / 0.8 A (US / North American)
US$ 21.00
USB Data Cable Incl. Software SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
US$ 114.00
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
US$ 33.00
Standard pH electrode CPC-EPS-1
Standard pH electrode CPC-EPS-1
US$ 126.00
Calibration Solution pH10
Calibration Solution pH10
US$ 18.00
Calibration Solution pH7
Calibration Solution pH7
US$ 14.00
Calibration Solution pH4
Calibration Solution pH4
US$ 14.00
Calibration Solution pH4 and pH7 and pH10
Calibration Solution pH4 and pH7 and pH10
US$ 33.00
Buffer solution PCE-PH2-500 500 ml
Buffer solution PCE-PH2-500 500 ml
US$ 26.00
pH Electrode for Wine PCE-PH-WINE
pH Electrode for Wine PCE-PH-WINE
US$ 503.00
Electrode Storage Solution 3mol / l
Electrode Storage Solution 3mol / l
US$ 21.00
Conductance solution potassium chloride PCE-CDS-12,88
Conductance Solution Potassium Chloride PCE-CDS-12,88
US$ 30.00
Calibration solution PCE-CDS-111,8
Calibration Solution PCE-CDS-111,8
US$ 33.00
Diaphragm Cleaner with Thiourea PCE-DCS-250
Diaphragm Cleaner with Thiourea PCE-DCS-250
US$ 38.00
Buffer solution PCE-PH12-500
Buffer solution PCE-PH12-500
US$ 26.00
Cleaning solution pepsin / hydrochloric acid PCE-GCS-500
Cleaning solution pepsin / hydrochloric acid PCE-GCS-500
US$ 29.00
Redox Solution +468 mV PCE-RTS-468
Redox Solution +468 mV PCE-RTS-468
US$ 41.00
Redox Solution +240 mV PCE-RTS-220
Redox Solution +240 mV PCE-RTS-220
US$ 41.00
pH Electrode PCE-PH-SLUR
pH Electrode PCE-PH-SLUR
US$ 199.00
pH Electrode PCE-PH-LIQ
pH Electrode PCE-PH-LIQ
US$ 199.00
Calibration Solution pH4 and pH7
Calibration Solution pH4 and pH7
US$ 22.00
pH electrode IJ-44C
pH Electrode IJ-44A
US$ 196.00

Description

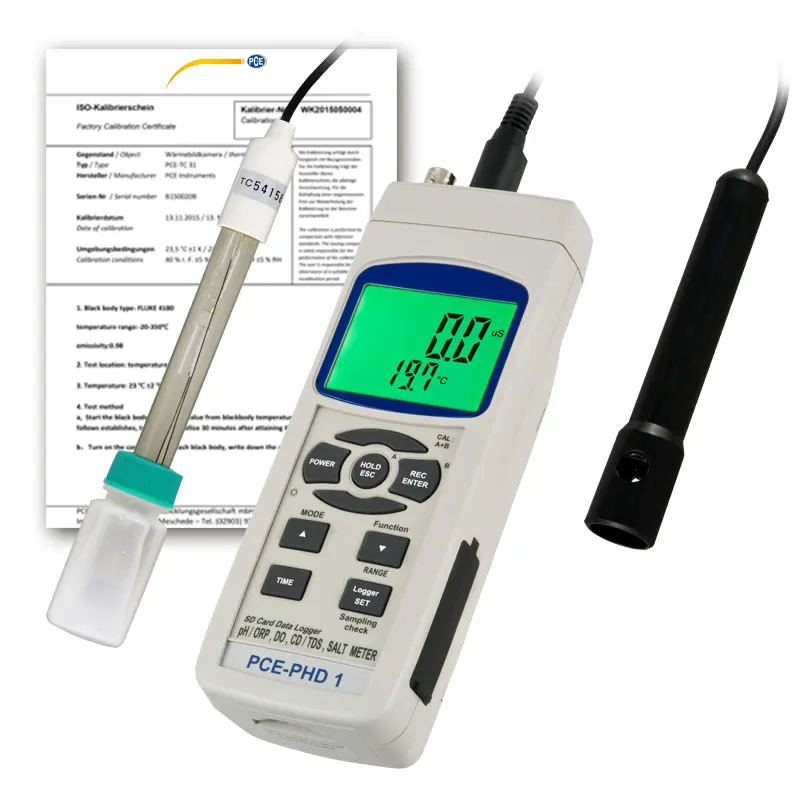

Multifunction Conductivity Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate
pH value, redox, conductivity, salt, oxygen and temperature measuring device /
SD card memory (1 ... 16 GB), data is saved as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC

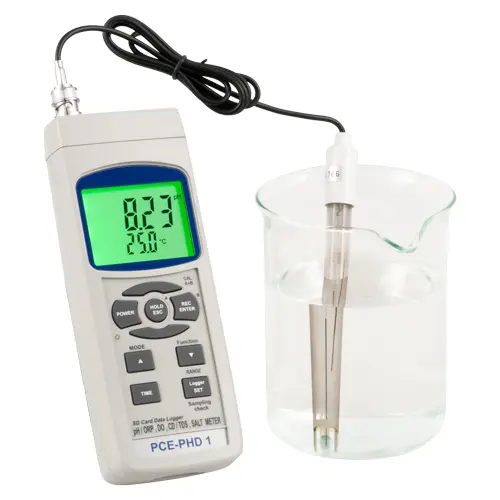

The Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water. Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements.

This meter is supplied with both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

Highlights

- Optimal price / performance ratio
- Real-time data logger

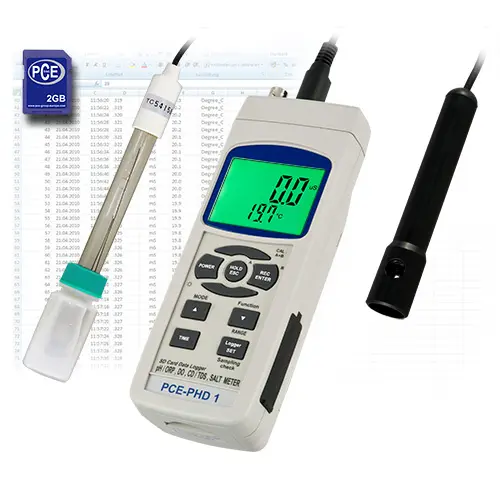

- SD card memory (1 ... 16 GB)
- The saved data is saved directly as an Excel file on the SD card (for evaluation, no software is required)
- RS-232 interface for online data transfer
- Measures pH value, redox, conductivity, salt content, oxygen, and temperature
- High precision
- Low battery display
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurements
- REDOX and oxygen electrode optionally available
- incl. ISO Calibration Certificate

Specification

pH measurement


Measurement range

0 ... 14.0 pH
Resolution 0.01 pH
Accuracy ±0.02 pH + 2 digits
Calibration 3 points (pH 4, pH 7, and pH 10)
Temperature compensation Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF)

Redox measurement (optional)

Measurement range1999 ... 0 ... 1999 mV
Resolution1 mV
Accuracy± 0.5 % + 2 digits

Conductivity measurement
Measurement range 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
Resolution 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy ±2 % of the measurement range + 1 digit
Calibration 1413 mS/cm
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Total dissolved solids (TDS)
measurement
Measurement range 0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm
Resolution 0.1 ppm, 1 ppm, 10 ppm, 100 ppm
Accuracy ±2 % of the measurement range + 1 digit
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Salt content measurement
Measurement range 0 ... 12 % (of weight)
Resolution 0.1 %
Accuracy ±0.5 % of the measurement range
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Oxygen measurement (optional)
Measurement range 0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF
Resolution 0.1 mg/l, 0.1 %, 0.1 ºC
Accuracy ±0.4 mg/l, ±0.7 %, ±0.8 ºC
Calibration In the air
Temperature compensation Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF)

Temperature measurement
Measurement range 0 ... 60 ºC / 32 ºF ... 140 ºF
Resolution 0.1 ºC
Accuracy ±0.8 ºC
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

General specifications
Measurement rate 1 second up to 8 hrs 59 mins 59 secs
Display LCD 52 x 38 mm / 2 x 1.5"
Memory SD card up to 16 GB (2 GB card included)
Interface RS-232
Software Optional
Power supply 6 x 1.5 V AA batteries (optional power adapter)
Operating conditions 0 ... +50 ºC / < 85 % RH
Dimensions 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight 490 g / 1.1 lbs


Delivery Scope

1 x PCE-PHD 1-ICA multifunction conductivity meter

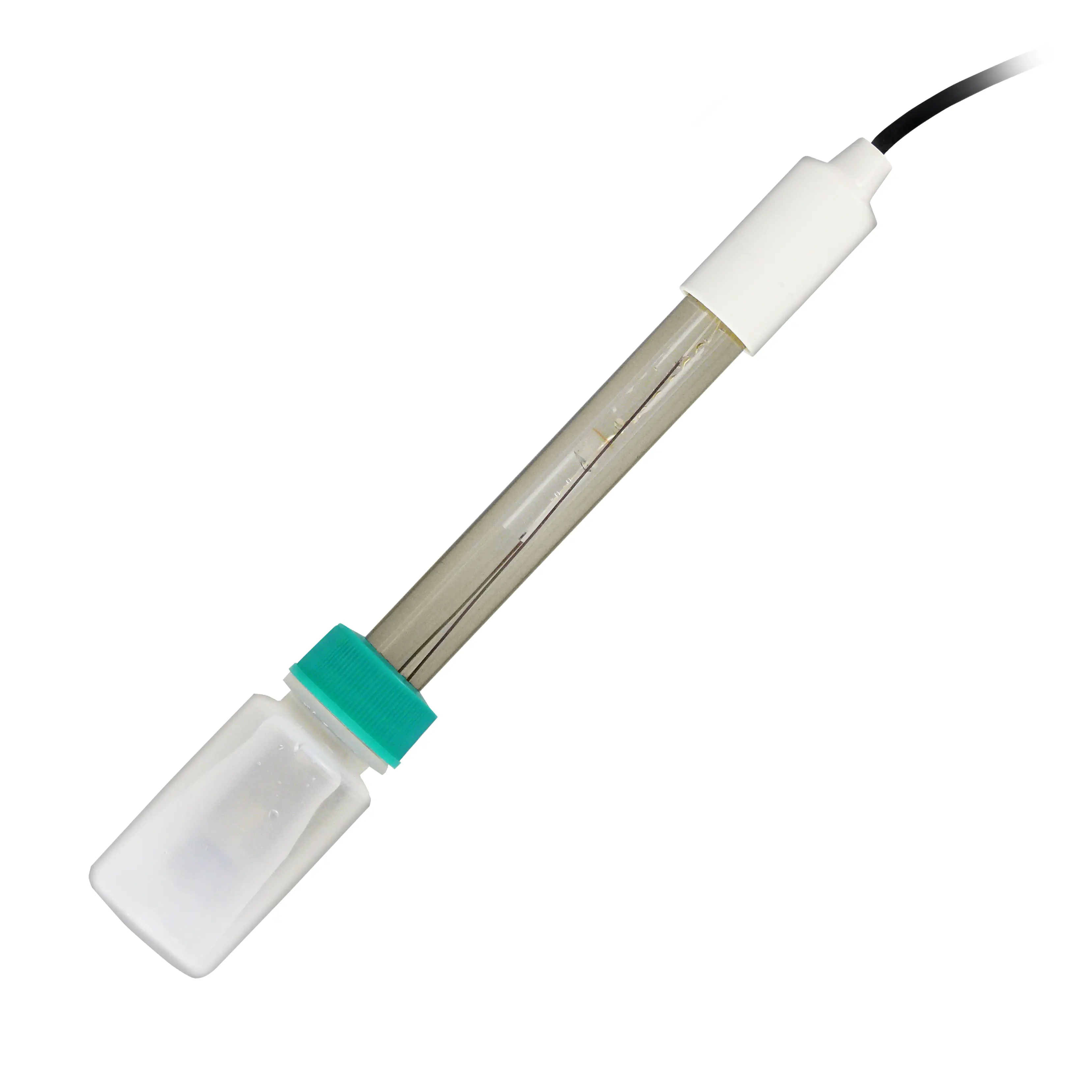

1 x pH electrode
1 x conductivity electrode
1 x SD memory card
6 x 1.5 V AA batteries
1 x user manual
1 x ISO Calibration Certificate
