Contact Thermometer PCE-HPT 1

Order no.: PCE-HPT 1
GTIN (EAN): 4250348711038
US$ 630.00
ex. VAT, ex. delivery costs
:
4250348711038
PCE-HPT 1
Available in: 1-2 days
Contact
Handheld
-100 ... 400 °C / -148 ... 752 °F
Yes (integrated)
Yes (USB)

Description

1-channel contact hermometer with 4-wire class A Pt100 sensor / Software for transmission and data value / Internal data logger

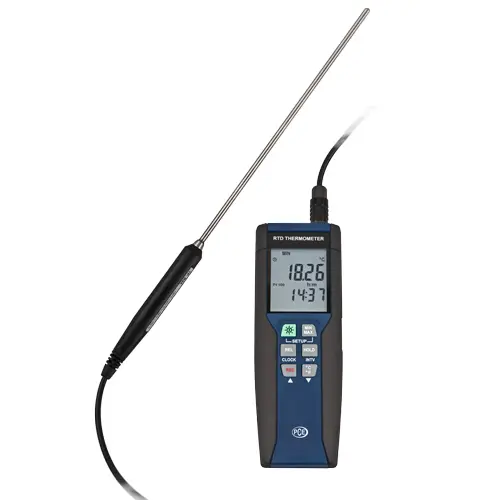

The contact thermometer with microprocessor is a high precision 1-channel temperature gauge. The thermometer with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology, it has a very fast response time and precision. Therefore, the sensors of the contact thermometer with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the thermometer with microprocessor reaches -100 to 400 ºC / -148 ... 752 ºF. The comprehensive software and easy to use thermometer with the microprocessor allows a simple assessment and see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The contact thermometer has an internal data logger with adjustable measuring range.


Highlights

- 1-channel temperature recorder
- Automatic shutdown
- High accuracy
- Backlight
- Software included
- Internal data logger
- Internal clock
- Class A, 4-wire Pt100 sensor
- Data-hold function
- Selectable units (°C / °F)

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Technical Data

Measurement range   -100 ... 400 °C / -148 ... 752 °F
Accuracy±0.05% + 0.1 °C / 0.18 °F (between 18 ... 28 °C / 64.4 ... 82.4 °F) only the device
Resolution0.01 °C / 0.018 °F
SensorClass A, 4-wire Pt100 sensor
Display5 digits, LCD
Data transmision USB
Data memory
up to 5000 measuring points
Reproducibility a measurement value every 0.5 s
Power supply 1 x 9V battery or network adapter (optional)
Dimensions device 185 x 65 x 36 mm / 7.3 x 2.6 x 1.4"
Dimensions sensor
235 x 5 mm / 9.25 x 0.19"

123 mm / 4.84" handle

1.5 m / 4.9 ft connection cable
Weight 360 g / < 1 lb
Operating conditions0 ... 50 °C / 32 ... 122 °F, 80% R.H.
Storage conditions -10 ... 60 °C / 14 ... 140 °F, 80% R.H.

Delivery Scope

1 x Contact Thermometer PCE-HPT 1
1 x Pt100 sensor
1 x USB cable
1 x Software
1 x 9V battery
1 x Storage box
1 x User manual
