Current Calibrator PCE-LOC 10

Order no.: PCE-LOC 10
GTIN (EAN): 4250348720320
US$ 570.00
ex. VAT, ex. delivery costs
:
4250348720320
PCE-LOC 10
Available in: 1-2 days

Description

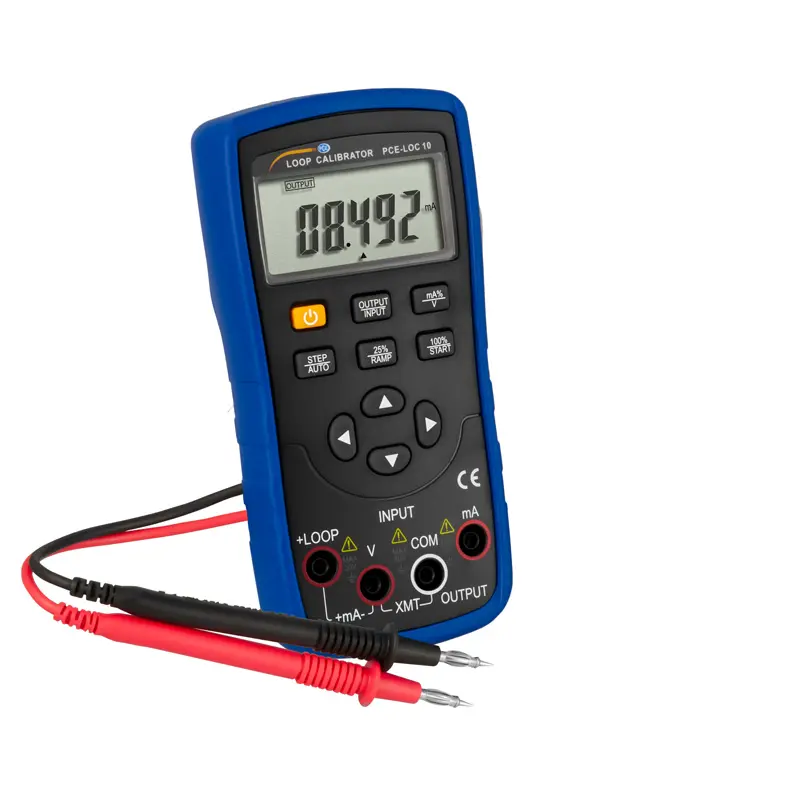

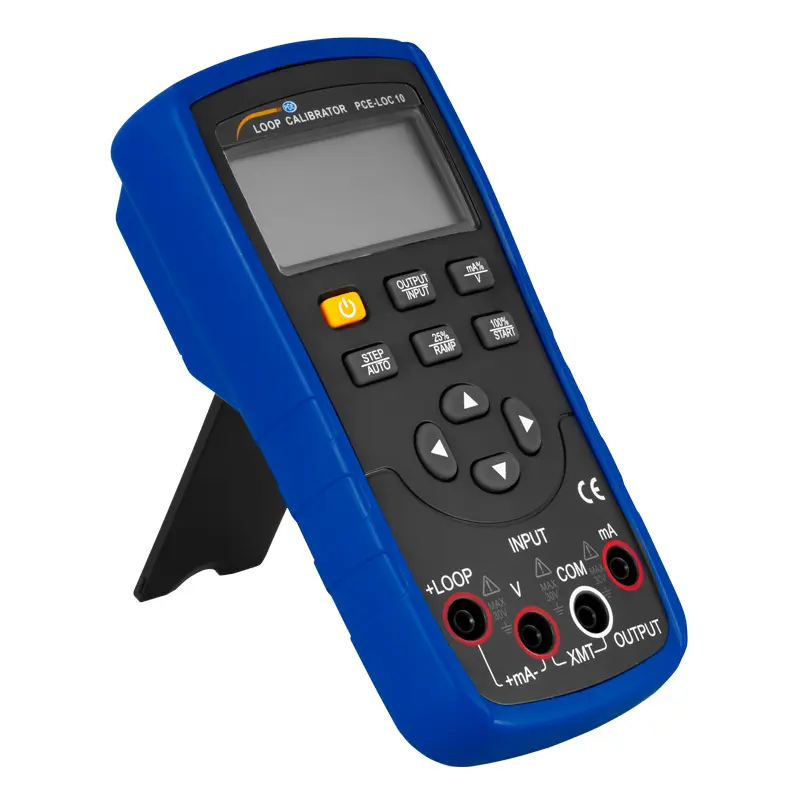

Current calibrator PCE-LOC 10
Process calibrator for 0/4 ... 20-mA signals / Simulation of active and passive sensors / 24V DC encoder / Measurement of process currents possible

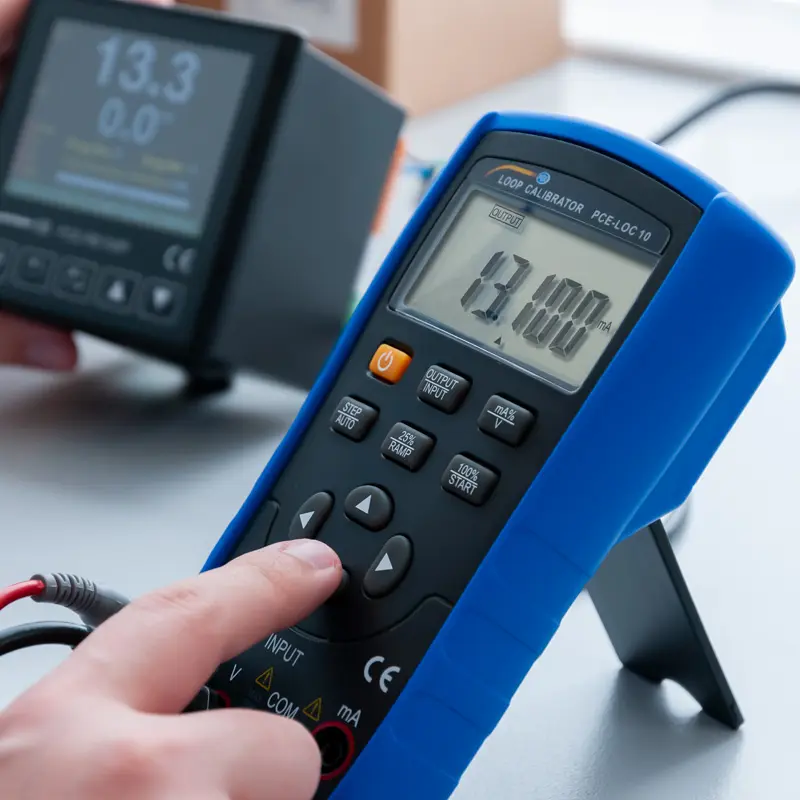

The process calibrator is used to simulate 0/4 ... 20-mA signals. The process calibrator can be used to calibrate display devices, data loggers, process recorders etc. The process calibrator can also be used to measure the process signal 0/4 ... 20-mA to test sensors and transmitters. The process calibrator is able to simulate both active sensors (source) and passive sensors (sink).

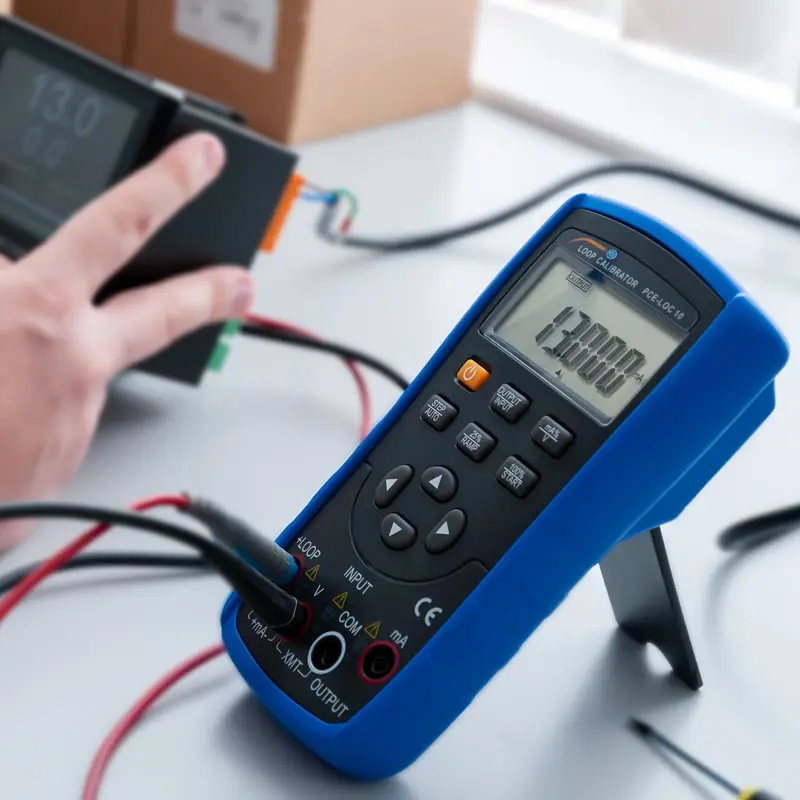

The process value can be set directly using the buttons on the process calibrator. However, it is also possible for the process calibrator to run an automatic ramp. As a further feature, the process calibrator can also provide 24V DC for sensors in order to test them in the process before commissioning. The output current from the sensor can be measured at the same time.

Highlights

- Simulation of 0/4 ... 20-mA
- For active and passive sensor simulations
- Large LCD
- Easy handling
- Ramp function
- 24V sensor supply possible

Specification

Current simulation (active)
(max. burden 1 kOhm)
Area Resolution  Accuracy
0 ... 22-mA 0.001-mA                ± 0.05% of sim. value + 4 µA



Current simulation (passive)
(max. burden 1 kOhm / max. 5 ... 25V DC)
Area Resolution Accuracy
0 ... 22-mA 0.001-mA ± 0.05% of sim. value + 4 µA



Voltage transmitter f. current loop
Area Resolution Accuracy
24V DC / 25-mA   ± 10%



Voltage measurement
Area Resolution Accuracy
-0.2 ... 28V 1 mV ± 0.02% of meas. + 2 mV



Current measurement
Area Resolution Accuracy
-1 ... 22-mA 0.001-mA ± 0.02% of meas. + 4 µA



Current measurement
(Loop current with voltage transmitter function)
Area Resolution Accuracy
0 ... 22-mA 0.001-mA ± 0.02% of meas. + 4 µA

More specifications
Power supply 2 x 1.5V AA batteries
Max. Tension 30V
Operating conditions 0 ... 50°C / 32 ... 122°F, < 80% RH
Storage conditions -10 ... 60°C / 14 ... 140°F, < 95% RH
Dimensions 180 x 90 x 47 mm / 7.1 x 3.5 x 1.9 in
Weight Approx. 500 g / 1.1 lbs

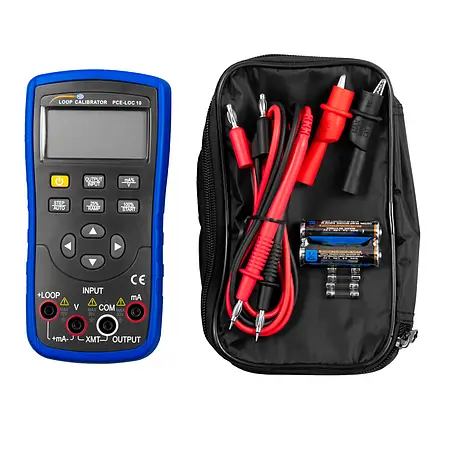

Delivery Scope

1 x Current calibrator PCE-LOC 10
1 x Test lead set
2 x Alligator clips
2 x 1.5V AA batteries
1 x Carry bag
1 x Instruction manual
