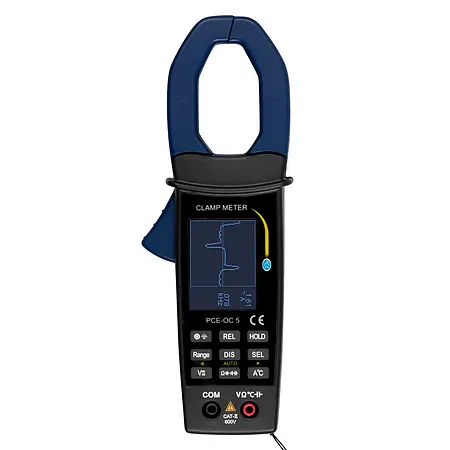

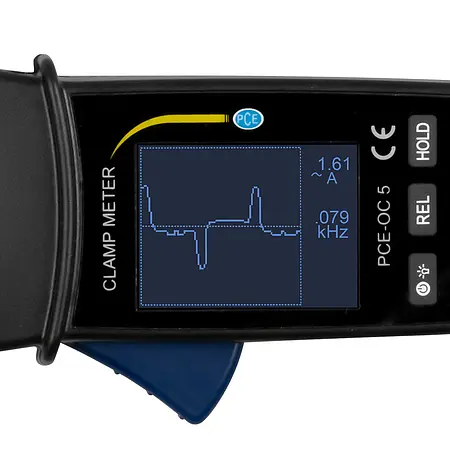

Clamp Current Meter PCE-OC 5

Name: Clamp Current Meter PCE-OC 5
Brand: PCE Instruments
SKU: 5937723
Price: 150 USD
Availability: InStock

Order no.: PCE-OC 5

GTIN (EAN): 4250348721532

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Description

Clamp Current Meter with oscilloscope function / 400 A AC / 600 V AC / DC / temperature measurement

TRMS multimeter with 2 kHz bandwidth / 200 kHz oscilloscope bandwidth

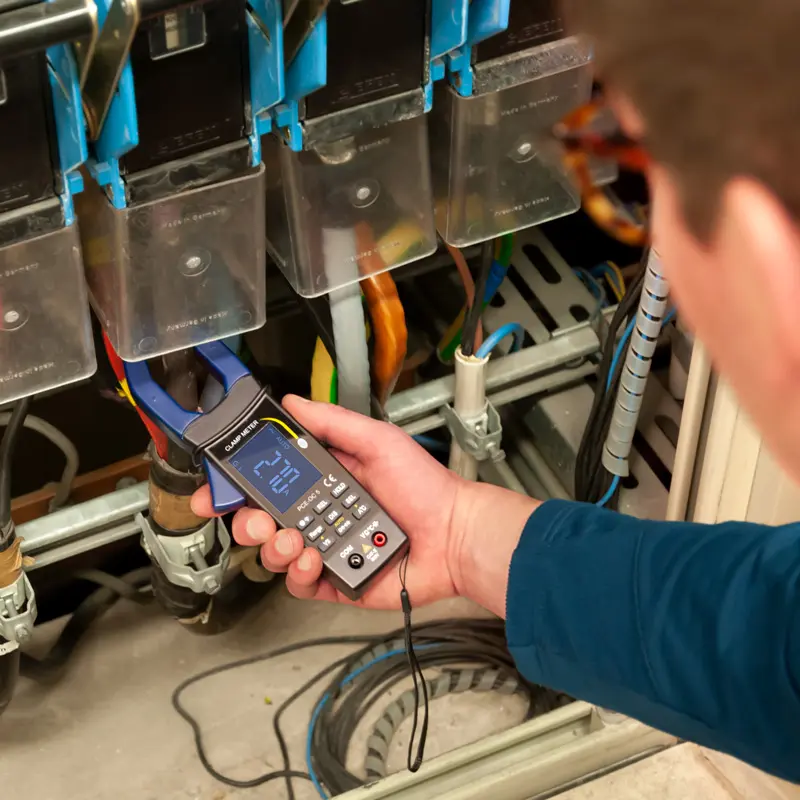

The Clamp Current Meter is suitable for service technicians, stationary use in repair departments in specialist shops and in laboratories. The Clamp Current Meter is designed for current measurements up to 400 A AC. In addition to the current clamp function, the measuring clamp offers many functions that only a multimeter otherwise has. The Clamp Current Meter can also be used as an oscilloscope for simple maintenance applications.

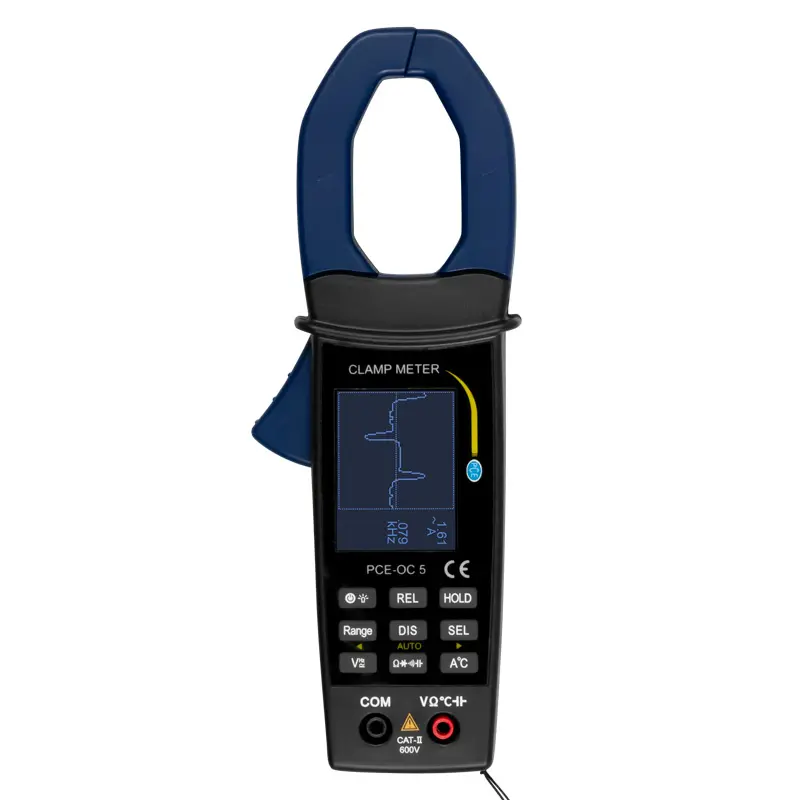

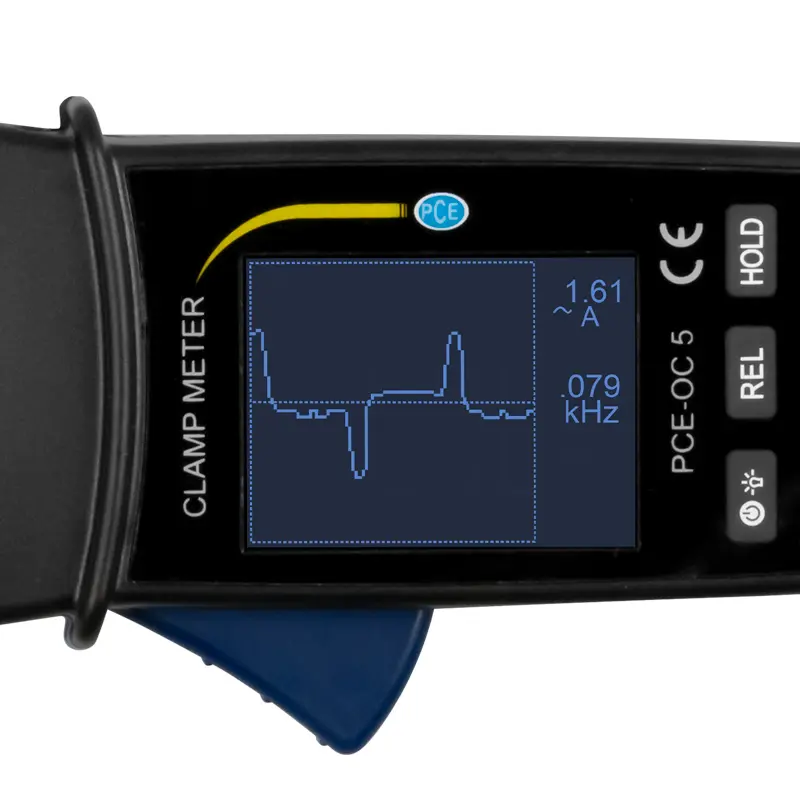

In the oscilloscope mode of the Clamp Current Meter, in addition to the direct and alternating voltage, the current can also be visualized as a graph. This has the advantage that the waveform of the current can also be displayed on the multimeter. Due to the bandwidth of 200 kHz in oscilloscope mode, the Clamp Current Meter, this measuring instrument can also be used to measure the current on frequency converters. All functions and areas of the Clamp Current Meter are protected against overload. The Clamp Current Meter is suitable for conductor diameters up to 35 x 46 mm.

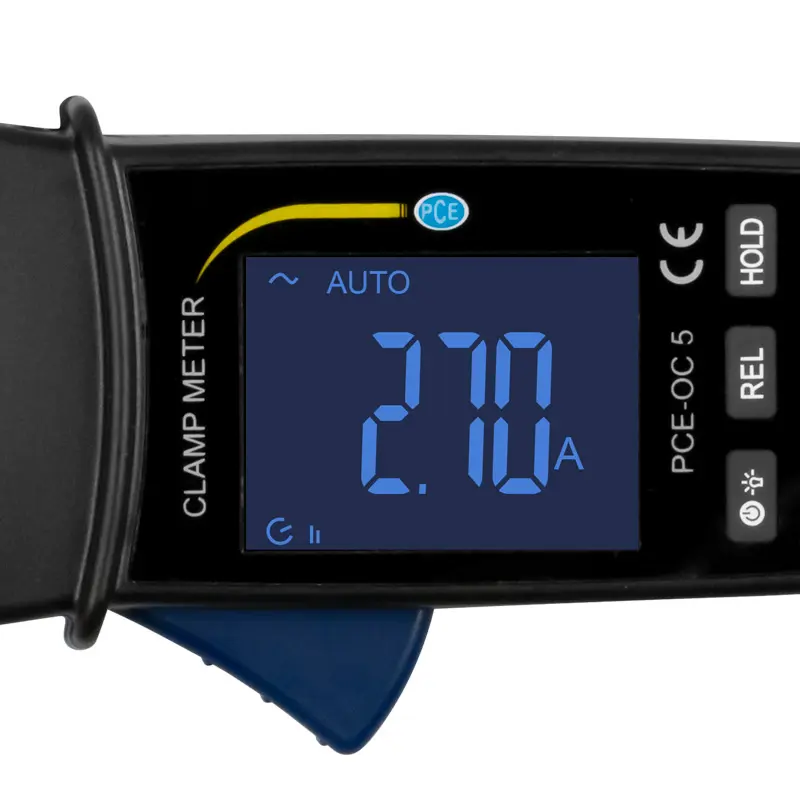

The Clamp Current Meter is powered by 1.5 V AAA batteries. The measured values and graphs are shown on the graphic LCD. In multimeter mode, up to 100 measured values can be stored and called up again on the display. The Clamp Current Meter can also save up to 10 graphs.

Highlights

- 3 in 1 clamp meter

- LC display

- Current measurement up to 400 A AC

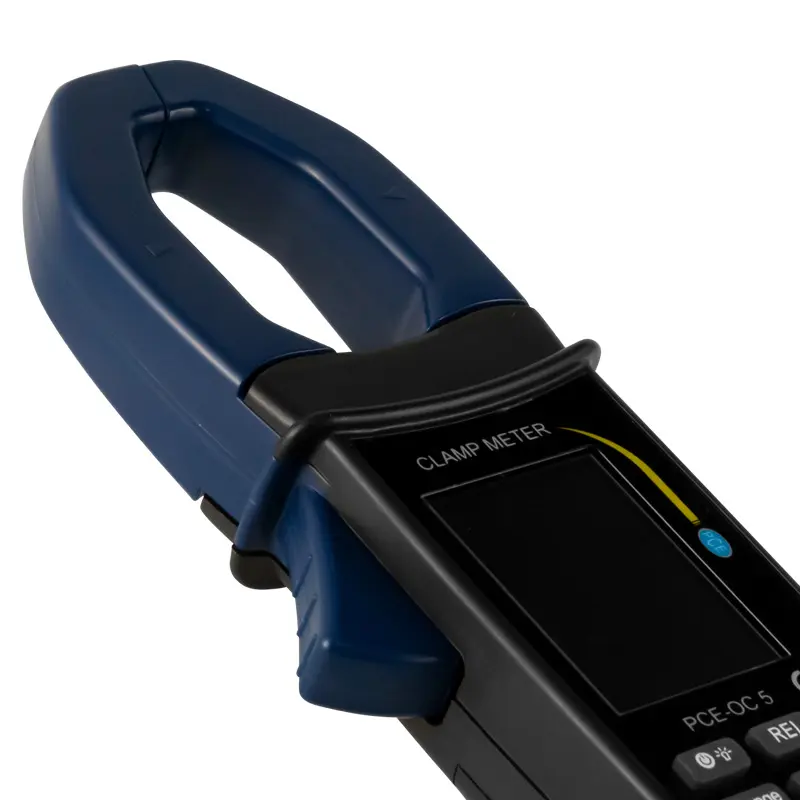

- 35 x 49 mm pliers opening

- temperature measurement

- easy to use

- Graphic display of the measurement signal

- memory function

Specification

Measurement parameters
DC voltage
Measuring range	Max. resolution	accuracy
400 mV	0.1 mV	± (1.5% of MW + 10 digits)
4 V	0.1 mV	(600 V DC)
40 V	0.1 mV
400 V.	0.1 mV
600 V	0.1 mV

Measurement parameters
AC voltage
Measuring range	Max. resolution	accuracy
4 V	1 mV	± (2% of meas. + 10 digits)
40 V	1 mV	50 Hz ... 2 kHz)
400 V.	1 mV
600 V	1 mV

Measurement parameters
Alternating current
Measuring range	Max. resolution	accuracy
40 A	10 mA	± (2.5% of MW + 10 digits)
400 A.	0.1 A	(400 A / 50 Hz)

Measurement parameters
frequency
Measuring range	Max. resolution	accuracy
10 Hz ... 30 kHz	0.1 Hz	± (1% of MW + 5 digits)
		(4 ... 600 V)

Measurement parameters
resistance
Measuring range	Max. resolution	accuracy
400 Ω	0.1 Ω	± (1% of meas. + 5 digits)
4 kΩ	0.1 Ω	(400 Ω ... 4 MΩ)
40 kΩ	0.1 Ω
400 kΩ	0.1 Ω	± (3% of mw + 5 digits)
4 MΩ	0.1 Ω	(40 MΩ)
40 MΩ	0.1 Ω

Measurement parameters
capacity
Measuring range	Max. resolution	accuracy
4 nF	1 pF	± (4% of meas. + 10 digits)
40 nF	1 pF	(4 nF ... 400 µF)
400 nF	1 pF
4 µF	1 pF	± (10% of meas. + 15 digits)
400 µF	1 pF	(4 mF)
4 mF	1 pF

Measurement parameters
temperature
Measuring range	Max. resolution	accuracy
-20 ... 250 ° C	1 ° C	± (2% + 3 ° C)

Oscilloscope mode
Usable measurement functions	DC voltage
	AC voltage
	Alternating current

Bandwidth	2 kHz
Sample rate	2 kSa / s

General technical specifications
display	LC display
Power supply	3 x 1.5 V AAA batteries
Power consumption	approx. 80 mA
Battery life	180 min
Storage	Multimeter mode: 100 data records
	Oscilloscope mode: 10 waveforms
Operating conditions	0 ... 40 ° C; Max. 75% RH:
Storage conditions	-10 ... 60 ° C; Max. 90 RH
Forceps opening	35 x 49 mm
Dimensions	212 x 74 x 35 mm
Weight	264 g

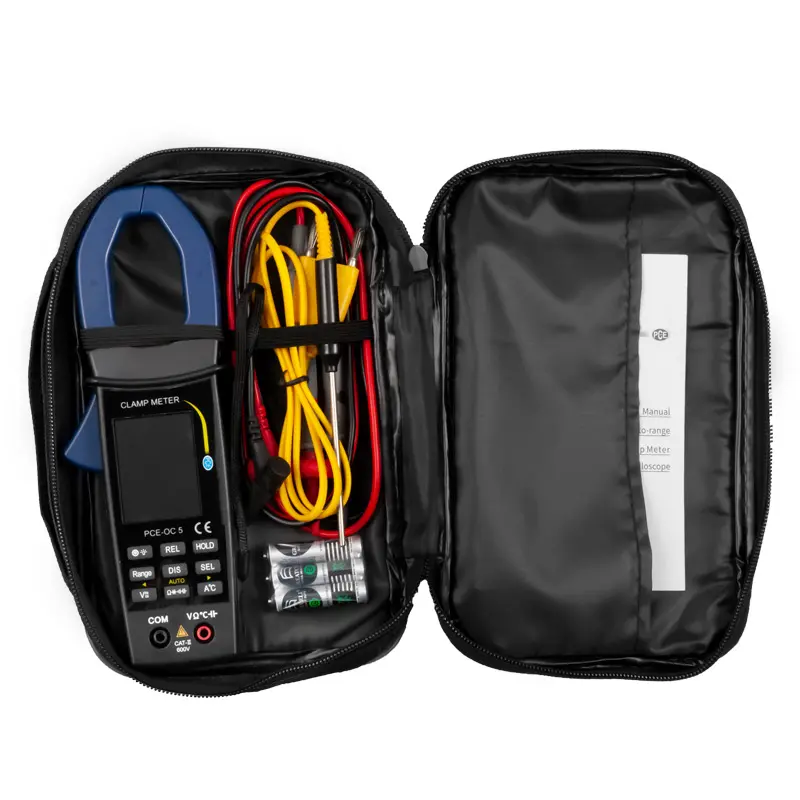

Delivery Scope

1 x Clamp Current Meter PCE-OC 5

3 x 1.5 V AAA batteries

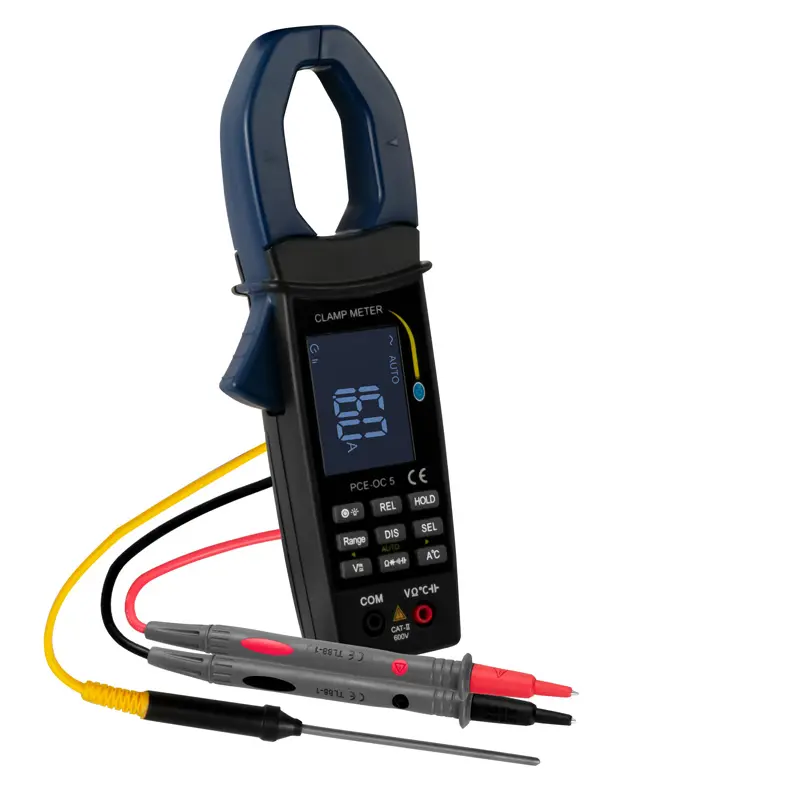

1 x test lead set

1 x carry bag

1 x wrist strap

1 x instruction manual

Downloads

Datasheet
