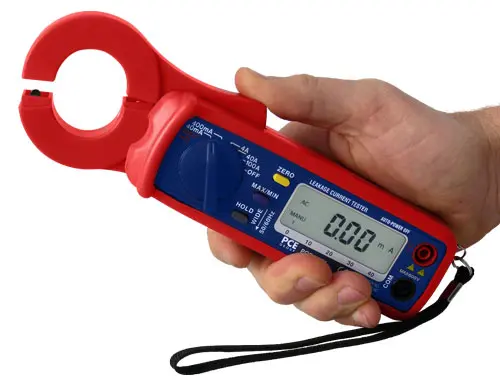

Current Clamp PCE-LCT 1

Order no.: PCE-LCT 1
GTIN (EAN): 4250348707178
US$ 245.00
ex. VAT, ex. delivery costs
:
4250348707178
PCE-LCT 1
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Current Clamp to test leakage current / RMS measurement / Continuity and resistance test / Measures voltage up to 600 V

With the Current Clamp it is possible to measure leakage currents up to a range of 100 A. The Current Clamp can measure leakage currents which appear when current flows through electrical conductors which are not designed for conduction current. The Current Clamp can detect leakage currents and show them on the display. With the help of the Current Clamp you can detect insulation failures in places where machines cannot be disconnected, however insulation must be checked, as for instance according to the VDE 701/702 standard. The Current Clamp measures current flow, voltage up to 600 V, resistance and continuity. The Current Clamp is the ideal instrument for electricians according to the VDE standard. The Current Clamp has a compact design which allows to be placed in any pocket. The rubber protection protects the instrument against falls, so it is the ideal instrument to be used in electrical inspections and in workshops.


Highlights

  - Measures leakage current
  - Measures current up to 100 A
  - Measures voltage up to 600 V
  - Continuity test
  - Measures resistance up to 400 Ω
  - Digital bar graph
  - High resolution
  - Max./min. values are viewed on the display
  - Rubber protector
  - Test cables are included

Specification

Leakage current and current (AC A)
Measurement ranges Resolution Accuracy
50 / 60 Hz 400 Hz ... 1 kHz
40-mA 10 µA ± (1% + 0.5-mA) ± (4.5% + 0.5-mA)
400-mA 100 µA ± (3% + 5-mA) ± (3% + 5-mA)
4 A 1-mA ± (4% + 0.1-mA) ± (4% + 0.1 A)
40 A 10-mA ± (4% + 1 A) ± (4% + 1 A)
80 A 10-mA ± (2.5% + 1 A) ± (3% + 1 A)
80 A - 100 A 100-mA ± (5% + 1 A) ± (5% + 1 A)
Voltage (AC V)
Measurement ranges Resolution Accuracy
50 / 60 Hz 400 Hz ... 1 kHz
400 V 1 V ± (1.5 % + 2 digits) ± (2 % + 4 digits)
Resistance
Measurement ranges Resolution
Accuracy Alarm
400 Ω 0.1 Ω ± (1% + 2 digits) Measurement value <38Ω
General Technical Specifications
Display 3 3/4
Measured electrical properties AC V, AC A, resistance
Security standards CAT III 300 V / CAT II 600 V
Diameter of the clip 30 mm
Input impedance 10 MΩ
Registration rate 2 Hz (numerical values), 20 Hz (bar graph)
Operating temperature -10 ... 50ºC / 14 ... 122ºF
Operating humidity <85% H.r.
Storing temperature -20 ... 60ºC / -4 ... 140ºF
Auto shut-off After 30 minutes
Power 9 V battery
Input current 10-mA
Weight 200 g / < 1 lb
Dimensions 210 x 62 x 35.6 mm / 8.2 x 2.4 x 1.4 in

Delivery Scope

1 x Current Clamp
1 x 9 V battery
2 x Test cables
1 x Carrying case
1 x User's manual
