Damp Meter for Wood PCE-WP24

Order no.: PCE-WP24
GTIN (EAN): 4250348707079
US$ 960.00
ex. VAT, ex. delivery costs
:
4250348707079
PCE-WP24
Available in: 1-2 Days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

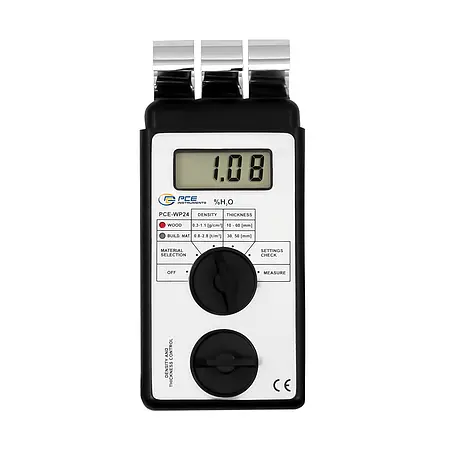

PCE-WP24 Damp Meter for Wood
For noninvasive, nondestructive moisture measurements of wood, timber, lumber and other construction or building materials
PCE-WP24 is a damp meter for wood used to perform noninvasive, nondestructive moisture measurements of wood, timber and other construction or building materials. An ideal tool for assessing everything from lumber to floors and more, this moisture meter uses electromagnetic waves that penetrate approximately 50 mm / 1.96 inches to 60 mm / 2.36 inches deep (depending on substrate) to return a mean-value moisture content percentage.

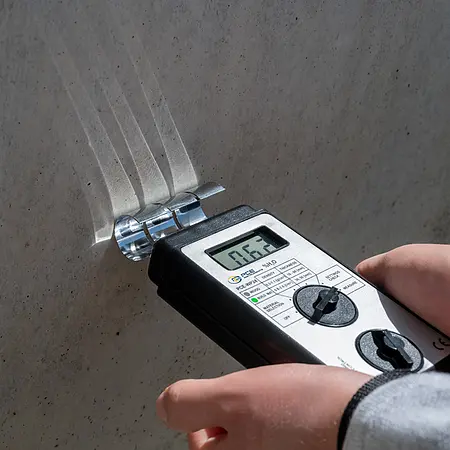

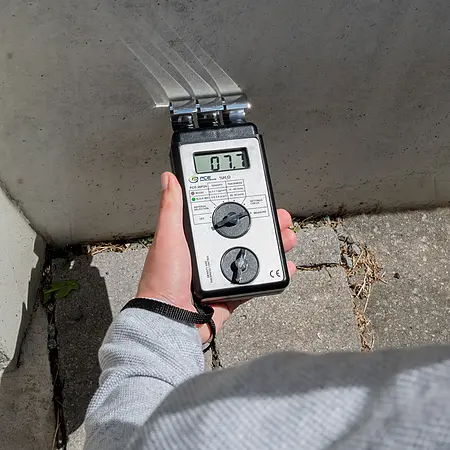

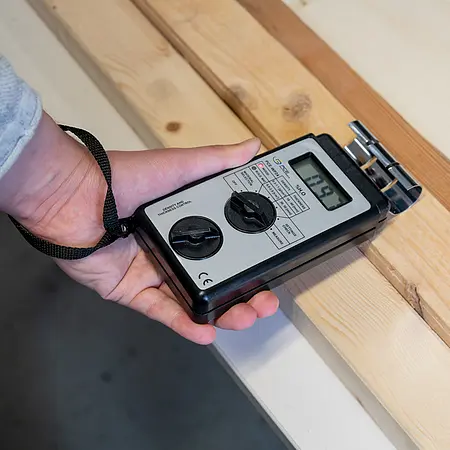

To measure, simply select either wood or building material (BUILD. MAT.) on the meter and place the meter's electrodes on the surface of the substrate. For accurate results, be sure to calibrate the instrument before each use according to the instructions outlined in the user manual.

Highlights

- For noninvasive, nondestructive moisture measurements of wood, timber, lumber and other construction or building materials
- Displays results in seconds on the easy-to-read 3-digit LCD screen with battery level indicator

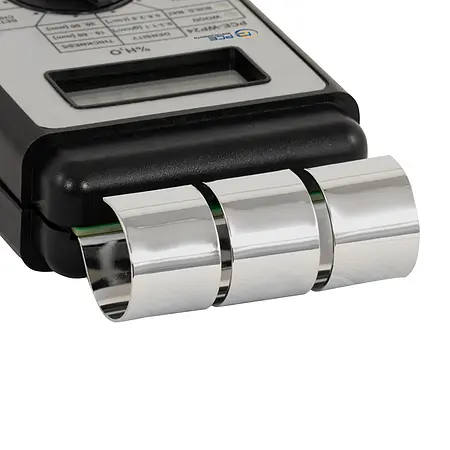

- Electromagnetic waves penetrate approximately 50 mm / 1.96 inches to 60 mm / 2.36 inches deep (depending on substrate)
- No surface preparation required
- Safe for use in situ

Specification

Moisture content measuring ranges
- Wood: 4% ... 60%
- Building materials: 0% ... 10%
Resolution: 0.1%
Accuracy: ±0.7%
Measurement depth
- Wood: Approx. 60 mm / 2.36 inches
- Building materials: Approx. 50 mm / 1.96 inches
Adjustments
- Density (wood): 0.3 ... 1.1 g/cm3
- Density (building materials): 0.8 ... 2.8 t/m3
Adjustment resolution
- Density (wood): 0.02 g/cm3
- Density (building materials): 0.2 t/m3
Display: 12.7 mm / 0.5 inch LCD screen
Housing: Plastic
Power: 1 x 9 V battery
Dimensions: Approx. 165 x 80 x 33 mm / 6.4 x 3.1 x 1.2 inches
Weight: Approx. 500 g / 1.11 lbs

See user manual for complete technical specifications.

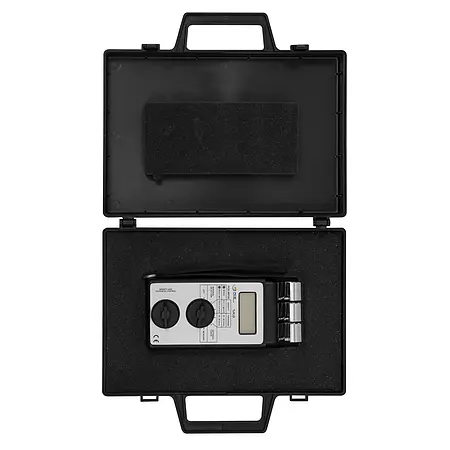

Delivery Scope

1 x PCE-WP24 damp meter for wood
1 x battery
1 x carrying case
1 x user manual
