Damp Meter PCE-780-ICA incl. ISO Calibration Certificate

Order no.: PCE-780-ICA
GTIN (EAN):
US$ 352.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-780-ICA
Available in: 10 - 14 days

Description


Infrared
damp meter for the display of temperature, humidity and dew point temperature / Optical alarm / Backlight / Automatic shutdown / Incl. ISO Calibration Certificate

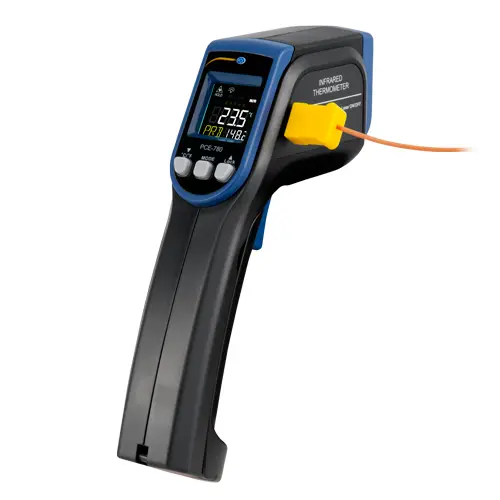

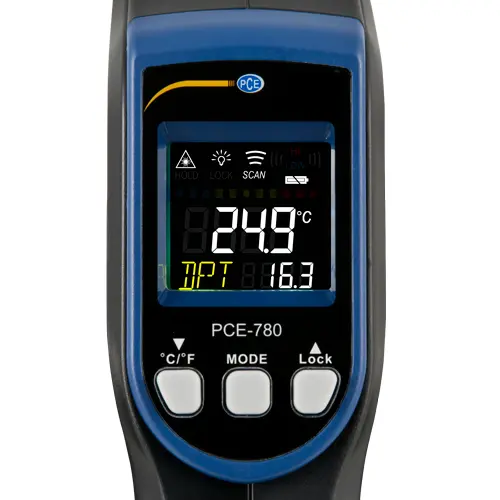

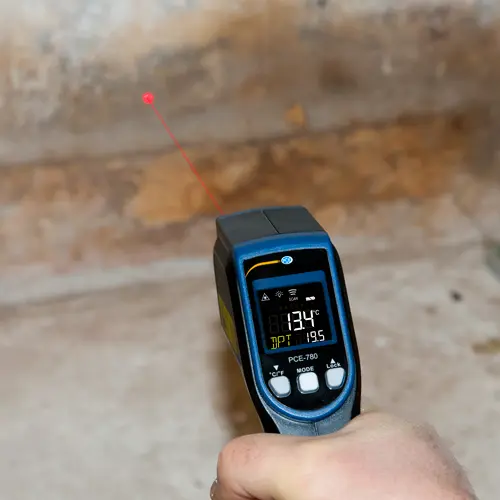

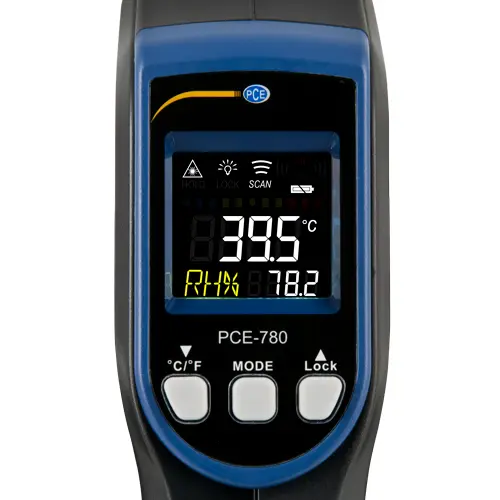

The damp meter consists of an infrared thermometer and an integrated humidity meter. With the two sensors, it can record values to determine the dew point. If this dew point is reached or undershot, there is a risk of moisture settling and mold growing. The dew point, which is calculated by the damp meter, is displayed on the high-contrast LCD display. The control buttons can be used to set alarm values. If the surface temperatures are exceeded or undercut, the damp meter emits a warning tone and displays either a LOW or a HIGH alarm.

The damp meter also has a relative value measuring function. Thus, in the structural analysis, a temperature can be stored as a reference in the instrument by a measuring point. If further measurements are subsequently carried out, a good / bad evaluation by the damp meter is carried out via a colored bar graph. Furthermore, the damp meter offers the possibility to determine the maximum, minimum and average value of the infrared temperature.

Highlights

- Infrared temperature measurement
- Air temperature and humidity measurement
- Calculation of dew point
- High contrast LCD display
- Adjustable high and low alarm
- Max, Min, Average measurement
- External temperature sensor can be connected
- Adjustable degree of emission
- Incl. ISO Calibration Certificate

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Measuring range

Infrared: -76 ... 932°F / -60 ... 500°C

Type K thermocouple: -83 ... 2552°F / -64... 1400°C

Air temperature: -4 ... 149°F / -20 ... 65°C

Wet bulb temperature: -4 ... 149°F / -20 ... 65°C

Dew point: -58 ... 122°F / -50 ... 50°C

Humidity: 1... 99% rh

Accuracy
(at 68... 78°F / 20... 26°C ambient temperature)

Infrared
59... 95°F / 15... 35°C: ± 1.0°C / 1.8°F

-22 ... 932°F / -33... 500°C: ± 2% of rdg. or ± 2°C / 3.6°F


Thermocouple type K
± 1% of rdg. or ± 1.0°C / 1.8°F


Air temperature: ± 2.5°C / 4.5°F

Wet bulb temperature: ± 2.5°C / 4.5°F


Dew point
20... 30% RH: ± 2.5°C / 4.5°F

31... 40% RH: ± 2.0°C / 3.6°F

41... 95% RH: 1.5°C / 2.7°F


Air humidity:
20... 80%: ± 3%
Balance: ± 5%

Resolution

0.1°C / 0.18°F

1.0°C / 1.8°F

Emissivity

0.1 ... 1

Response time

1 second

Optical resolution

12: 1

Power supply

2 x 1.5V AAA battery

Battery life
(without laser & display lighting)

Approx. 180 minutes
Approx. 140 minutes (continuous operation)

Weight

< 1 lb / 240 g

Dimensions

1.8 x 5.6 x 7.3 in / 46 x 143 x 184.8 mm

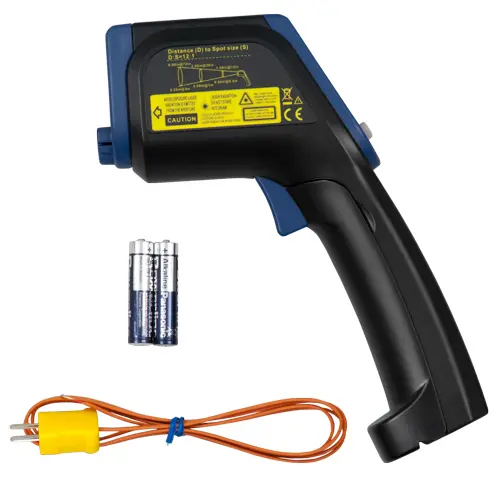

Delivery Scope

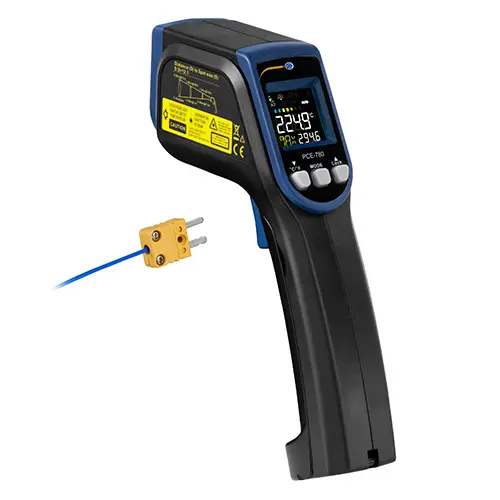

1 x PCE-780 damp meter
1 x Type K thermocouple
2 x 1.5V AAA batteries
1 x User manual

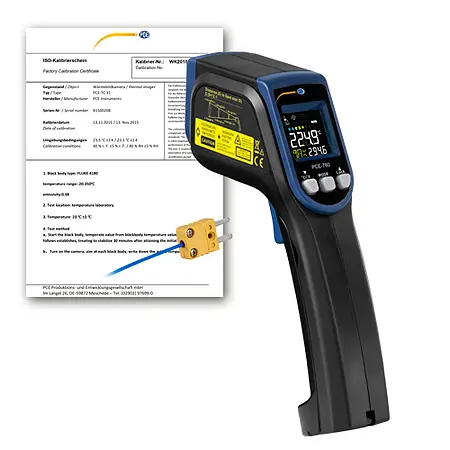

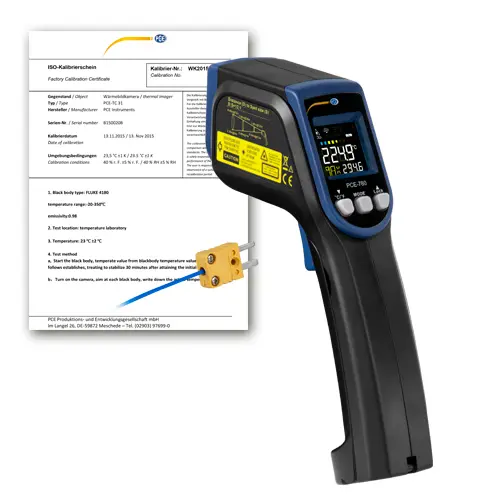

1 x ISO Calibration Certificate
