Multifunction pH Meter PCE-PHD 1-PH

Order no.: PCE-PHD 1-PH
GTIN (EAN):
US$ 577.00
ex. VAT, ex. delivery costs
PCE-PHD 1-PH
Available in: 1-2 working days
pH
Handheld
0 ... 50 °C / 32 ... 122 °F
0 ... 14 pH
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

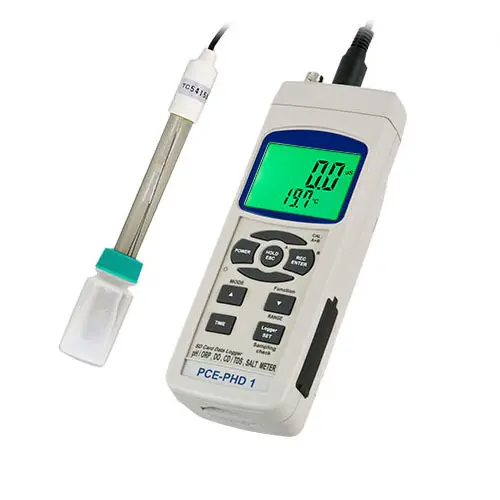

PCE-PHD 1-PH pH Meter

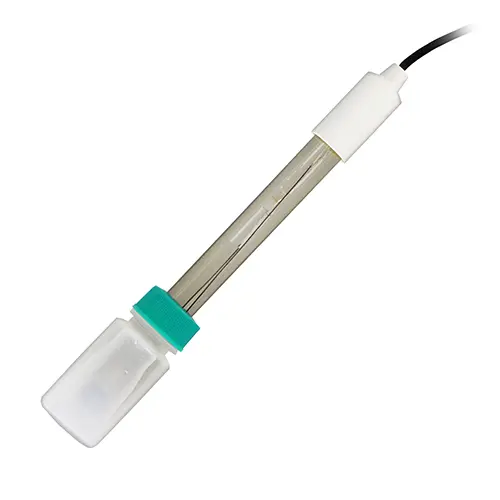

Includes a pH electrode and a temperature sensor

This pH Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction pH Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water. Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements.

The pH meter is supplied with both a pH electrode and a temperature sensor. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. The pH meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.


Highlights

- Automatic calibration
- Low battery indication
- Adjustable measurement rate
- Manual or automatic temperature compensation
- Compatibility with SD cards up to 16 GB
- pH electrode and temperature sensor included

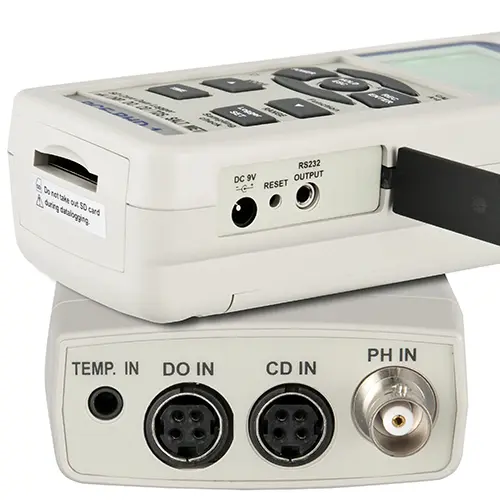

- BNC connector


Specification

pH measurement



Measurement range

0 ... 14.0 pH

Resolution 0.01 pH
Accuracy ±0.02 pH + 2 digits
Calibration 3 points (pH 4, pH 7, and pH 10)
Temperature compensation Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF)
Temperature
Measurement range 0 ... 60 ºC / 32 ºF ... 140 ºF
Resolution 0.1 ºC
Accuracy ±0.8 ºC
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

General specifications
Measurement rate 1 second up to 8 hrs 59 mins 59 secs
Display LCD 52 x 38 mm / 2 x 1.5"
Memory SD card up to 16 GB (2 GB card included)
Interface RS-232
Software Optional
Power supply 6 x 1.5 V AA batteries (optional power adapter)
Operating conditions 0 ... +50 ºC / < 85 % RH
Dimensions 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight 490 g / 1.1 lbs


Delivery Scope

1 x PCE-PHD 1-PH multifunction pH meter
1 x pH electrode
1 x temperature sensor
1 x SD memory card 2 GB
6 x 1.5 V AA batteries
1 x user manual
