Order no.: PCE-RAM 10

Radioactivity Data Logger PCE-RAM 10

Wireless
US$ 586.00
:
4250348714701
PCE-RAM 10
ex. VAT, ex. delivery costs
Radioactivity
Available in: Available soon!

Description

PCE-RAM 10 Radioactivity Data Logger
Radiation detector measures α-, β-, γ- and x- radiation / High accuracy / Internal memory / Large, easy-to-read LCD screen / Data logging functionality / Bluetooth interface

The radioactivity data logger measures α-, β-, γ- and x- radiation. The radioactivity data logger provides many features including a large, high-resolution LCD screen with background lighting. The radioactivity data logger has an internal memory for up to 2000 data sets, which are saved either manually or automatically. Furthermore, the radioactivity data logger is equipped with a Bluetooth interface to transfer the measured data in real-time to a computer. With the PC software that is included in the delivery contents, the data can then be further processed and reviewed. The radioactivity data logger stands out due to its high accuracy and convenient design. The radioactivity data logger has many practical applications in pharmaceutical laboratories, power plants, quarries, oil and gas reservoirs, water treatment facilities, and more.


Highlights

- Detects α-, β-, γ- and x- radiation
- High measuring accuracy
- Internal memory for up to 2000 data sets
- Large, easy-to-read LCD screen
- Bluetooth interface
- PC software provided for data processing

Specification

Types of radiation α-, β-, γ- and x- radiation
Measurement ranges Radiation dose rate: 0.01 ... 1000 μSv / h
Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps
Radiation dose accumulation: 0.001 ... μSv ... 9.999 Sv
Pulse dose accumulation: 0 ... 9,999
Sensitivity 108 pulses or 1000 cpm / mR / hr in Cobalt-60 irradiated environment with current of 1 μSv / h
Alpha rays: from 4 MeV
Beta rays: from 0.2 MeV
Gamma rays: from 0.02 MeV
X-rays: from 0.02 MeV
Accuracy

<10% (less than 500 μSv / hr)
<20% (less than 600 μSv / hr)

Radiation selection Combination of α-, β-, γ- and X-rays
Sensor Halogen compensation accumulator
Output port Bluetooth
Average process time Manual or automatic, adjustable between 2 ... 12 seconds

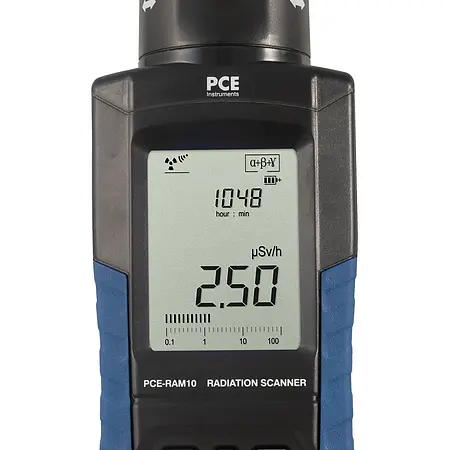

Display Digital LCD display, with bar graph display
Alarm function Acoustic alarm for manually selected value
Normal radiation value of natural environment Less than 0 ... 0.2 μSv / h
Internal data storage Automatic memory for <2000 measured values
Software Data transmission in real-time, analysis and recording
Operation temperature 0 ... +50°C / 0 ... 122°F
Power supply 4 x 1.5V AA Batteries
Dimensions 200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in
Weight 206 g / < 1 lb

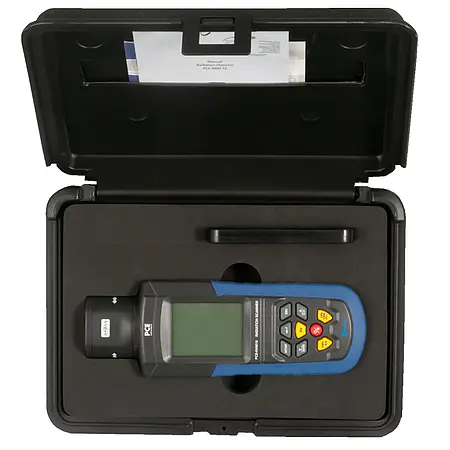

Delivery Scope

1 x PCE-RAM 10 radioactivity data logger
1 x PC software
4 x 1.5V AA batteries
1 x Carrying case
1 x User manual
