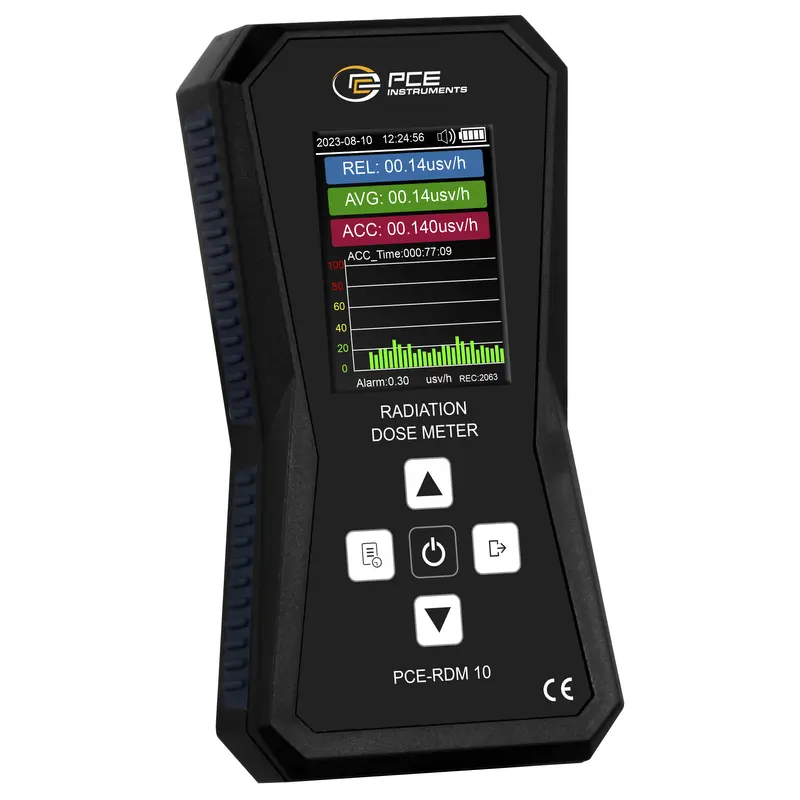

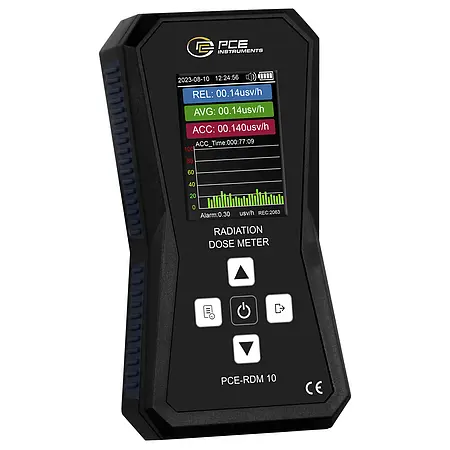

Radioactivity Data Logger PCE-RDM 10

Order no.: PCE-RDM 10
GTIN (EAN): 4250348732125
US$ 204.00
ex. VAT, ex. delivery costs
:
4250348732125
PCE-RDM 10
Available in: Coming soon

Description

Radioactivity Data Logger / Measurement Range 0.01 ... 99.99 µSv/h / Measurement of Beta, Gamma, and X-rays / Bar graph display of measurement data / Selectable from 4 menu languages / Adjustable alarm threshold / Automatic shutdown

The radioactivity data logger is a portable handheld device for the measurement of Beta, Gamma, and X-rays. A GM tube (Geiger-Müller counter) detects radiation exposure that can be harmful to humans and the environment. The real-time value, the average value, and the accumulated dose are displayed on the radioactivity data logger's large color screen. Additionally, the radiation dosimeter can display a bar graph of the most recent real-time measurements.

By setting an adjustable alarm threshold, the user can be alerted when the limit is exceeded. The radioactivity data logger has a data storage capacity for 167,857 values, which can be accessed with a simple button press.

The storage interval and automatic shutdown can be adjusted or disabled as needed. In the radioactivity data logger's settings, users can choose from 4 menu languages.

The radioactivity data logger is used in the general population, by individuals professionally exposed to radiation, and in other areas where there is a health risk associated with radiation.

Highlights

- Real-time dynamic data display
- Long-term dose accumulation function
- Manual adjustment of alarm thresholds
- Manual setting of recording intervals

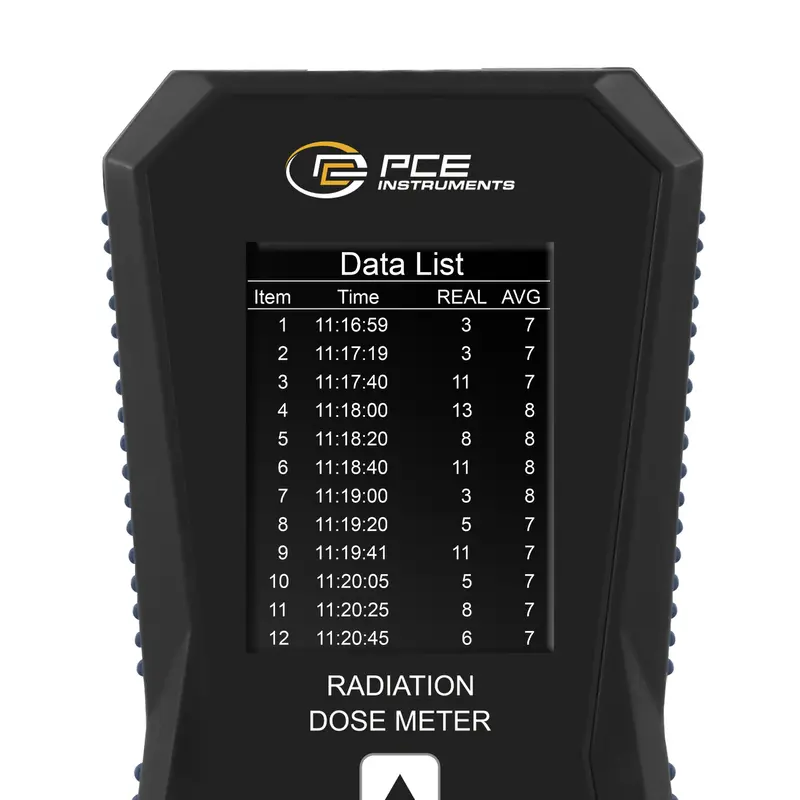

- Historical data display function
- Capable of storing up to 167,857 data points

Specification

Measurement Range0 ... 99.99 usv/h
Accuracy0.25cps/usv/h
Resolution0.01usv/h
Detector TypeGM Tube
Detectable Radiations Beta (B) rays, Gamma (Y) rays, X-rays
Unit µSv/h
Power Supply3.7V/2000mAh Polymer Lithium Battery
Automatic Power off   Automatically shuts down after 5 minutes of inactivity
Modes
Hold Mode, Measurement Mode
InterfaceUSB-C
Display
TFT 16-bit 2.8" Color Screen
AlarmAdjustable from 0.20 µSv/h to 0.50 µSv/h
Memory Up to 167,857 data points
Environmental Conditions    -20 … +50 °C, 20 ... 85 % r.F.
Dimensions151 x 68 x 24.5mm
Weight190 g



Delivery Scope

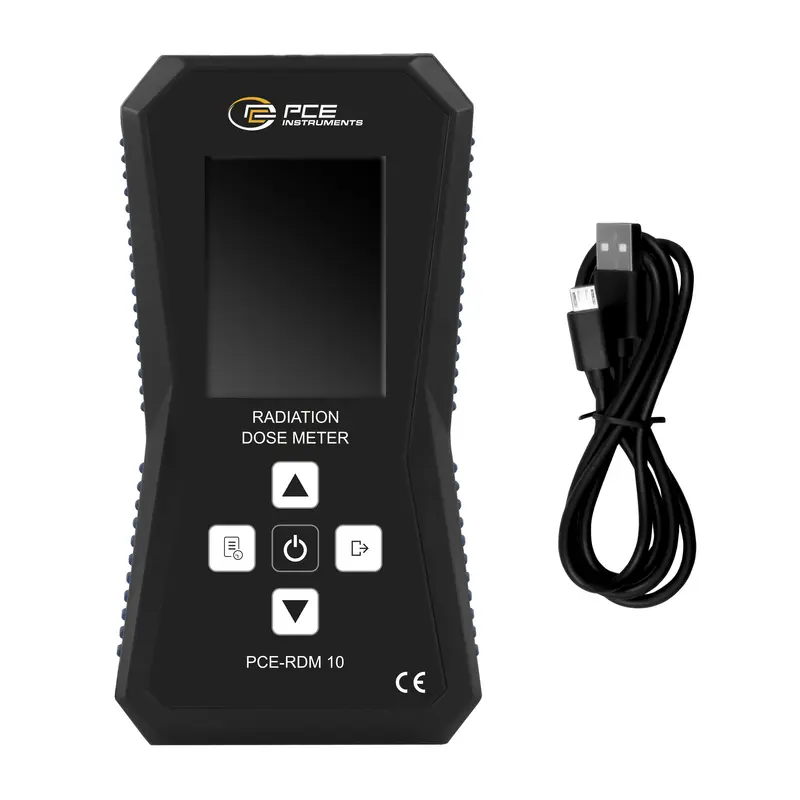

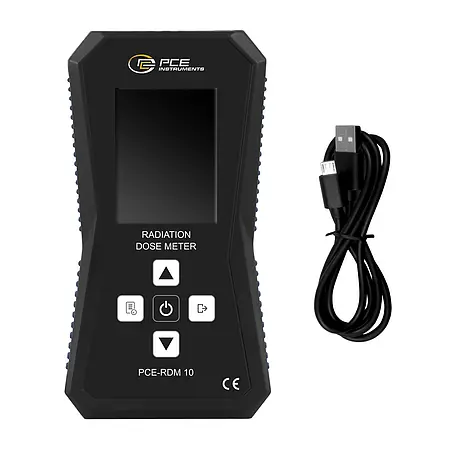

1 x PCE-RDM 10 Radioactivity Data Logger
1 x Micro-USB Cable
1 x User Manual
1 x Device Case
