Sound Level Data Logger PCE-322ALEQ

Order no.: PCE-322ALEQ

GTIN (EAN): 4250348719775

Accessory

Microphone extension cable MIC-4-322

US$ 44.00

Microphone extension cable MIC-10-322

US$ 66.00

ISO Calibration Certificate for Noise Meter CAL-SL

US$ 164.00

Class 1 Sound Level Calibrator PCE-SC 09

US$ 660.00

Class 2 Sound Level Calibrator PCE-SC 43

US$ 187.00

Adapter attachment PCE-SC 09 1/4" adapter

US$ 115.00

Mini Tripod for Various Measuring Devices

US$ 21.00

Software for PCE-322ALEQ

US$ 359.00

Tripod STAT

US$ 83.00

Description

Class II Sound Level Data Logger PCE-322ALEQ with logger function / USB interface / Measuring range 30 ... 130 dB / LC display / incl. software for LEQ calculation / Memory for up to 32700 values

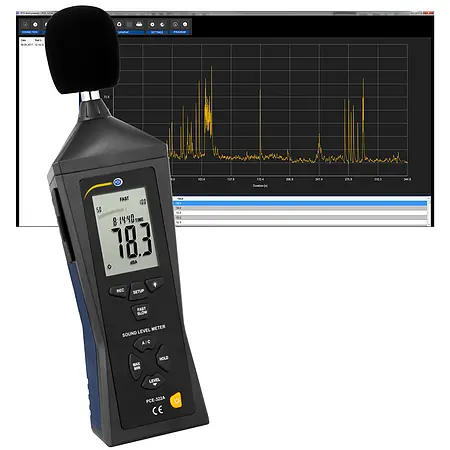

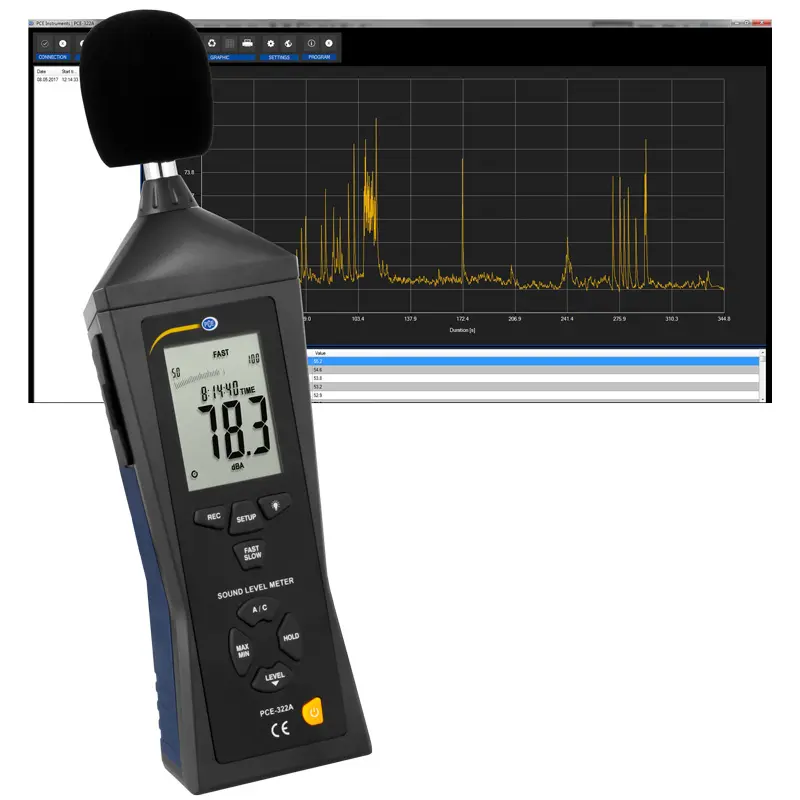

The sound level data logger PCE-322ALEQ is particularly suitable for measuring noise in the field of industrial, health, safety and environmental monitoring. The PCE-322ALEQ noise datalogger has a logger function, which allows storage of up to 32700 readings. This makes it ideal for long term monitoring. The noise datalogger PCE-322A can be connected to the PC with a USB cable.

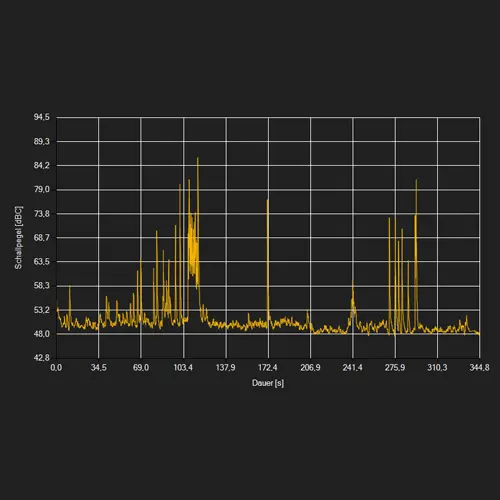

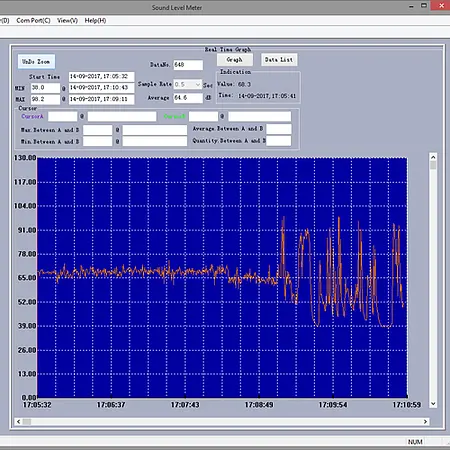

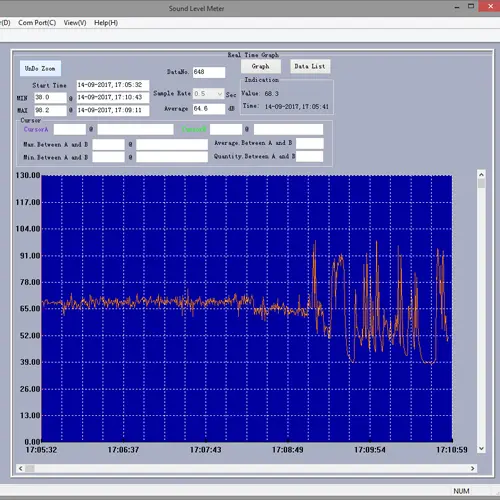

A live measurement is also possible with the sound level data logger and the data can be viewed directly and can be evaluated. The software provides data representation in graphic formats and tables. This data can be transferred, for example, to MS Excel. The noise datalogger has an analogue output and offers further features that are unique in its class.

Highlights

- Measuring range 30 ... 130 dB
- Resolution 0.1 dB
- USB port for data transfer
- 32700 value memory
- Fast and slow time weighting
- Date- and time-stamped measurements
- Robust ABS plastic housing
- Large LCD
- LEQ calculation via software

Specification

Noise levels	Low 30 ... 80 dB Medium 50 ... 100 dB High 80 ... 130 dB Auto 30 ... 130 dB
Dynamic range	50 dB
Display	4-digit LCD
Resolution	0.1 dB
Accuracy	±1.4 dB
Display update	2 x per second
Frequency	31.5 Hz ... 8 kHz
Storage capacity	32,700 readings (9 hours @ 1 second interval)
Frequency weighting	A and C
Time weighting	fast (125 ms) slow (1 sec.)
Microphone type	Electret condenser
Functions	MIN, MAX, HOLD, ALARM
Analog output	AC/DC Headphone
Data interface	USB
Automatic shutdown	after 15 minutes inactivity
Operating conditions	0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions	-10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply	9 V block battery (for approx. 30 h continuous operation) AC power
Dimensions	280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight	ca. 350 g / 0.78 lb
Standards	IEC 61672-1 (Class II)
