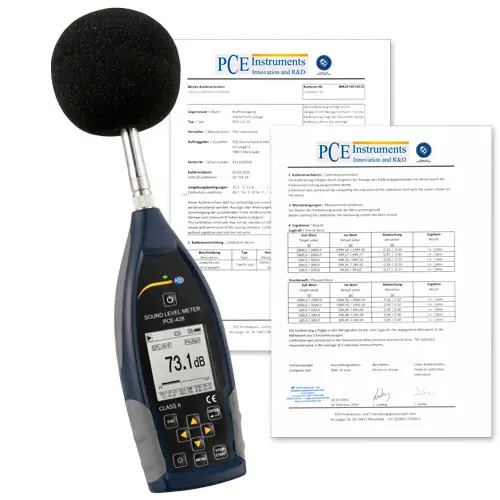

Sound Level Data Logger PCE-428

Order no.: PCE-428
GTIN (EAN): 4250348716842
US$ 1,527.00
ex. VAT, ex. delivery costs
:
4250348716842
PCE-428
Available in: 1-2 days
A / B / C / Z
Sound
Fast / Slow / Impulse / Peak Timing
Yes
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Microphone Windscreen (foam)
Kit for Retrofitting Outdoor Capability PE PCE-4xx-EKIT|emic-kit
US$ 350.00
Class 1 Sound Level Calibrator PCE-SC 09
Class 1 Sound Level Calibrator PCE-SC 09
US$ 660.00
Class 2 Sound Level Calibrator PCE-SC 43
Class 2 Sound Level Calibrator PCE-SC 43
US$ 187.00
Mini Tripod for Various Measuring Devices
Mini Tripod for Various Measuring Devices
US$ 21.00
Outdoor microphone class 1 PCE-4xx-EMIC
Outdoor Microphone Class 1 PCE-4xx-EMIC
US$ 2,285.00
Power supply for PCE-428, PCE-430, PCE-432
Power supply for PCE-428, PCE-430, PCE-432
US$ 33.00
Firmware upgrade to 1/3 octave band filter
Firmware Upgrade to 1/3 Octave Band Filter
US$ 536.00
Outdoor Sound Monitor Kit PCE-4xx-EKIT
Outdoor Sound Monitor Kit PCE-4xx-EKIT
US$ 5,004.00
Outdoor Sound Monitor Kit PCE-4xx-EKIT
Outdoor Sound Monitor Kit PCE-4xx-EKIT
US$ 5,004.00
Microphone cable for PCE-4XX (2 m / 6.6 ft))
Microphone cable for PCE-4XX (2 m / 6.6 ft)
US$ 72.00
Microphone Cable for PCE-4XX (10 m / 32.8 ft)
Microphone Cable for PCE-4XX (10 m / 32.8 ft)
US$ 165.00
Microphone cable for PCE-4XX (50 m / 164 ft)
Microphone cable for PCE-4XX (50 m / 164 ft)
US$ 284.00
Microphone cable for PCE-4XX (20 m / 66 ft)
Microphone cable for PCE-4XX (20 m / 66 ft)
US$ 244.00
Microphone cable device connector for PCE-4xx series
Microphone cable device connector for PCE-4xx Series
US$ 130.00
Mounting bracket for external microphone of the PCE-4xx series
Mounting Bracket for External Microphone of the PCE-4xx Series
US$ 38.00
DIN Rail Holder for PCE-4xx series
DIN Rail Holder for PCE-4xx series
US$ 84.00

Description

PCE-428 Class 2 Sound Level Data Logger
Portable high-accuracy decibel meter with 1/1 octave band filter (optional 1/3 octave band filter upgrade)

PCE-428 is a class 2 data-logging sound level meter that meets IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983 and ANSI S1.43-1997 requirements. This portable high-accuracy sound level meter has a large easy-to-read illuminated LCD screen that displays the sound pressure level (SPL) numerically and graphically in real time. Thanks to octave band filtering, even the slightest difference in frequency is detected.

The handheld meter also functions as a data logger, recording measurements at an adjustable interval from 1 s ... 24 h and storing the recorded measurement data to a micro SD card memory. The SD card can be removed from the meter and inserted into the SD card reader of a PC. Alternatively, the decibel meter can be connected directly to a PC via USB. The provided PC-compatible software allows for quick and easy data analysis.

This device measures from 25 ... 136 db(A) at a frequency of 20 Hz ... 12.5 kHz. The meter features A, B, C and Z frequency weightings as well as fast, slow and impulse time weightings. The PCE-428 decibel meter is commonly used by professionals to ensure compliance with environmental noise regulations and workplace noise permissible exposure limits.


Highlights

- Accuracy class 2
- A, B, C and Z frequency weightings
- Fast, slow and impulse time weightings
- 1/1 octave band filter (optional 1/3 octave band filter upgrade)
- Adjustable data-recording interval from 1 s ... 24 h
- Real-time numerical and graphical LCD display
- Adjustable alarm

Specification

Measuring range

25 ... 136 db(A)

Accuracy

Class 2

Frequency range

20 Hz ... 12.5 kHz

Standards

GB/T 3785.1-2010
GB/T 3785.2-2010
IEC 60651:1979
IEC 60804:2000
IEC 61672-1:2013
ANSI S1.4-1983
ANSI S1.43-1997

Frequency analysis

1/1 Octave band filter: 20 Hz ... 8 kHz
1/3 Octave band filter: 20 Hz ... 12.5 kHz

Microphone

1/2"
Microphone Class: 2
Sensitivity: 40 mV/PA
Frequency range: 20 Hz ... 12.5 kHz
Connection: TNC
Power supply: ICCP Standard

Data-logging interval

1 s ... 24 h (adjustable)

Measuring functions

LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN

X = Frequency weighting: A, B, C, Z
Y = Time weighting: F, S, I
N = Statistics in %: 1 ... 99%

Frequency weightings

A, B, C, Z

Time weightings

Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms

Inherent noise

Microphone: 20 db(A), 26 db(C), 31 db(Z)
Electronics: 14 db(A), 19 db(C), 24 db(Z)

AD converter

24 Bit

AD Sample rate

Standard: 48 kHz
LN Mode: 20 ms

Measuring display

Numerical
Bar graph
Graphical

Display

160 x 160 pixel LCD with backlight

Memory

4 GB Micro SD card

Interface

USB (Memory readable via software or directly as mass storage)
RS-232

Voltage output

AC 5V RMS
DC 10 mV/db

Alarm

Adjustable

Power supply

4 x 1.5V AA Batteries
12V / 1 A Power plug
5V / 1 A USB

Battery life

Min. 10 h continuous use

Dimensions

70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D)

Weight

Approx. 620 g / 1.4 lbs incl. batteries

Delivery Scope

1 x Sound Level Data Logger PCE-428
1 x Microphone
1 x Wind noise suppressor (foam ball)
1 x USB cable
1 x PC software is a free download
1 x Power supply
1 x User manual
1 x Carrying case

Note: This meter comes standard with a 1/1 octave band filter. An optional 1/3 octave band filter upgrade is available for an additional fee - see accessories.
