US$ 303.00
Bilingual Technical Support (EN / ES)
Public Service, Military and First Responder Discount
30 Day Return Policy
2 Year Warranty
Free Standard Shipping (US)
Technical specifications | |
Storage unit | |
Inputs | 2 x digital inputs 1 x analogue input 1 x NTC input for external temperature sensors |
Interface | RS-232 |
Sampling interval | 1 min or 10 min |
Memory | microSD card (FAT32), max. 2 GB |
Data format | CSV file, ASCII format |
Recorded parameters | average values, min/max values and standard deviations (with date and time stamp) |
Power supply | 2 x 1.5 V type C batteries |
Battery life | up to 1 year (with 1 min sampling interval); up to 3 years (with 10 min sampling interval) |
Housing | robust plastic housing |
Protection class | IP65 |
Dimensions | 160 x 80 x 55 mm |
Weight | 450 g |

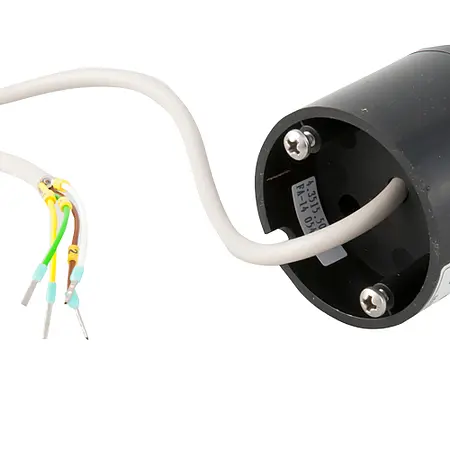

Wind sensor | |
Output | 0 ... 100 Hz at 40 m/s |
Measuring range | 0.8 ... 40 m/s |
Accuracy | ± 0.5 m/s or ± 5 % of measurement value |
Max. load | max. 60 m/s (short-term) |
Contact classification | 10 VA, max. 42 V DC, max. 0.4 A |
Mounting | with support bracket |
Heating | max. 24 V DC/AC, max. 1 A |
Environmental temperature | -25 ... +60 °C (ice-free) |
Cable | 3 m; LiYY 4 x 0.5 mm² |
Protection class | IP54 |
Dimensions | Ø134 x 160 mm |
Weight | ca. 300 g |
