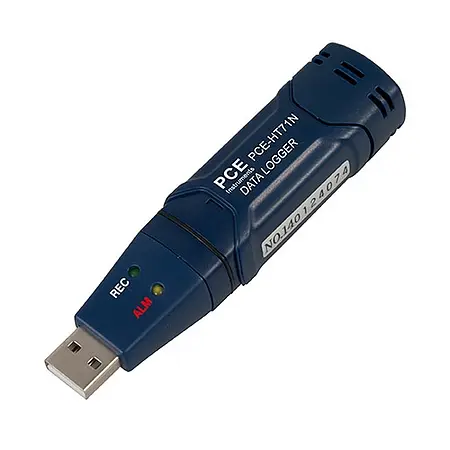

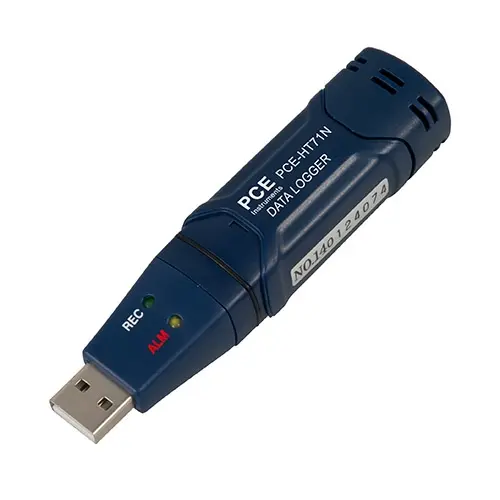

Data Logger for Temperature and Humidity PCE-HT 71N |
|
The Data Logger for Temperature and Humidity detects air temperature and humidity and stores readings in its internal memory. The Data Logger has a compact format and a wide memory capacity (up to 32,000 values / 16,000 values for each parameter) and it is mainly used as a data logger in fields such as supermarket refrigeration units, refrigerated transport, warehouses, and other temperature controlled environments. The Data Logger works as a data logger to record climatological data in spaces with controlled ambient conditions. Data can be transferred to a computer or a laptop via the USB port. The PCE-HT 71N Data Logger can be manually activated or can be programmed to start and stop on specific dates and times or to set the intervals at which measurements will be taken, allowing it to be left to record data in situ. Once transferred, data can be analysed on a computer. The software included in the delivery also calculates dew point. The internal clock allows the user to accurately assess the results. One special characteristic of the PCE-HT 71N is that it is powered by a removable 3.6V, long-life lithium battery. The battery life is approximately one year. |
Measurement range |
-35 ... |
Accuracy |
± 3% H.r. (20 ... 80%) and ± 5% / ± 1°C (1.8°F) |
Resolution |
0.5% H.r. / 0.1°C (0.18°F) |
Sensors |
Internal (humidity and temperature) |
Memory |
Max. 32,000 measurement values (16,000 for each parameter) |
Measurement quota / measurement intervals |
Adjustable, 10 s, 20 s, 1 min, 10 min, 20 min, 30 min |
Alarm limit |
Adjustable |
Status indicator |
Through 2 LED’s (recording data / alarm) |
Port |
USB |
Software |
Included in the delivery |
Dew point temperature |
Calculated by the software once data has been transmitted (accuracy: ± 2°C (3.6°F)) |
Power |
3.6V lithium battery |
Positioning |
- Can be wall mounted or placed anywhere on a flat surface, for instance on a table |
Operating conditions |
-35 ... 70°C / -31 ... 158ºF |
Case |
ABS plastic |
Software |
Windows 2000 / XP / Vista |
Weight |
|
Software

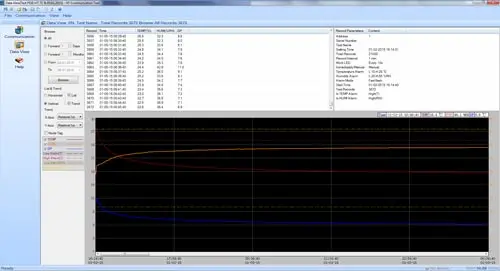

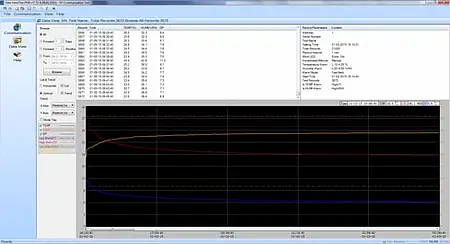

Professional software for programming the device and for analysing data on computers. The software has the following features:
Data columns and graphical representation (x-t diagram with date and time), a series of data can be exported to other programs such as MS Excel.
The software also allows the user to adjust the device's parameters via a computer.
1 x Data Logger for Temperature and Humidity PCE-HT 71N
1 x Wall mount
1 x Battery
1 x Software
1 x User’s manual
