Data Logger for Temperature and Humidity PCE-VDL 16I

Order no.: PCE-VDL 16I
GTIN (EAN): 4250348717740
US$ 338.00
ex. VAT, ex. delivery costs
:
4250348717740
PCE-VDL 16I
Available in: 1-2 days
Vibration
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

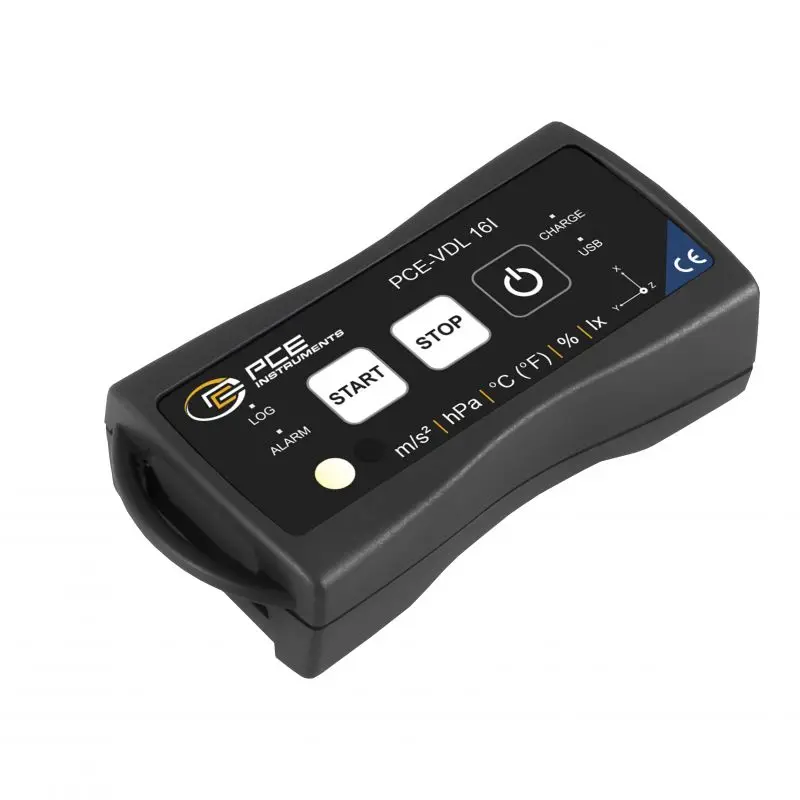

Data Logger for Temperature and Humidity PCE-VDL 16I
 With up to 800 Hz / Temperature, Humidity, Air pressure, Vibration, and Light

The temperature and humidity data loggers of the PCE-VDL series are available in two versions. The temperature and humidity meter contains sensors for the following physical units: temperature, humidity, air pressure, light and 3-axis acceleration. The max. sampling rate of the acceleration sensor is 800 Hz, the remaining sensors are sampled with max. 1 Hz.

The temperature and humidity data logger is therefore ideally suited for use in fault diagnosis, stress testing, machine inspection, shock measurements and preventive maintenance.


Highlights

- 3-axis Acceleration up to 800 Hz
- For temperature, humidity, air pressure and light

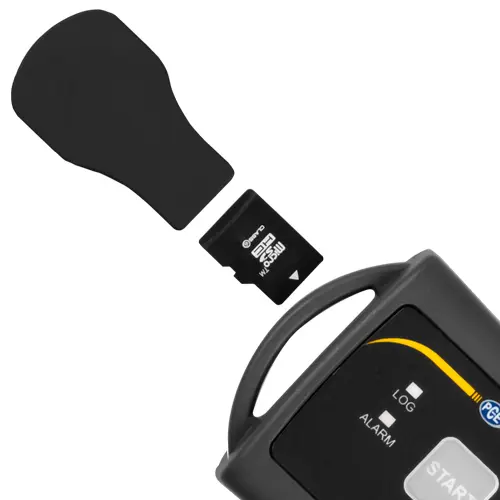

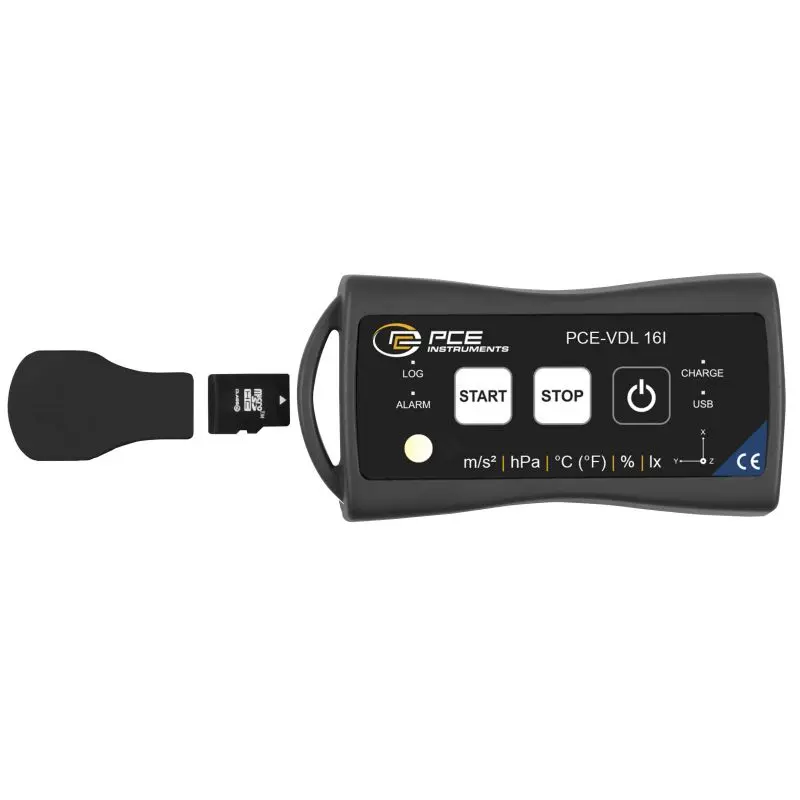

- 32 GB SD memory card
- Small design: 86.8 x 44.1 x 22.2 mm / 3.4 x 1.7 x 0.87 in

Specification

Temperature
Measuring range -20 … 65°C / -4 ... 149°F
Accuracy ± 0.2°C / ± 0.36°F
Resolution 0.01°C / 0.018°F
Max. Sampling rate 1 Hz

Humidity
Measuring range 0 … 100% r.H.
Accuracy ± 1.8% r.H.
Resolution 0.04% r.H.
Max. Sampling rate 1 Hz

Air pressure
Measuring range 10 … 2000 mbar
Accuracy ±2 mbar (750 … 1100 mbar); otherwise ± 4 mbar
Resolution 0.02 mbar
Max. Sampling rate 1 Hz

Light
Measuring range 0.045 … 188,000 Lux
Resolution 0.045 Lux
Max. Sampling rate 1 Hz

3 Axes Acceleration
Measuring range ± 16 g
Accuracy 0.24 g
Resolution 0.00390625 g
Max. Sampling rate 800 Hz

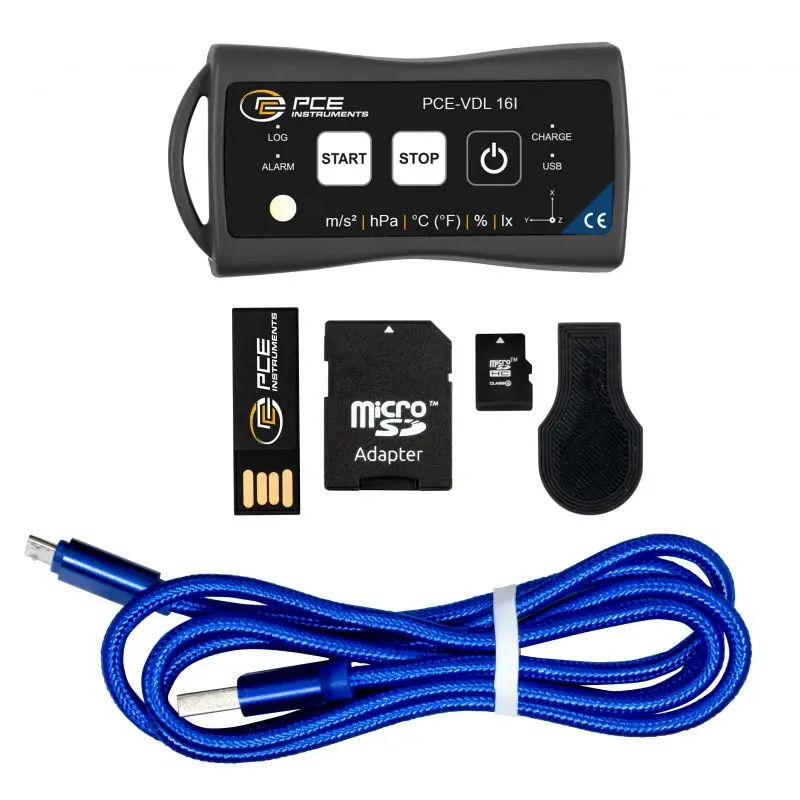

Delivery Scope

1x Data Logger for Temperature and Humidity PCE-VDL 16I
1x Data cable USB – USB Micro
1x 32 GB SD memory card
1x SD card ejector tool

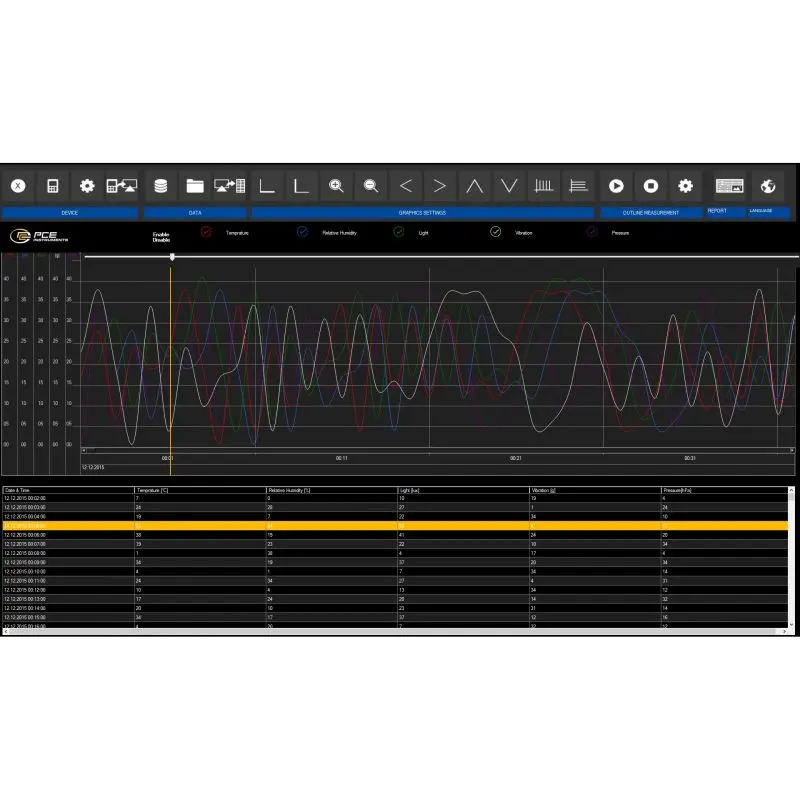

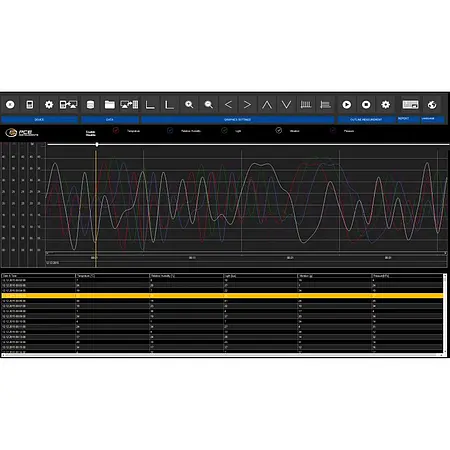

1x USB pen drive with PC software and user manual
