Kit for retrofitting outdoor capability (wind and rain protection) for PCE-428, PCE-430 and PCE-432.** Does NOT include microphone
Measuring range |
22 ... 136 db(A) |
Accuracy |
Class 1 |
Frequency range |
3 Hz ... 20 kHz |
Standards |
GB/T 3785.1-2010 |
Frequency analysis |
1/1 Octave band filter: 8 Hz ... 16 kHz |
Microphone |
1/2" |
Data-logging interval |
1 s ... 24 h (adjustable) |

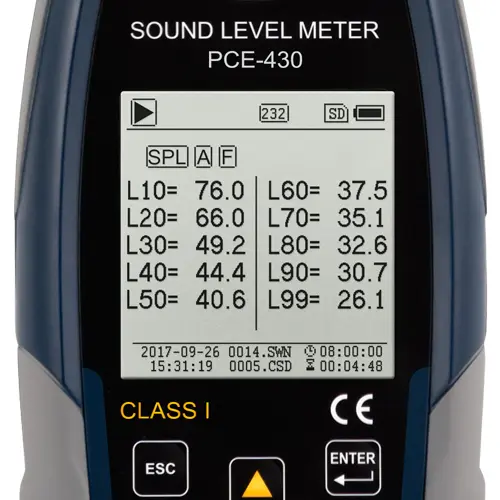

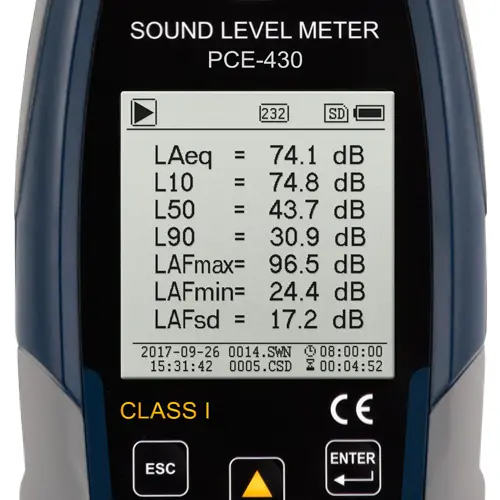

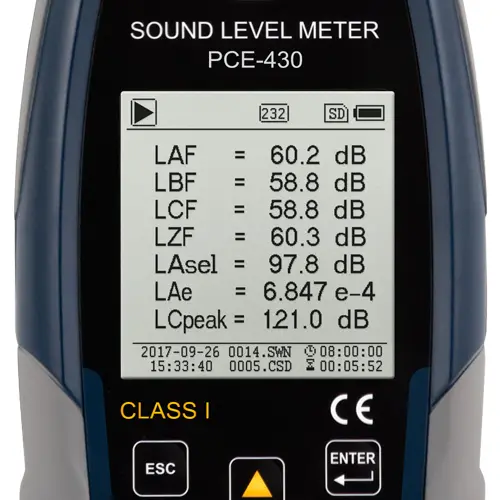

Measuring functions |

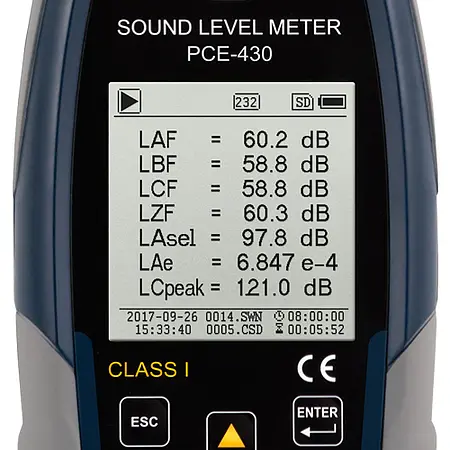

LXY (SPL), LXeq, LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
X = Frequency weighting: A, B, C, Z |
|
Frequency weightings |
A, B, C, Z |
Time weightings |
Fast (F) 125ms, Slow (S) 1 sec, Impulse (I) 35 ms |
Inherent noise |
Microphone: 19 db(A), 25 db(C), 31 db(Z) |
AD converter |
24 Bit |
AD Sample rate |
Standard: 48 kHz |

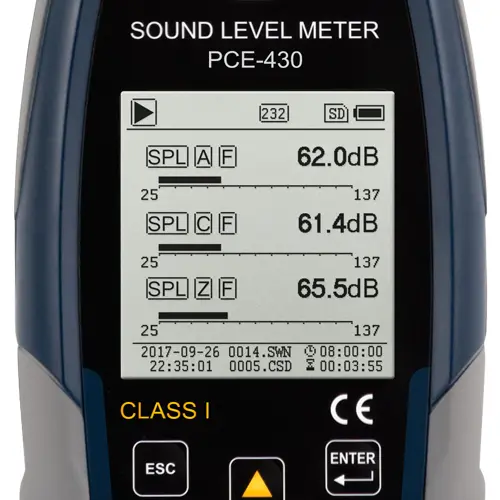

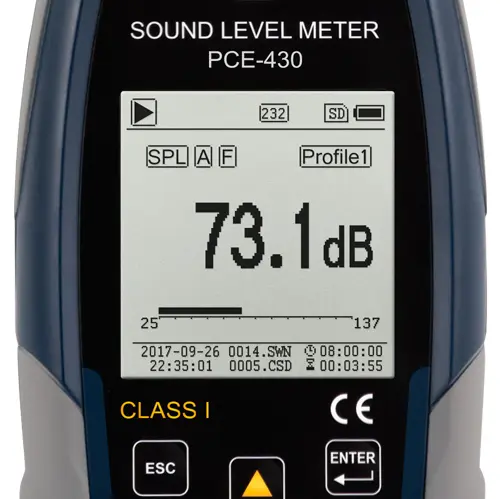

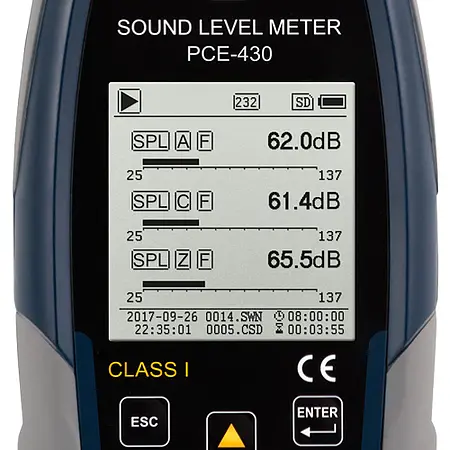

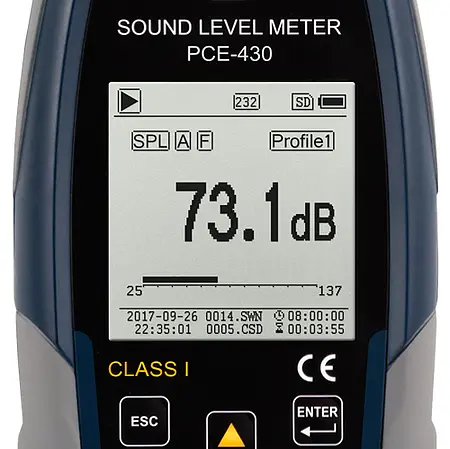

Measuring display |
Numerical |
Display |
160 x 160 pixel LCD with backlight |
Memory |
4 GB Micro SD card |
Interface |
USB (Memory readable via software or directly as mass storage) |
Voltage output |
AC 5V RMS |
Alarm |
Adjustable |
Power supply |
4 x 1.5V AA Batteries |
Battery life |
Min. 10 h continuous use |
Dimensions |
70 x 300 x 36 mm / 2.76 x 11.81 x 1.42 in (W x H x D) |
Weight |
Approx. 620 g / 1.4 lbs incl. batteries |
ex. VAT, ex. delivery costs
ex. VAT, ex. delivery costs

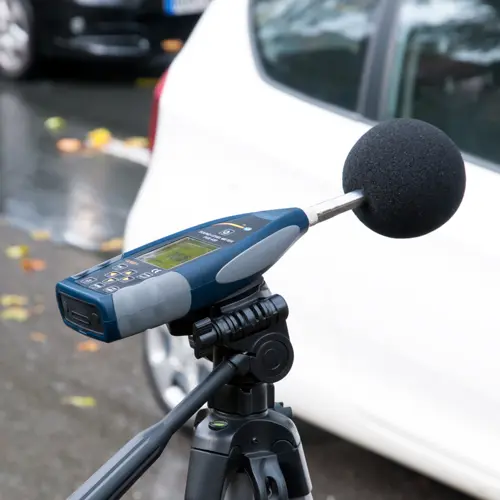

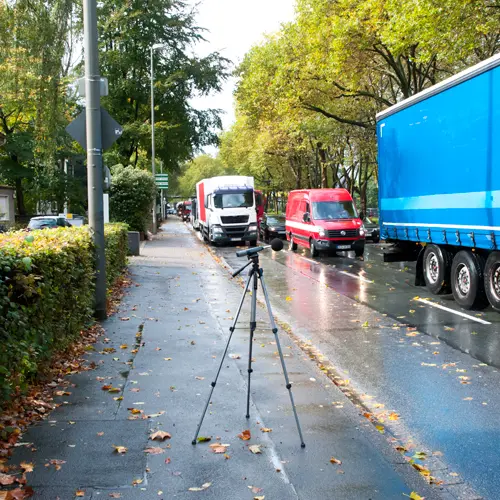

The additional kit for outdoor sound measurement PCE-4xx-EKIT can be combined with the sound level meters PCE-428, 430 or PCE-432. This kit makes it possible to measure the outdoor noise with a sound level meter over a long period of time.
ex. VAT, ex. delivery costs

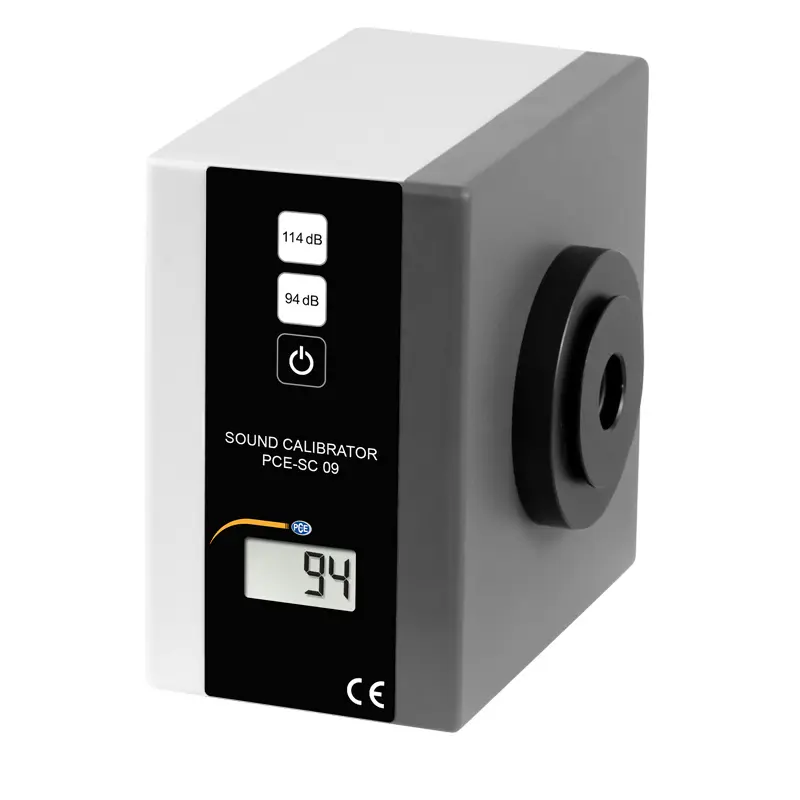

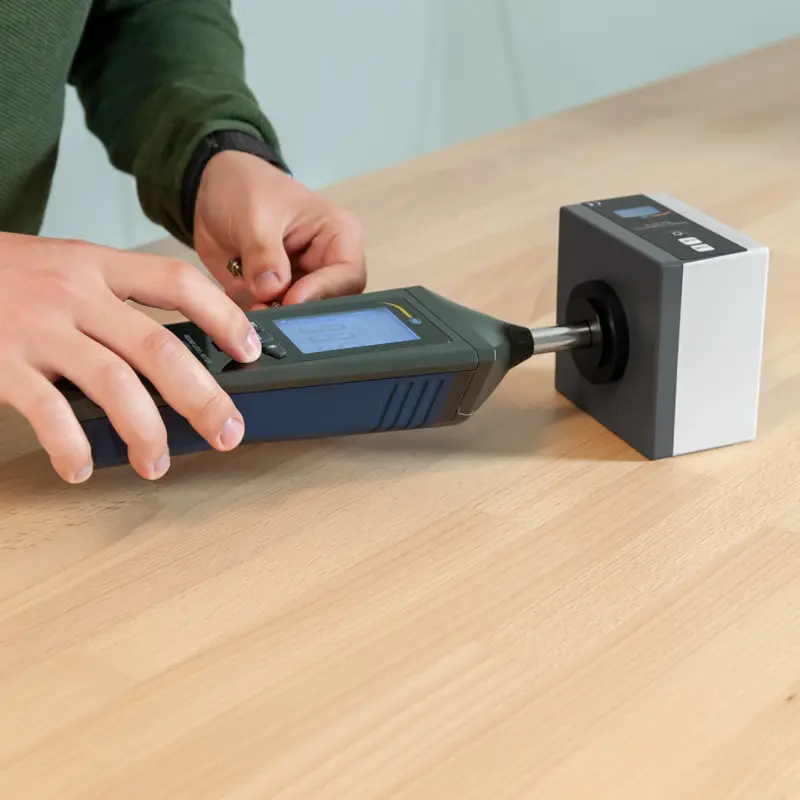

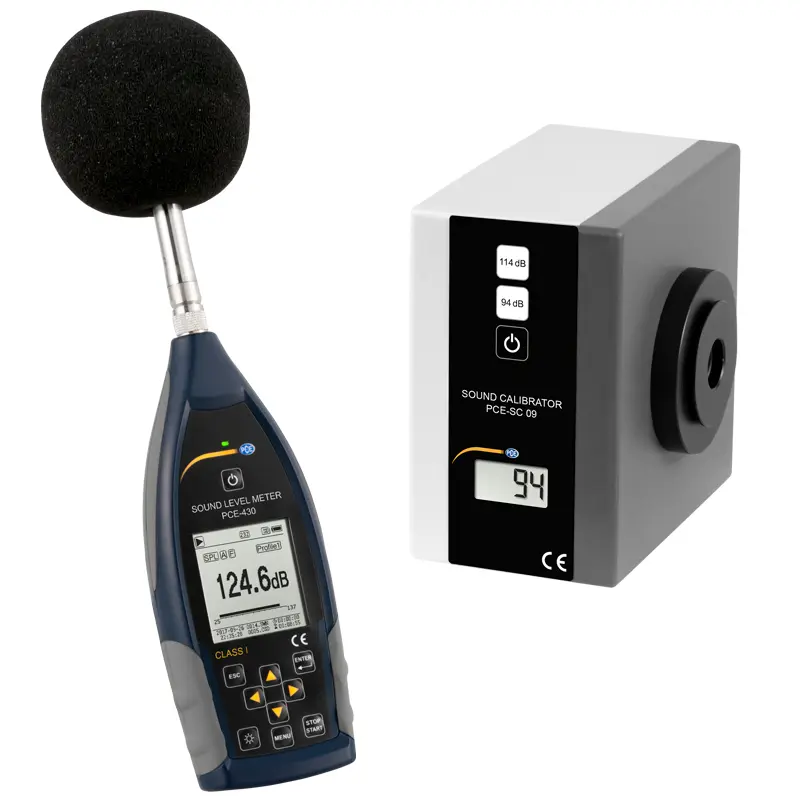

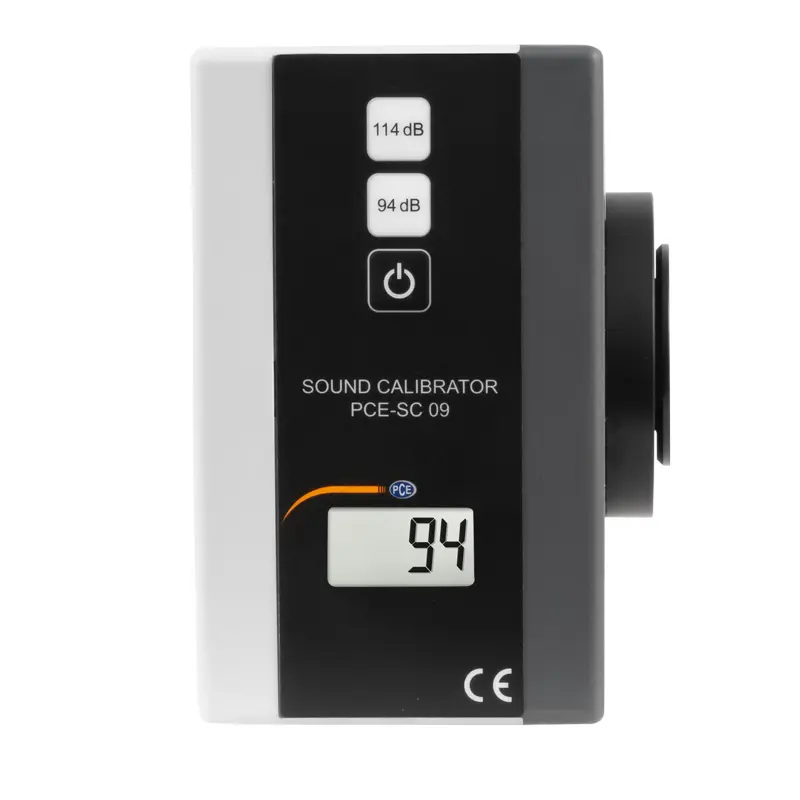

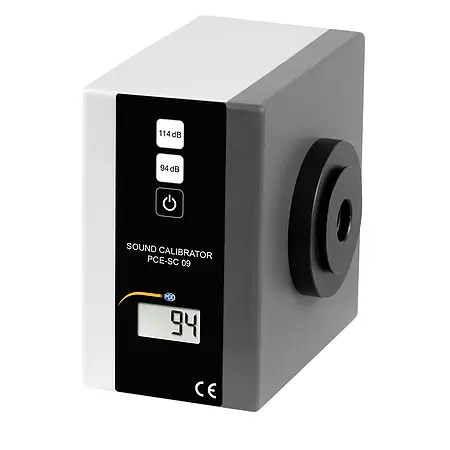

PCE-SC 10 is a class 1 acoustic or sound calibrator used to calibrate microphones, sound pressure level (SPL) meters and other noise measuring devices. Suitable for use with type 1 or class I noise measuring instruments, this portable decibel (db) meter calibrator is easy to use in the field or the laboratory.
ex. VAT, ex. delivery costs
Upgrade for the PCE-428, PCE-430 or PCE-432 sound level meter from octave band filter to 1/3 octave band filter. Normal 1/1 octave band displays 12 bands for the PCE-430 and 432. The 1/3 octave band displays 36 bands from 6.3 Hz to 20 kHz for the PCE-430/432 or 20 to 12.5 kHz for the PCE-428 and associated bar graphs. Thresholds can be set for each band.Upgrade to 1/3 octave band filterNote: New orders receive the unlock code for this feature in the meter delivery contents that is added to the device menu by the customer. For a add on order, please indicate the serial number of the sound level meter when ordering the 1/3 octave kit (enter using sound meter option field)
