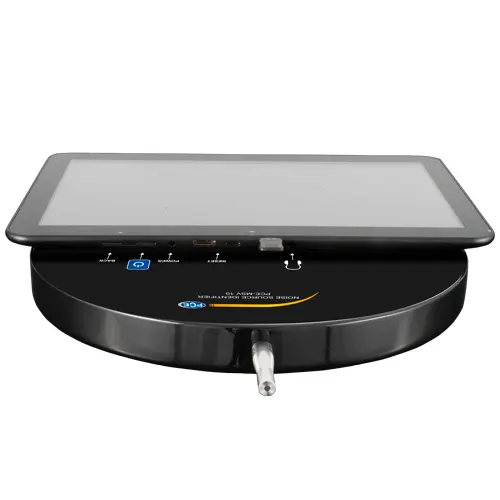

Decibel Meter PCE-MSV 10

Order no.: PCE-MSV 10

GTIN (EAN): 4250348716996

Description

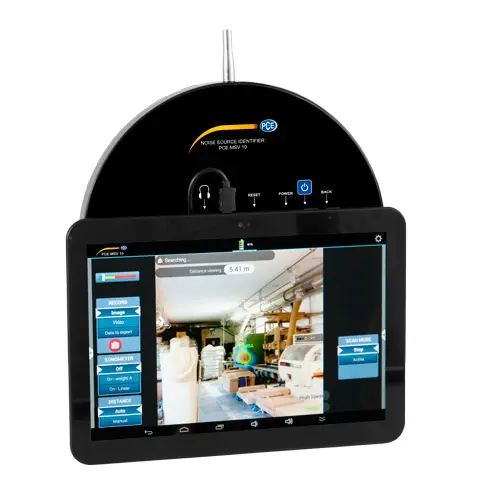

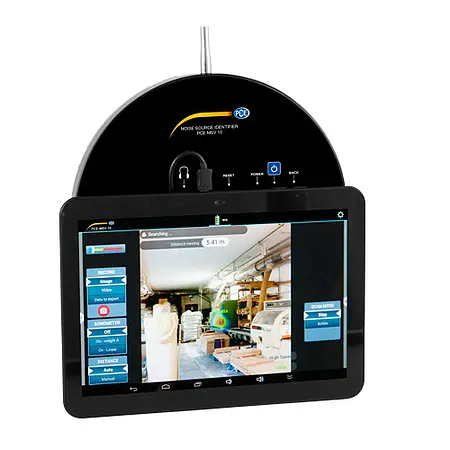

Portable sound camera and sound pressure meter for visual sound level measurement

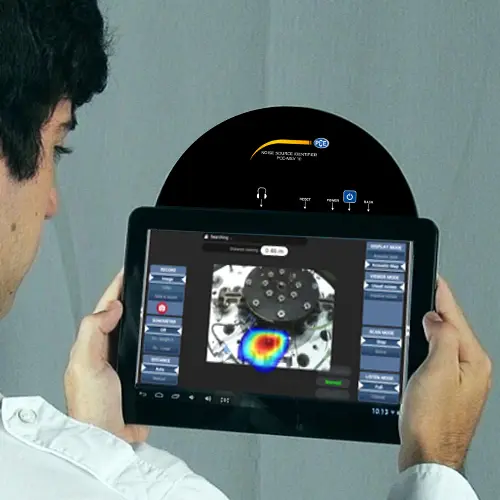

In loud environments, it is often difficult to pinpoint the source of a sound. The easy-to-operate PCE-MSV 10 sound level meter visualizes sound in real time, creating a visual road map to a sound’s source. Also referred to as a noise meter, sound pressure meter,

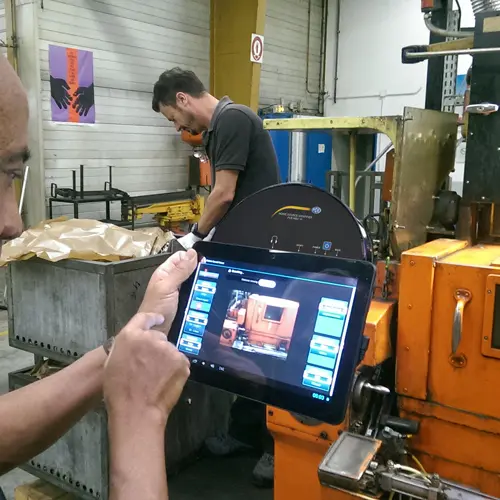

portable sound camera or sound level camera, the PCE-MSV 10 sound level meter can be used in various stages of machine and equipment design, manufacture and operation, from engineering research and development (R&D) to preventative maintenance and beyond.

Highlights

- Measurement range of 30 … 130 dBA

- Frequency range of 160 … 6000 Hz

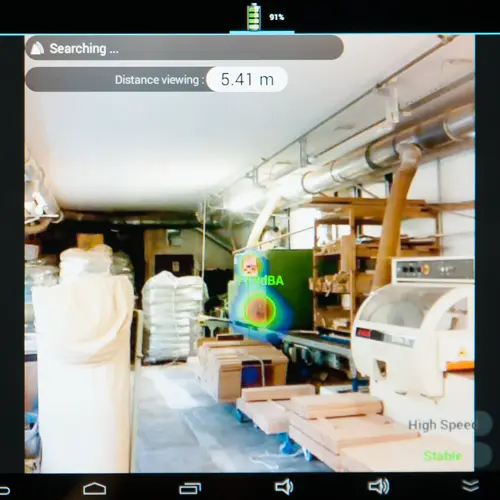

- Real-time image and video recording*

- 1 GB RAM

- Automatic setup

- 10” full-color tablet-style screen

- Software for visual sound analysis

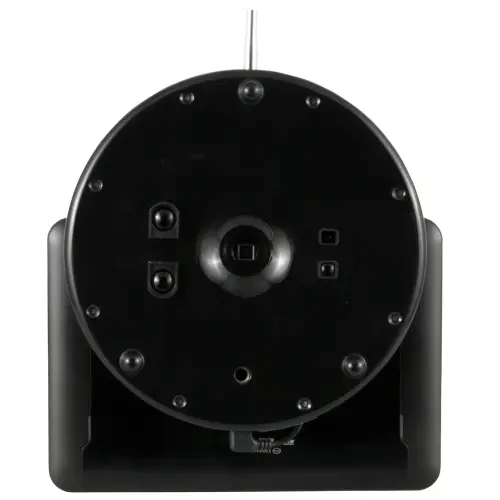

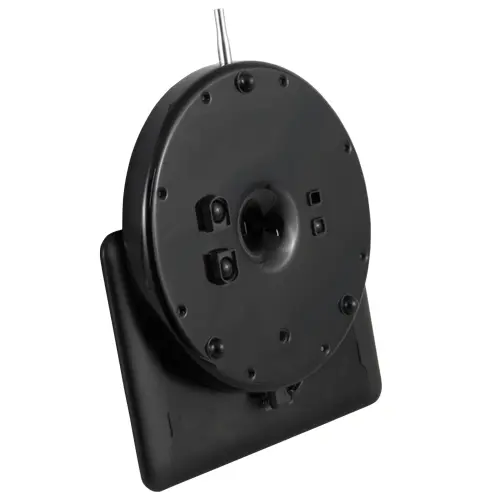

- Sound measuring microphone

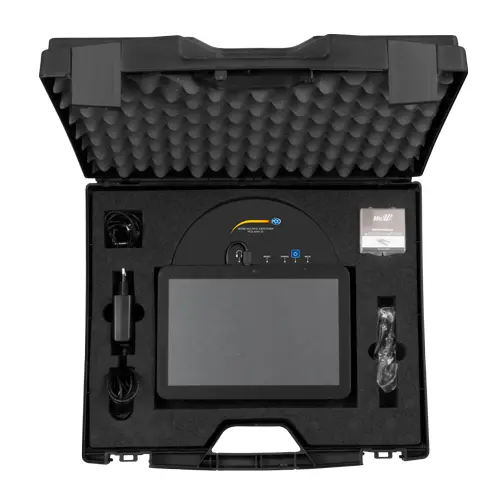

- Protective carrying case

*Recorded images and videos can be transferred via a WLAN from the PCE-MSV 10 sound level meter to a computer for further analysis.

When using the included sound measuring microphone, the PCE-MSV 10 also can be used as a general sound level meter without visualization.

Specification

Measurement range	30 … 130 dBA
Frequency range	160 … 6000 Hz
Measurement modes	Indication of loudest source of noise Indication of transients Automatic Filter
Focal range	Automatic: 0.2 … 5 m / 0.7 … 16.4 ft Manual: 0.2 … 50 m / 0.7 … 164 ft
Display size	254 mm / 10 in
Memory	1 GB RAM
Battery life	Continuous operation: 4 hours Intermittent operation: 15 hours
Dimensions	300 x 250 x 40 mm / 11.8 x 9.8 x 1.6 in
Weight	Approx. 980 g / 2.2 lbs
