Dew Point Thermometer PCE-THD 50

Order no.: PCE-THD 50
GTIN (EAN): 4250348728302
US$ 228.00
ex. VAT, ex. delivery costs
:
4250348728302
PCE-THD 50
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Dew point thermometer with connection for thermocouple type K / Measuring range -20 ... 60 °C /
Rechargeable battery / Micro USB data interface / PC software /
Data memory for 32,000 measuring points / Optionally with ISO calibration certificate

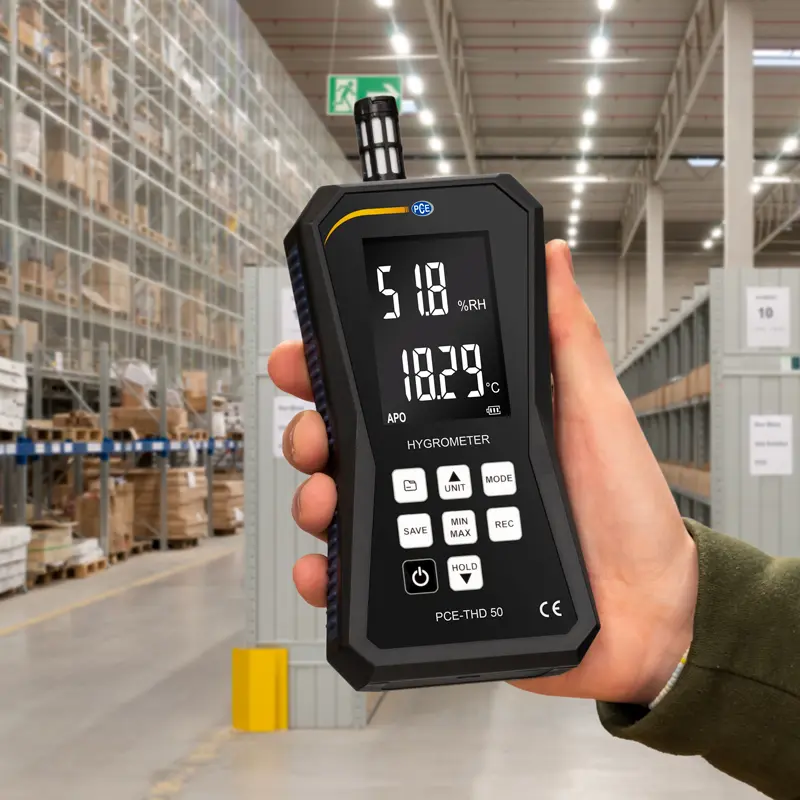

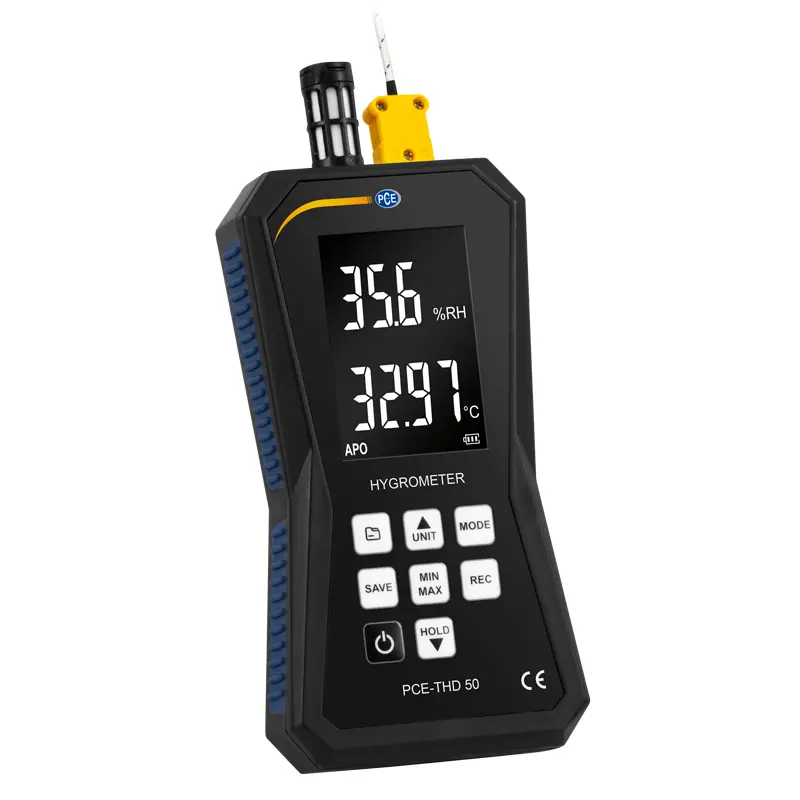

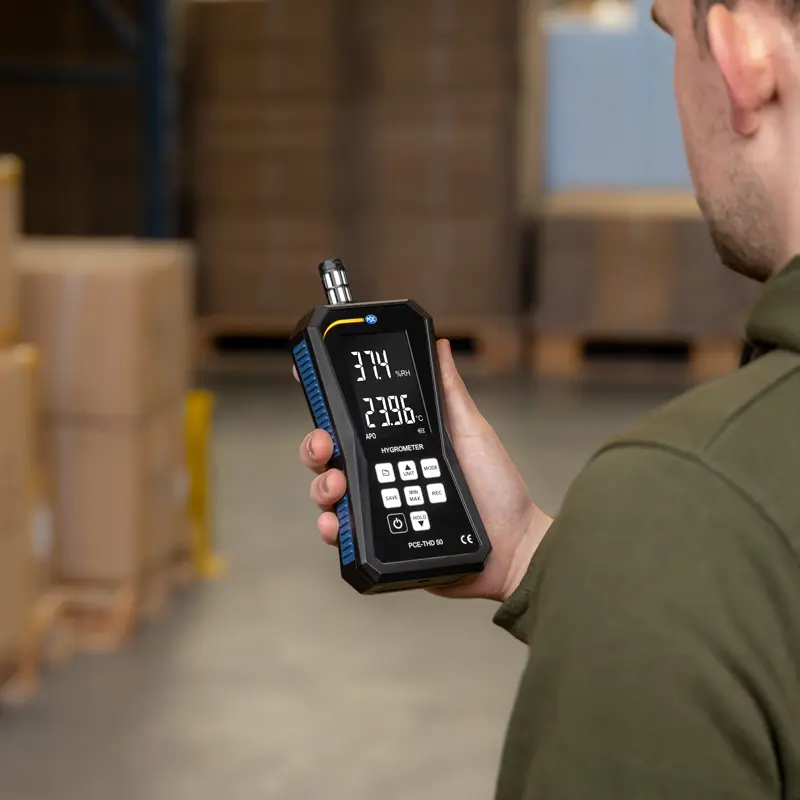

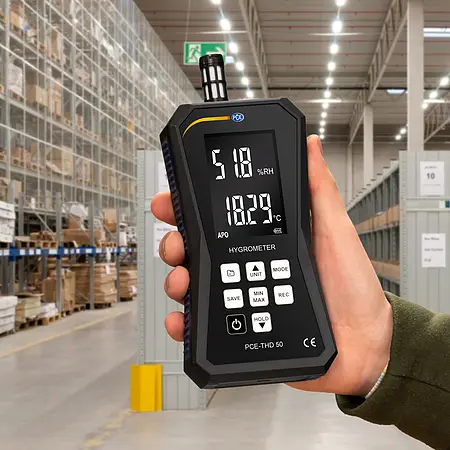

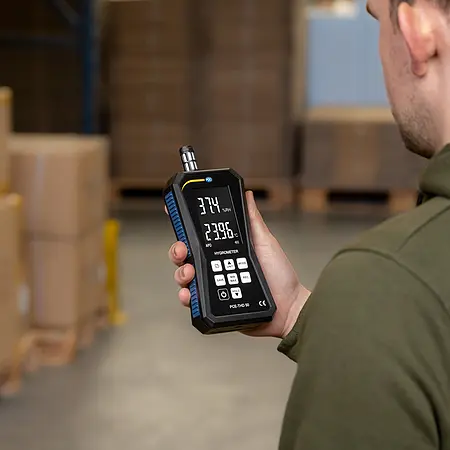

The dew point thermometer is the ideal measuring device to check the climatic conditions in, for example, warehouses, production halls or greenhouses. The dew point thermometer can measure the ambient temperature and humidity. Temperatures between -20 ... 60 °C (-4 ... 140 °F) can be measured reliably and quickly by the dew point thermometer. In addition, the dew point and wet bulb temperature is calculated and displayed by the dew point thermometer. In addition, any type K thermocouple can be connected to the dew point thermometer in a temperature range of -100 ... 1372 °C (-148 ... 2501 °F). As soon as the connected thermocouple has been recognized, the temperature display automatically switches from the dew point thermometer to the thermocouple.

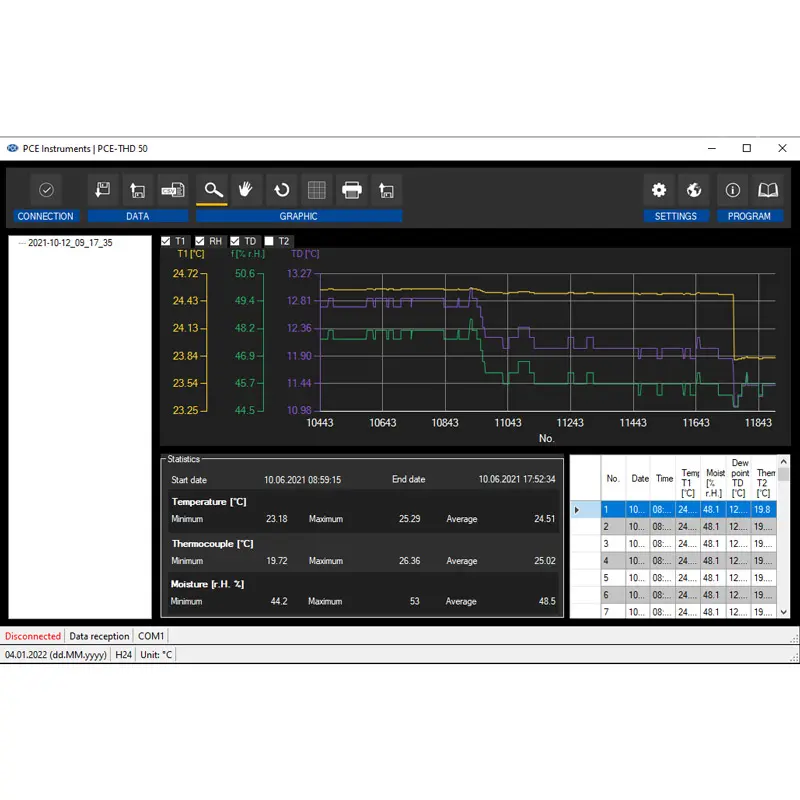

Measured values ​​can be recorded with the data logger function of the dew point thermometer. The large memory of 32,000 measuring points in the dew point thermometer allows recording of measured values ​​over a long period of time. After data logging, all logged measuring points can be read out and analyzed via the micro-USB interface of the dew point thermometer and the free software. The data logged by the dew point thermometer can be exported in CSV file format for further processing.

A 3.7 V Li-ion battery is installed in the dew point thermometer to enable mobile use. This battery can be recharged via the micro-USB interface on the dew point thermometer.

Highlights

- Measuring range -20 ... 60 °C / -4 ... 140 °F
- Temperature, humidity, dew point

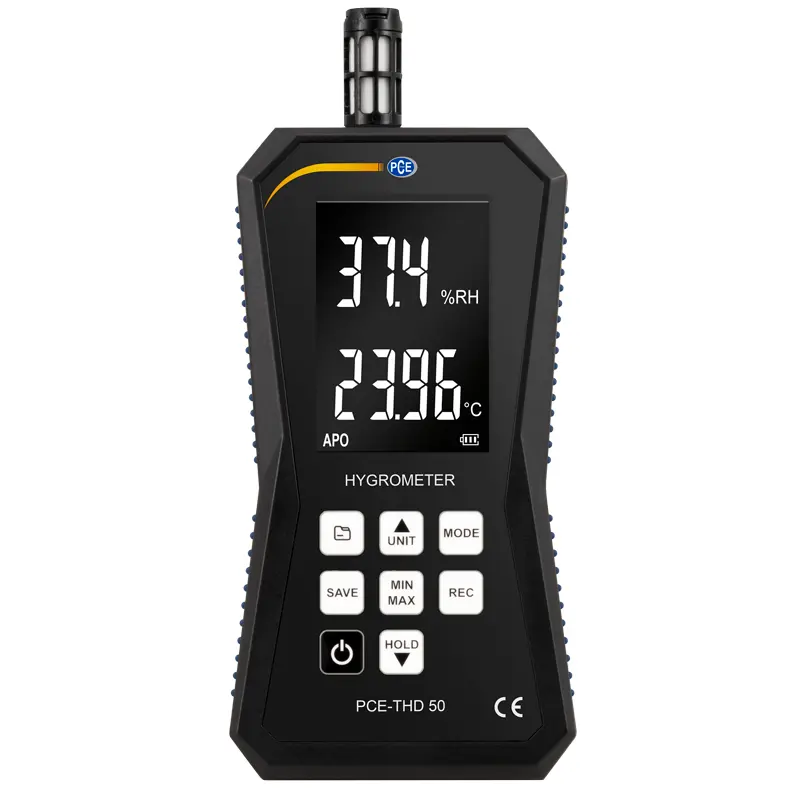

- Backlit LC display

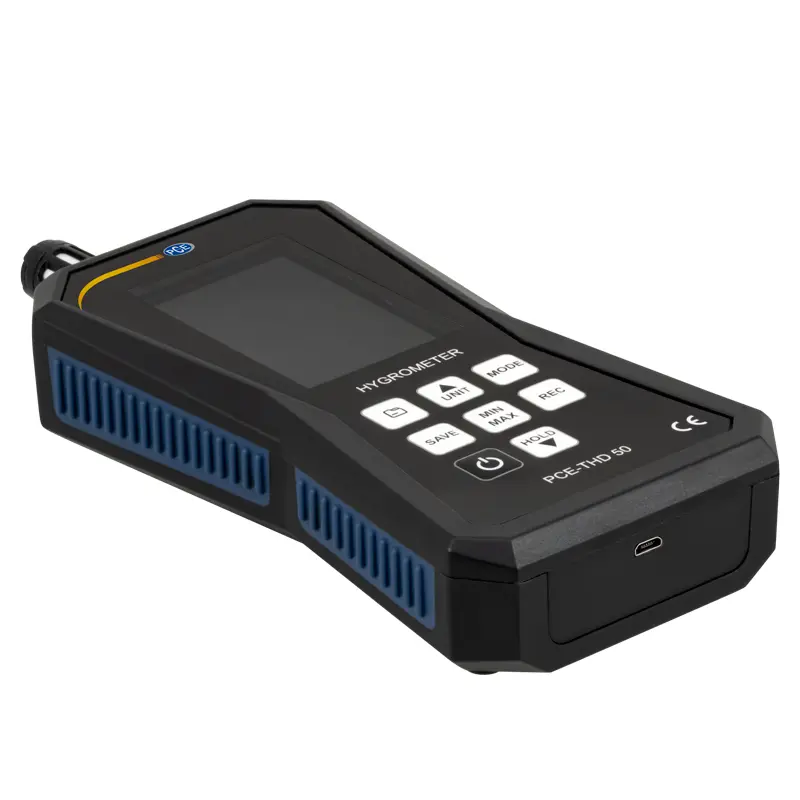

- Micro USB interface
- Rechargeable battery
- Data memory for 32,000 readings
- Wet bulb temperature
- Optionally with ISO calibration certificate

Specification

Air temperature
Measuring range -20 … 60 °C(-4 … 140 °F)
Resolution 0.01 °C/°F
Accuracy ±0.5 °C @ 0 … 45 °C,±1.0 °C
   in remaining range
  ±1.0 °F @ 32 … 113 °F,±2.0 °F
   in remaining range
Measuring rate 3 Hz

Relative humidity
Measuring range 0 … 100 % RH
Resolution 0.1 % RH
Accuracy ±2.2 % RH (10 … 90 % RH)
  @ 23 °C (73.4 °F)
  ±3.2 % RH (<10,>90 % RH)
   @23 °C (73.4 °F)
Response time <10 s (90 % RH, 25 °C (77 °F), with no wind)

Thermoelement
Sensor type Thermoelement Type K
Measuring range -100 … 1372 °C(-148 … 2501 °F)
Resolution 0.01 °C/°F, 0.1 °C/°F, 1 °C/°F
Accuracy ±(1 % ±1 °C)

Calculated values
Wet bulb temperature   -20 … 60 °C (-4 … 140 °F)
Dew point temperature -50 … 60 °C (-58 … 140 °F)

Further specifications
Internal memory 99 measuring points
  (redundant, only readable on the measuring device)
  32,000 measuring points
  (only readable on the PC)
Power supply 3.7 V Li-ion battery
Operating conditions 0 … 40 °C (32 … 104 °F) <80 % RH,
  non-condensing
Storage conditions -10 … 60 °C (14 … 140 °F) <80 % RH,
  non-condensing
Dimensions 162 mm x 88 mm x 32 mm / 6.3 x 3.4 x 1.2"
Weight 248 g / 8.74 oz

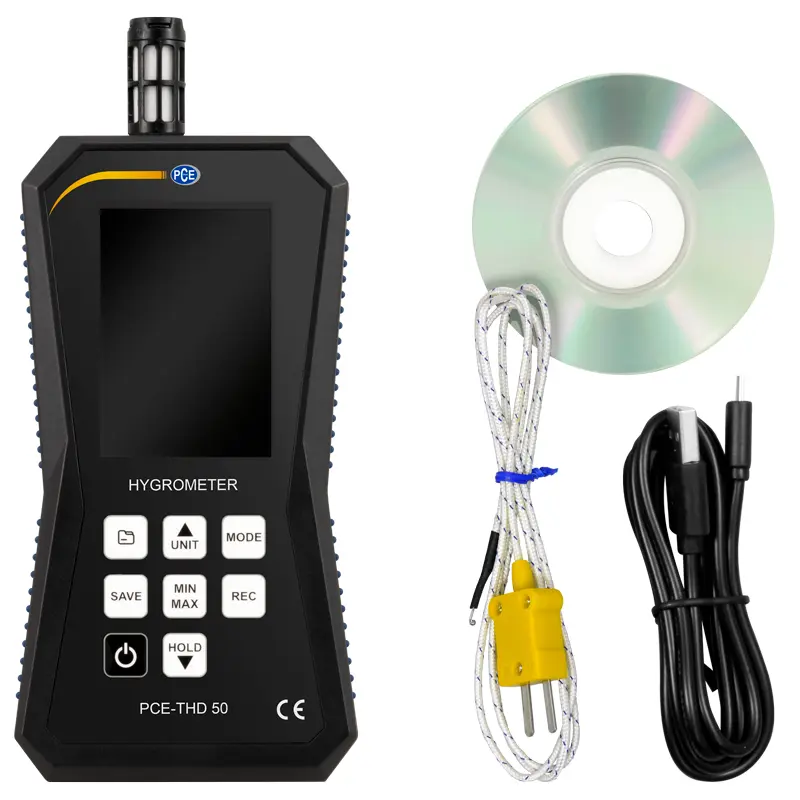

Delivery Scope

1 x Dew point thermometer PCE-THD 50
1 x Type K thermocouple
1 x USB cable
1 x PC software
1 x Instruction manual
