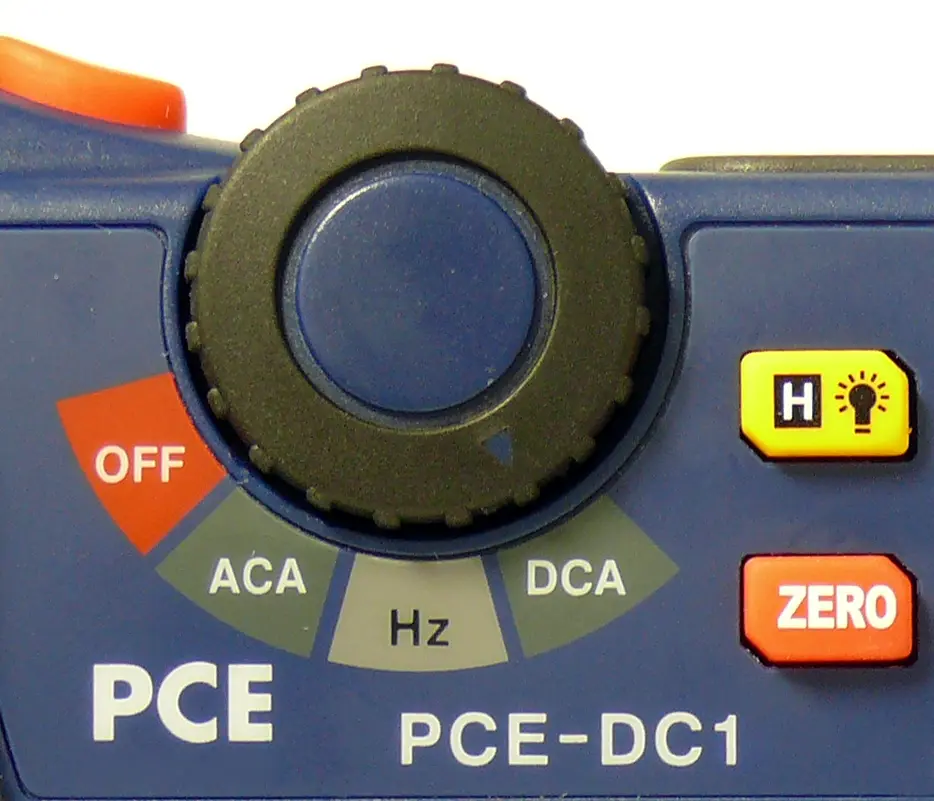

Mini Digital Multimeter PCE-DC1

Order no.: PCE-DC1
GTIN (EAN): 4250348703095
US$ 102.00
No-Shopping
ex. VAT, ex. delivery costs
:
4250348703095
PCE-DC1
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Mini Digital Multimeter for measuring AC current, AC voltage, DC current and frequency
(3 in 1) / maximum aperture of clamps is 18 mm (.7 in)

The Mini Digital Multimeter has been designed to detect, indirectly, AC/DC current and frequency. The Mini Digital Multimeter has one white LED integrated to allow for the point of measurement to be illuminated, and a function to test the voltage without contact. The reduced dimensions of this device allow for measurements to be taken in places with limited access. The backlit display ensures that it is easy to read, even in places with limited light available, such as electrical cabinets or in cabling ducts. Testing voltage without contact helps when detecting dangerous power lines, and it makes it easier to detect the location of cuts in power lines.


Highlights

- LCD with 3 2/3 positions, backlit, clamp for continuous current
- Measures AC/DC current, AC voltage and frequency
- Memory function, zero reset for the DCA, test voltage without contact
- Integrated flashlight
- Automatic range selection
- Auto shut-off
- Aperture of the clamp: 18 mm / .7 in

Specification


AC current (50/60 Hz)Sector / resolution / accuracy
200 A / 100-mA / ±3.0% + 8 digits
DC currentSector / resolution / accuracy
200 A / 100-mA / ±2.8% + 8 digits
AC test voltage (without contact)100 VAC ... 600 VAC 50 / 60 Hz
FrequencySector / resolution / accuracy
40 ... 50 Hz / 0.01 Hz / ±1.2% + 5 digits
51 ... 510 Hz / 0.1 Hz / ±1.2% + 3 digits
0.51 ... 1 kHz / 0.001 kHz / ±1.2% + 3 digits
Illumination of the measurement areawhite LEDs
Diameter of the conductorMax. 18 mm / .7 in
DisplayWith white LEDs, backlit LCD with 3 2/3 positions
Power2 AA batteries
EnclosurePVC
Dimensions155 x 66 x 31 mm / 6.1 x 2.6 x 1.2 in
Weight155 g / < 1 lb

Delivery Scope

1 x PCE-DC1 Mini Digital Multimeter
1 x Bag
2 x Batteries
1 x User's manual
