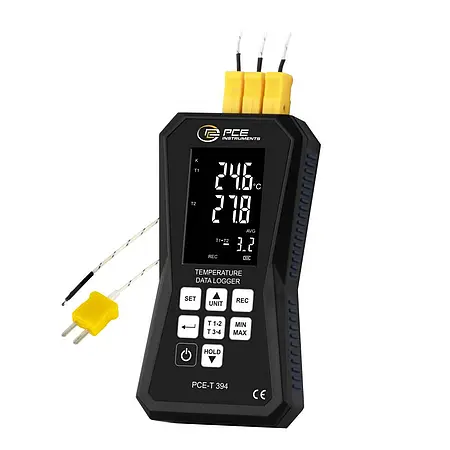

Digital Thermometer PCE-T 394

Order no.: PCE-T 394
GTIN (EAN): 4250348732361
US$ 214.00
ex. VAT, ex. delivery costs
:
4250348732361
PCE-T 394
Available in: 1-2 days

Description

Digital thermometer up to 32,000 data records / Measuring range from -210 ... 1370 °C / 4 input channels / Thermocouple types K and J / Measuring functions: MIN, MAX, AVG, HOLD

The digital thermometer offers precise temperature monitoring. With a measuring range of -210 to 1370 °C and support for thermocouple types K and J, it enables accurate measurements in different environments. Its 4 input channels allow simultaneous monitoring of multiple measuring points, making it ideal for complex applications.

Before the recording mode can be started, the digital thermometer must be connected to a PC via a micro USB port and the parameters configured using the PC software. The storage interval, the number of measured values and also the starting point of the data logger can be set. Up to 32000 data records can be recorded with this function. The interval can be set in steps from 1s to max. 24h. The digital thermometer software can also be used to export the data in pdf and csv format.

The MIN, MAX, AVG and HOLD measurement functions enable precise data recording and analysis. The thermometer switches off automatically after 20 minutes of inactivity to save energy and extend the operating time of the 3.7 V Li-Ion battery. The "Auto Power Off" function can also be deactivated. The digital thermometer is charged via the micro-USB interface and comes in a practical case for transportation.


Highlights

- Thermocouple types K and J
- 4 input channels
- Data logger up to 32,000 data records
- Display of the temperature difference between two channels
- Units: °C, °F, K
- LC display 2.8" with illumination
- Automatic switch-off

Specification

Temperature type K
Measuring range  -200 °C ... +1370 °C
Resolution  0.1 °C
Accuracy  ±0.2 % of Mw.+1 °C above -100 °C / ±0.5 % of Mw.+2 °C below -100 °C

Temperature type J
Measuring range  -210 °C ... +1100 °C
Resolution  0.1 °C
Accuracy  ±0.5 % of Mw.+2 °C below -100 °C / ±0.5 % of Mw.+2 °C below -100 °C

General technical data
Number of measuring channels  4
Measurement functions  MIN, MAX, HOLD, average value
Units  °C, °F, K
Display type  LCD
Display size  2.8 inch
Display refresh rate  500 mS
Storage capacity  32000 data records
Storage interval of  1 s
Storage interval to  24 h
Interface  Micro-USB
Automatic switch-off  20 min
Automatic switch-off can be deactivated  yes
Menu language  English
Protection class (device)  IP52
Power supply  5V DC
Plug type  Euro plug device
Weight  247 g
Dimensions (L x W x H)  166 x 88 x 32 mm
Operating conditions  -10 ... 50 °C , 0 ... 80 % r.H
Storage conditions  -20 ... 50 °C , 0 ... 80 % r.H
Capacity  2500 mAh

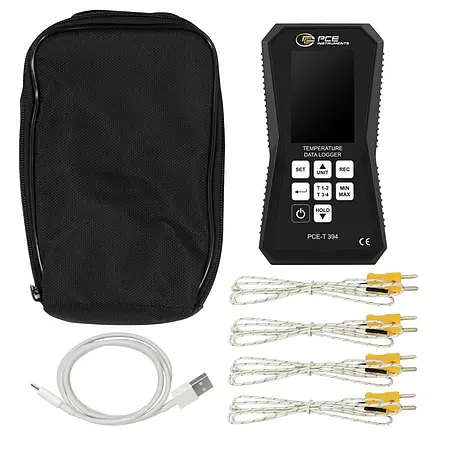

Delivery Scope

1 x PCE-T 394 digital thermometer

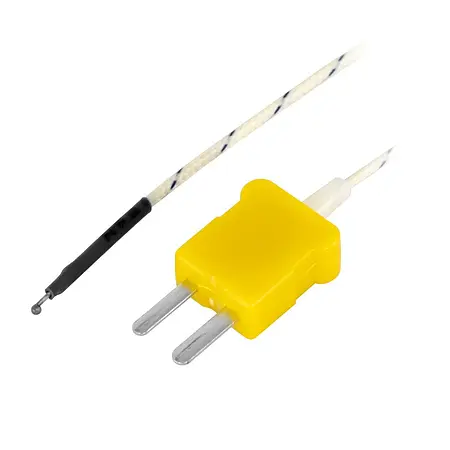

4 x K-type wire probe -50 ... +200 °C
1 x Micro-USB cable
1 x PC software
1 x Service bag
1 x Operating instructions
