Drain Camera PCE-VE 380N-LOC

Order no.: PCE-VE 380N-LOC
GTIN (EAN): 4250348718266

US$ 4,254.00
ex. VAT, ex. delivery costs
:
4250348718266
PCE-VE 380N-LOC
Available in: 1-2 days
320 x 240 / 640 x 480 pixels
Image, Video
Yes (SD card)
Yes (Mini USB, AV out)

Description

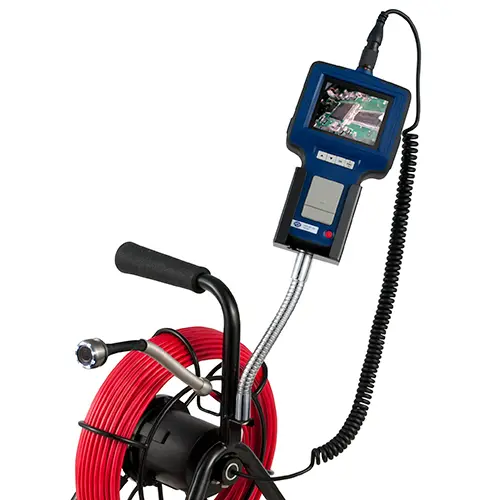

Drain Camera PCE-VE 380N-LOC for industrial companies, craft shops or workshops / With 4 GB memory card / Video recording and image recording / Diameter 28 mm (1.1 in) /
30 Meter (98 ft) pushcable

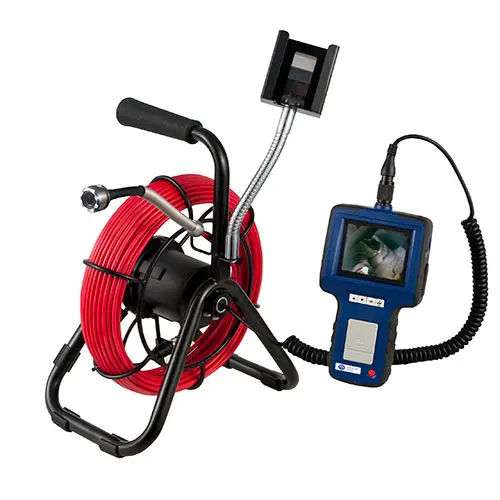

The PCE-VE 380N-LOC drain camera provides you with new, optical insights into the inner workings of machines and systems as well as in cavities, ventilation ducts, down pipes, chimneys, sewage pipes, etc. The drain camera PCE-VE 380N-LOC is the ideal tool for maintenance and repair in any industrial area, craft or workshop. Never was optical analysis with a drain camera so easy.

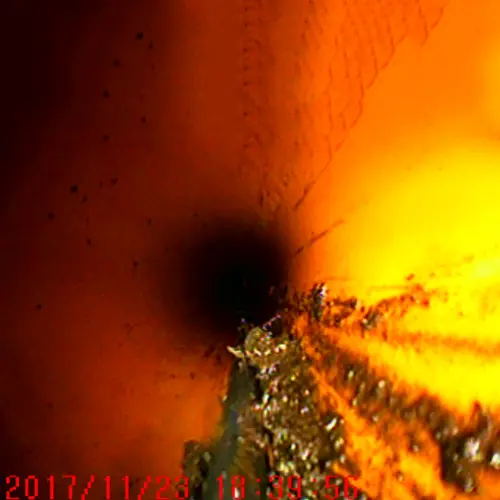

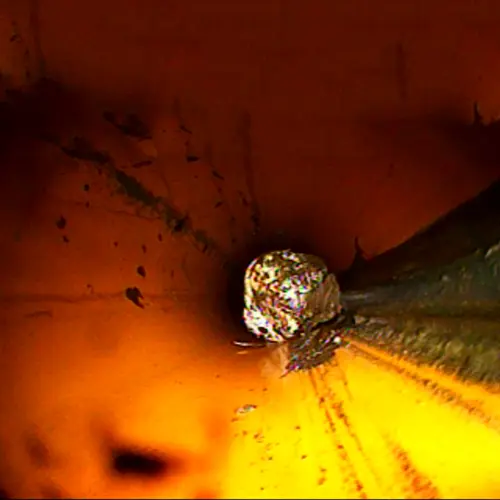

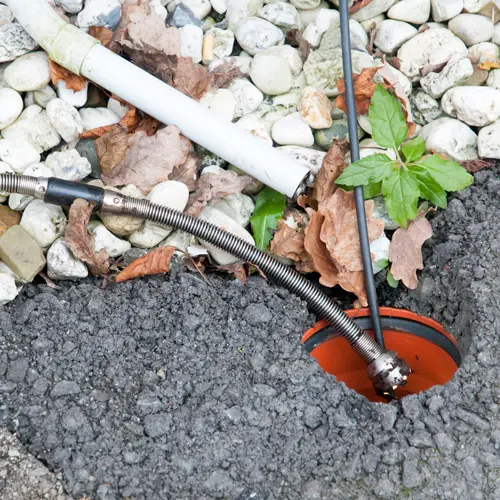

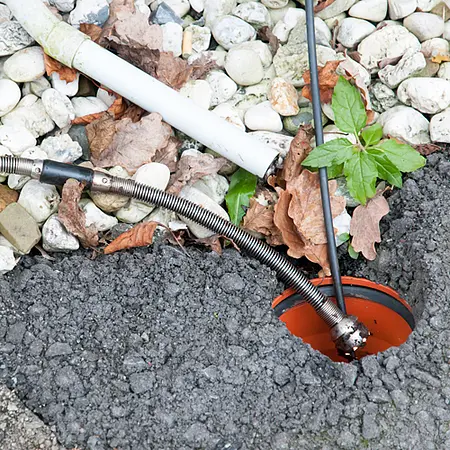

This drain camera offers you entry into professional video inspection. Simple and network-independent, you can inspect damaged areas in machines and systems, pipes and other cavities. The sturdy camera head with a diameter of only 28 mm / 1.1 in masters bends even in pipes with a diameter of just 50 mm / 2 in. With the drain camera, images and video sequences of the components to be inspected can be stored directly in the device on an SD card.


Highlights

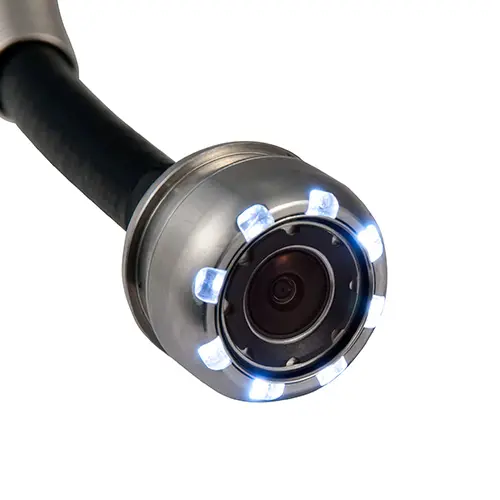

- Camera head with only 28 mm / 1.1" diameter
- Waterproof camera head
- Bright LED lighting
- Includes handset
- Push-pull cable on a reel with 30 m / 98ft 5" length
- Battery operation
- SD memory card
- Supplied in a case complete with centering star
- incl. Locator

Specification

Cable diameter 28 mm / 1.11 in
Cable length 30 m / 98 ft
Depth of field 10 mm … ∞ / 0.4 in to infinity
Field of view 150.8°
Illumination 8 LEDs
Exposure Automatic
White balance Fixed
Image sensor CMOS
Image sensor 640 x 480
Picture rate 30 / s

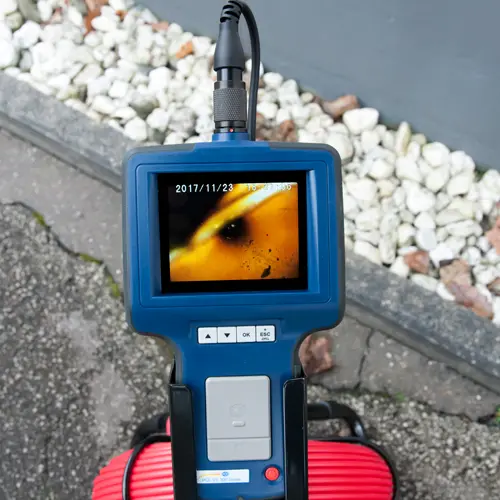

Display 3.5" / 88.9 mm TFT screen
Interface Mini-USB 1.1 and AV out
Storage options image and video
Image storgae 8 GB SD memory card (incl.)
Compression format MPEG4
Picture format JPEG (640 x 480)
Video output format NTSC & PAL
Video format ASF (320 x 240)
Menu navigation yes
Operation & storage temperature -10 ... 70°C / 14 ... 158°C
Power supply rechargeable 3.7V lithium-ion battery
Dimensions, handheld device 207 mm x 118 mm (79 mm) x 37 mm / 8.15 x 4.65 x 1.46 in
Protection type, camera IP 68

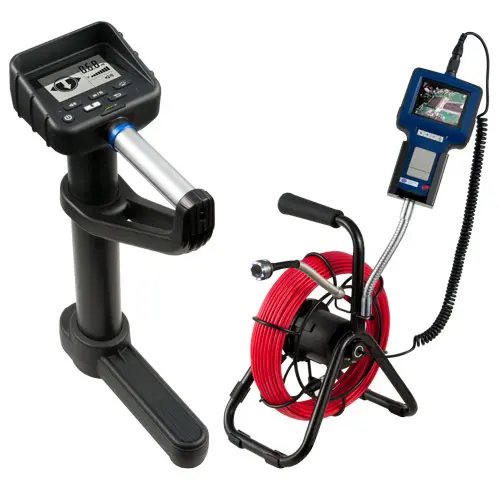

Delivery Scope

1 x Drain Camera PCE-VE 380N
1 x Semi-flexible / semi-rigid waterproof push-pull cable on reel

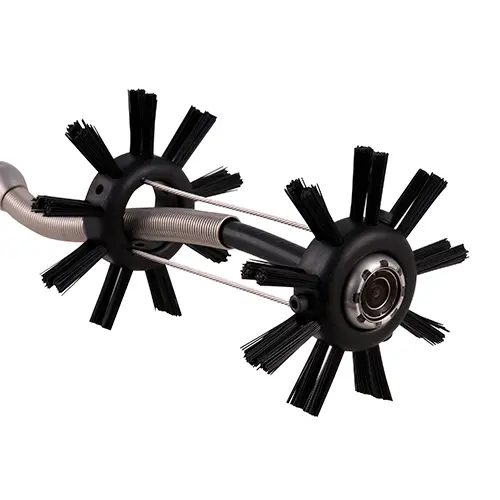

1 x Centering star
1 x SD memory card

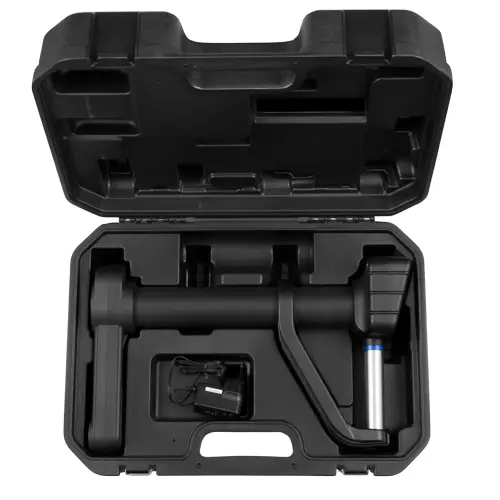

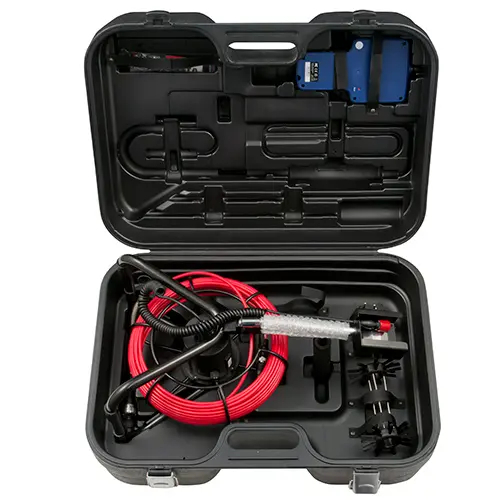

1 x Carrying case

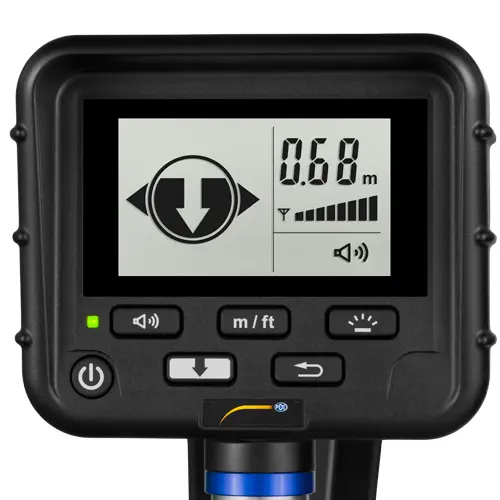

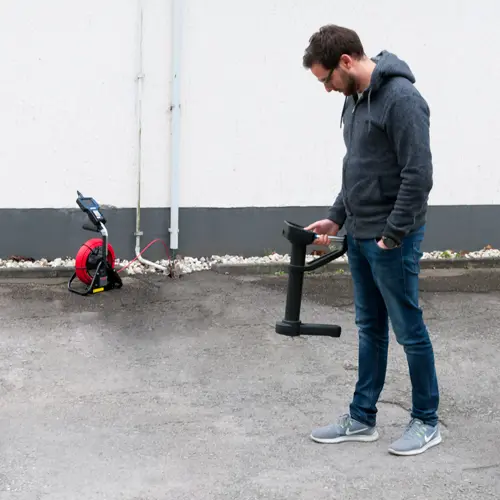

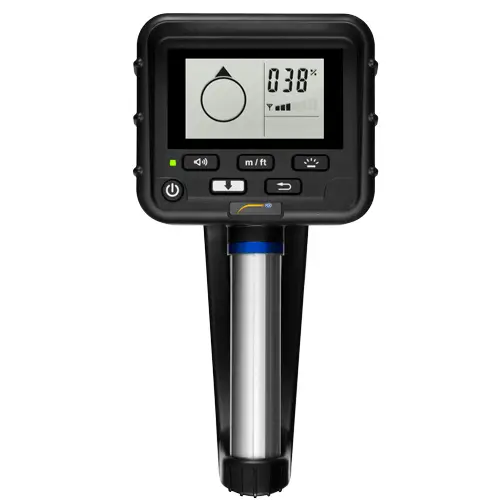

1 x PCE-VE-LOC Locator
