Durometer PCE-DDA 10 Shore A

Name: Durometer PCE-DDA 10 Shore A
Brand: PCE Instruments
SKU: 2239779
Price: 839 USD
Availability: InStock

Order no.: PCE-DDA 10

GTIN (EAN): 4250348713698

Your PCE Instruments Benefits

Bilingual Technical Support (EN / ES)

Special Promotions

Public Service, Military and First Responder Discount

30 Day Return Policy

2 Year Warranty

Free Standard Shipping (US)

Accessory

Calibration certificate CAL-PCE-DX

US$ 211.00

Test stand STAND-PCE-DDx10

US$ 888.00

Description

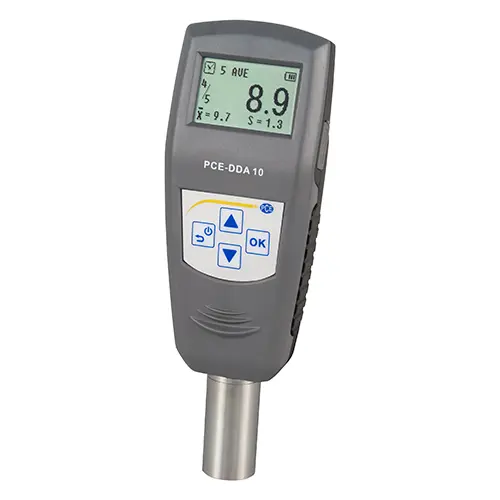

PCE-DDA 10 Shore A Durometer

Measures Shore A hardness in soft gums, rubber and elastomers / Features a USB port and downloadable PC software for data transfer

The PCE-DDA 10 Shore A durometer is a portable handheld device used to check Shore A hardness in soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. This digital durometer has a reading accuracy of 0.1 hardness units. The durometer comes manufacturer calibrated and can be optionally certified to ISO standards for an additional fee (see accessories for details).

Highlights

- Portable handheld digital hardness testing device
- Measures Shore A hardness in soft gums, rubber and elastomers

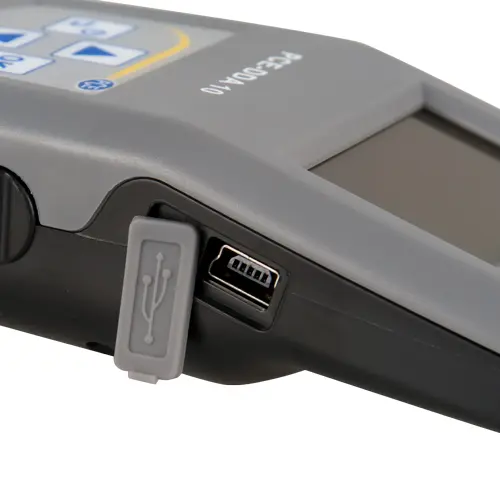

- Features a USB port and downloadable PC software for data transfer

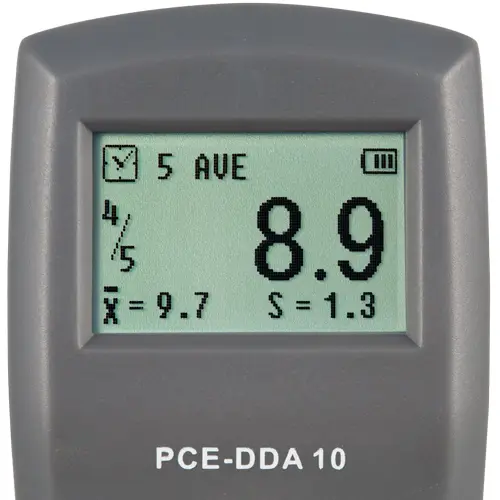

- Large, easy-to-read display
- For single and serial measurements

Specification

Measurement range	0 ... 100 Shore A
Resolution	0.1
Accuracy	< ± 1

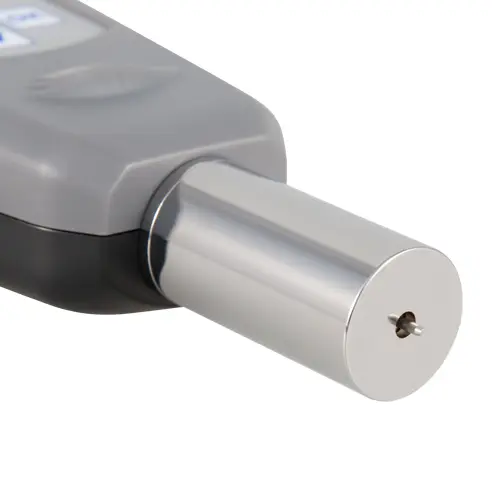

Indenter	35°± 0.25°
Memory	Saves up to 500 measurements
Dimensions	153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight	Approx. 300 g / < 1 lb
Power supply	3.6V rechargeable Ni-MH battery
Max. operating time	Up to 20 h continuous use at full charge
Charging time	Approx. 3 h
Standards	GB/T 531.1, ISO 7619-1, ASTM D 2240

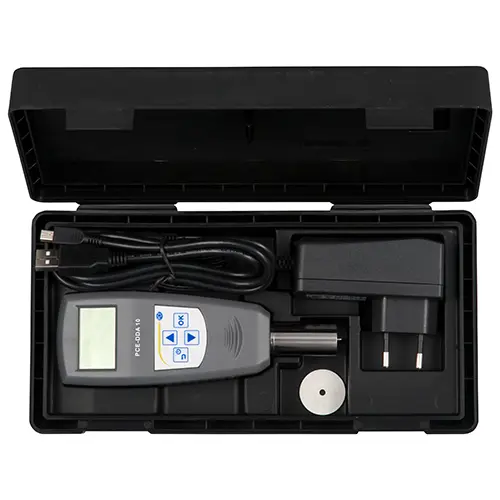

Delivery Scope

1 x PCE-DDA 10 Shore A durometer
1 x Calibration plate
1 x Charger / AC power adapter
1 x Mini USB cable
1 x User manual
1 x Carrying case

Note: Software is available for download from this website.
