Dust Measuring Device PCE-MPC 15

Order no.: PCE-MPC 15
GTIN (EAN): 4250348730275
US$ 924.00
ex. VAT, ex. delivery costs
:
4250348730275
PCE-MPC 15
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Dust measuring device for indicative measurement / Adjustable alarm limits / Data logger /
Micro USB charging interface / Measuring range 0 ... 1000 µg/m³ / Mass concentration /
Approx. 9 hours of battery life / 3.2" color display / Carrying case / 1/4" tripod connection

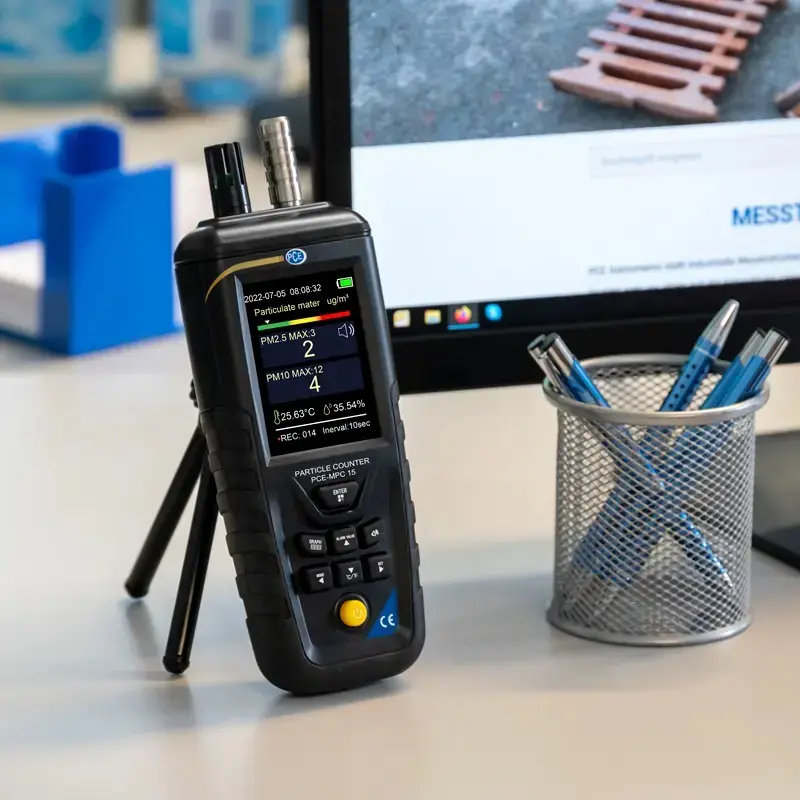

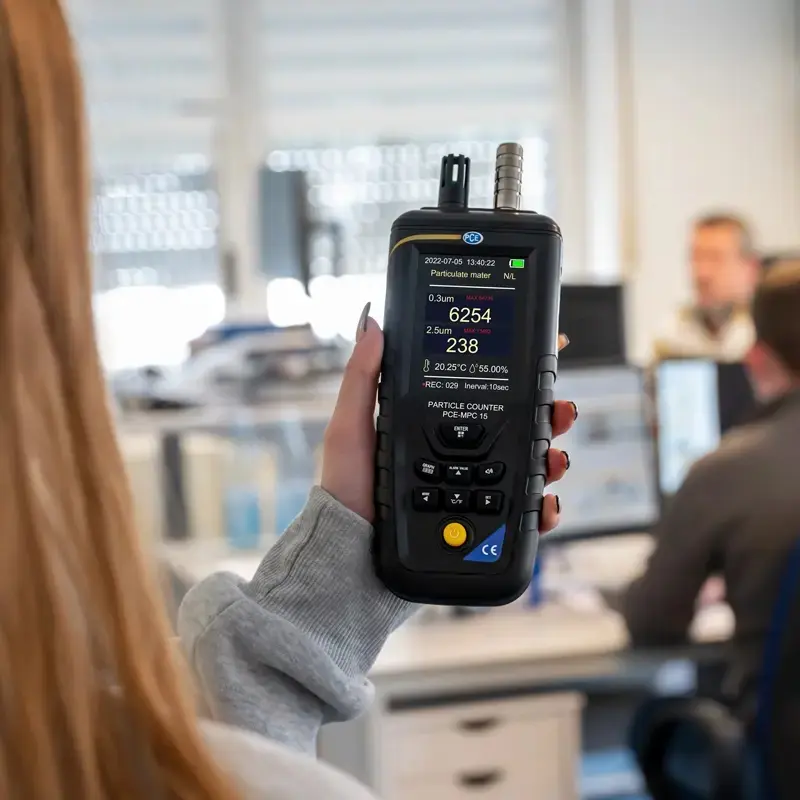

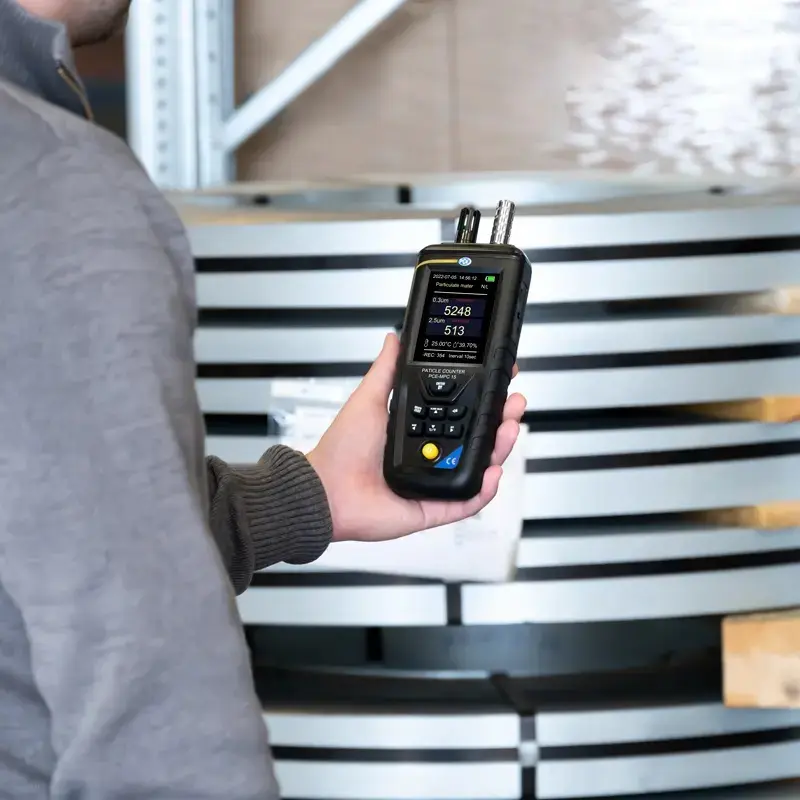

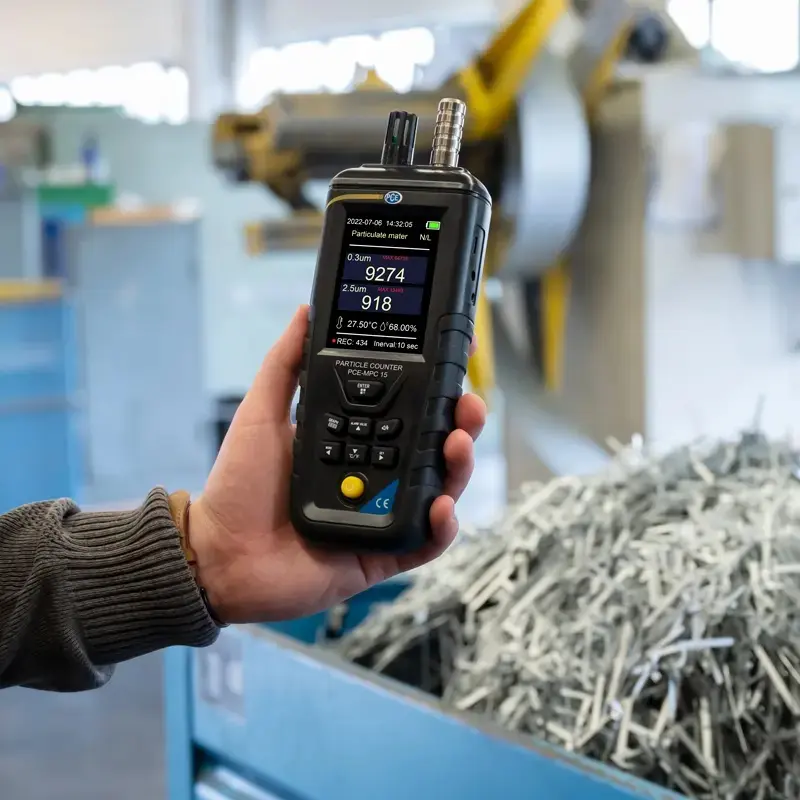

The dust measuring device is used in offices, workshops or in laboratories to carry out indicative measurements of the environmental conditions. In addition to the number of particles, the particle counter determines the mass concentration of PM2.5 and PM10 in the measuring range 0 … 1000 µg/m³. In addition, the temperature and the ambient humidity are measured. With the alarm limit function, limit values ​​for PM2.5 can be set on the particle counter.

During a measurement it is possible to record the measured values ​​with the dust measuring device. A memory with a storage capacity of approx. 12 measurement runs, each with 999 measurement points, is available for the particle counter. The interval can be set at different times on the particle counter.

The 8 Wh battery can be charged via the micro USB interface. The battery used in the dust measuring device enables an operating time of approx. 9 hours. Thus, the particle counter can carry out measurements over an entire working day before it has to be recharged. Since the battery is not permanently installed in the particle counter, it can be easily replaced.


Highlights

- Data storage for data logging
- Adjustable alarm when limit value is exceeded
- Transport case for safe transport
- Suitable for indicative measurements
- Measuring range 0 ... 1000 µm/m³
- Interface: Micro USB only for charging

Specification

Mass concentration
Measurable particle sizes PM2.5 / PM10
Measuring range PM 2.5 0 ... 1000 µg/m³
Resolution 1 µm
Accuracy PM 2.5 0 ... 100 µg/m³: ±10 µg/m³
  101 ... 1000 µg/m³: ±10% of measured value

Particle counter
Measurable particle sizes 0.3 / 2.5 µm
Resolution 1 µm
Accuracy reference measurement
Number of maximum particles 2,000,000 particles/L

Temperature
Measuring range -10 ... 60 °C, 14 ... 140 °F
Resolution 0.01 °C, °F
Accuracy ±2 °C, ±3.6 °F

Humidity (RH)
Measuring range 0 ... 100 %
Resolution 0.01 %
Accuracy ±3 %

Further specifications
Response time 1 second
Warm up 10 seconds

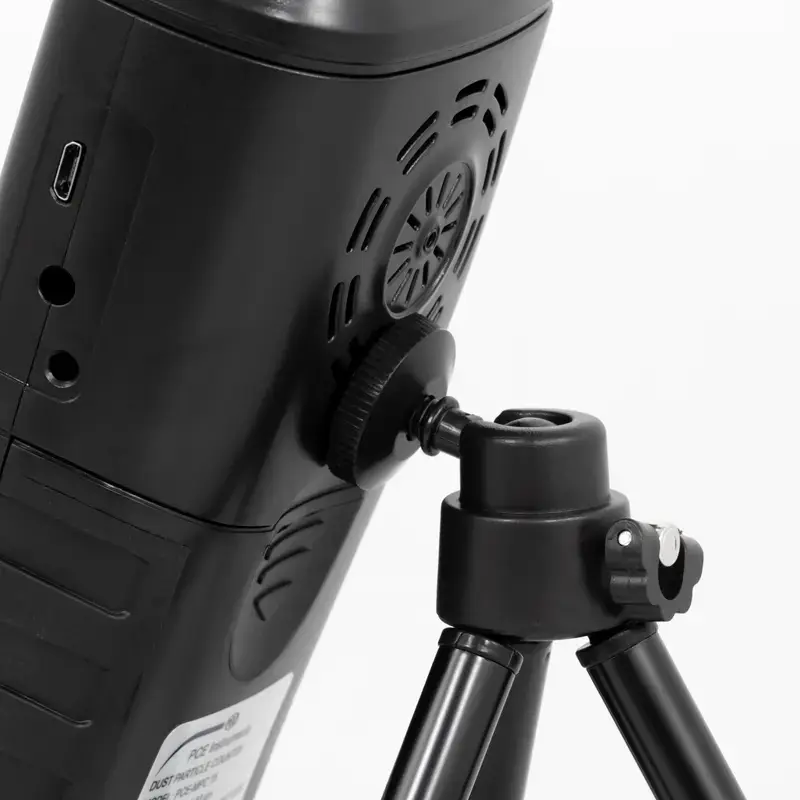

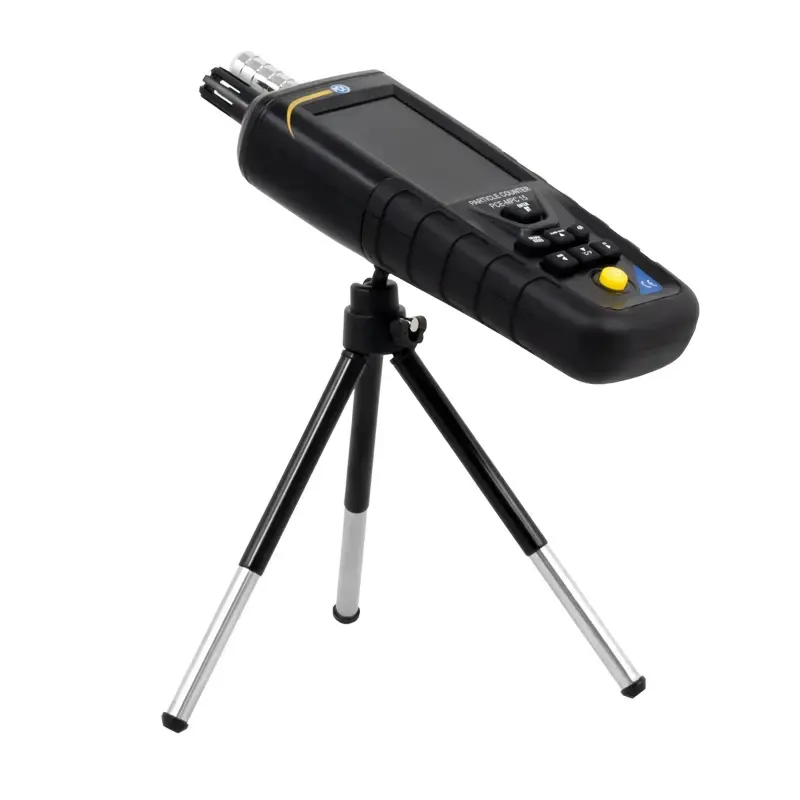

Mounting connection 1/4" tripod connection

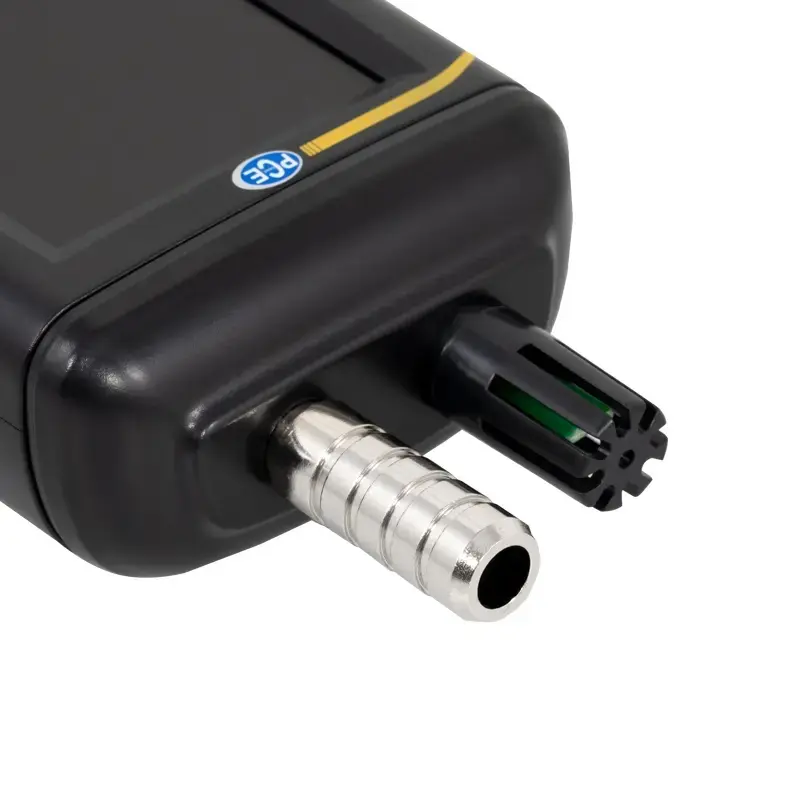

Dimensions intake outside: Ø13 mm / 0.51"
  inside: Ø7 mm / 0.27"
  height: 35 mm / 1.37"

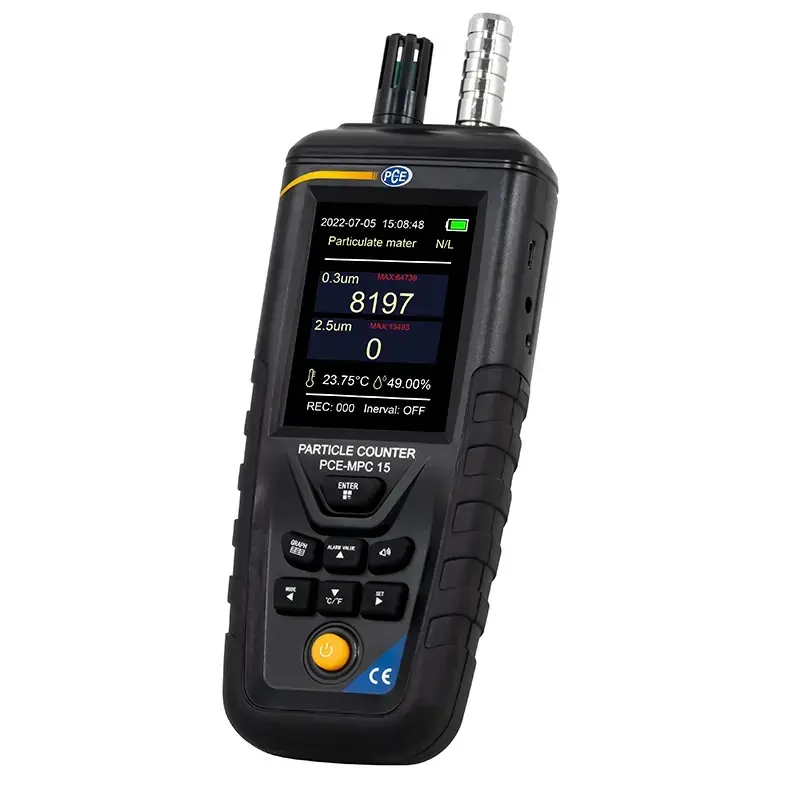

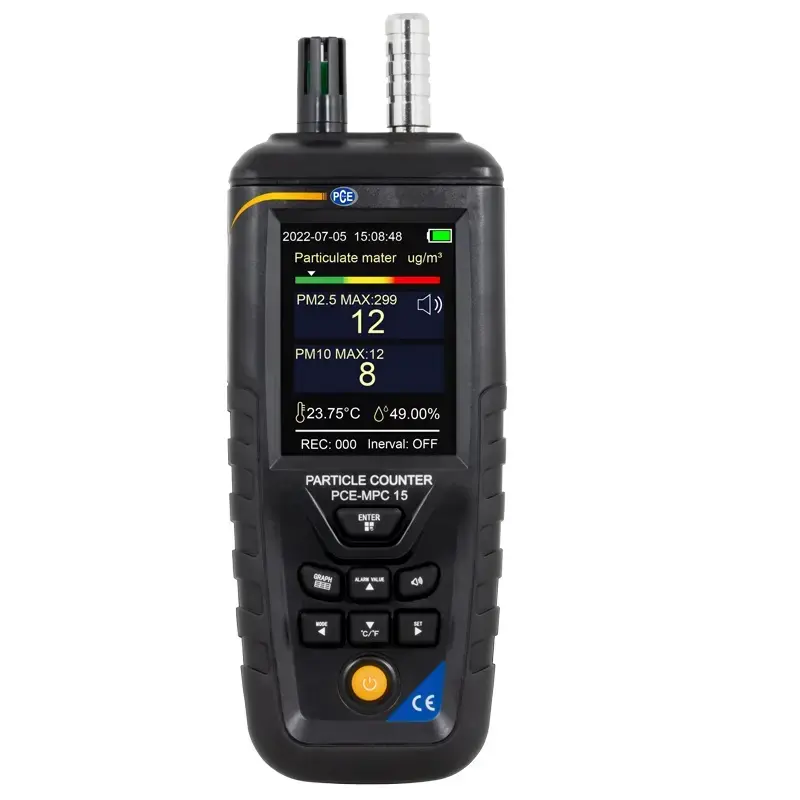

Display 3.2" LC color display
Power supply (mains adapter)
primary: 100 ... 240 V AC, 50 / 60 Hz, 0.3 A
  secondary: 5 V DC, 2 A
Power supply (battery) 3.7 V, 8.14 Wh, 18650
Battery lifeca. 9 hours
Interface

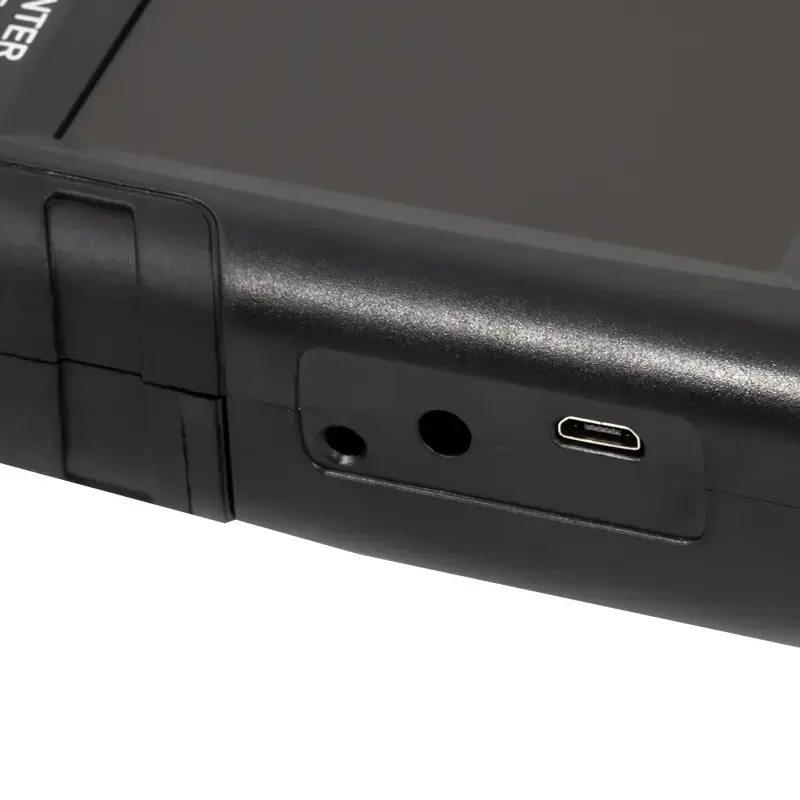

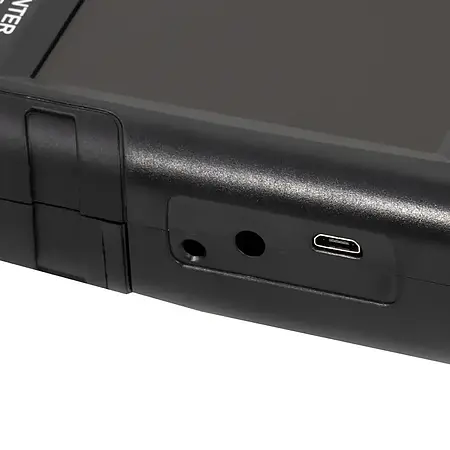

Micro USB for charging only
Auto power offturned off
  15, 30, 45 minutes
  1, 2, 4, 8 hours
Data memory flash memory for approx. 12 measurement runs
  a measurement run contains 999 measurement points
Storage interval 10, 30 seconds
  1, 5, 10, 30, 60 minutes
Dimensions 222 x 80 x 46 mm / 8.7 x 3.1 x 1.8"
Weight 320 g / 11.2 oz

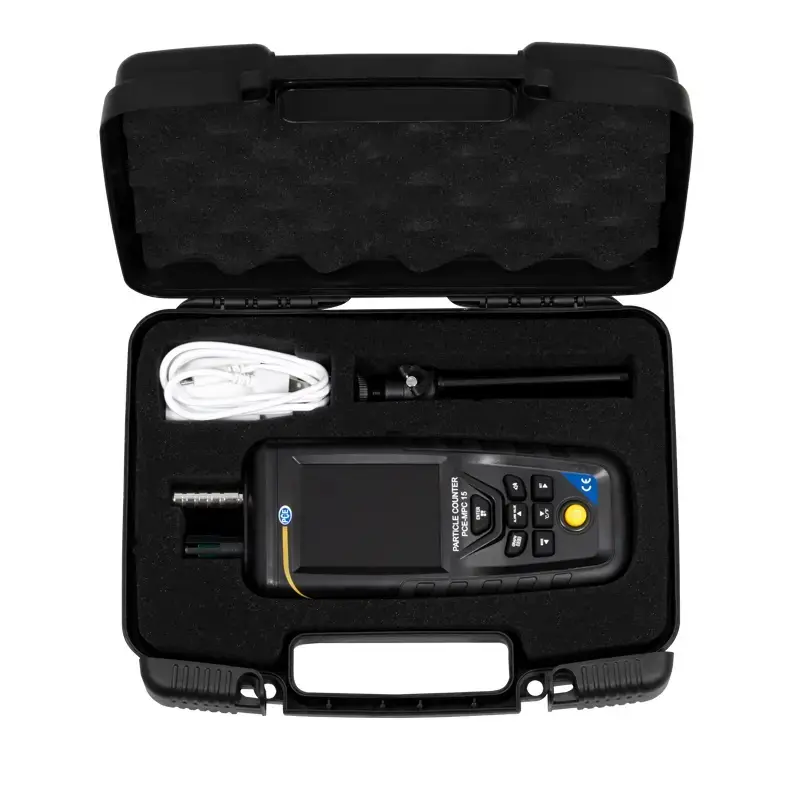

Delivery Scope

1 x Dust Measuring Device PCE-MPC 15
1 x Carrying case
1 x 18650 battery
1 x Mini tripod
1 x Micro USB cable
1 x USB power adapter
1 x Instruction manual
