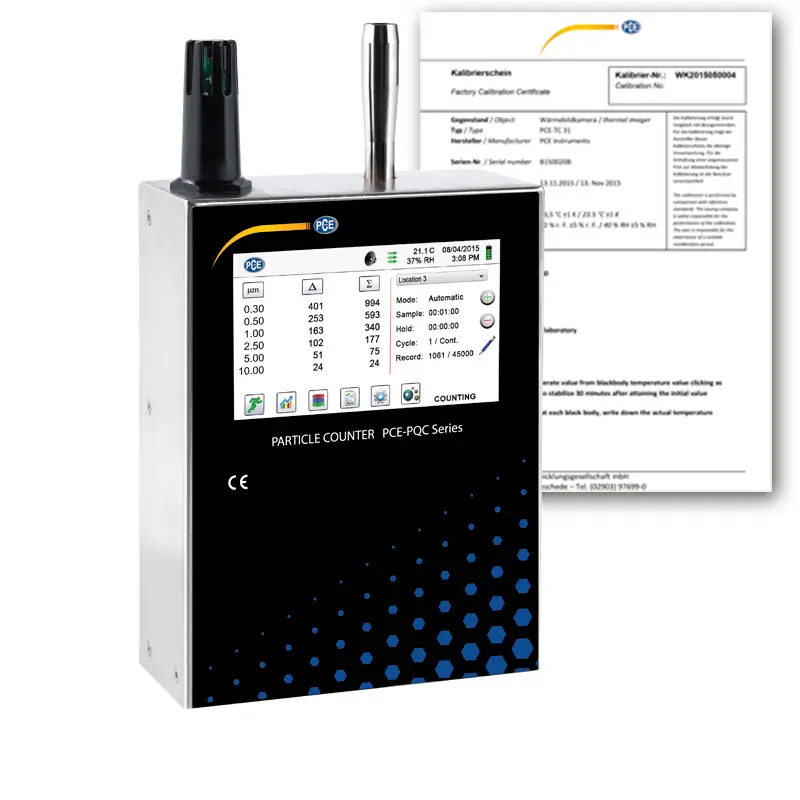

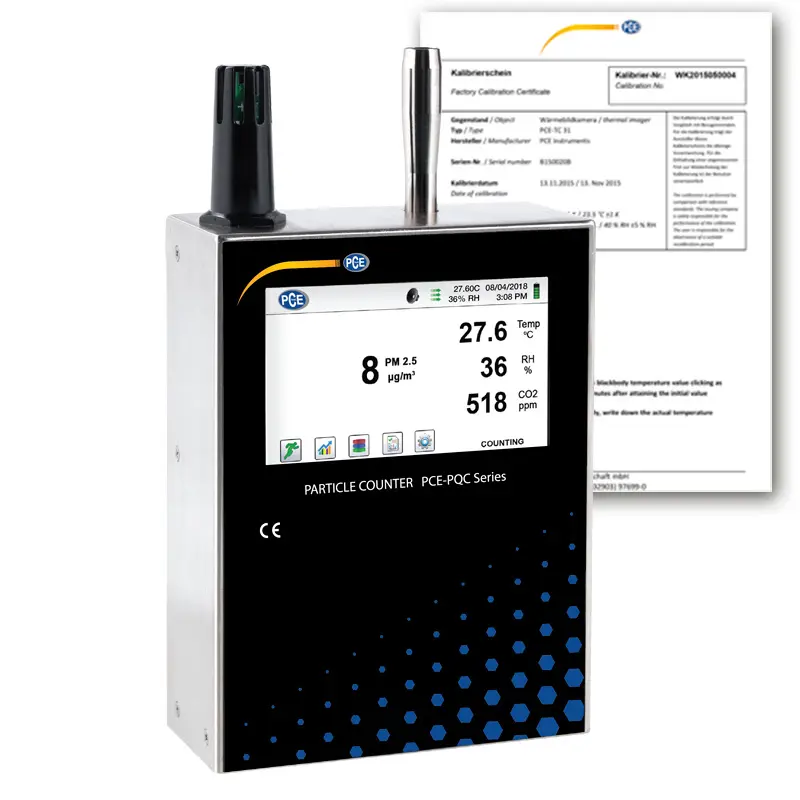

Dust Measuring Device PCE-PQC 34US Incl. Calibration Certificate

Order no.: PCE-PQC 34US
GTIN (EAN):
US$ 6,468.00
ex. VAT, ex. delivery costs
PCE-PQC 34US
Available in: 1-2 days

Accessory

External Thermal Printer w/ 2 Rolls of Paper PQC-PRINT
External Thermal Printer w/ 2 Rolls of Paper PQC-PRINT
US$ 380.00
Wireless 802.11 PQC-WIFI
Wireless 802.11 PQC-WIFI
US$ 245.00
Temperature & Humidity Probe for the PCE-PQC Series
Temperature & Humidity Probe for the PCE-PQC Series
US$ 295.00
Carrying Case for the PCE-PQC Series
Carrying Case for the PCE-PQC Series
US$ 250.00

Description

Dust measuring device PCE-PQC 34US incl. calibration certificate
Particle counter for real-time measurement / Incl. Data logger function / Remote access to measured data / Extension by different weather sensors possible / For rod and wall mounting

The particulate matter measuring device PCE-PQC 3xUS series is the most advanced particulate matter measuring device on the market. Integration into a building automation and clean room management system is easily possible via Ethernet or (optionally) Wireless 802.11 b / g, RS485 or RS232. The particulate matter gauge measures 6 user-selectable particle size channels and (optional) temperature and relative humidity. This particulate matter meter stores up to 45,000 measured values ​​with time stamp.

The particulate matter meter can be remotely controlled and monitored via a web browser. The fine dust measuring device is a mounting device, which is characterized by the rod or wall mounting on the one hand and the far-reaching functions on the other hand as very robust and versatile.

Highlights

- Wall Mount Particle counter with C02 sensor
- Internal memory up to 45,000 records
- Particle sizes up to 25 μm
- Color display with touch screen
- 6 measuring channels, top 5 can be adjusted
- ISO 14644-1, EU GMP Annex I, FS 209E

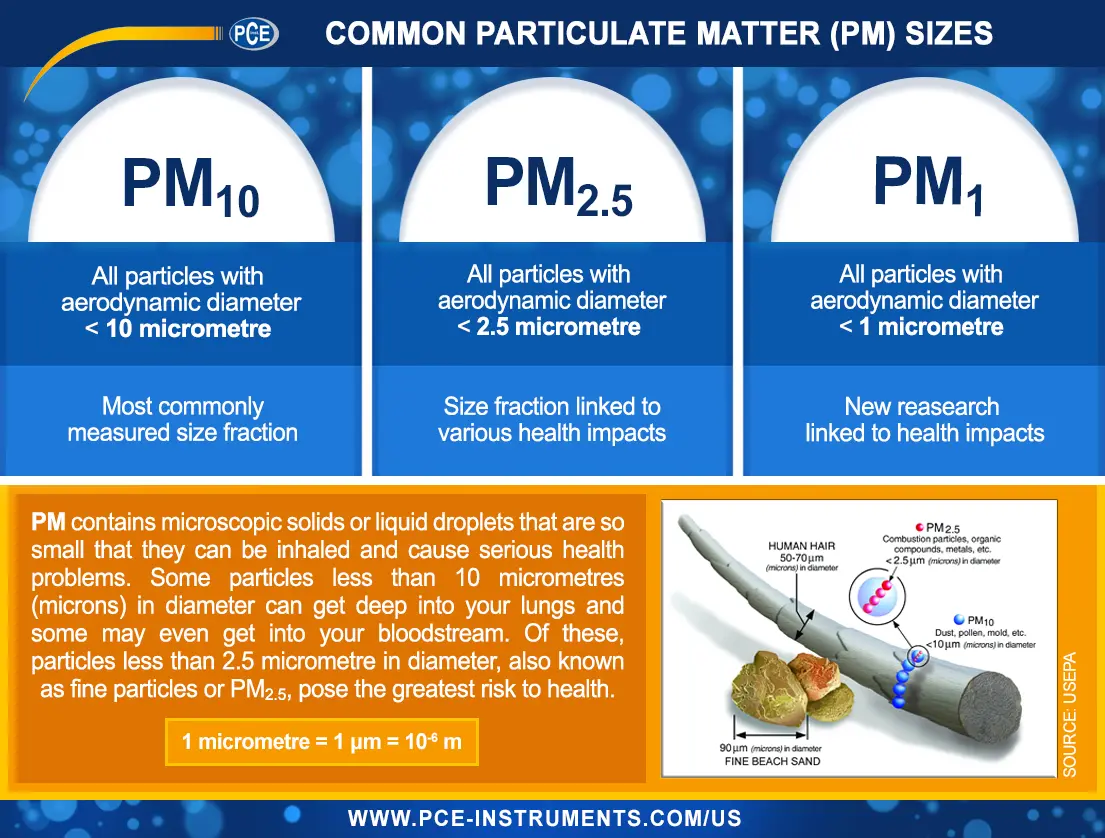

- Mass concentration mode (PM 2.5 & PM 10)
- Stainless Steel housing
- Ethernet, USB, Wifi Optional, software included
- Incl. calibration certificate traceable to NIST ISO 21501-4 and JIS B9921


Specification

Measuring range 0.3 ... 25 μm
Measuring channel sizes Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 μm
Counting efficiency 50% at 0.3 μm, 100% at > 0.45 μm according to JIS

Flow 2.83 l / min (0.1 ft3 / min)
Random loss 10% at 15000000 particles / ft³
Light source Long-life laser diode
Zero count< 1 count / 5 min (< 2 particles / ft3) according to ISO 21501-4 and JIS

Counting modes Automatic, manual, real-time, cumulative /
  differential, mass concentration
Alarms 1 ... 9999999 counts
Acoustic alarm Adjustable, integrated alarm
Calibration Traceable to NIST
Display 4.3" WQVGA color touch display, 480x272 px
Configuration Memory for 50 custom configurations
Standards ISO 21501-4 and JIS B9921
Dimensions 13.3 x 5.8 x 22.6 cm
Weight 1.18 kg / 2.6 lbs
Storage 45000 data sets (ring memory) consisting of
  Particle counting, temp. And humidity
Samples duration 1 s ... 99 h adjustable
Power supply 110 ... 240V AC 50/60 Hz
Operating conditions 5 ... 40°C / 41 ... 104°F
  Up to 95% RH not condensing
Storage conditions 0 ... 50°C / 32 ... 122°F
  Up to 98% RH not condensing
Housing material Stainless steel

Interface Ethernet, USB
Optional interfaces Wifi 802.11 b / g, RS485 or RS232
Number of measuring channels 6


Delivery Scope

1 x Dust measuring device PCE-PQC 34US
1 x Isokinetic probe
1 x Power supply
1 x Calibration certificate according to NIST
1 x User manual
