Dust Particle Measuring Device PCE-RCM 12

Order no.: PCE-RCM 12
GTIN (EAN): 4250348717900
US$ 616.00
ex. VAT, ex. delivery costs
:
4250348717900
PCE-RCM 12
Available in: 1-2 days

Description

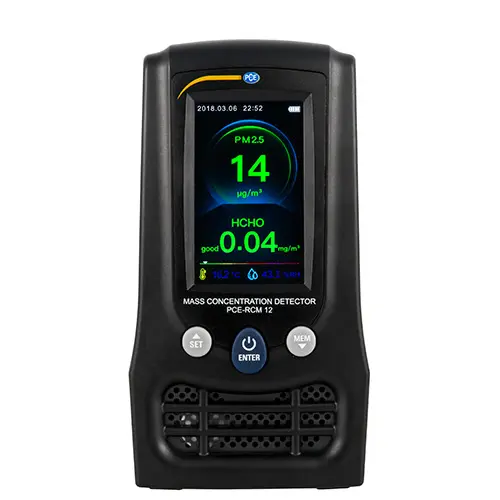

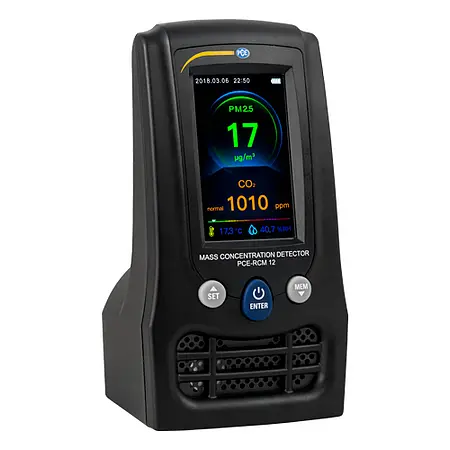

Dust Particle Measuring Device PCE-RCM 12
Air quality monitor for orientation measurement of environmental conditions / Determination of CO2, HCHO, particulate matter (PM2.5 / PM10) / Temperature und relative humidity / 3" TFT LCD Display

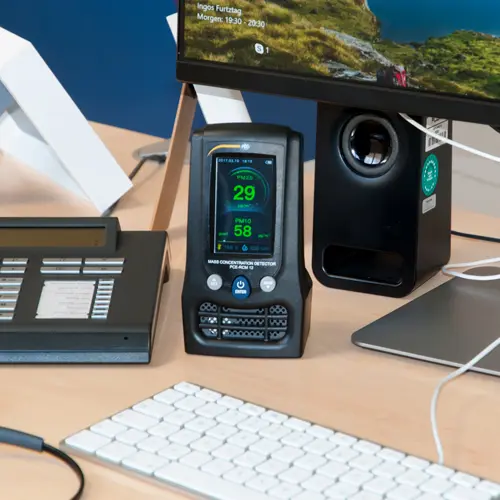

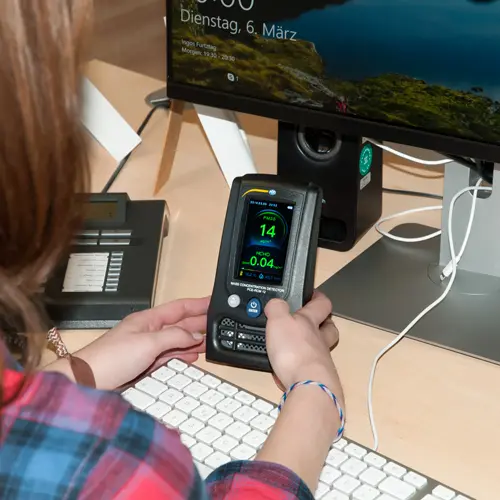

The dust particle measuring device PCE-RCM 12 is used for orientation testing of environmental parameters. The dust particle measuring device PCE-RCM 12 enables the measurement of CO2, fine dust, temperature and relative humidity. The bright display of the dust particle measuring device provides information about these parameters. Environmental monitoring can be done continuously with the dust particle measuring device for up to five hours without the device being connected to a power source.

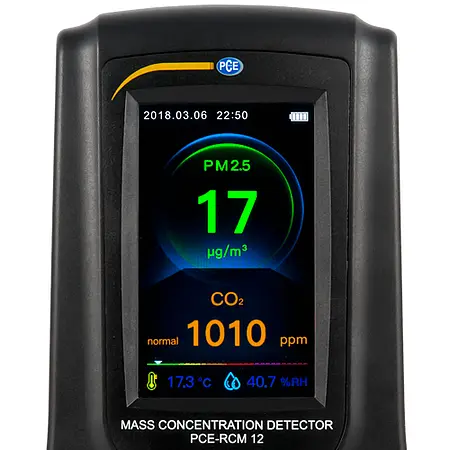

For permanent measurement, the dust particle measuring device can be connected to AC power via a USB interface. The rechargeable battery will be recharged within two hours if the air quality monitor is turned off. When measuring carbon dioxide, the meter has a wide measuring range from 0 to 9,999 ppm. The display of the concentrations is further facilitated by the use of a color rating scale, as this provides direct information about the air quality to the user.

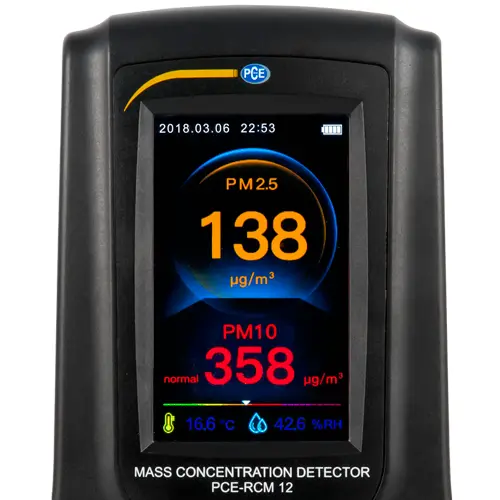

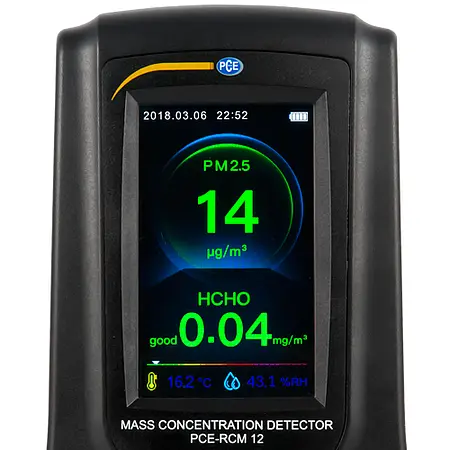

In addition to the orientation measurement of formaldehyde, which can be harmful to health, an orientation measurement of particulate matter pollution can also be carried out. A distinction is made between particles with a maximum diameter of up to 10 μm (PM10) and particles up to a diameter of 2.5 μm (PM2.5).

Highlights

- Measurement of CO2 and formaldehyde
- Indication of room temperature and humidity
- Particulate matter measurement (PM2.5 / PM10)
- Large CO2 measurement range up to 9999 ppm
- Changing display of the measured values
- Memory for up to 5000 measuring groups
- Date and time display
- 3" large TFT-LCD display
- Safe and easy handling

Specification

Measuring range fine dust PM2.5 / PM10
Measuring range particle measurement   0 ... 2000 µg/m³
Resolution particle measurement 1 µg/m³

Measuring range CO2 0 ... 9999 ppm
Accuracy CO2 ±5% of measured value or ±75 ppm
Resolution CO2 1 ppm

Measuring range formaldehyde 0.00 ... 5.00 mg/m³
Accuracy formaldehyde ±5% of measured value
Resolution formaldehyde 0.01 mg/m³

Measuring range humidity 0 ... 100% r.H.
Accuracy humidity ±3.5% r.H. (at 20 ... 80% r.H.)
± 5% r.H. (at 0 ... 20% r.H. / 80 ... 100% r.H)
Resolution humidity 0.1% r.H.%

Measuring range temperature -20 ... 70°C / -4 ... 158°F
Accuracy temperature ±2°C / 3.6°F
Resolution temperature 0.1°C / 0.18°F

Sound sensor Wake up function to APO
Power supply 2400-mAh, rechargeable battery
Battery life Continuous measurement for up to 5 hours
Charging Via USB 5V / 1 A
Charging time 2 hours (when switched off)
Automatic sleep mode Adjustable if necessary
Display 3" TFT LCD Display, 240 x 400 pixel
Data storage 5000 measurement groups
Operating temperature 0 ... 50°C / 32 ... 122°F
Storage temperature -10 ... 60°C / 14 ... 140°F
Dimensions 85 x 75 x 155 mm / 3.3 x 2.9 x 6.1 in
Weight 360 g / < 1 lb

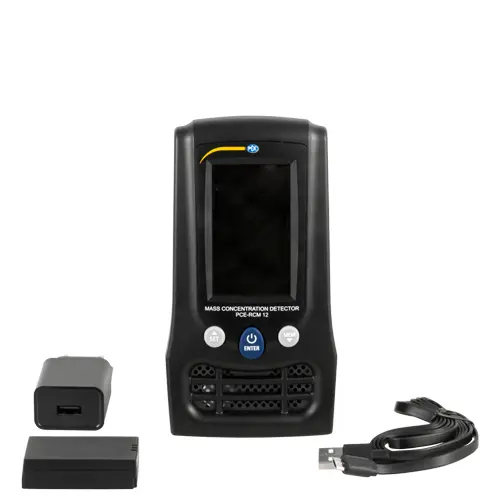

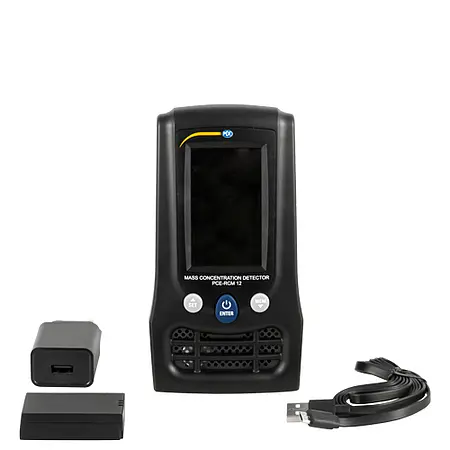

Delivery Scope

1 x Dust Particle Measuring Device PCE-RCM 12
1 x USB cable
1 x Battery pack
1 x Charging adapter
1 x User manual
