Electrical Tester PCE-BMM 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-BMM 10-ICA
GTIN (EAN):
US$ 519.00
ISO Calibration
ex. VAT, ex. delivery costs
PCE-BMM 10-ICA
Available in: 10 - 14 days

Description

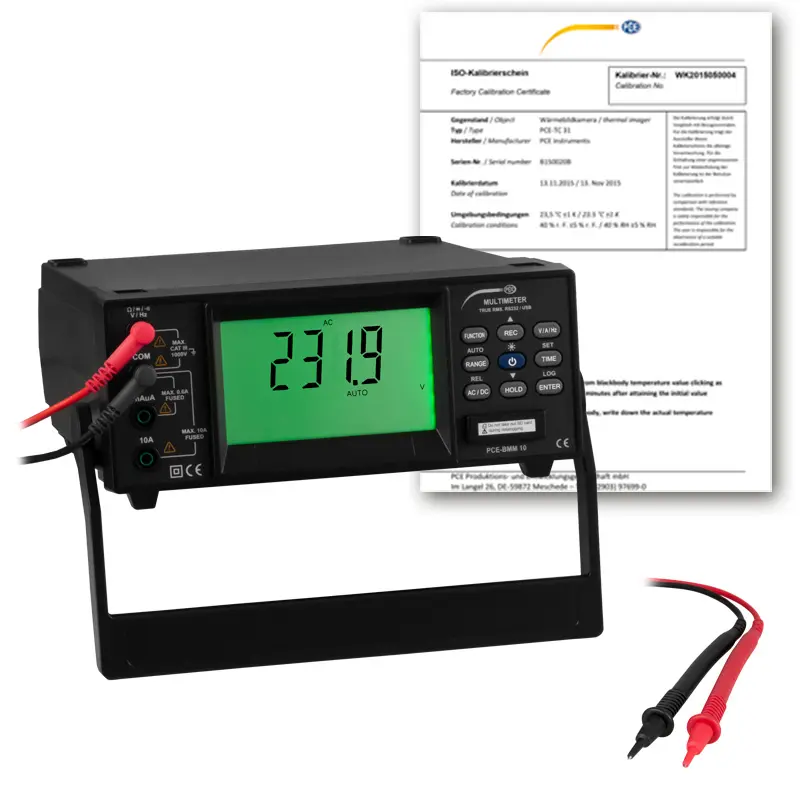

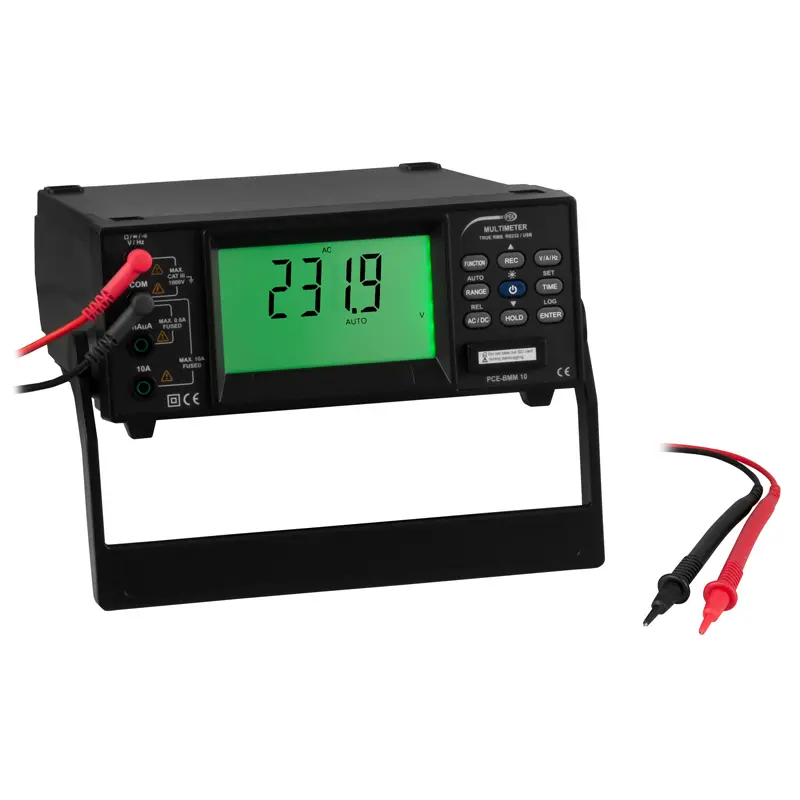

Electrical Tester PCE-BMM 10-ICA incl. ISO Calibration Certificate
Table multimeter with many measuring functions / Data logger / Mains operation (AC power adapter)and battery operation / TrueRMS measuring device / Measuring range up to 1000V and 10 A / RS-232 interface / Automatic switch-off function / Large and illuminated LC display / Storage rate between 1 ... 3600 s

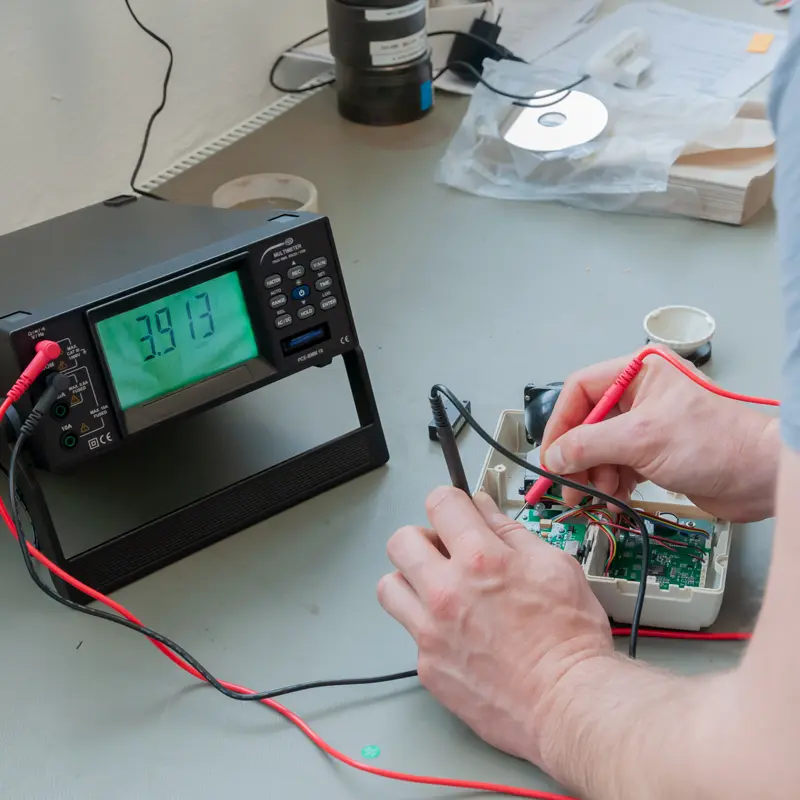

This PCE-BMM 10 electrical tester is equipped for mobile as well as stationary operation. As a supply voltage, the table multimeter with mains voltage (AC power adapter) as well as in battery operation can be used. A large range of functions of the measuring ranges leaves hardly anything to be desired. In addition to accurately capturing VDC, VAC, ADC, AAC and resistance, this desktop multimeter also determines the capacity and frequency. An acoustic continuity test and a diode test are also integrated in the desk multimeter.

In addition, the measured values ​​can be stored on an SD card of up to 32 GB on the table multimeter using the data logger function. As a result, long-term recordings of electrical components or assemblies, machinery and equipment are possible. Thanks to the large and illuminated display, the readings are very easy to read. This table multimeter can optionally also be laboratory-calibrated and equipped with an ISO calibration certificate (at the time of initial order or recalibration, eg annually).

Highlights

- Automatic / manual range selection
- Also suitable for mobile use
- Continuity test, diode test
- TrueRMS measurement
- RS-232 interface
- Mains / AC power adapter and battery operation
- Frequency measurement up to 60 MHz
- ISO calibration optionally available
- incl. ISO Calibration Certificate

Specification

Measuring range DC
Measuring ranges 600.0mV / 6V / 60V / 600V / 1000V
Resolution 0.1mV / 0.001V / 0.01V / 0.1V / 1V
Accuracy ± (0.5% + 2 d) to 600 mV
  ± (0.8% + 1 d) from 600 mV
Input resistance 10 Mohms
Overvoltage protection In the measuring range 600 mV to ± 350 VAC / VDC
  over measuring range 600 mV to ± 1000 VAC / VDC

Measuring range AC
Measuring ranges 600.0mV / 6V / 60V / 600V / 1000V
Resolution 0.1mV / 0.001V / 0.01V / 0.1V / 1V
Accuracy ± (1% + 3 d) at a frequency of 50/60 Hz
Input resistance 10 MΩ
Overvoltage protection in the measuring range 600 mV to ± 350 VAC / VDC
  over measuring range 600 mV to ± 1000 VAC / VDC

Direct current
measuring range Resolution Accuracy Fuse
10 A 0.01A ± (1.5% + 2 Dgt) 10 A / 600V
6 A 0.001 A ± (1.5% + 5 Dgt) 10 A / 600V
600-mA 0.1-mA ± (0.5% + 2 Dgt) 600 mA / 600V
60-mA 0.01-mA ± (0.5% + 2 Dgt) 600 mA / 600V
6000 μA 1 μA ± (0.5% + 2 Dgt) 600 mA / 600V
600 μA 0.1 μA ± (0.5% + 2 Dgt) 600 mA / 600V

Alternating current
Measuring range Resolution Accuracy Fuse
10 A 0.01A ± (1.5% + 2 Dgt) 10 A / 600V
6 A 0.001 A ± (1.5% + 5 Dgt 10 A / 600V
60-mA 0.1-mA ± (1% + 7 Dgt) 600-mA / 600V
600-mA 0.01-mA ± (1% + 7 Dgt) 600-mA / 600V
6000 μA 1 μA ± (1% + 7 Dgt 600-mA / 600V
600 μA 0.1 μA ± (1% + 7 Dgt) 600-mA / 600V

The accuracies refer to 50 and 60 Hz
Diode test
Measuring range 2.7 VDC
Accuracy ± (0.5% + 2 Dgt)

Frequency measurement
Area Resolution Accuracy
60 MHz 0.01 MHz ± (0.5% + 2 Dgt)
6 MHz 0.001 MHz ± (0.5% + 2 Dgt)
600 KHz 0.1 KHz ± (0.5% + 2 Dgt)
60 KHz 0.01 KHz ± (0.5% + 2 Dgt
6 KHz 0.001 KHz ± (0.5% + 2 Dgt)
600 Hz 0.1 Hz ± (0.5% + 2 Dgt)
60 Hz 0.01 Hz ± (0.5% + 2 Dgt)

Sensitivity Min. 1 V rms, Max. 5 V rms
Continuity measurement
Acoustic signal with a resistance of less than 3 Ω
Duty cycle
Frequency range Duty cycle range
60 Hz ... 600 Hz 5 ... 90%
601 Hz ... 6 kHz 10 ... 90%
6.1 kHz ... 60 KHz 20 ... 80%
61 KHz ... 1 MHz 30 ... 80%
> 1 MHz ... 10 MH Only as a reference measurement

Accuracy ± (0.5% + 5 Dgt)
Sensitivity Min. 1V rms, Max. 5V rms
Resistivity
Measuring range Resolution Accuracy Fuse
60 MΩ 0.01 MΩ ± (3% + 5 Dgt) ± 350 VAC / DC
6 MΩ 0.001 MΩ ± (1.5% + 2 Dgt) ± 350 VAC / DC
600 kΩ 0.1 kΩ ± (1.5% + 2 Dgt) ± 350 VAC / DC
60 kΩ 0,01kΩ ± (1.5% + 2 Dgt) ± 350 VAC / DC
6 kΩ 0.001 kΩ ± (1.5% + 2 Dgt ± 350 VAC / DC
600 Ω 0.1 Ω ± (1% + 2 Dgt) ± 350 VAC / DC

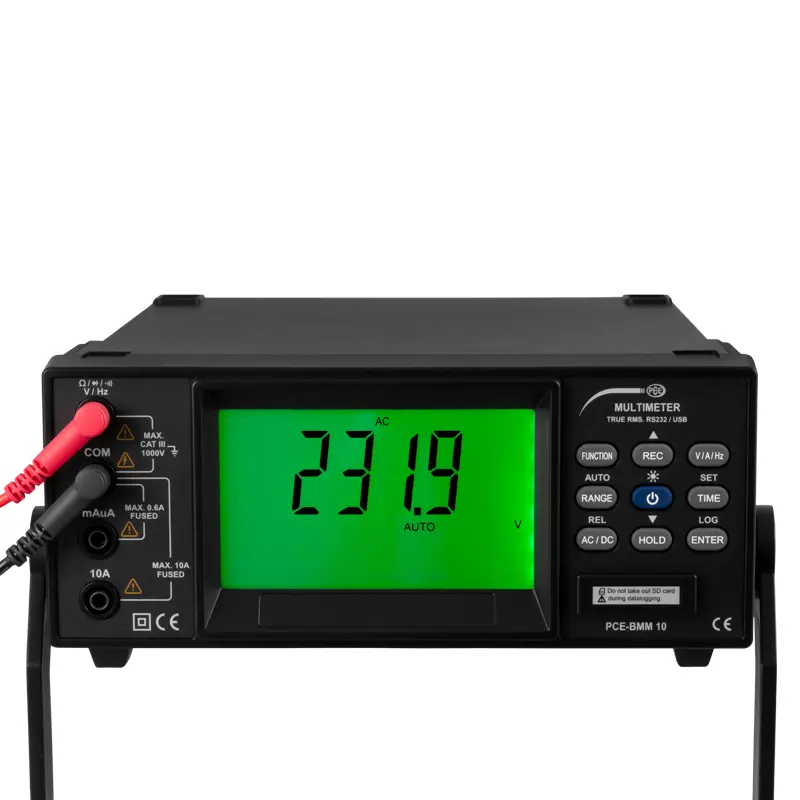

Display 97 mm x 56 mm / 3.8 x 2.2 in
Backlit LC display up to 6000
Display updating Average between 0.5 ... 1 second
Storage rate 0, 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600
  *a storage rate of 0 means manual storage
Corrupt data <0.1% of the data is typically faulty
SD card capacity 4 ... 32 GB
Select measuring range Automatic and manual
Additional function Put the measured value in relation
  Freeze measured value
  Automatic shutdown
  MAX / MIN
Polarity In reverse polarity, the measured value is negated.
Zero Automatically
Interface RS232
Power supply Primary: 230V, 50 Hz, 0.3 A
  Secondary: 9 VDC, 800-mA, 7.2 VA
Power supply 6 x AA 1.5V batteries
Dimensions 292 x 236 x 98 mm /
  11.5 x 9.3 x 3.9 in
Weight 1972 g / 4.3 lbs (without batteries)
Environmental conditions 0 ... 50°C / 32 ... 122°F, max. 80% RH
Degree of protection / Standardization           CAT I 1000V

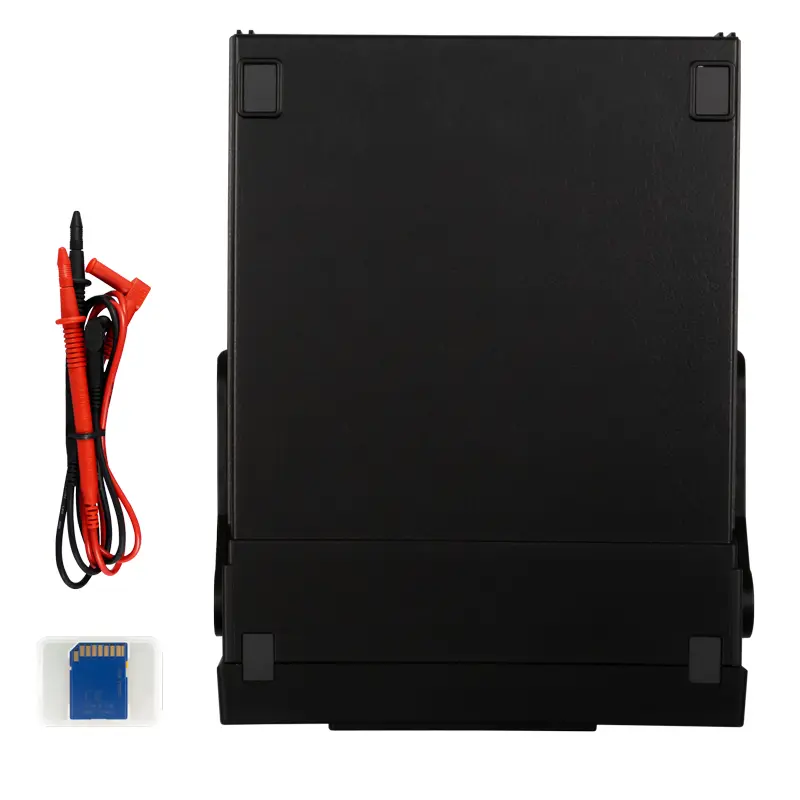

Delivery Scope

1 x Electrical Tester PCE-BMM 10-ICA
1 x Set of test leads
1 x SD card
1 x User manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
