Electromagnetic Field (EMF) Meter PCE-EMF 823

Order no.: PCE-EMF 823

GTIN (EAN): 4250348710659

Accessory

Power Supply 9 V / 0.8 A (US / North American)

US$ 21.00

Power Supply 9 V / 1 A (European)

US$ 33.00

Description

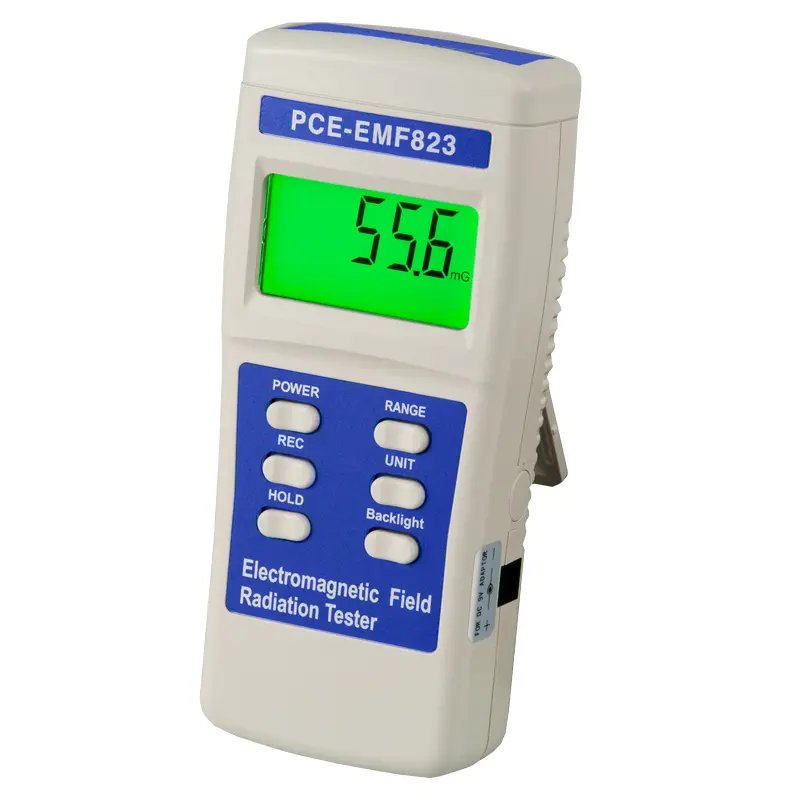

PCE-EMF 823 Electromagnetic Field (EMF) Meter
Single-axis electromagnetic field (EMF) meter or Gauss meter

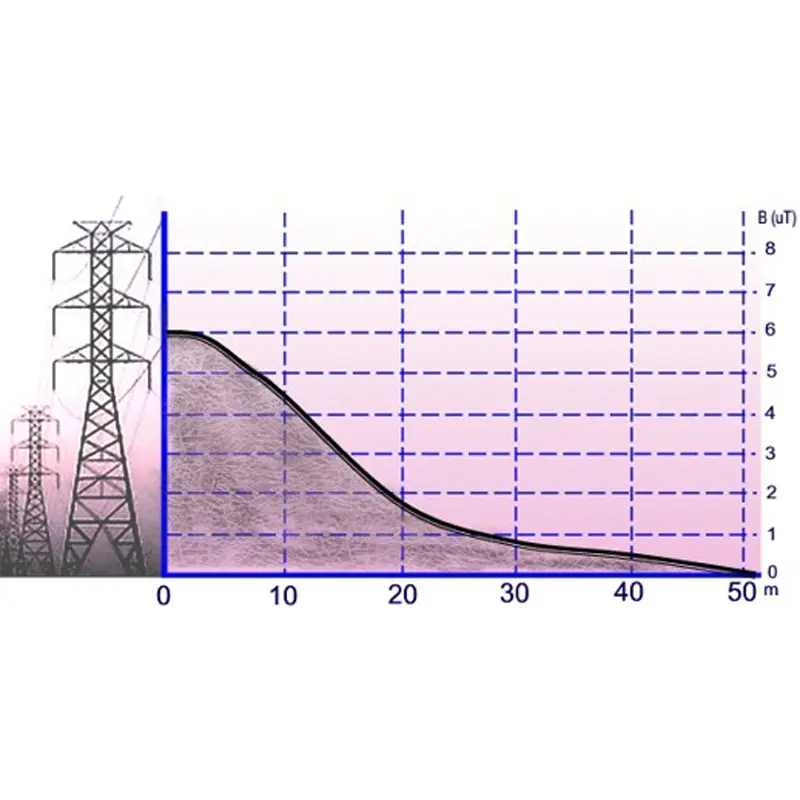

PCE-EMF 823 is a portable handheld single-axis electromagnetic field meter or Gauss meter for measuring electromagnetic fields (EMFs). This user-friendly EMF meter is ideal for assessing risks associated with exposure to electromagnetic radiation emitted from electric power lines, home appliances and industrial devices.

Designed and calibrated to measure EMF radiation at different bandwidths, the meter provides a quick, easy and reliable way to measure electromagnetic field radiation levels.

Highlights

- Single axis
- High accuracy
- LCD with backlight
- Data hold functionality
- Auto or manual power off
- Max. / min. readings with recall
- 2-year warranty against manufacturer defects
- Battery powered (optional electric power adapter sold separately - see accessories)

Specification

EMF range / resolution:

20 micro Tesla (µT) x 0.01 µT
200 µT x 0.1 µT
2000 µT x 1 µT
200 milli-Gauss (mG) x 0.1 mG
2000 mG x 1 mG
20000 mG x 10 mG

Number of axes: Single axis

EMF bandwidth: 30 Hz to 300 Hz

Sampling time: Approx. 1 second

Accuracy:

±4 % + 3 digits (up to 20 µT)
±5 % + 3 digits (up to 200 µT)
±10 % + 5 digits (up to 2000 µT)

Display: 48.8 x 25.3 mm / 1.92 x 0.1 in LCD with back-light

Overrange indication: Display shows "- - - -"

Operating temperature:
0 ... +50°C / +32 ... 122°F

Operating humidity: Max. 80% RH

Power supply: 1 x 9V DC battery (006P, 6F22)

Dimensions: 152 x 69 x 36 mm / 5.98 x 2.72 x 1.42 in

Weight: 215 g / 0.47 lb (including battery)
