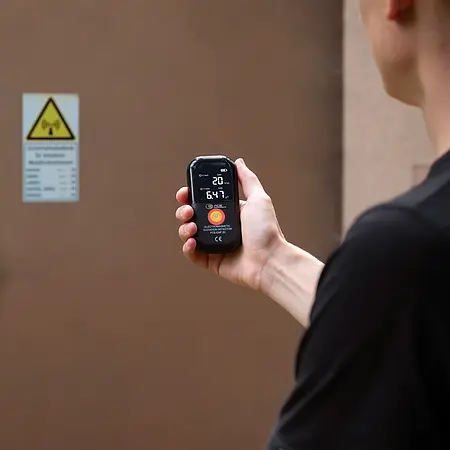

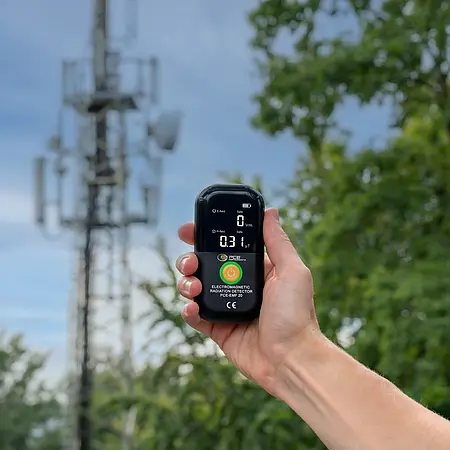

The Electromagnetic Field Meter is a device for the simultaneous measurement of electric and magnetic fields. It is ideal for domestic use for testing routers, Bluetooth devices, radios, televisions, computers, printers, microwave ovens, refrigerators and mobile phone masts. It offers a measurement range from 1 to 1999 V/m for electric fields and from 0.01 to 99.99 µT for magnetic fields. The Electromagnetic Field Meter has an alarm threshold of 40 V/m or 4 µT, above which an audible alarm is automatically triggered.
The Electromagnetic Field Meter operates within a bandwidth of 5 Hz to 3500 MHz and takes less than a second to deliver a measurement result. A built-in rechargeble 700 mAh lithium battery with USB-C interface makes the device convenient and durable. An LED display provides a clear indication of the measured values and the compact design with only one key ensures easy use. In addition, the Electromagnetic Field Meter switches off automatically when inactive to save energy.
Radiation | |
Measurement range up to | 1 ... 1999 V/m |
Resolution | 1 V/m |
Accuracy | 1 V/m |
Radiation | |
Measurement range up to | 0,01 ... 99,99 µT |
Resolution | 0,01 µT |
Accuracy | 0.01 µT |
General technical data | |

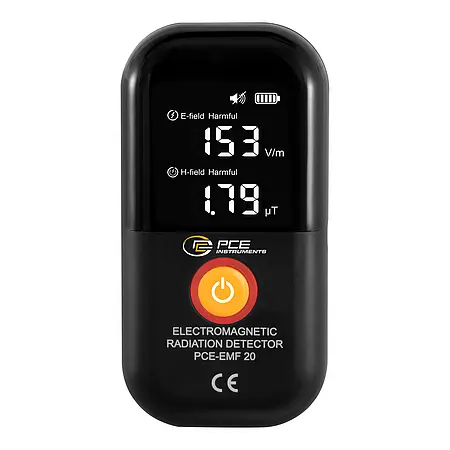

Display type | LED |
Display size | 2,2 Inch |

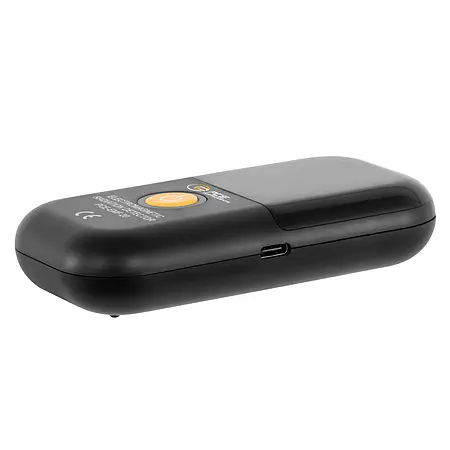

Interface | USB-C |
Response time | 0,5 s |
Automatic power-off | 5 min |
Bandwidth MF from | 5 Hz |
Bandwidth MF to | 3500 MHz |
Bandwidth EF from | 5 Hz |
Bandwidth EF to | 3500 MHz |
Alarm | Acoustic, optical |
Menu language | English, English (GB) |
Protection class (device) | IP20 |
Power supply | 5 V |
Weight | 75 g |
Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
(Rechargeable) battery | 1 x 3,7 V SL 603040 , Lithium-ion battery |
Capacity | 700 mAh |
Dimensions ( L x W x H ) | 110 x 55 x 23 mm |
