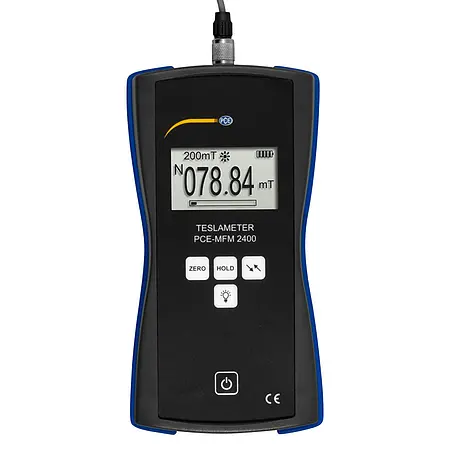

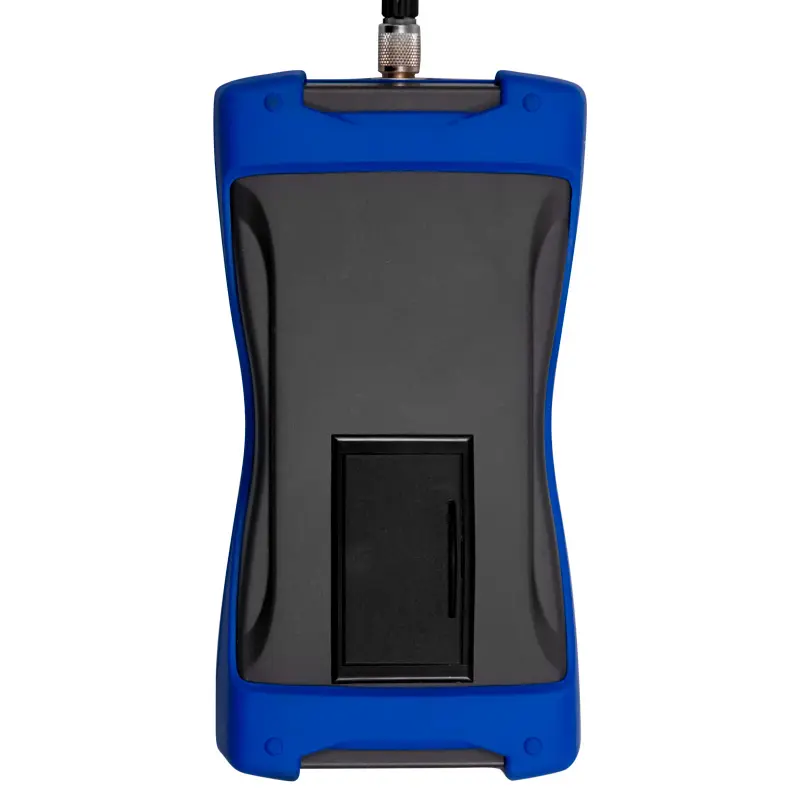

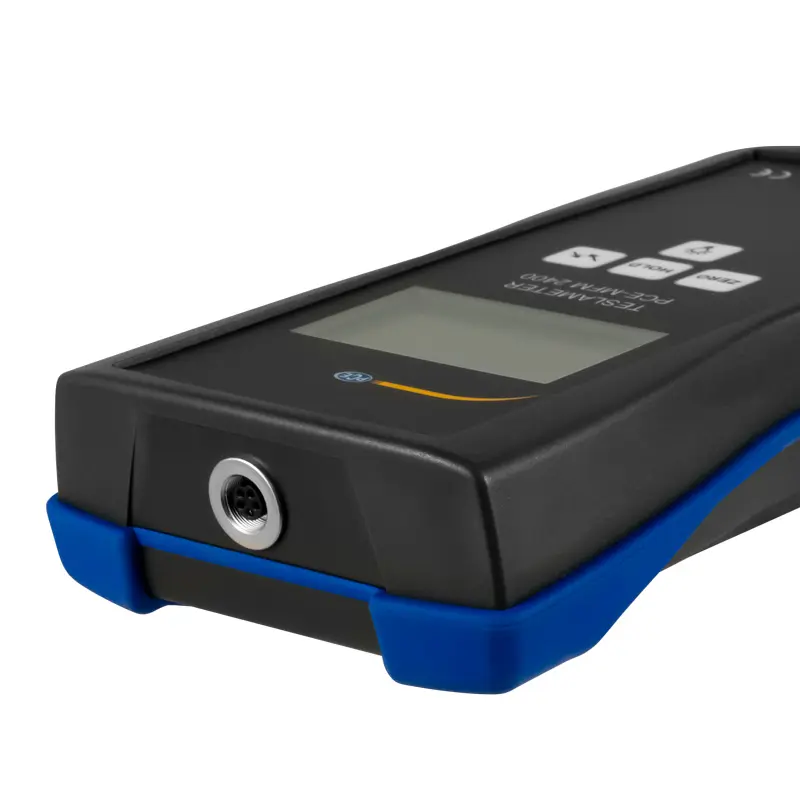

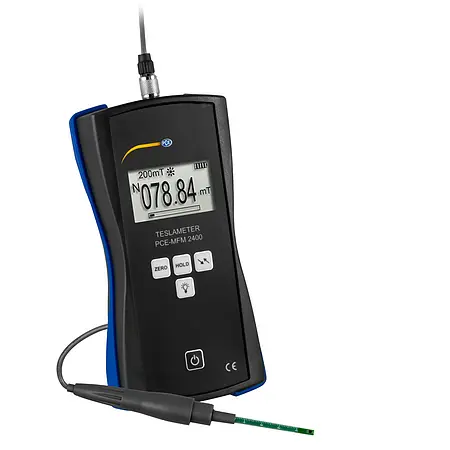

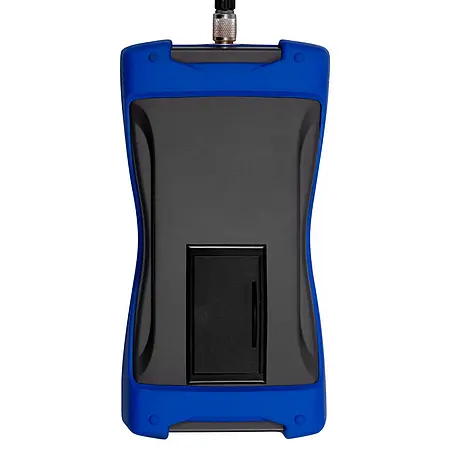

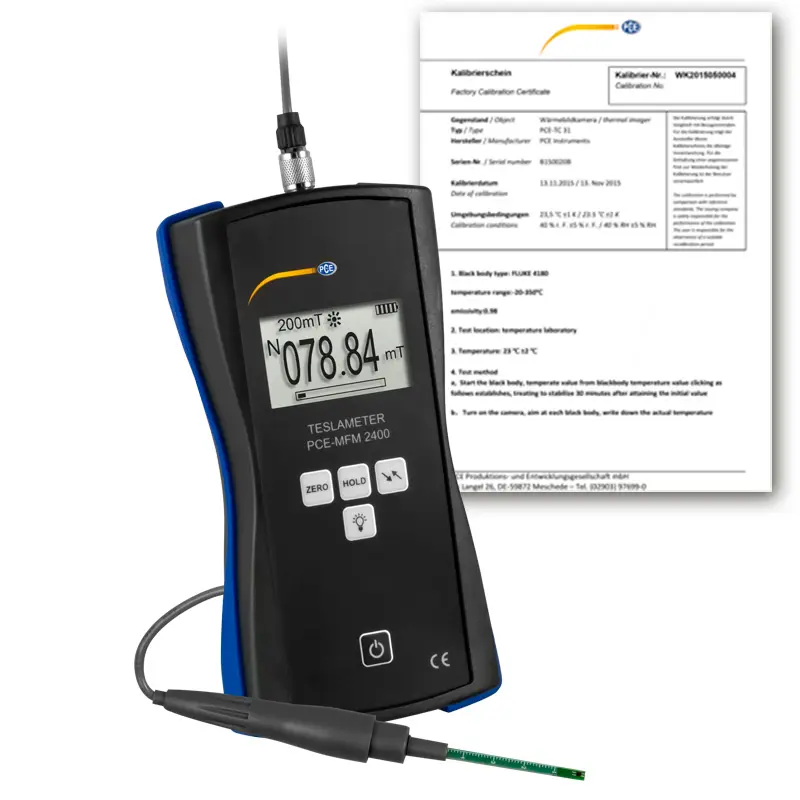

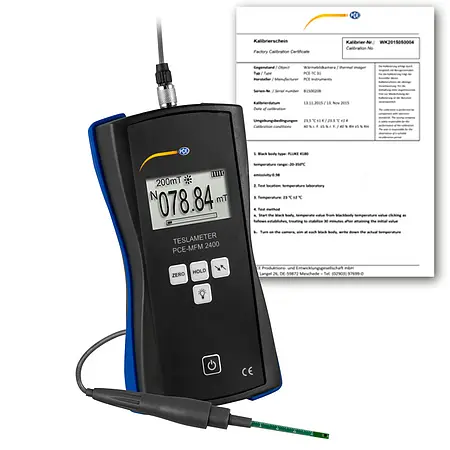

Electromagnetic Field Meter PCE-MFM 2400-ICA incl. ISO Calibration Certificate

Order no.: PCE-MFM 2400-ICA
GTIN (EAN): 4250348726315
US$ 1,227.00
ISO Calibration
ex. VAT, ex. delivery costs
:
4250348726315
PCE-MFM 2400-ICA
Available in: 10 - 14 days

Accessory

Plastic case for magnetic field tester PCE-MFM 2400
Plastic case for magnetic field tester PCE-MFM 2400
US$ 66.00

Description

Precise Electromagnetic Field Meter with an accuracy of 1% /
automatic switch-off / transverse measurement / backlight /
Tesla and Gauss measurement / for static magnetic fields

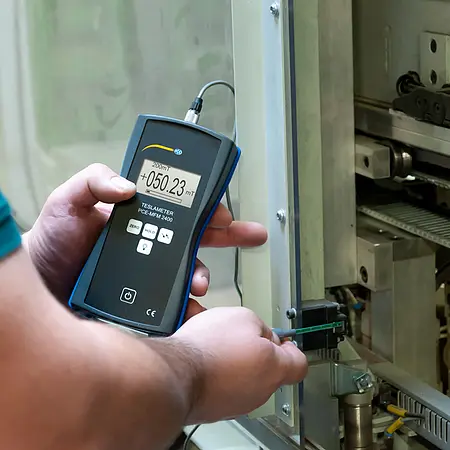

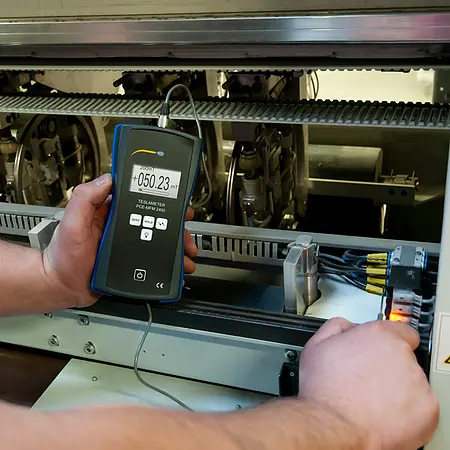

With a measuring range of 2,400 mT, the electromagnetic field meter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Radiation Detector a very precise measuring device. For example, the Electromagnetic Radiation Detector can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Radiation Detector is therefore used in production processes or in quality control.

With the backlight on the Electromagnetic Radiation Detector, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Radiation Detector automatically switches itself off after 5 minutes. This ensures that the battery of the Gauss meter does not discharge completely.


Highlights

- very precise measurement technology
- measuring range up to 24,000 G and 2,400 mT
- transverse sensor
- for measuring static magnetic fields
- automatic shutdown
- incl. ISO Calibration Certificate

Specification


Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

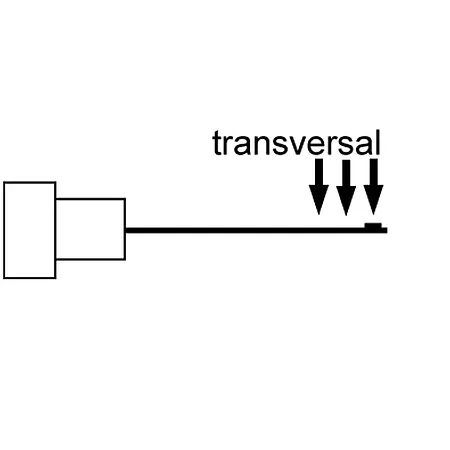

Measuring direction transversal
Magnetic field static (DC)
Unit mT, G
Power supply 1 x 9 V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes
 Hold mode, measurement mode

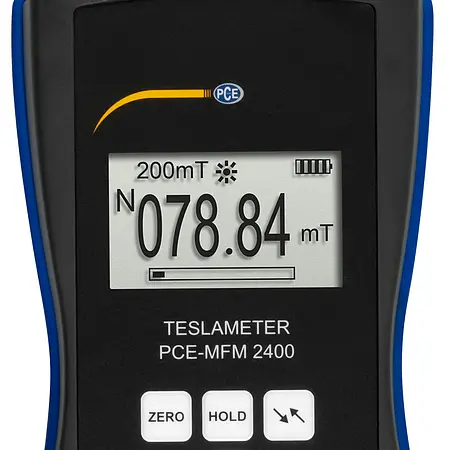

Display
 Backlight digital 4-digit value display
Operating temperature 32 ... 122 ° F, 0… +50 ° C
storage temperature -4 ... 122 ° F, -20… +50 ° C
Dimensions 7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
Weight 0.68 lb, 310 g

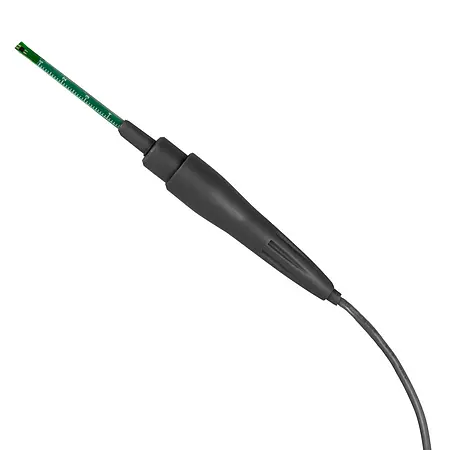

sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

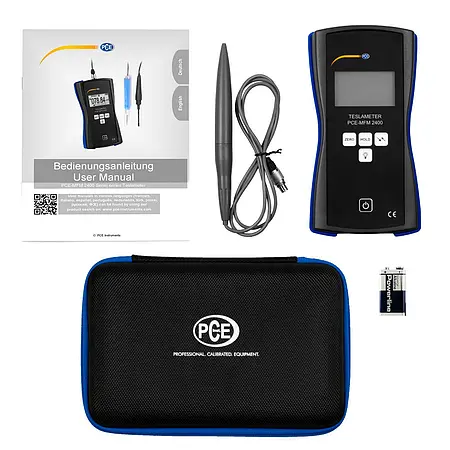

Delivery Scope

1 x Electromagnetic Field Meter PCE-MFM 2400-ICA
1 x Hall sensor (transverse)
1 x service bag
1 x 9 V block battery
1 x instruction manual
1 x ISO Calibration Certificate
