Electromagnetic Field Meter PCE-PSM 10

Order no.: PCE-PSM 10
GTIN (EAN): 4250348734150
US$ 1,645.00
ex. VAT, ex. delivery costs
:
4250348734150
PCE-PSM 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Electromagnetic Field Meter for mobile use / distance control / earth connection / battery status display / simple operation

The Electromagnetic Field Meter has a measurement range of 0.1 to 200 kV and an accuracy of ±10 % and is a test device for detecting the electrostatic voltage on the surface of objects. It uses non-contact measurement technology to detect the electrostatic field. The Electromagnetic Field Meter has a hold function that allows measured values to be recorded and a zero function that can be used to set the device to "0" before each measurement.

The ideal measuring distance is 25 mm ±1.0 mm. The Electromagnetic Field Meter is equipped with a 2-inch LC display with backlight, which allows the measured values to be read clearly even in poor lighting conditions. An automatic power off function after 5 minutes of non-use protects the batteries and extends the operating time. The Electromagnetic Field Meter is powered by AAA batteries and, with a compact size of 140 x 75 x 35 mm and a weight of 122 g, is lightweight and portable.

In addition, the Electromagnetic Field Meter has an earth connection to ensure proper earthing and therefore safety during use. This makes the meter versatile and suitable for use in electronics, plastics, chemicals and other industries.


Highlights

- measurement range: 0.1 ... 200 kV
- measuring function: hold
- working distance: 25 mm ±1.0 mm
- LC display 2 inch with backlight
- earth connection

Specification

Radiation
Measurement range up to  0,1 ... 200 kV DC
Resolution  0,1 kV DC
Accuracy  ±10 %

General technical data
Measuring functions  HOLD
Display type  LCD with backlight
Display size  2 Inch
Current consumption meter  100 mA DC
Automatic power-off  5 min
Working distance  25 mm ±1.0 mm
Protection class (device)  IP20
(Rechargeable) battery  2 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Operating conditions  -18 ... 50 °C , 0 ... 85 % RH
Storage conditions  -18 ... 50 °C , 0 ... 85 % RH
Dimensions ( L x W x H )  140 x 75 x 35 mm
Weight  122 g

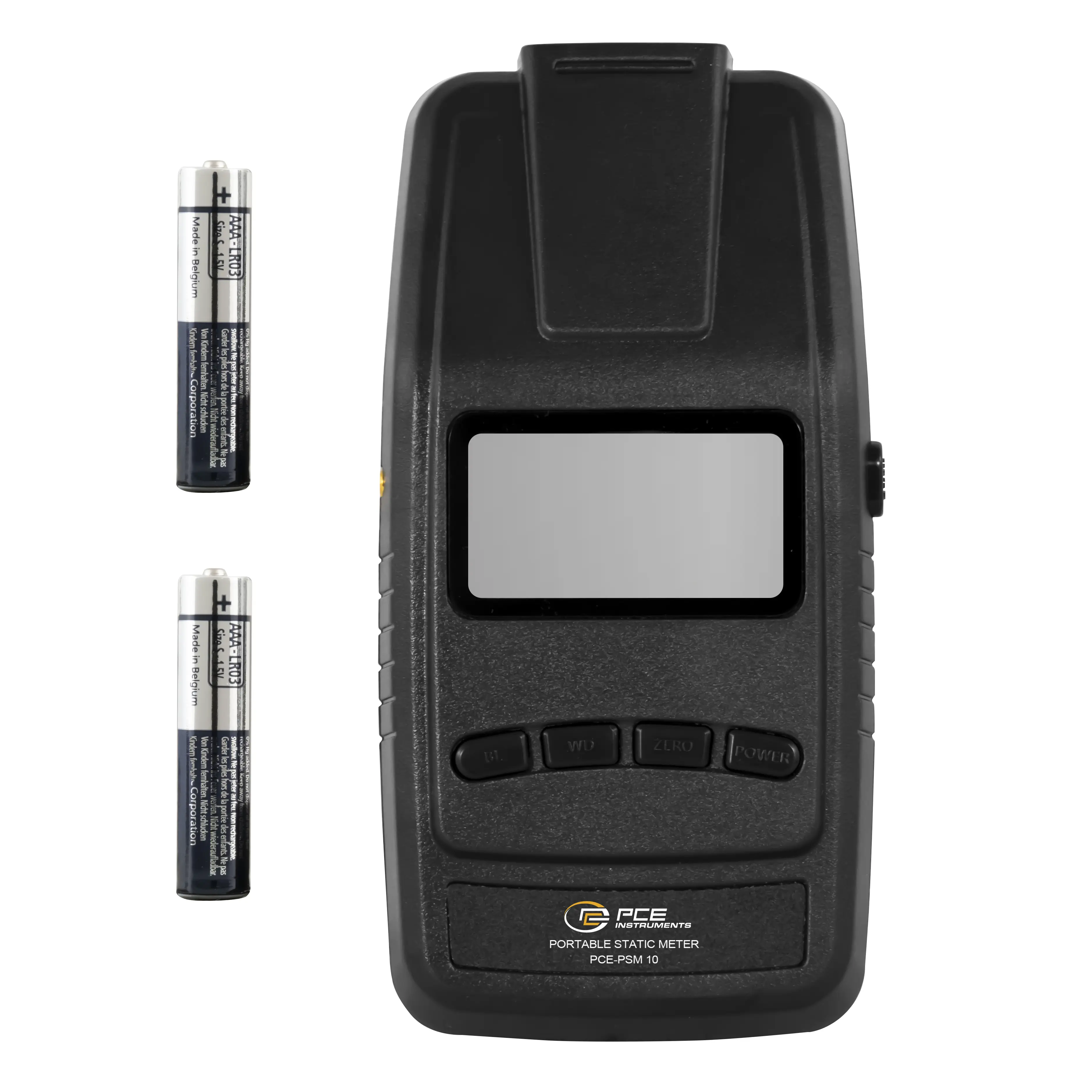

Delivery Scope

1 x Electromagnetic Field Meter PCE-PSM 10
2 x 1.5 V AAA battery
