Environmental Electromagnetic Radiation Meter PCE-EM 29-ICA incl ISO Cal. Cert.

Order no.: PCE-EM 29-ICA

GTIN (EAN):

Accessory

ISO Calibration Certificate CAL-PCE-EM 29

US$ 1,085.00

Description

Environmental Electromagnetic Radiation Meter PCE-EM 29-ICA incl. ISO Calibration Certificate
3-axis measuring spherical probe up to 3.5 GHz / Measured value memory /
Maximum value storage / Averaging

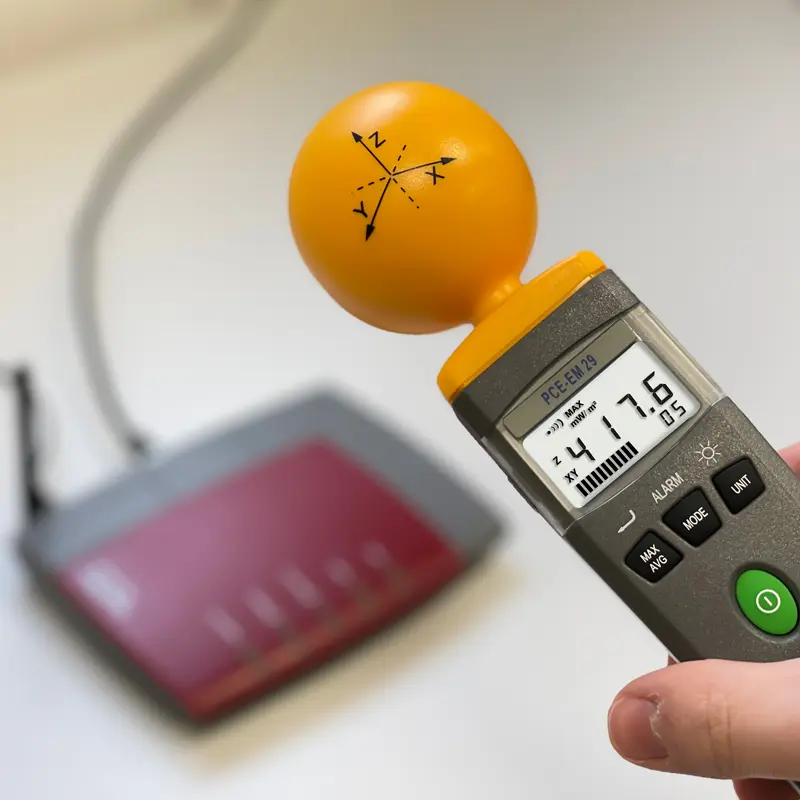

The environmental electromagnetic radiation meter has a 3-axis circular probe for detecting electromagnetic radiation. The radioactivity meter is therefore equally suitable for assessing magnetic fields generated by computer monitors, televisions, industrial equipment (magnetic separators, electric motors, inert gas welding equipment...).

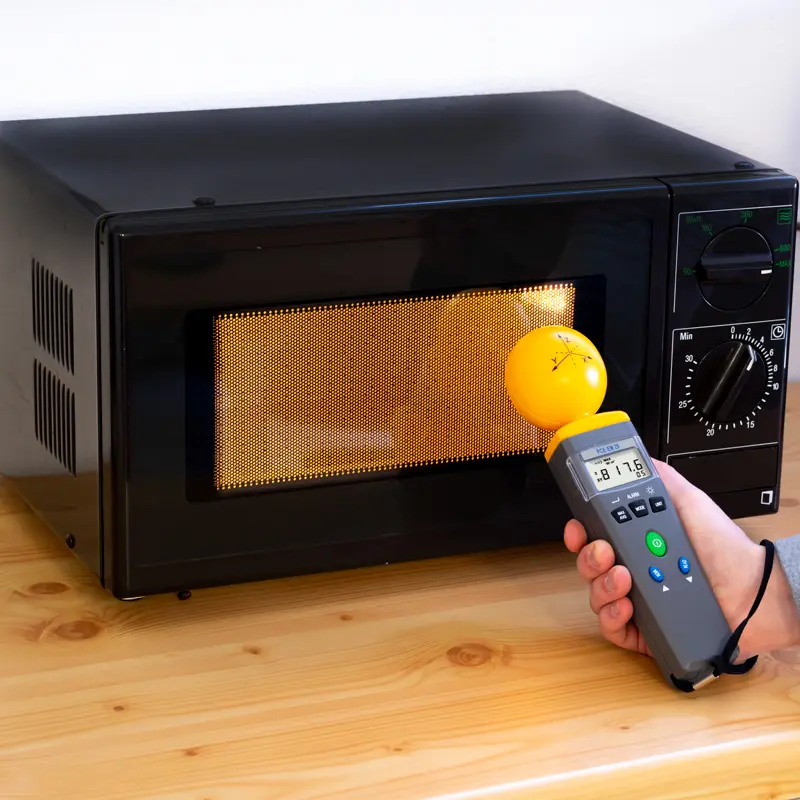

In addition, it is used to detect radiation in the field of wireless LAN, GSM or, for example, microwave radiation. With frequencies up to 3.5 GHz, it can also be used well in the HF range. The three-axis probe saves conversions for the individual axes. Due to its special characteristics, the small, compact radioactivity meter is also suitable for use in industrial environments as well as in the laboratory. Simple, fast and accurate.

Highlights

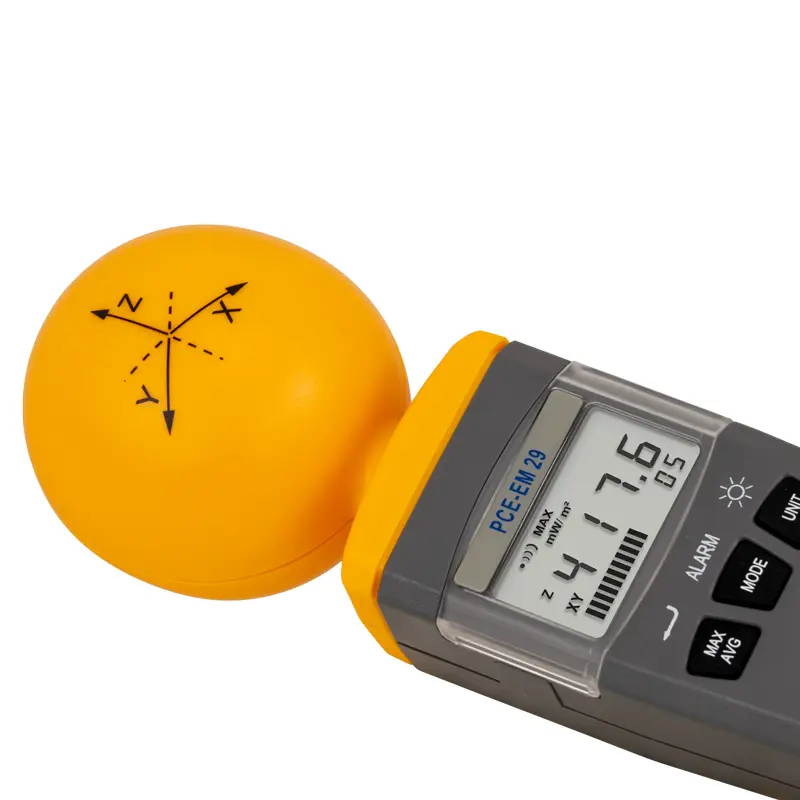

- Triaxial field probe (spherical shape)
- Average function
- Memory for 99 measured values (can be called up again on the device display)
- Various measuring units
- Adjustable limit value with alarm

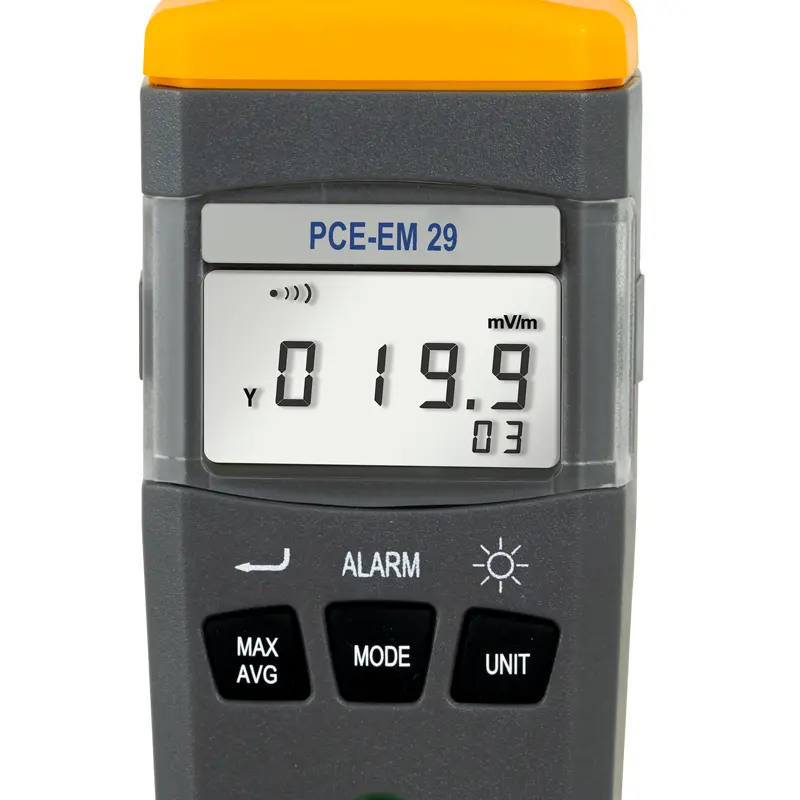

- Large LCD display
- Frequency range up to 3.5 GHz
- Easy handling
- Battery operation
- Suitable for work environment analysis
- incl. ISO Calibration Certificate

Specification

Frequency range	50 MHz ... 3.5 GHz
Sensor type	electric field (E)
Measurement	3-dimensional, isotropic
Measuring ranges	20 mV/m ... 108.0 V/m 53 µA/m ... 286.4 mA/m 1 µw/m² ... 30.93 W/m² 0 µW/cm² ... 3.093 mW/cm²
Measuring range selection	automatic
Response time	1 s (until 90% of the final value is reached)
Display units	mV/m , V/m , µA/m , mA/m, µW/m² , mW/m²
Resolution	0.1mV/m 0.1 µgA/m 0.01 µgW/m²
Measurement error (absolute) (at 1 V/m and 50 MHz)	±1.0 dB
Accuracy (frequency dependent)	±1.0 dB (50 MHz ... 1.9 GHz) ±2.4 dB (1.9 GHz ... 3.5 GHz)
Isotropic deviation	±1.0 dB (at frequency >50 MHz )
Maximum overrange	4.2 W/m² (40 V/m)
Temperature-related deviation	±1.5 dB
Display	4-digit LCD
Refresh of the display values	every 400 ms
Limit	adjustable
Alarm	beep when limit is exceeded
Calibration factor	adjustable
Averaging	adjustable over 4 s ... 15 min
Internal measurement memory	99 records (can be called up again in the display)
Measured values that can be displayed	current measured value, maximum value, mean value
Supply	9 V block battery
Weight	350 g / 0.78 lb (including battery)

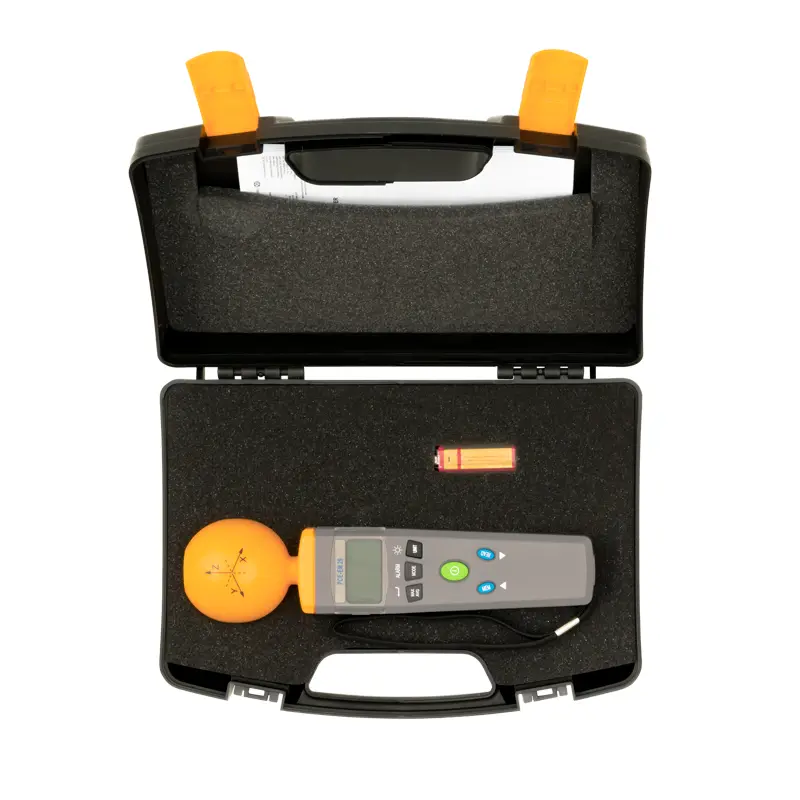

Delivery Scope

1 x Environmental Electromagnetic Radiation Meter PCE-EM 29-ICA
1 x Spherical triaxial sensor
1 x Battery
1 x User manual
1 x Carrying case

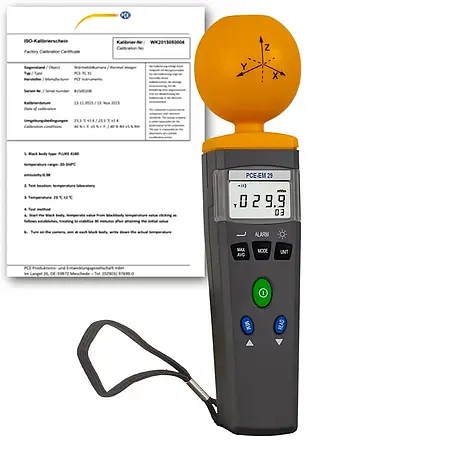

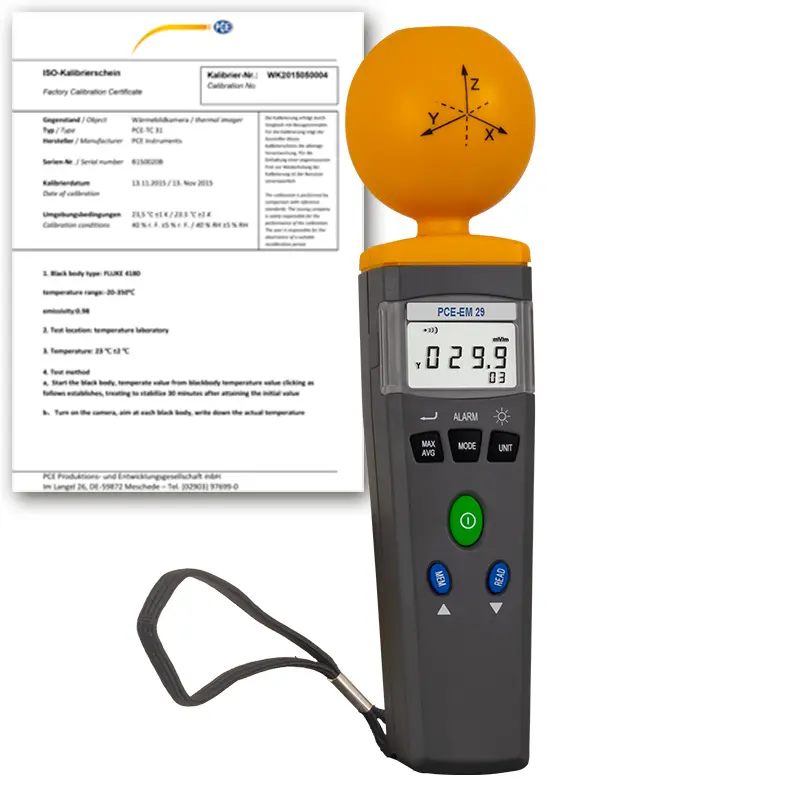

1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
