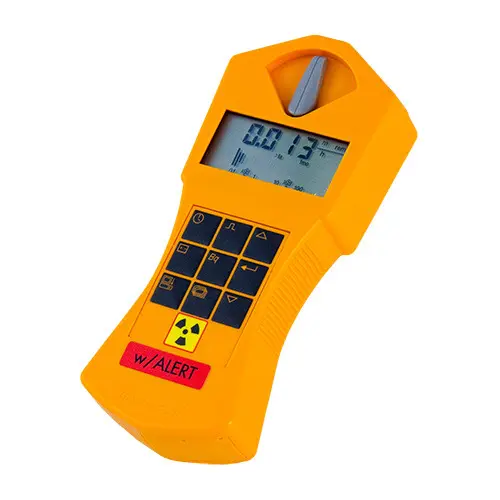

Environmental Meter GS2 with acoustic signal, internal memory and software
This professional environmental meter is a precise instrument to measure alpha, beta and gamma radioactivity. The environmental meter has a wide measuring range and can be used for diverse measurements types as for sporadic measurements in situations, long-lasting measurements or for controls.The environmental meter provides with a certified measurement of the environmental radiation as well as the radiation which is artificially increased up to 500 times over the limit value.

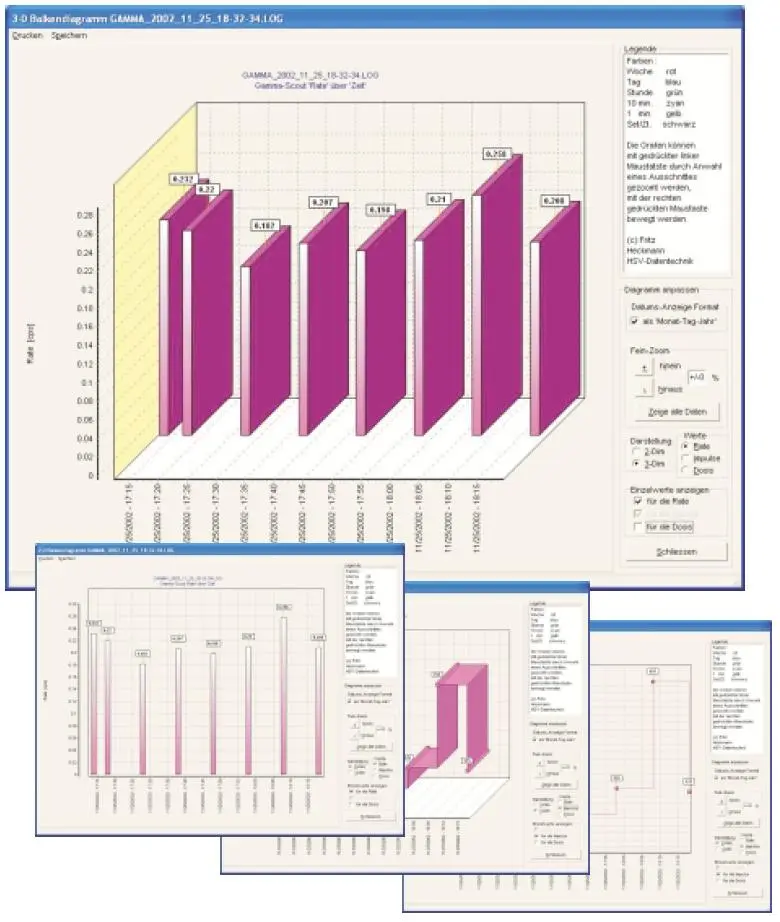

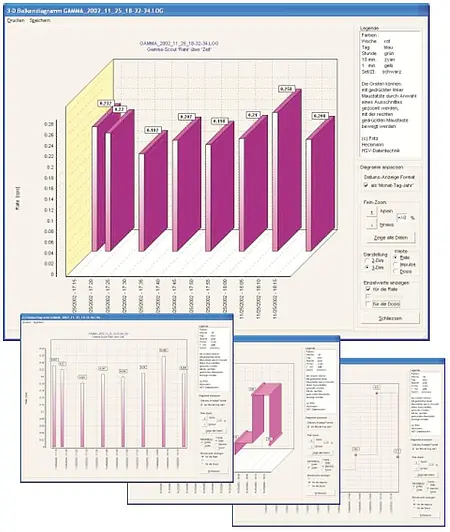

This environmental meter has diverse applications. This environmental meter has been usually used in nuclear power stations. Everyday it is most commonly used in the control of imported goods, as well as to measure the food which has been previously irradiated. This environmental meter can be also used to measure natural radioactive radiation as the one which appears near the sea and it fulfills all the requirements when controlling building materials. Radiation values can be recorded in the environmental meter memory or they can be transferred to a computer to be valued by means of a device included in the delivery (software and RS 232 data cable).
| Technical specifications | |
| Measuring principle / Radiation detector | Geiger-Müller counting tube, auto shut-off, stainless steel case with halogen filler - Measurement length = 38.1 mm / 1.5 in - Measurement diameter = 9.1 mm / .4 in - Window = 1.5 ... 2.5 mg/m² |
| Radiation types | - Alpha radiation from 4 MeV - Beta radiation from 0.2 MeV - Gamma radiation from 0.02 MeV |
| Selection of the diaphragm | - Alpha + Beta + Gamma (without diaphragm) Beta + Gamma ( (approx 0,1 mm) alpha is totally protected) - Gamma (display Al (approx 3 mm) alpha and beta radiation are totally protected approx. 2 MeV, it attenuates Gamma under 7%) |
| Gamma Sensibility | 95.0 impulses / min for radiation Co60 |
| Null quota | < 10 impulses / min with protection 3 mm Al y 50 mm Pb |
| Measurement ranges | 0.01 µSv / h - 1000 µSv / h |
| Measurement of the impulses | 1 ... 99 s, 1 ... 99 min, 1 ... 99 h, Mean value 24 h in µSv / h |
| Internal recording of the impulses | Intervals to be selected. every 1 min., 10 min, 1 hour, 1 day y 7 days |
| Storage capacity of the internal memory | 2 KB |
| Software / data cable | Yes, in the delivery |
| Power | Internal battery |
| Consumption | Under 10 micro-amp on average |
| Duration | More than 117000 h x 20 impulses / min (approx. 10 years) |
| Display | LCD display with 4 positions, numeric, with quasi-logarithmic denomination and representation and indication of functions. |
| Housing | Novodur plastic, shock resistant |
| Dimensions | 161 x 72 x 30 mm / 6.3 x 2.8 x 1.2 in |
| Weight | 153 g / < lb |
| Certification | Yes, in the delivery a quality certification is included for every numbered meter. |
| Standard | - European standard CE - USA standard FFC15 |
