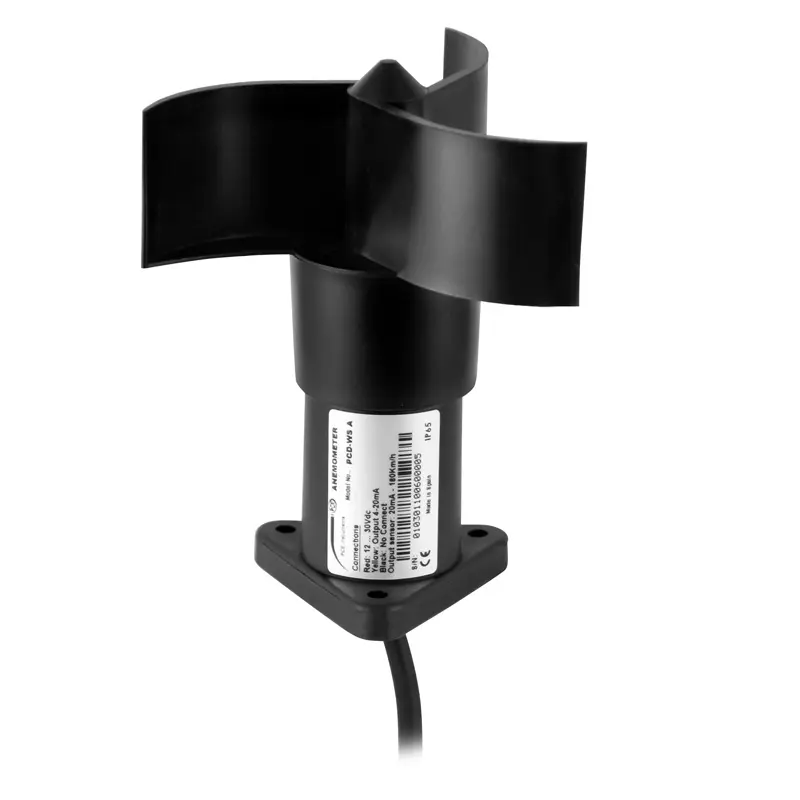

Environmental Meter PCE-WS A

Order no.: PCE-WS A
GTIN (EAN): 4250348722423
US$ 264.00
ex. VAT, ex. delivery costs
:
4250348722423
PCE-WS A
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Accessory

Digital Universal Indicator PCE-N24S
Digital Universal Indicator PCE-N24S
US$ 123.00
Panel Indicator PCE-DPD-U
Panel Indicator PCE-DPD-U
US$ 237.00
Digital Universal Indicator PCE-N25S
Digital Universal Indicator PCE-N25S
US$ 117.00
Optional Mounting Kit PCE-WS/MOUNT
Optional Mounting Kit PCE-WS/MOUNT
US$ 99.00

Description

Robust Environmental Meter for fixed installation / various output signals /
for wind warning systems, building services and building automation

The Environmental Meter impresses with its compact design and various output signals. The Environmental Meter can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Meter, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Meter is designed as a star, so that operation independent of the wind direction is guaranteed.

The Environmental Meter is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Meter is also protected to IP65. The design of the Environmental Meter also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Meter has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Meter is optionally available.

Highlights

- Robust PA plastic housing
- IP 65 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m / s

Specification

Measuring range2.62 ... 164.04 ft/s, 0.8 m / s ... 50 m / s
Measurement from≤2.62 ft/s, 0.8 m / s
Output4 ... 20 mA (passive)
Accuracy<13.12 ft/s: ± 0.89 ft/s, <4 m / s: ± 0.27 m / s
 > 13.12 ft/s: ± 3%, > 4 m / s: ± 3%
Operating voltage12 ... 30 V DC
Operating temperature range -4 ... +185 ° F, -20 ... +80 ° C at ≤95% rel. humidity
Maximum wind speed   180.45 ft/s, 123 mph, 55 m / s
Electrical connection65 ft, 20 m connection cable
Protection classIP65

Delivery Scope

1 x Environmental Meter PCE-WS A
1 x instruction manual
