PCE-EM 30 Environmental Electromagnetic Radiation Tester
Triple-axis electromagnetic field (EMF) detector with data-logging functionality / Comes with two external sensor probes (for low and high frequency ranges)

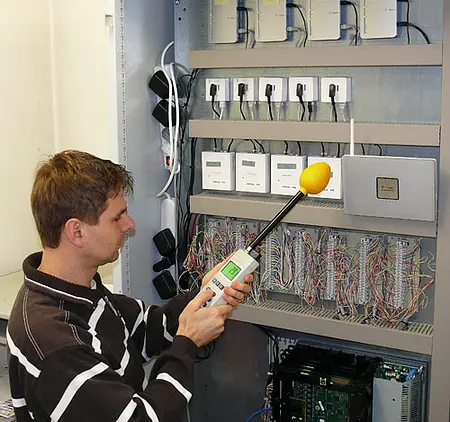

PCE-EM 30 is a digital portable 3-axis environmental electromagnetic radiation tester or EMF detector used to measure electromagnetic radiation generated by electronic devices and electric installations. This triple-axis EMF meter provides greater precision than single-axis models as well as affords the ability to assess EMFs from more than one source at a time.
Note: USB data cable Incl. software VT-204-SW required for data transfer to PC - please see accessories tab for details.
| Bandwidth / Frequency range of the probe EP-03H | 100 MHz ... 3 GHz |
| Range selection for the probe EP-03H | 900 MHz, 1 GHz, 1.8 GHz, 2.4 GHz, 2.45 GHz, 3 GHz |
| Bandwidth / Frequency range of the probe EP-04L | 100 kHz ... 100 MHz |
| Range selection for the probe EP-04L | 100 kHz, 200 kHz, 500 kHz, 1 MHz, 10 MHz, 13.56 MHz, 100 MHz |
| Accuracy | ±2 dB |
| Measuring ranges | 0 ... 199.99 V/m 0 ... 99.999 W/m² 0 ... 9.9999 mW/cm² |
| Resolution | 0.01 V/m 0.001 W/m² 0.0001 mW/cm² |
| Inital value | > 1 V/m > 0.03 W/m² > 0.0003 mW/cm² |
| External sensor probe types | Triple axis |
| Display | LCD, 58 x 34 mm / 2.28 x 1.34" |
| Limit value | Adjustable |
| Alarm | Acoustic signal when limit value is exceeded |
| Internal memory | 16,000 data records |
| Power | 9 V battery |
| Operating conditions | 0 ... 50 ºC / +32 ... +122 ºF, up to 80 % relative humidity (RH) |
| Dimensions | Meter: 200 x 76.2 x 36.8 mm / 7.88 x 3.00 x 1.45" Probes: 70 x 240 mm / 2.76 x 9.45" |
| Weight | 523 g / 1.16 lb (with battery included) |
