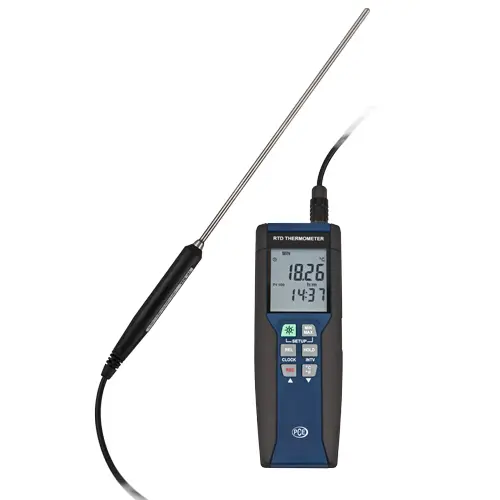

1-channel thermometer with 4-wire class A Pt100 sensor / Software for transmission and data value / Internal data logger
The environmental tester with microprocessor is a high precision 1-channel temperature gauge. The environmental tester with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology, it has a very fast response time and precision. Therefore, the sensors of the environmental tester with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the environmental tester with microprocessor reaches of -100 ... 400ºC / -148 ... 752ºF. The comprehensive software and easy to use environmental tester with the microprocessor allows a simple assessment to see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The environmental tester has an internal data logger with adjustable measuring range.
| Technical Data | ||
| Measurement range | -100 ... 400 °C / -148 ... 752 °F | |
| Accuracy | ±0.05% + 0.1 °C / 0.18 °F (between 18 ... 28 °C / 64.4 ... 82.4 °F) only the device | |
| Resolution | 0.01 °C / 0.018 °F | |
| Sensor | Class A, 4-wire Pt100 sensor | |
| Display | 5 digits, LCD | |
| Data transmision | USB | |
| Data memory | up to 5000 measuring points | |
| Reproducibility | a measurement value every 0.5 s | |
| Power supply | 1 x 9V battery or network adapter (optional) | |
| Dimensions device | 185 x 65 x 36 mm / 7.3 x 2.6 x 1.4" | |
| Dimensions sensor | 235 x 5 mm / 9.25 x 0.19" | |
| 123 mm / 4.84" handle | ||
| 1.5 m / 4.9 ft connection cable | ||
| Weight | 360 g / < 1 lb | |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, 80% R.H. | |
| Storage conditions | -10 ... 60 °C / 14 ... 140 °F, 80% R.H. | |
