Environmental Tester PCE-WS CR

Order no.: PCE-WS CR

GTIN (EAN): 4250348722645

Accessory

Optional Mounting Kit PCE-WS/MOUNT

US$ 99.00

Panel Indicator PCE-DPD-U

US$ 237.00

Digital Universal Indicator PCE-N25S

US$ 117.00

Digital Universal Display Panel Meter for System Integration PCE-N20U

US$ 154.00

Digital Universal Indicator PCE-N24S

US$ 123.00

Description

Robust Environmental Tester for fixed installation / various output signals /
for wind warning systems, building services and building automation

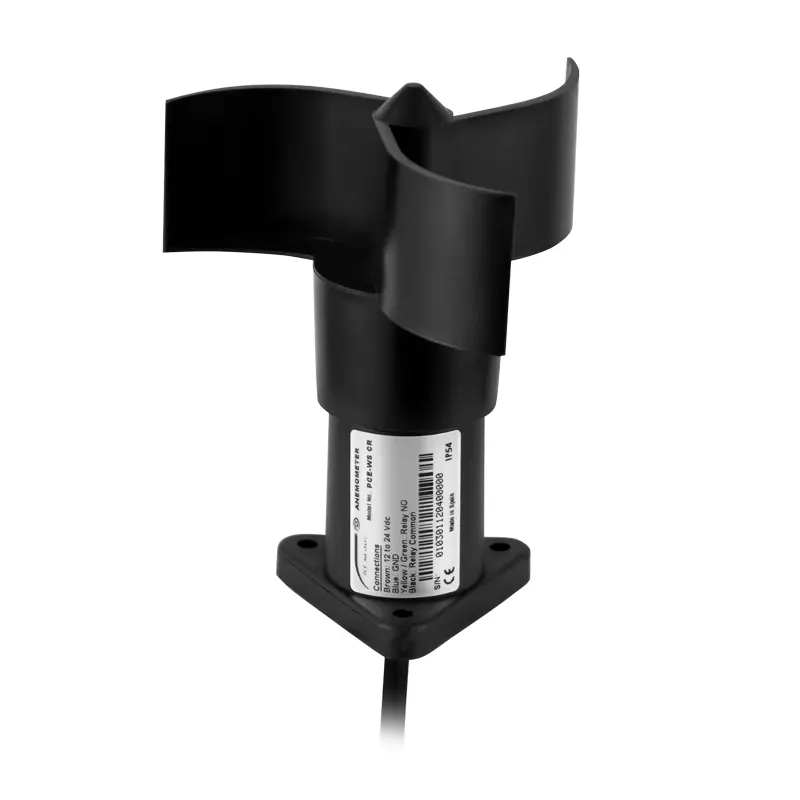

The Environmental Tester impresses with its compact design and various output signals. The Environmental Tester can be used for applications in warning technology, building automation and home technology. Depending on the Environmental Tester, a 4 ... 20 mA, 0 ... 10 V, Modbus or pulse output is available. The Environmental Tester is designed as a star, so that operation independent of the wind direction is guaranteed.

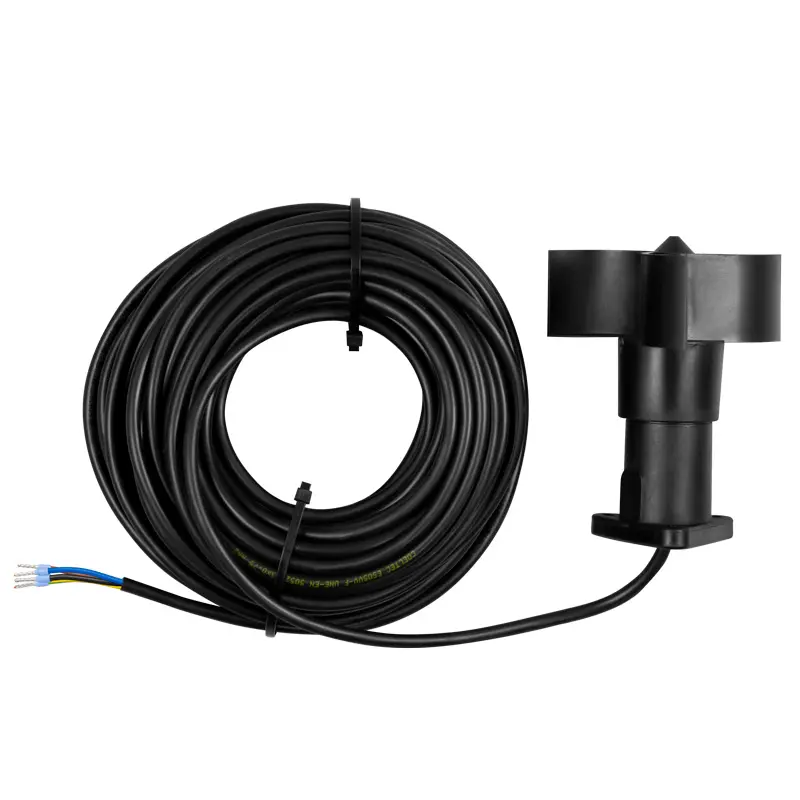

The Environmental Tester is made of robust plastic and is therefore resistant to rust and corrosion. The Environmental Tester is also protected to IP 54. The design of the Environmental Tester also ensures that it is particularly protected against high-frequency and electromagnetic radiation. The measuring range extends between 2.62 ... 164.04 ft/s, 0.8 ... 50 m / s. The Environmental Tester has a 65 ft, 20 m connection cable as standard. A stainless steel mounting kit for the Environmental Tester is optionally available.

Highlights

- Robust PA plastic housing
- IP 54 protection
- mA, V, pulse or Modbus output
- Long lifetime
- Direct measurement of wind speed
- Measurement from 2.62 ft/s, 0.8 m/s

Specification

Measuring range	0.8 m/s ... 50 m/s, 2.62 ... 164.04 ft/s
Measurement from	≤0.8 m/s, ≤2.62 ft/s
Output	Adjustable relay
Accuracy	<4 m/s: ± 0.27 m/s, <13.12 ft/s: ± 0.89 ft/s
	>4 m/s: ± 3 %, >13.12 ft/s: ± 3%
Operating voltage	12 ... 24 V DC
Operating temperature range	-20 ... +80 °C, -4 ... +185 ° F at ≤95 % rel. humidity
Maximum wind speed	55 m/s, 180.45 ft/s, 123 mph

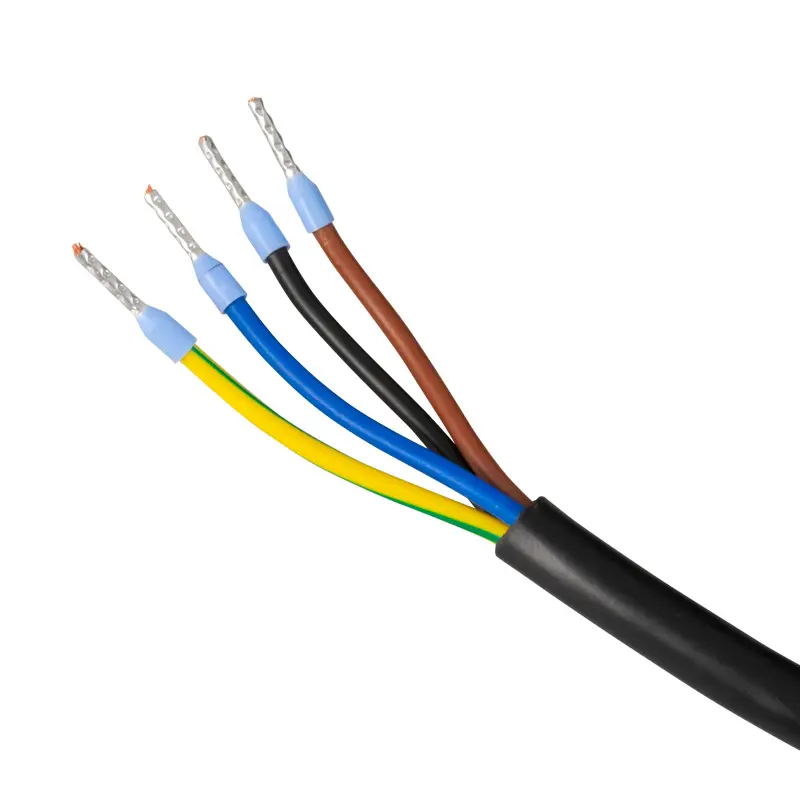

Electrical connection	20 m, 65 ft connection cable
Protection class	IP 54
